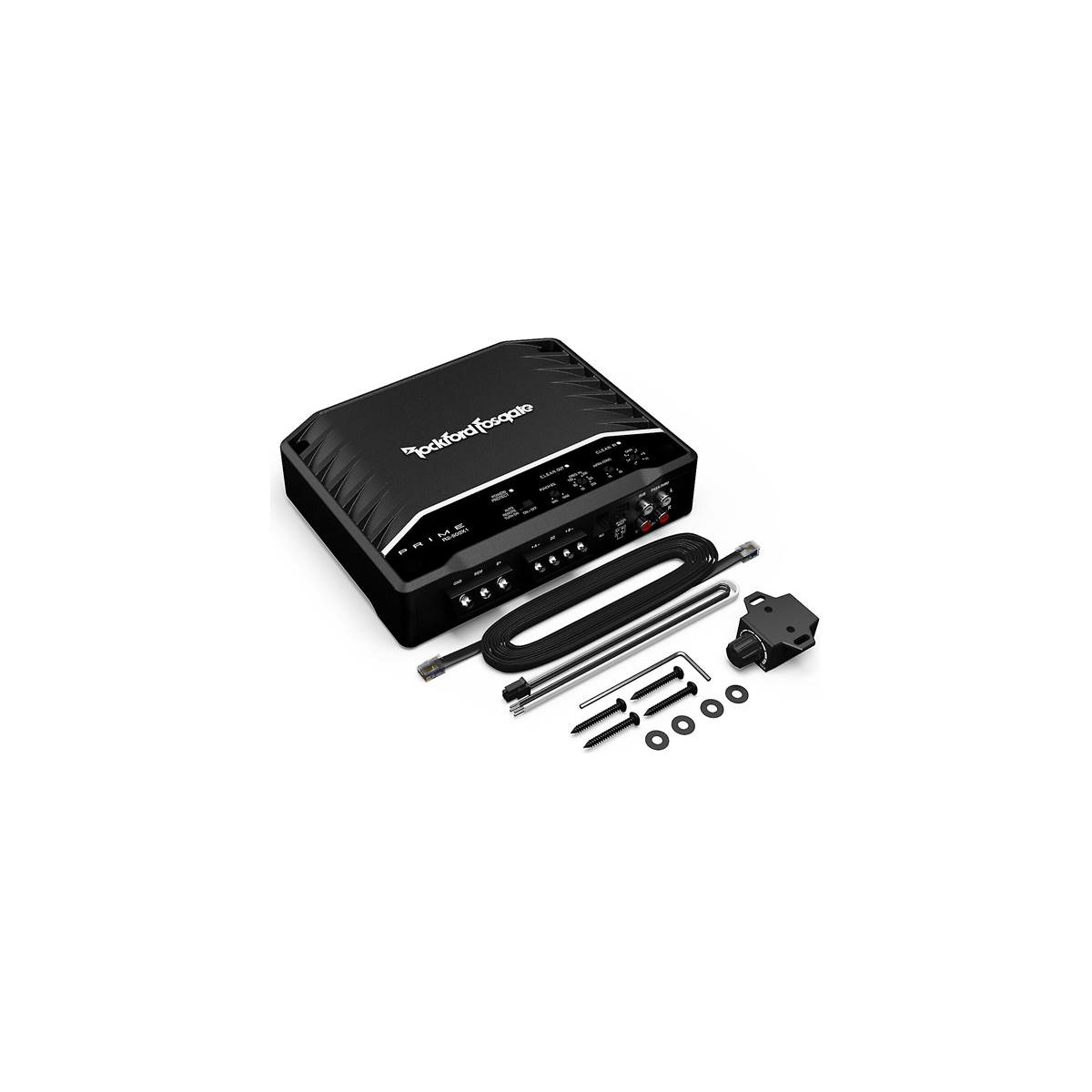

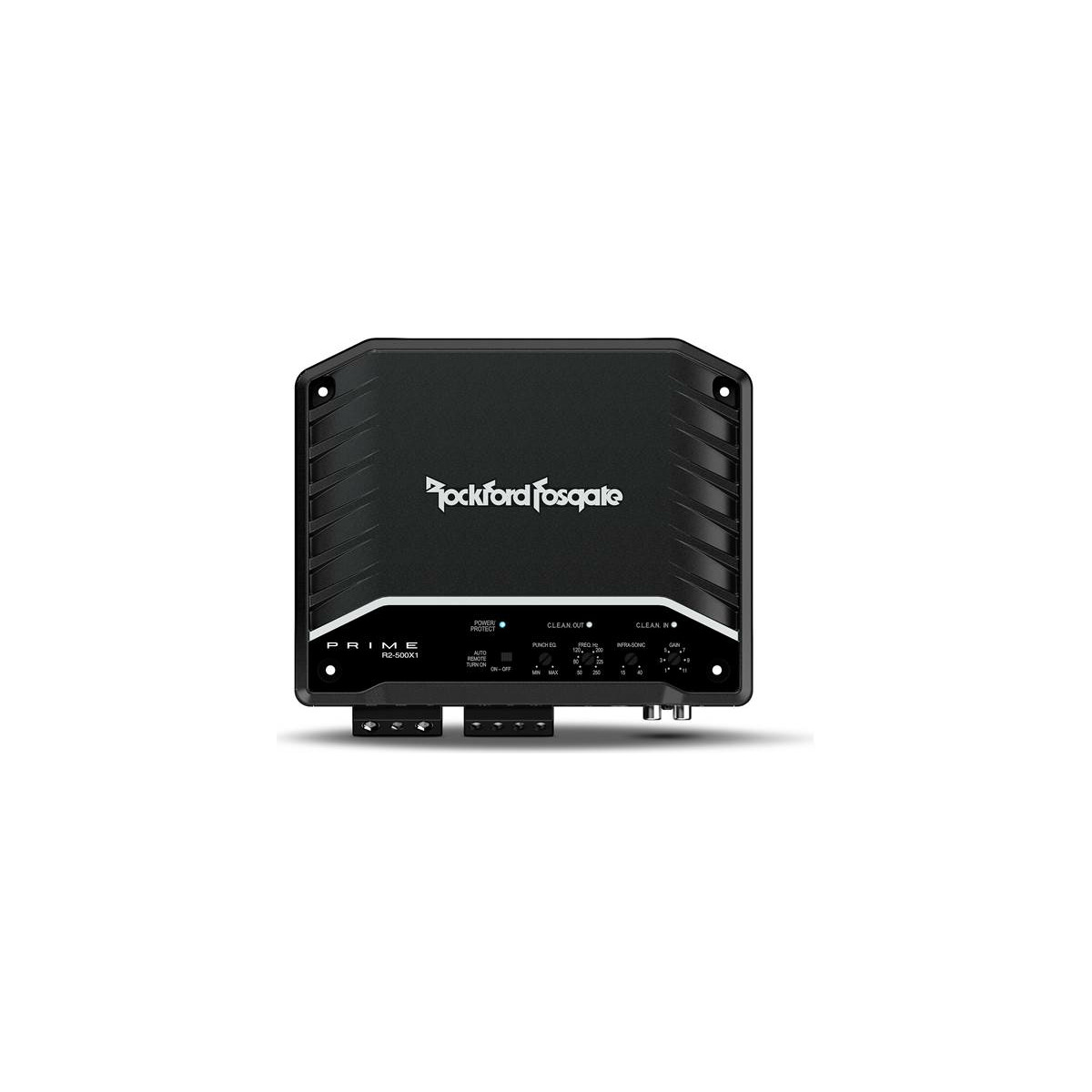

Prime 500 Watt Class-D Mono Amplifier

Primed for Performance, the R2-500X1 is a 500 watt, class-D amplifier, capable of operating at 4Ω or 2Ω mono.
This amplifier is extremely efficient because of its class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

R2 Amplifier Product Overview
Rockford Fosgate’s R2 amplifiers are the building blocks for great audio systems, powerful enough to even DRIVE our Punch speakers and subwoofers. They have undergone an amazing upgrade by packing them with the latest features at an incredible value. Best of all, they are designed and engineered in Tempe, Arizona.

Specifications:

·         CEA-2006 GuidelinesCEA-2006 Power Rating 300W x 1 @ 4Ω

·         ≤1.0% THD+N

·         Number of Channels 1

·         Total Power (Sum of Rated Power) 500 Watts

·         Rated Power (RMS Continuous Power)

300 Watts x 1 @ 4Ω

500 Watts x 1 @ 2Ω

·         Dynamic Power (PVC/PowerCube®)

350 Watts x 1 @ 4Ω

590 Watts x 1 @ 2Ω

·         Bridgeable No

·         Frequency Response 20 Hz – 250 Hz

·         Input Sensitivity:

·         Low-Level: 150 mV – 4 V

·         High-Level: 450 mV – 12 V

·         Circuit Topology Class Class D

·         Efficiency (average)

·         Total Harmonic Distortion (THD+Noise)

·         4Ω: <1.0%

·         2Ω: <1.0%

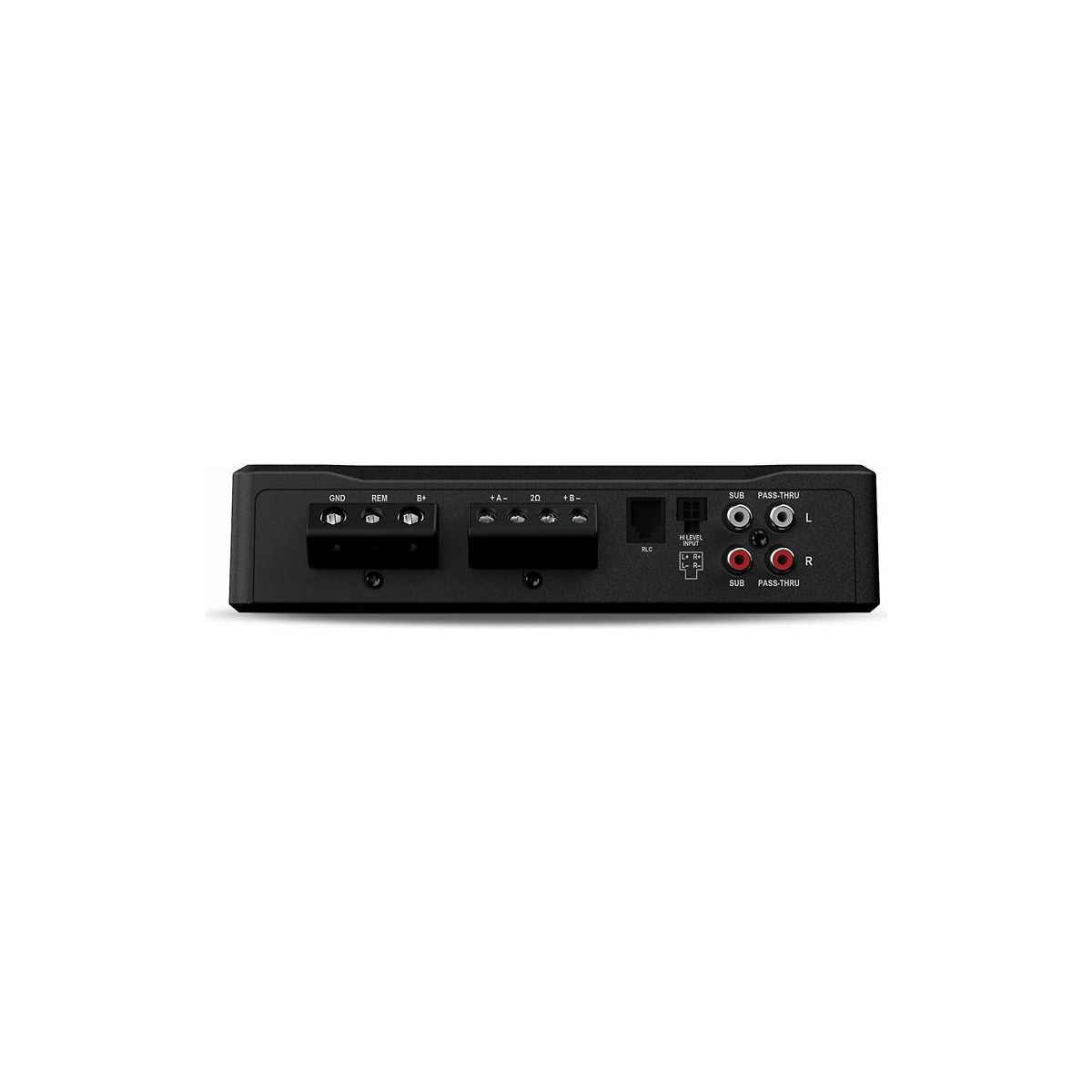

·         Signal Input Low-Level: 2 RCA

·         High-Level: 4-Pin Molex

·         Signal Output Low-Level: 2 RCA

·         (Pass-Thru active with RCA or Hi-Level input)

·         Tone Controls 0 to +18 dB @ 45 Hz

·         Crossover Controls

·         Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth

·         Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth

·         Remote Controls: Yes

·         Visual Indicators

·         Power/Protect

·         C.L.E.A.N. In

·         C.L.E.A.N. Out

·         Power Wire Gauge 4 AWG

·         Power Input Connector

·         Compression Terminal Block

·         Speaker Wire Gauge 8 AWG

·         Speaker Output Connector

·         Compression Terminal Block

·         Cooling

·         Convection

·         Heatsink

·         Operating Voltage 9 – 16 VDC

·         Recommended Fuse (not included) 80 A

·         Average Current Draw (13.8V Music)

·         Max. Current Draw (13.8V Sinewave) 52 A

·         Dimensions (H x W x D) 1.9″ x 6.8″ x 8.5″

·         (4.9 cm x 17.3 cm x 21.5 cm)
