POWERFUL CENTRE SPEAKER FOR HOME CINEMA USE
Overview
If you also use the Signature range as part of your home cinema, you will find that the Signature Center 53 is the ideal speaker for the front centre channel. In this case, the hi-res dual tweeter module is flanked by 2 x 170 mm bass-midrange units, as also found in all the other speakers in the range. This guarantees absolutely homogeneous sound, no matter where the director has positioned the action in acoustic terms. With its width of 550 mm, the Center 53 is best positioned under the TV, e.g. in appropriate shelving.
Features
- Newly developed high-res tweeter module with two fmax dome tweeters
- Front panel with dedicated sound guidance for optimum dispersion properties
- Powerful neodymium ring magnet systems for best dynamics
- Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
- 1.2" dome tweeter with extra-thick surround for low frequency coupling to the midrange
- coated cellulose cone
- Solid decorative rings, fixed by six screws
- Solid metal basket with generous ventilation openings
- Klippel® optimised construction
- Ventilated voice-coil unit for maximum capacity
- FE-Dynamics woofer-midrange
- Amplitude and phase-optimised crossover with acoustical 24dB filters
- and high-quality components
- Large connection panel with generously dimensioned screw terminals and gold-plated contacts
- High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)
- Resonance-damping rubber feet included

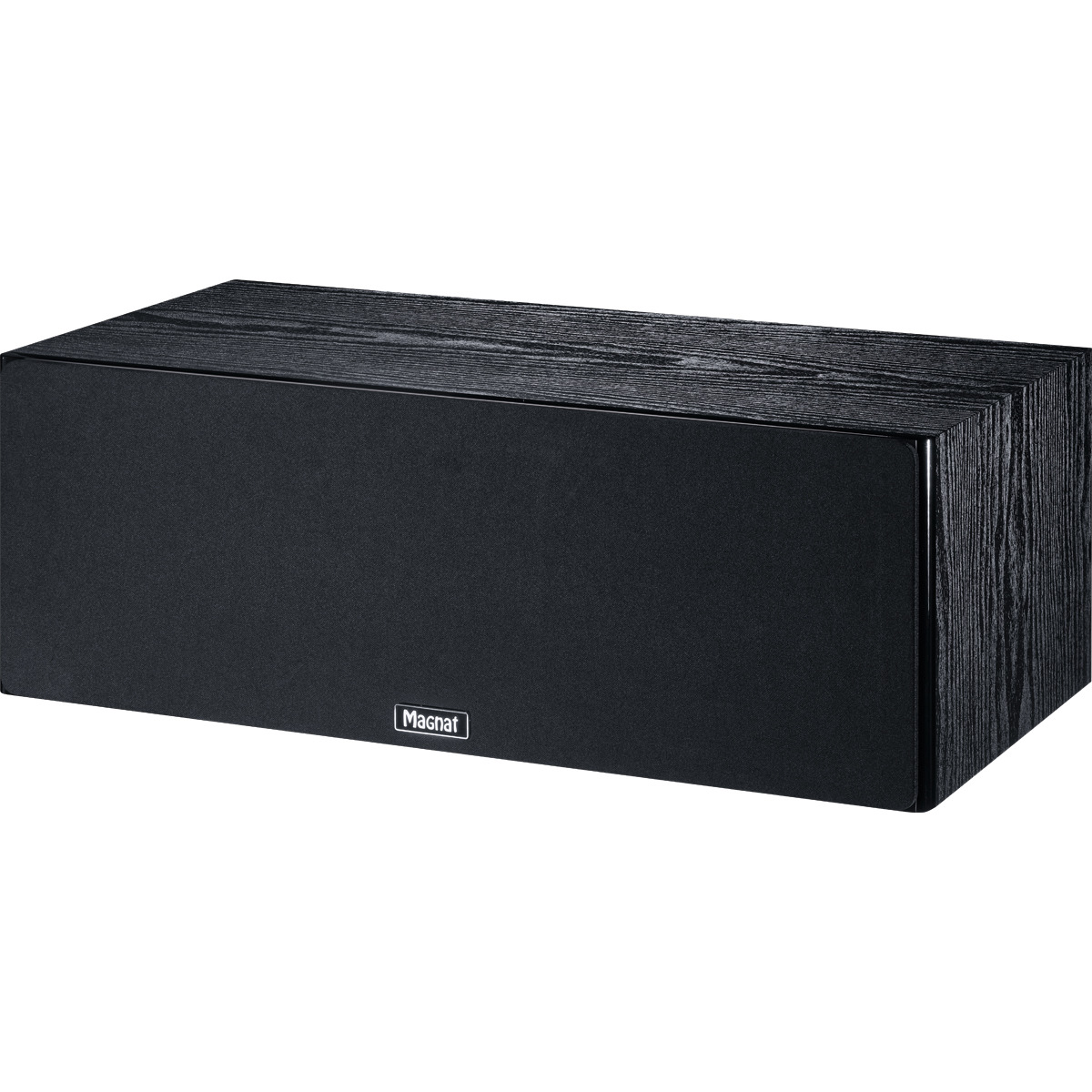

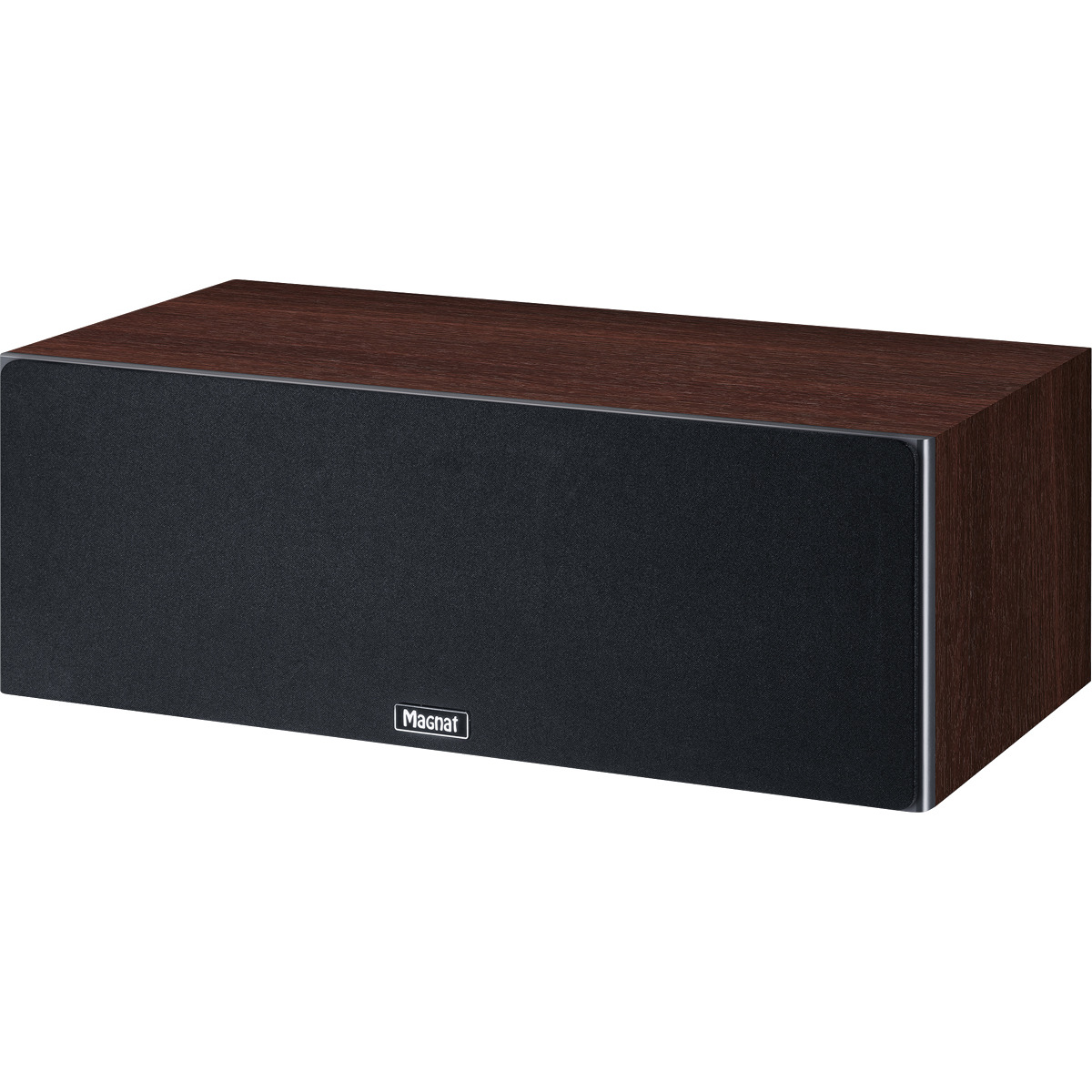

- Removable cloth grille
- Solid low-resonance cabinet construction using E1-MDF panels
- Airflex port with rounded reflex opening to minimize annoying resonances

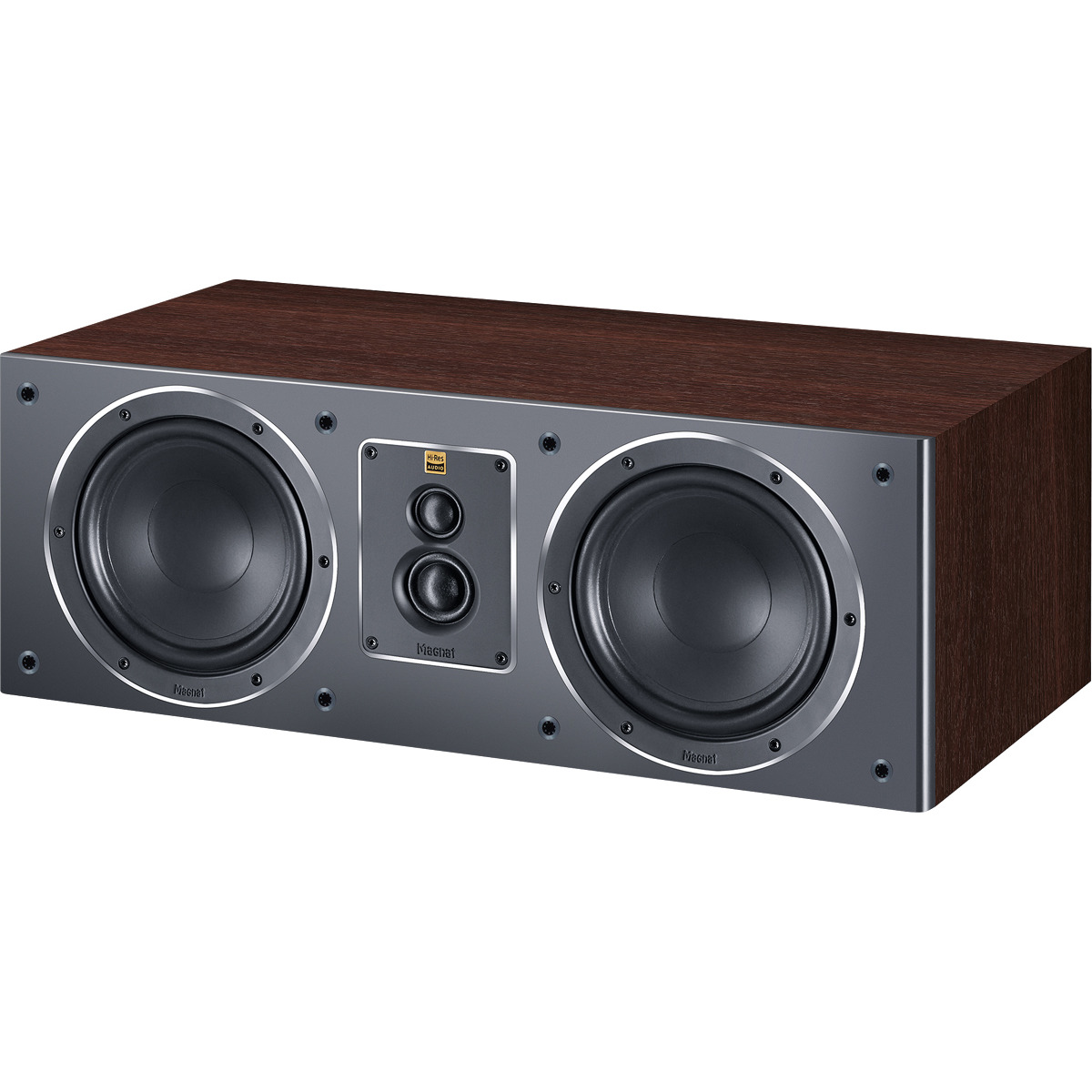

- Front: Anthracite satin / cabinet: Ash decor mocca

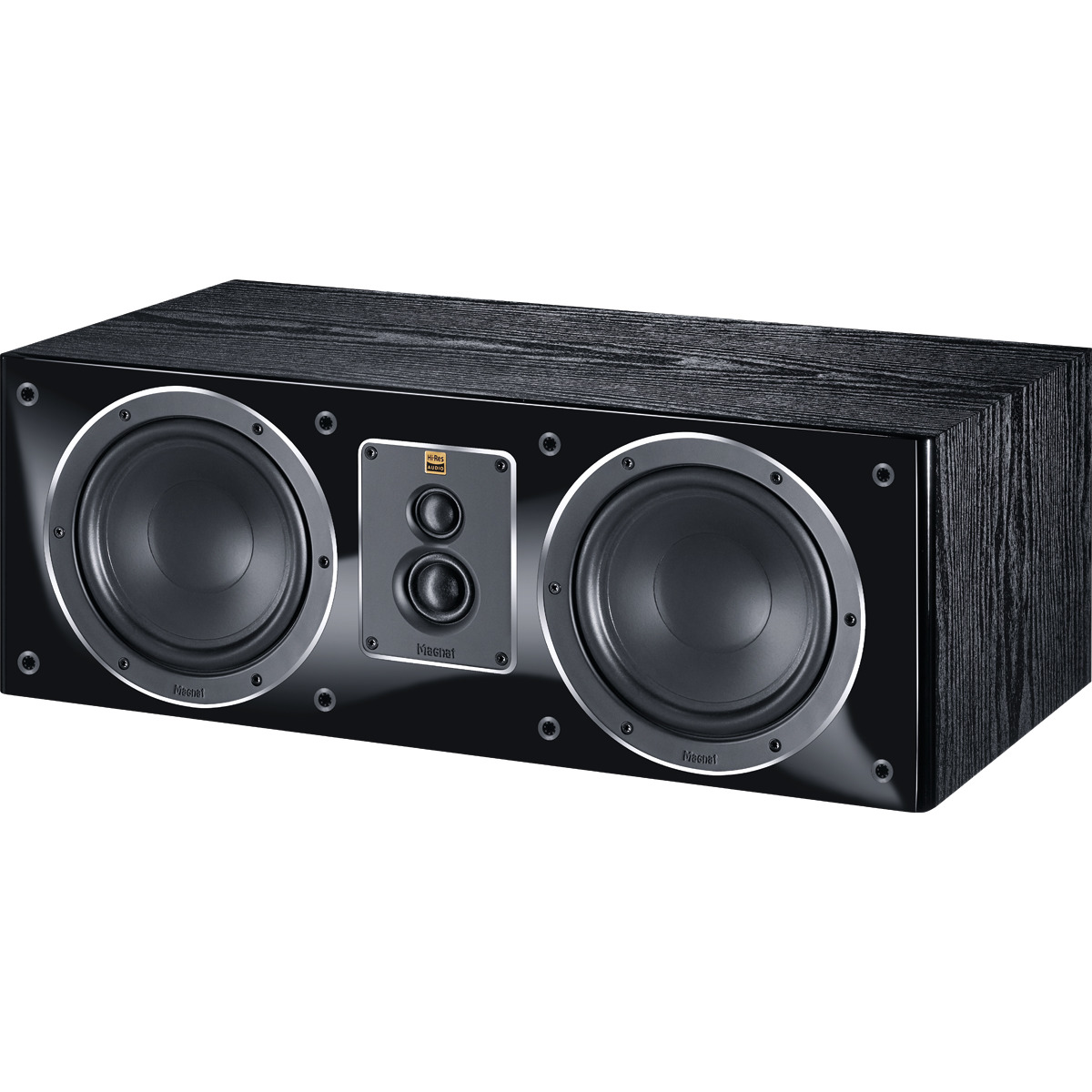

- Front: Piano black / cabinet: Ash decor black
Specifications
- FREQUENCY RESPONSE 32 - 53000 Hz
- PRINCIPLE 3 way bass reflex, double bass
- DRIVERS 2 x 6.5“ Midrange-woofer 1.2" dome-tweeter 0.75" super-tweeter
- POWER HANDLING (RMS/MAX.) 110 / 180 watts
- IMPEDANCE 4 – 8 Ohms
- CROSSOVER FREQUENCIES 2600 Hz / 17500 Hz
- RECOMMENDED AMPLIFIER OUTPUT > 20 Watts
- SENSITIVITY (2.8V/1M) 91 dB
- DIMENSIONS (WXHXD) 550 x 205 x 282 mm
- CABINET SURFACE Front: Anthracite satin / cabinet: Ash decor mocca Front: Piano black / cabinet: Ash decor black
