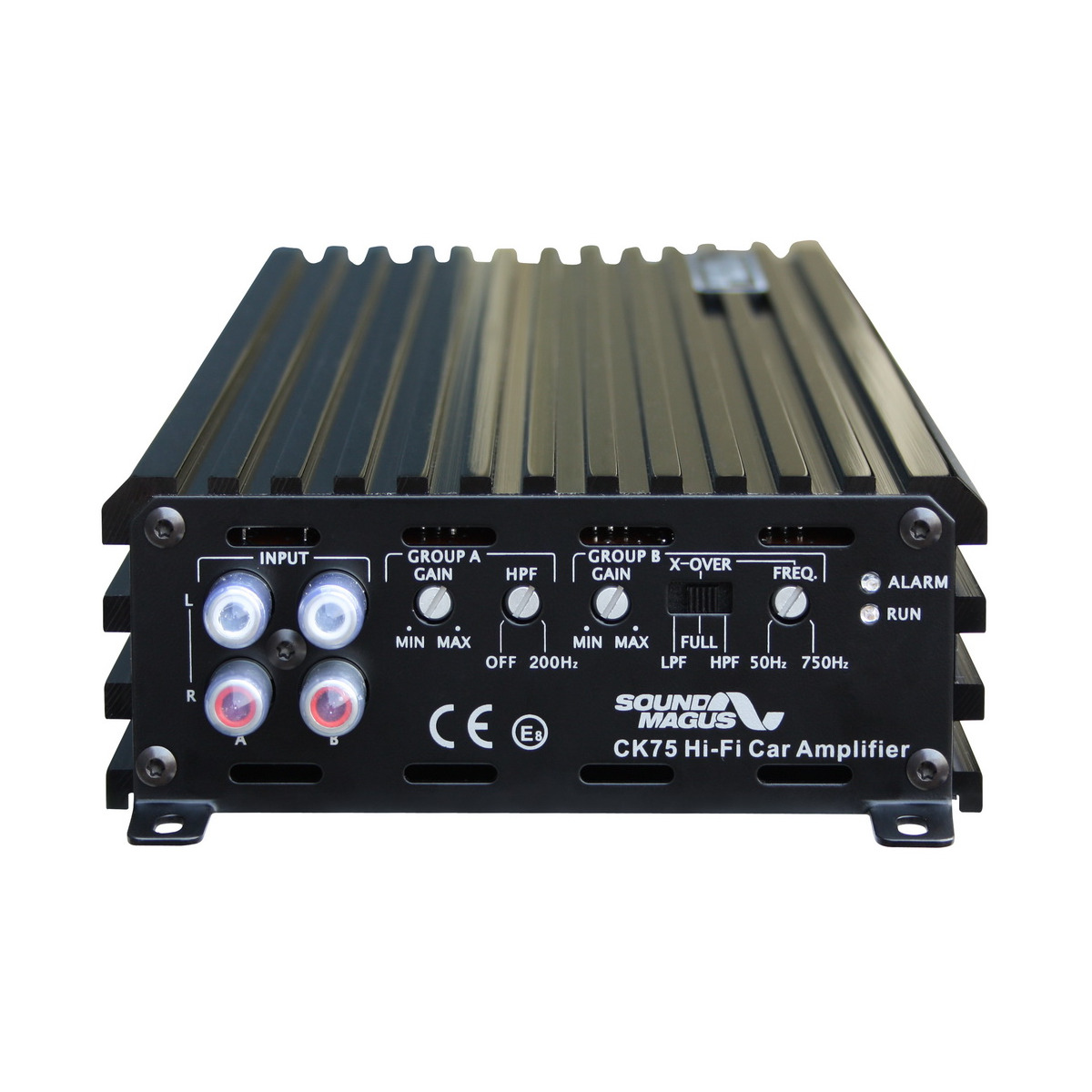

Class A/B 4-Channel Amplifier
The Sound Magus CK75 is the perfect amp to power your vehicle's speakers.
· Double side FR-4PCB, high quality SMD components
· Full MOSFET circuit design
· LPF and HPF Crossover
· Adjustable bassboost
· Noise free design
· Overload, short circuit, thermal, low voltage protection
- 75W x 4RMS(4 OHM,14.4V)
- 100W x 4RMS(2 OHM,14.4V)
- 200W x 2RMS(4 OHM BRIDGED,14.4V)

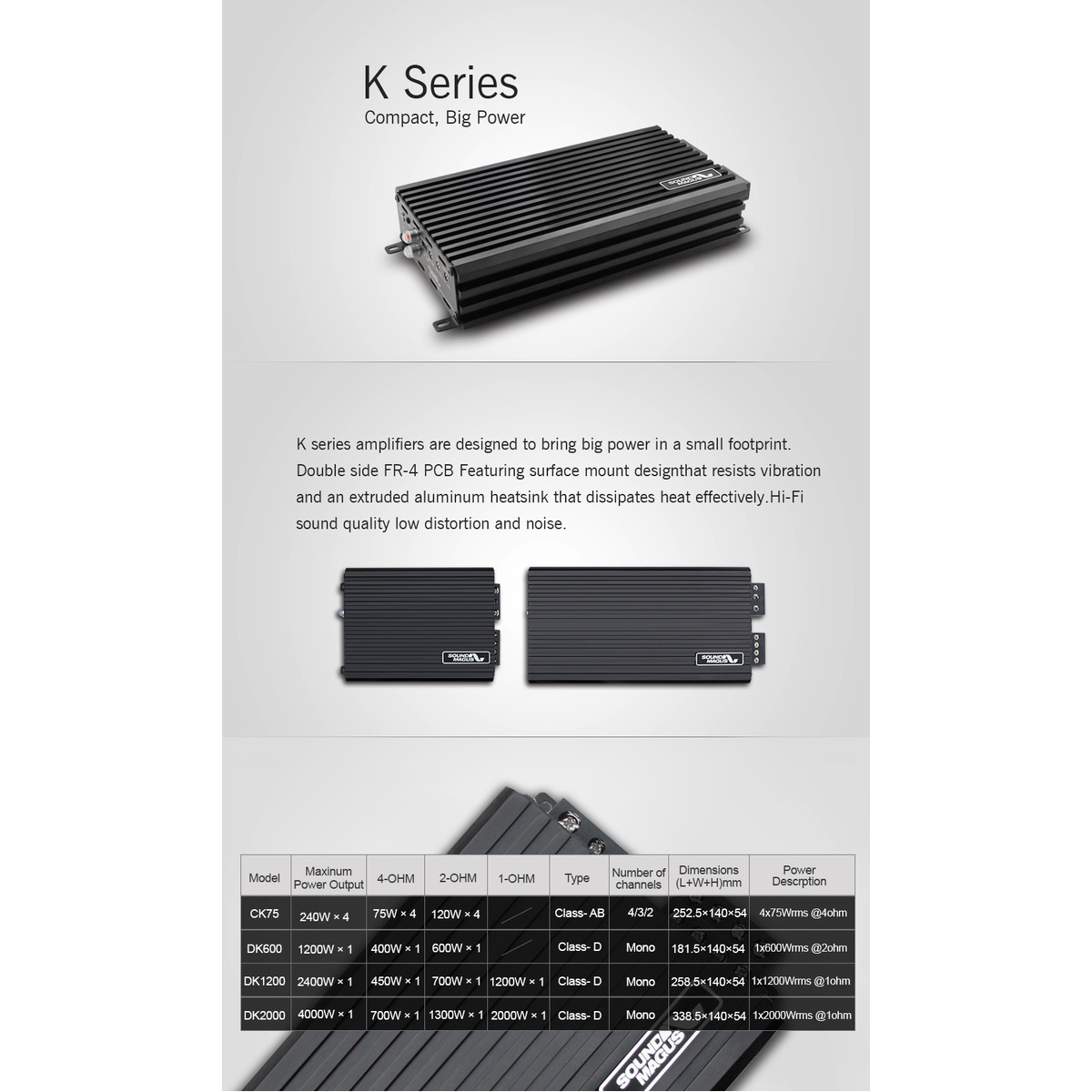

Specifications:
· Input Level 0.2-5 V
· Frequency Response 15-25 KHz
· LPF 50-750 Hz
· SubSonic Filter (HPF) 50-750 Hz|
· THD at 4Ohm load 30% Rated Power <0.05%
· S/N Ratio >80dB
· Best Efficiency @4ohm >60%
· Minimum Load 2 Ohm
· Low voltage protection Yes, protect <8 V
· ShortCircuit Test @ max power Pass
· Overheat protect temperature Protect at 80/176F
· Components & PCB SMD parts/double side FR-4 pcb
· Dimension(mm) 255(Length)×140(Width)×54(Height)
Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
