XP6.2 Component car speaker 6.5 ", (165 mm) Xcelsus Primum series, Tweeter XT20

Overview

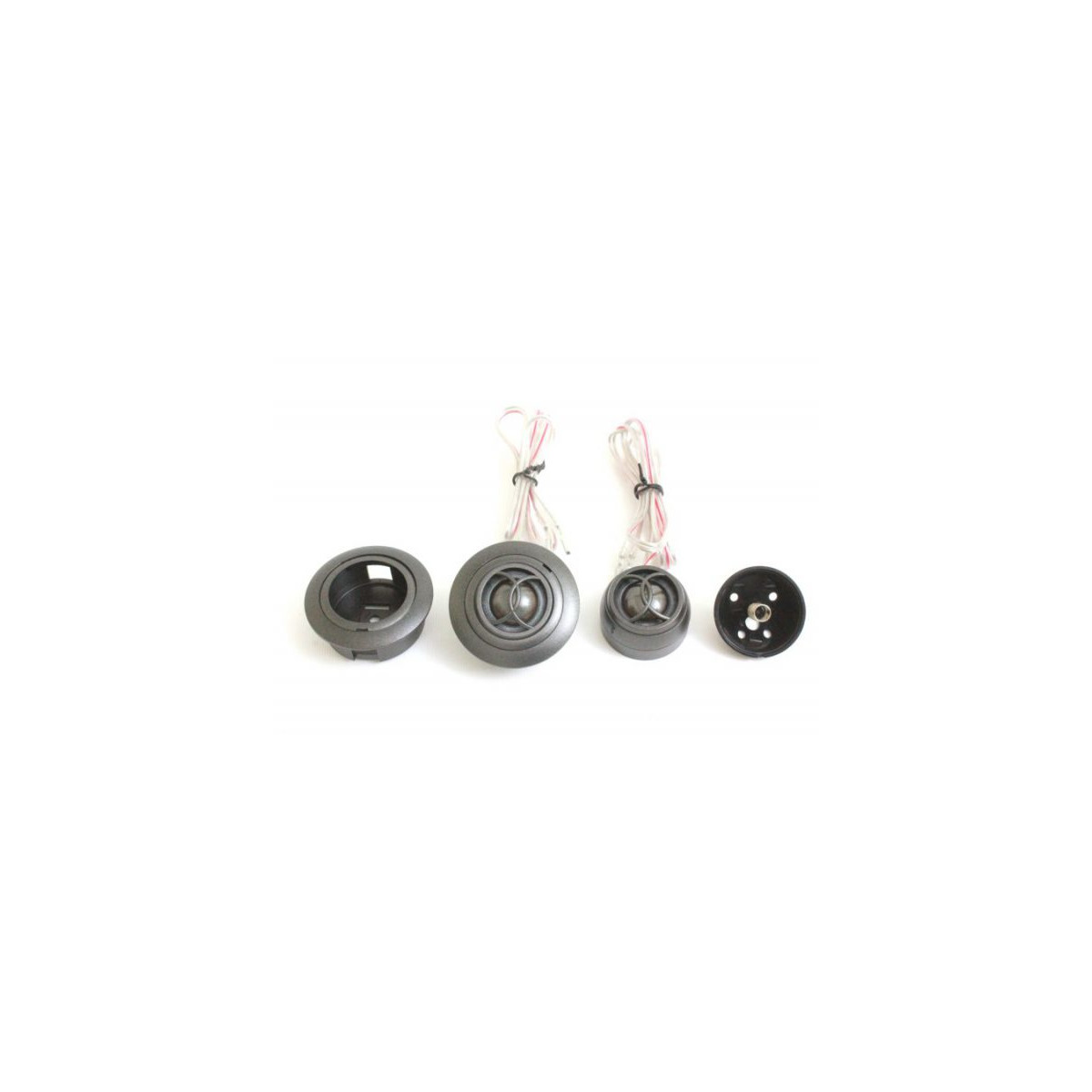

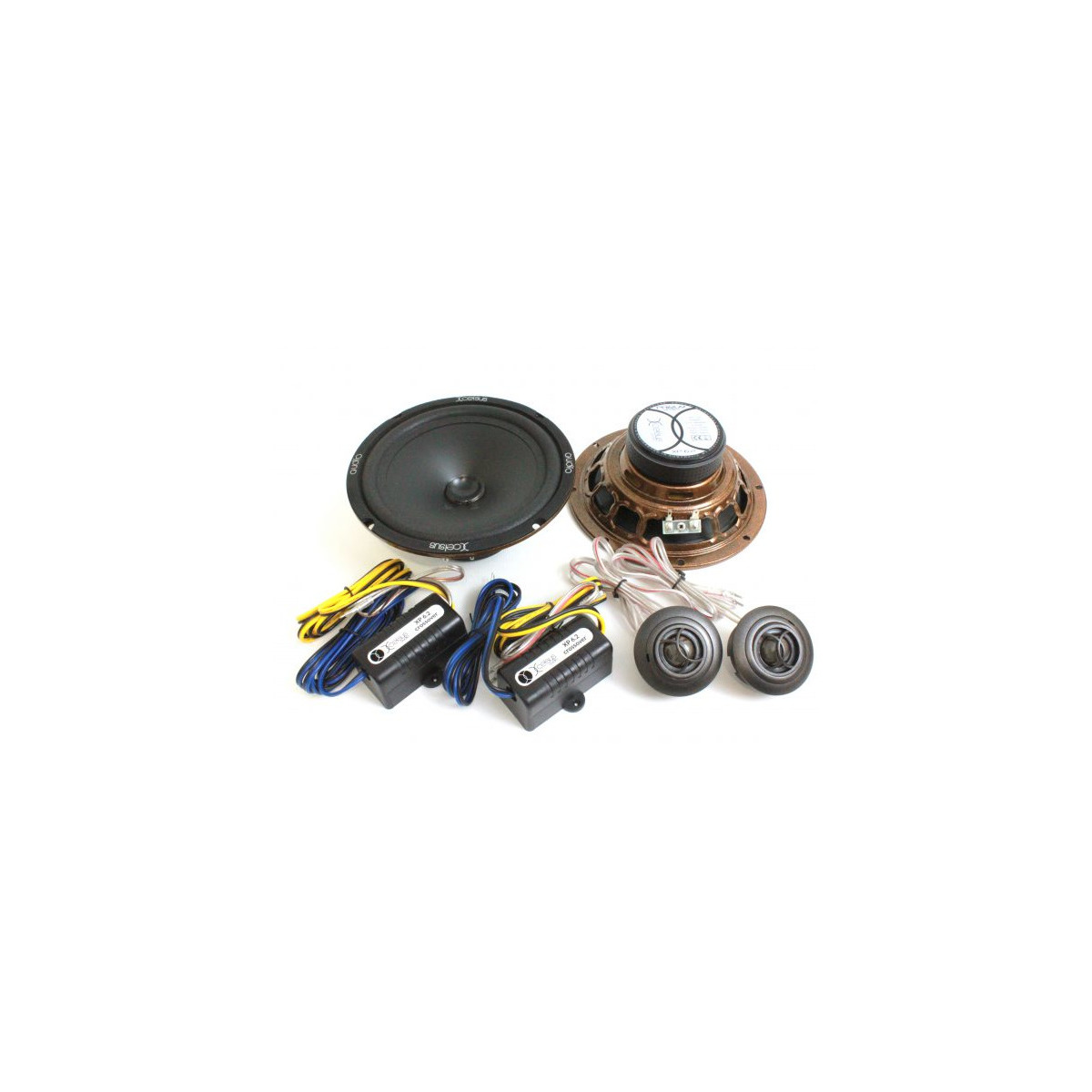

XP6.2 is an acoustic two-component system with midbasses with a diameter of 16.5 cm (6.5 inches) and a separate rotary tweeter with a fabric 20-mm dome that can be accurately guided to the optimal listening position. Thanks to its compact design, installing this system is straightforward. Midbass diffuser made of polypropylene filled with mica, a powerful magnet guarantees good control over the bass. The steepness of the decay of the tweeter isolation filter is 6 dB / oct. There is no filter for the bass speaker, which will facilitate installation.

Specifications

• Maximum / Peak Power 90/180 W
• Power Rating (RMS) 60 watts

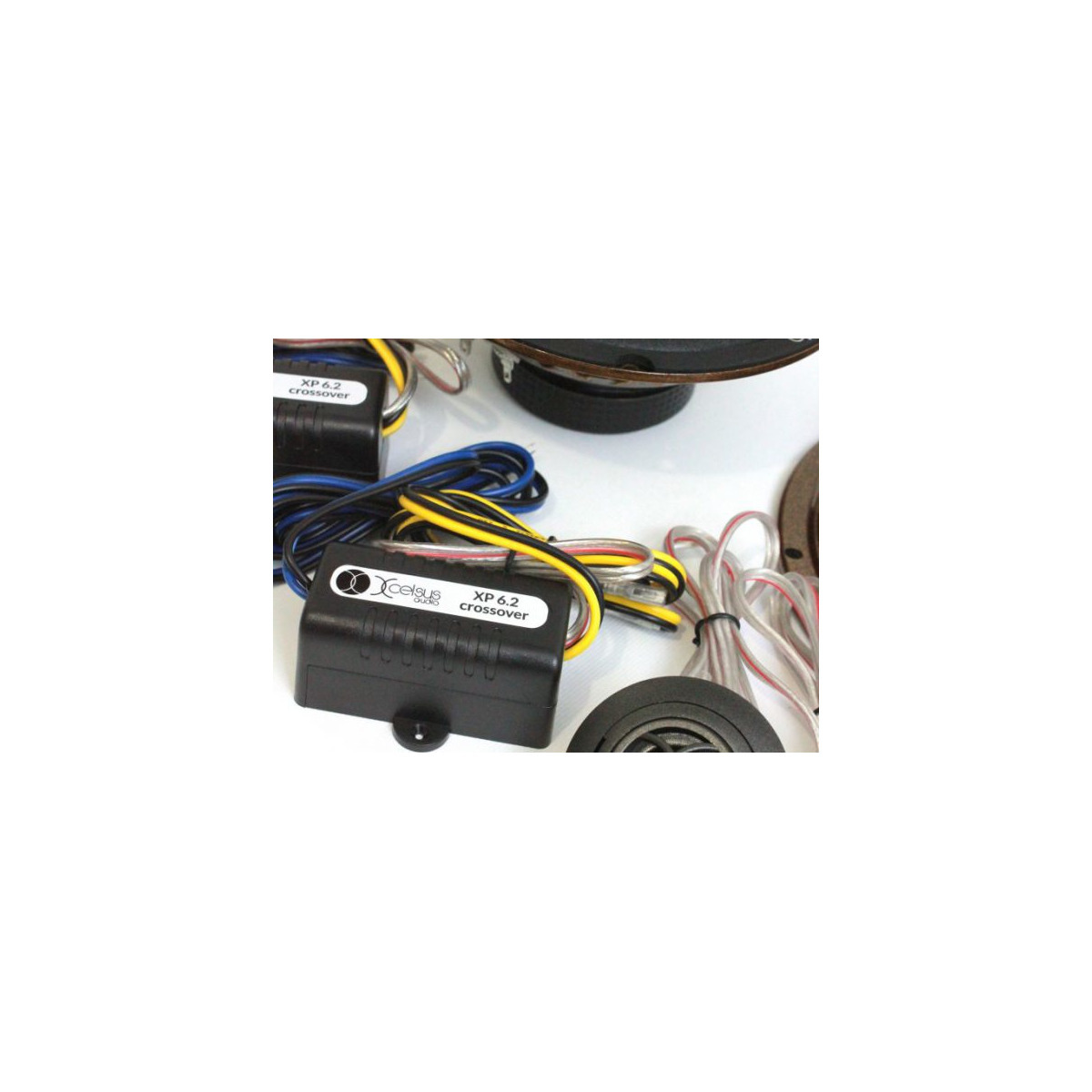

• Crossover (without lowpass filter) 6 dB
• Sensitivity 89 dB (1/1 W / m)
• Operating frequency range 55 - 20,000 Hz
• Resistance 4 ohm
• Crossover frequency 5500 Hz
• Length x Tweeter Width 20 x 20 mm
• Dimensions of the filter (length x width x height) 73 x 36 x 35 mm
• Outside Diameter Midbass 6.5 "(165 mm)
• Magnet diameter 3 "(75 mm)
• Installation depth 2.56 "(63 mm)
• Mounting hole 5.75 "(145 mm)
• Tweeter Rotatable fabric dome tweeter
• Cone material Polypropylene Mica
• EAN Bar code 0755838572259
