DLS Reference

Overview

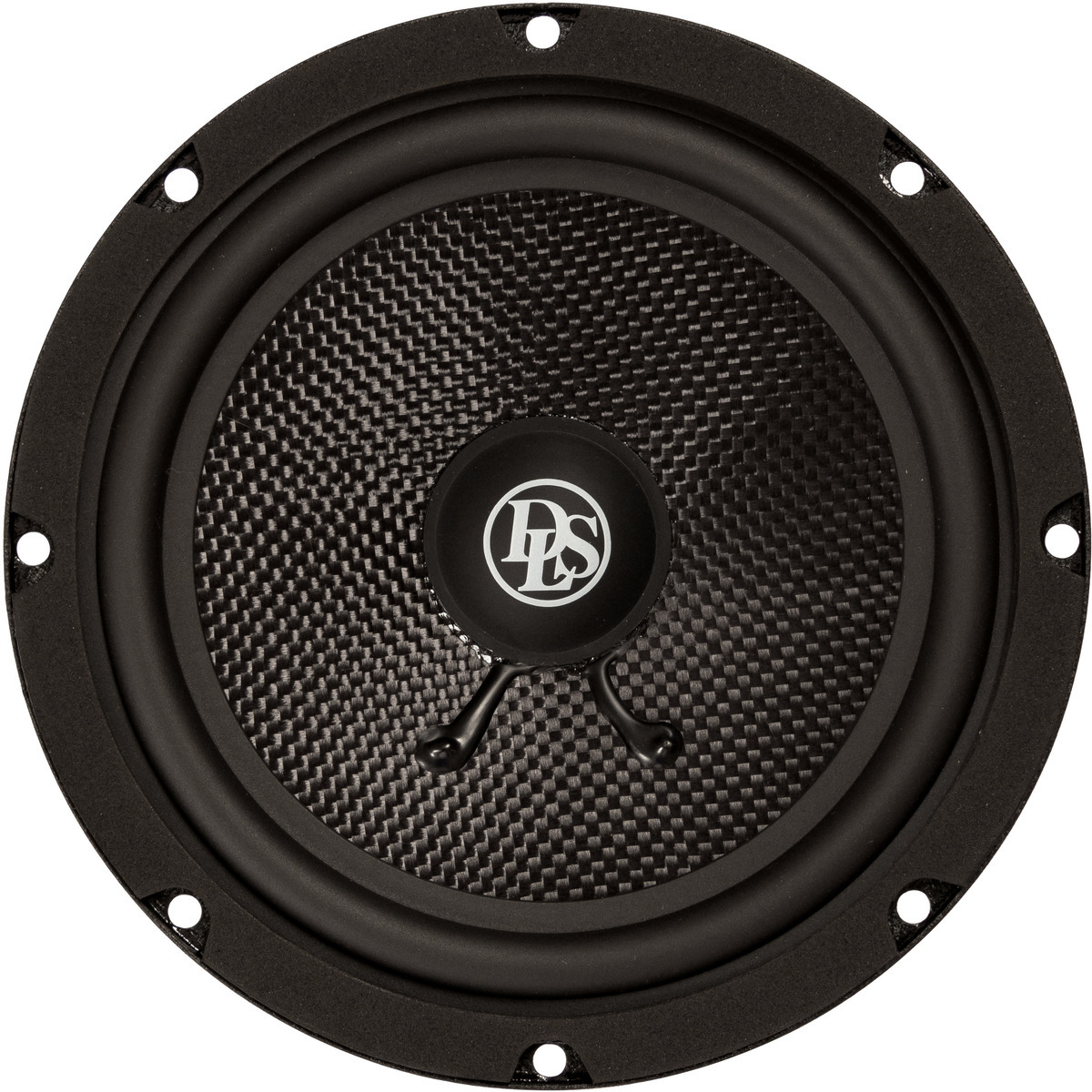

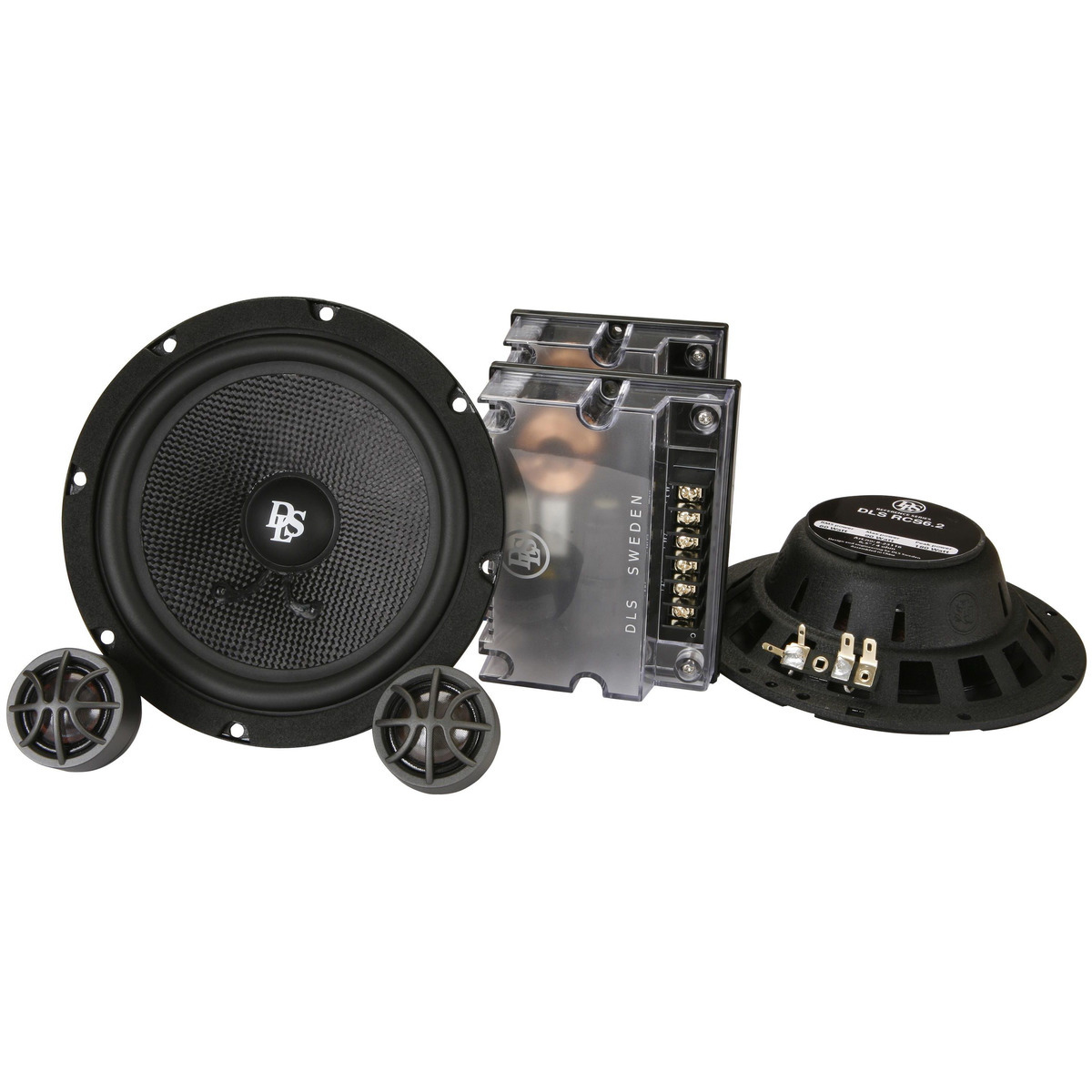

Reference series RCS6.2 is a 16,5 cm (6,5") 2-way component. The cone is made of woven glass fibre with rubber surround giving this speaker set a good sound.

A small installation depth (45 mm)makes them fit most vehicles.

Filter boxes with selectable tweeter level.

25 mm silk dome tweeter with copper rings.

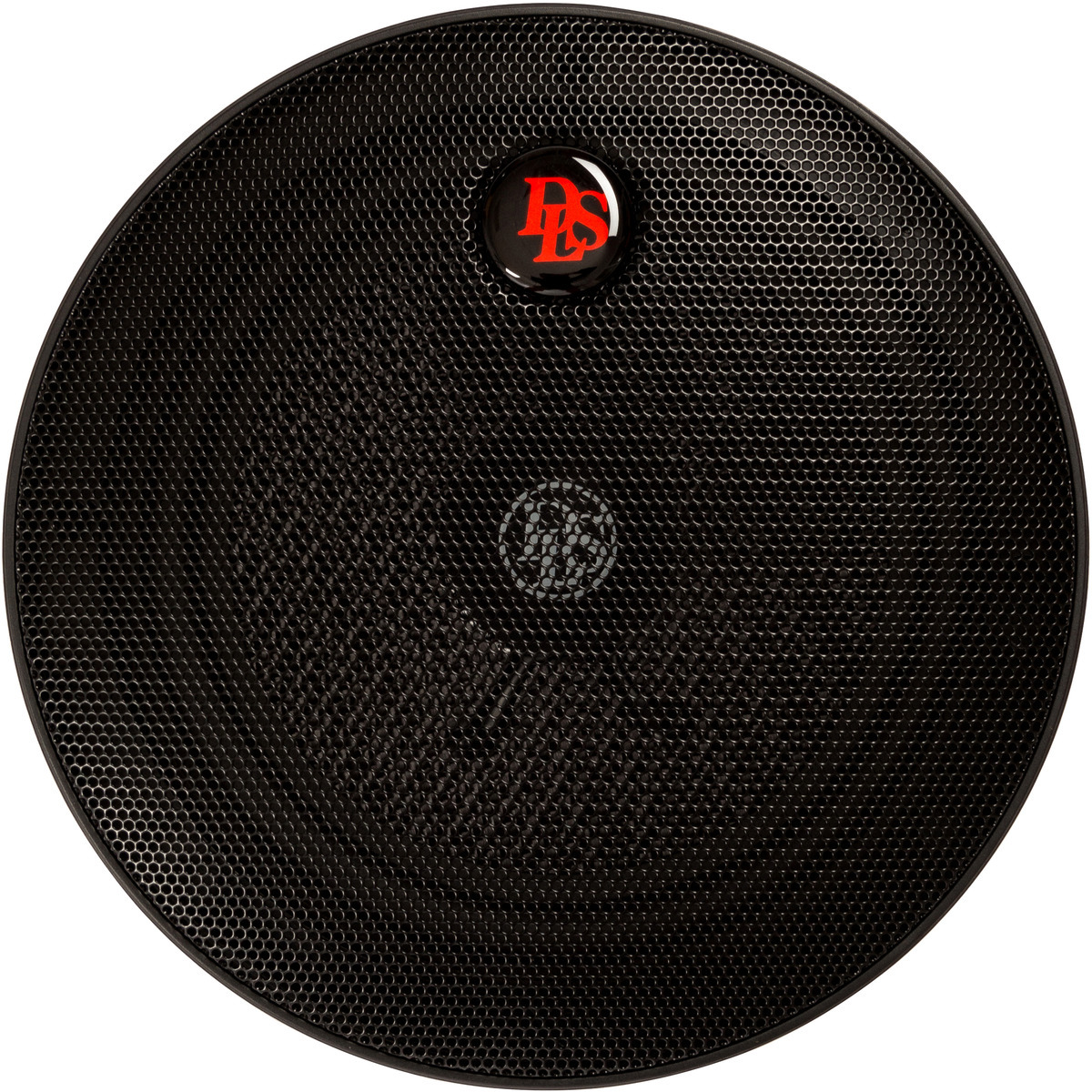

Grilles are included.

Specifications

• Woofer size 16,5 cm (6,5")
• Tweeter RC25, 25 mm (1") silk dome tweeter with copper rings
• Power handling capacity 50 W RMS / 90 W max / 180 W peak power
• Impedance 4 ohm
• Frequency range 55 - 22.000 Hz
• Sensitivity 86 dB (1W/1m)
• The outer diameter of the woofer 165 mm (6,5")
• Cone material Woven glass fibres
• Magnet size 80 mm (3,15"), hybrid FE / Nd
• Crossover Box filter with 6/12 dB slope (LP/HP)
• Crossover point (Hz) 5500 Hz
• Size of the filter box 125 x 95 x 34 mm
• Mounting depth 45 mm ( 1,77")
• Mounting hole 146 mm (5,75")
