DLS Performance series

Overview

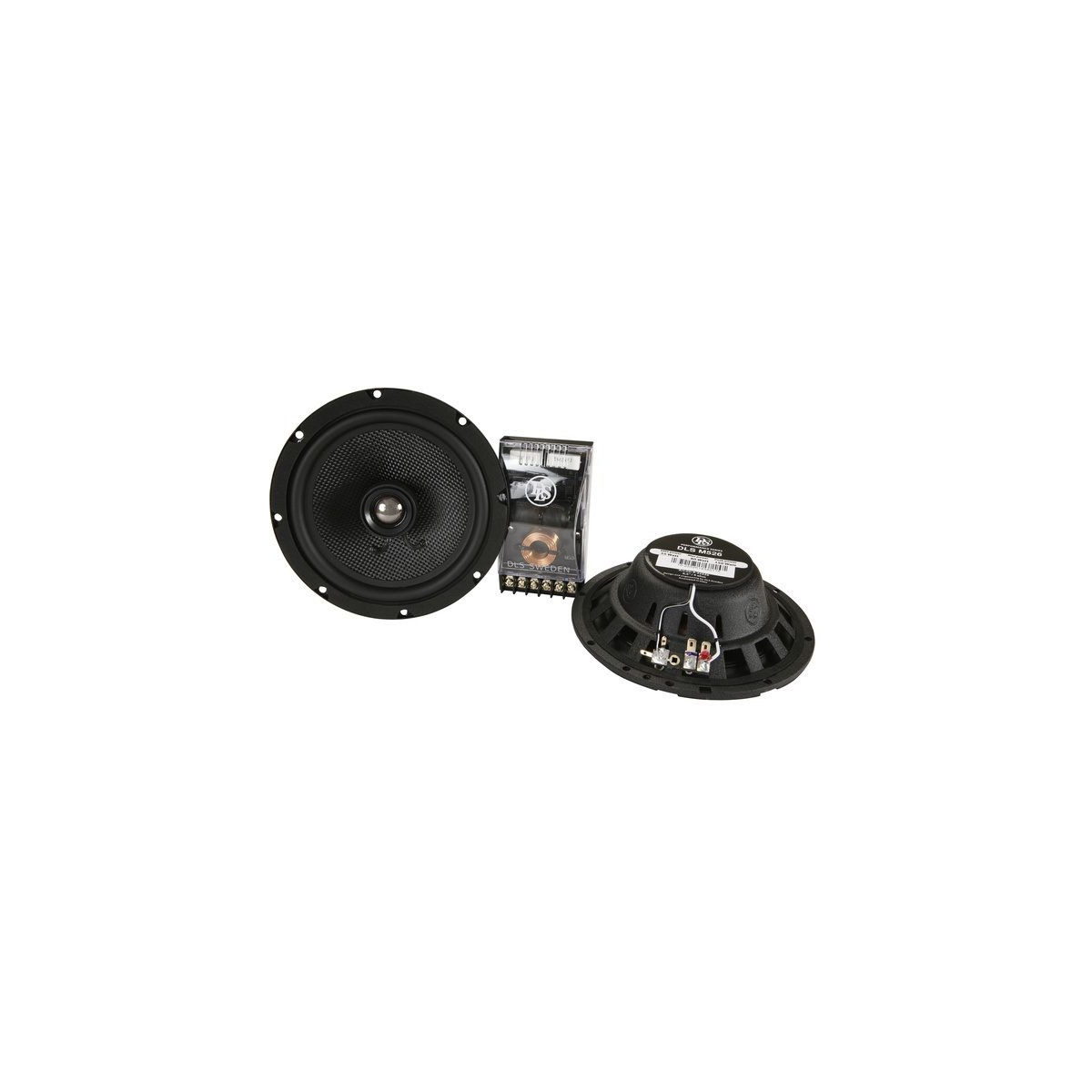

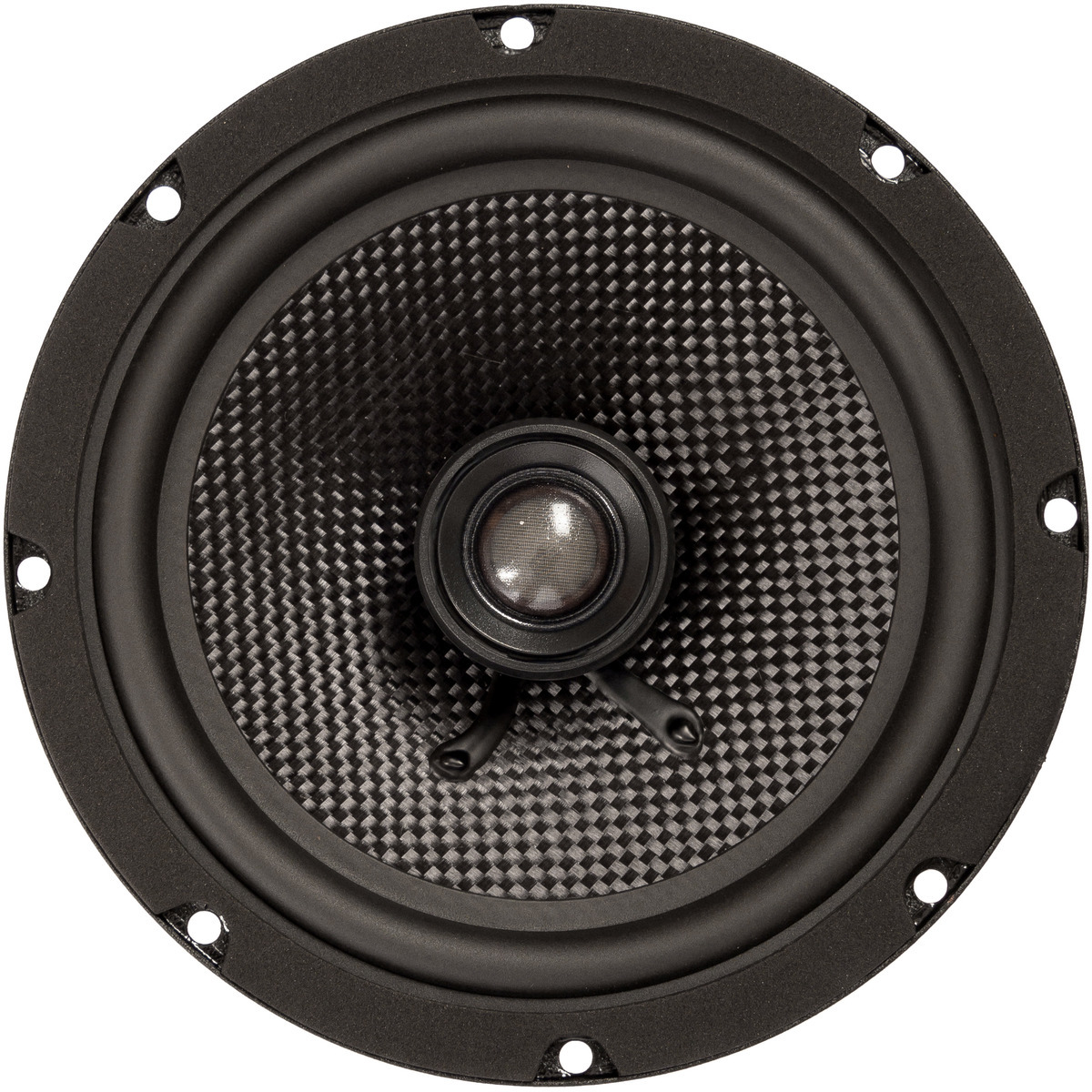

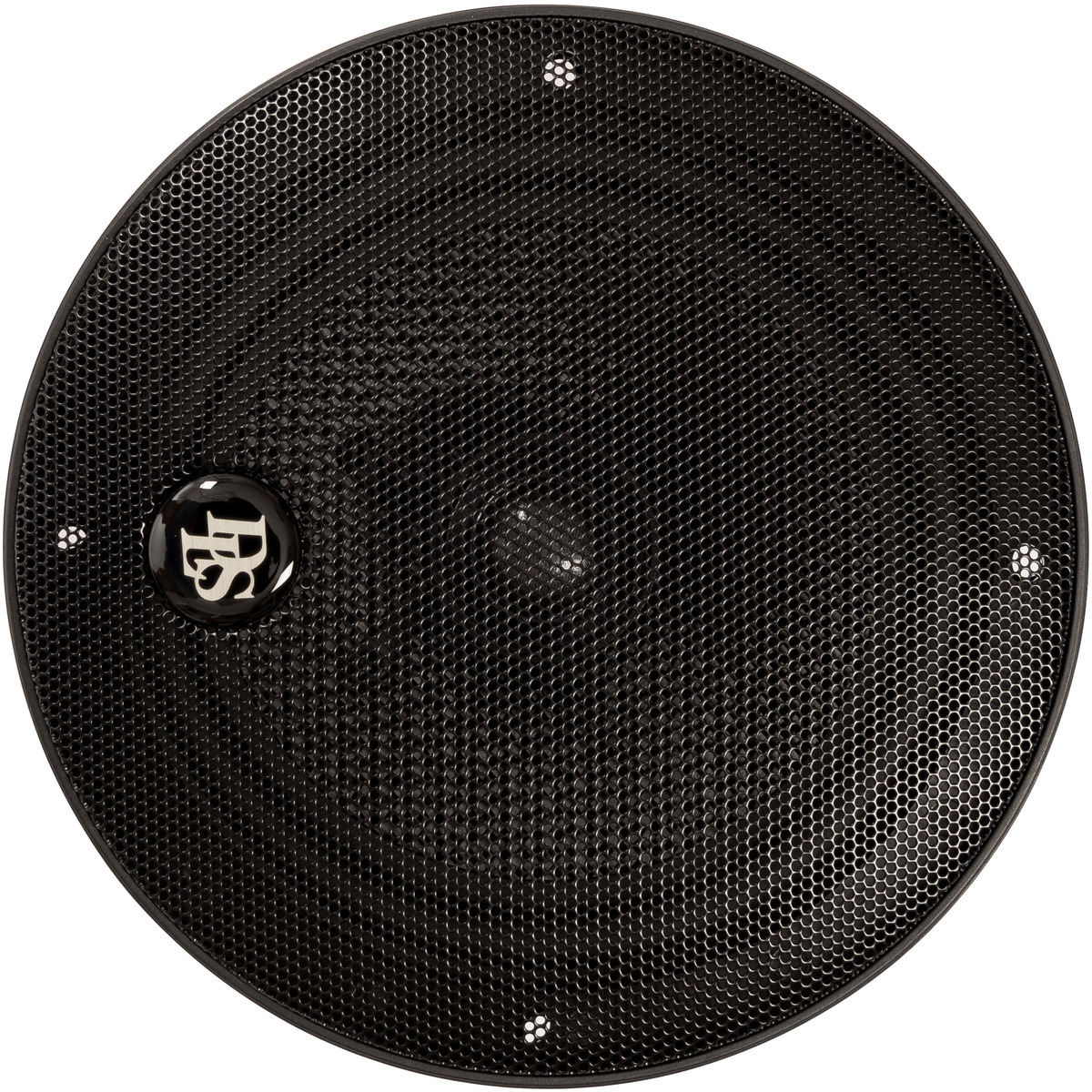

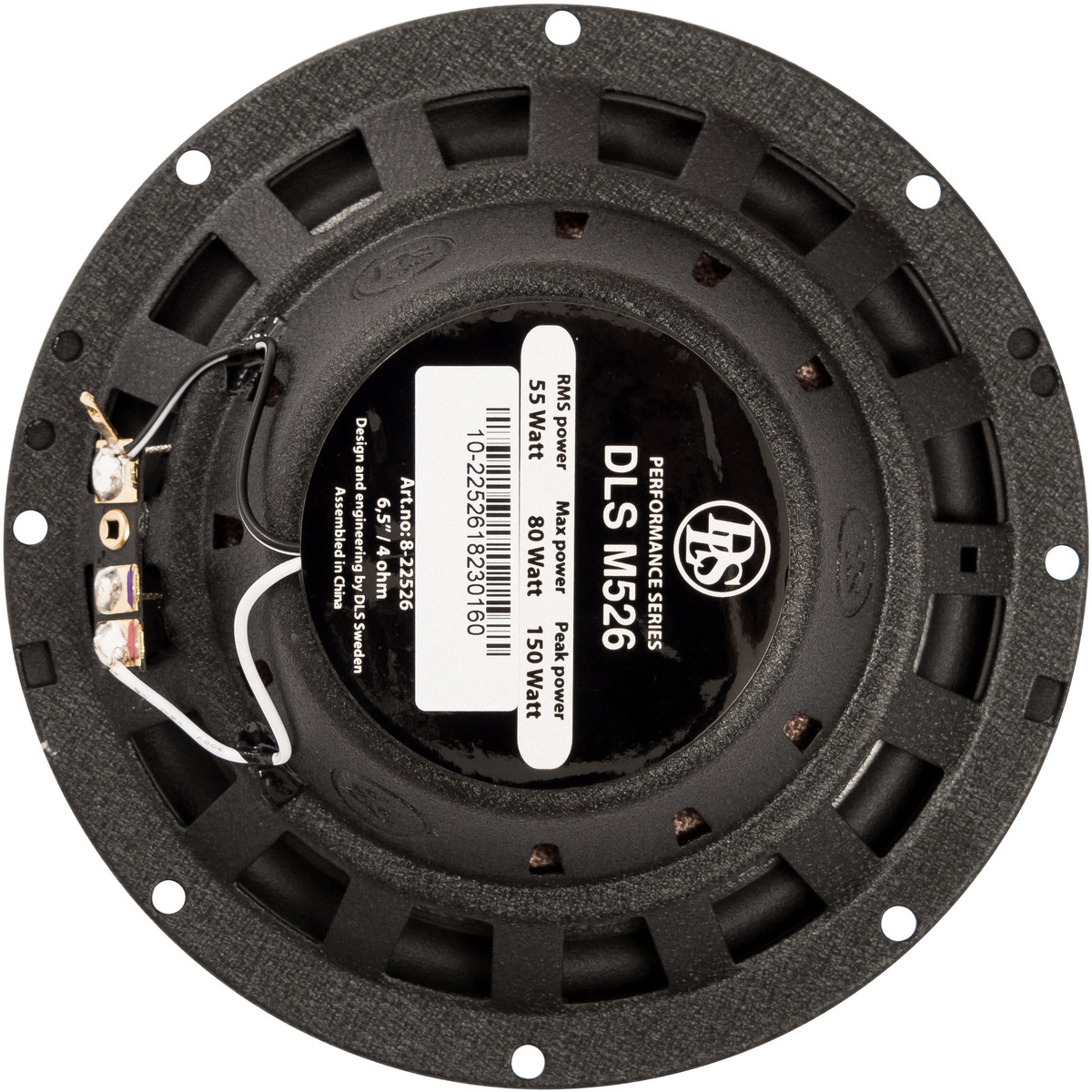

Performance series M526i is a 16,5 cm (6,5") 2-way coaxial speaker with a 20 mm silk dome tweeter that guarantees a fantastic sound quality.

Specifications

• Woofer size 16,5 cm (6,5")
• Tweeter 20 mm (0,8") silk dome
• Power handling capacity 50 W RMS / 75 W max, 150 W peak power
• Impedance 4 ohm
• Frequency range 60 - 20.000 Hz
• Sensitivity 86 dB (1W/1m)
• Crossover Box filter with 6/12 dB slope (LP/HP)
• The outer diameter of the woofer 165 mm (6,5")
• Cone material Woven fibre glass and rubber surround
• Magnet size 70 mm (2,75")
• Mounting depth 43 mm ( 1,7")
• Mounting hole 146 mm (5,75")
• Size of filter box 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3")
