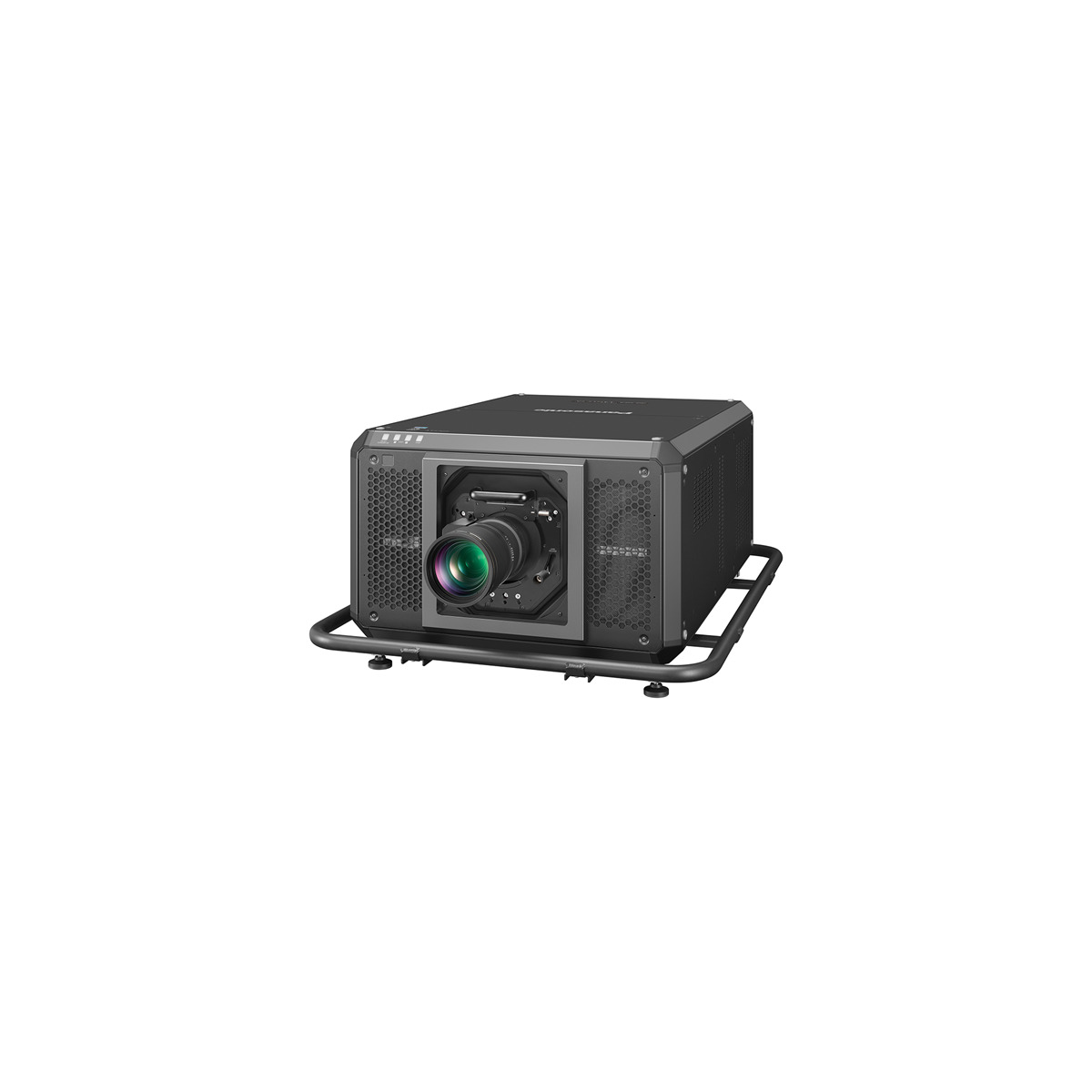

Laser Projector

50,000 lm*1 Native 4K Color-Rich Images for a Breathtaking Viewing Experience
Unleashes 50,000 lm*1 at Native 4K for emotionally immersive projection with newly developed laser engine expanding color-gamut by 114%*3 using an additional red laser for breathtaking image performance.

Versatile All-in-One Design Streamlines On-Site Workflow
Convenient all-in-one body packs 50,000 lm*1 into PT-RQ32K’s compact footprint for easy installation, while Smart Projector Control Ver. 2.0*4 with NFC*5 and Remote Preview enable swift setup even in Standby mode.

Original Cooling System Secures Projection Stability
Redesigned airflow path, cooling system, and finless radiator reinforce reliability at events. Dynamic Digital Control precisely regulates red laser output and cooling for supremely consistent image quality.

Awe-Inspiring Color, Brightness, and Resolution
The PT-RQ50K represents a milestone in projection technology. Serving flawless Native 4K (4096 x 2160) images with a laser engine that combines one red laser and two blue lasers operating at different wavelengths, light output is doubled from the same footprint as our 26,000 lm PT-RQ32K 4K projector. Deployed at sporting events, arena concerts, outdoor mapping attractions, or museum exhibitions, the PT-RQ50K’s refined power will exceed the highest expectations.

Newly Developed Laser Engine Expands the Color Gamut
An all-new laser engine expands color-gamut to 114 % of our current PT-RQ32K flagship, achieving lush, vibrant hues that pull audiences into the artist’s world. A new red laser enhances two blue lasers, which output light at different wavelengths for high color accuracy. Combined with digital frame-by-frame control to manage light output according to the scene’s contrast and brightness requirements and dedicated red-laser cooling to precisely control temperature, the PT-RQ50K attains vivid reds and deep, natural blues for spectacular on-screen color expression.

Compact All-in-One Body with Built-in Cooling
The PT-RQ50K’s laser engine and optical drive doubles output power from the same compact footprint as the PT-RQ32K. A redesigned airflow path and new finless radiator boosts the efficiency of the liquid cooling system, while a separate cooling for the red laser is regulated by Dynamic Digital Control for excellent image consistency and high reliability. Space-saving design with integrated cooling systems bring the logistic efficiencies of all-in-one projection to large-venue staging, saving operators time and money.

Remote Preview Saves Time and Unnecessary Stress
Newly introduced within Multi Monitoring & Control Software and also accessible via web browser, Remote Preview allows projectionists to check the content being received by the projector via a Wi-Fi®- or LAN-connected laptop. It works with the projector in Standby, with the shutter on, or when direct sunlight makes inspecting on-screen images difficult. It gives a chance to fix errors between the source and projector before setup is completed.

Built-in Upgrade Kits for Geo Pro Software Now Preactivated
With the PT-RQ50K, upgrade features for Geometry Manager Pro are built into the software and do not require paid activation. Simply download and install Geo Pro to a PC to simplify advanced multi-screen geometric adjustments. Built-in capabilities include uniformity correction and Auto Screen Adjustment for automatic and simultaneous calibration of multiple screens (including curved-screen correction) using a compatible camera. These features expedite edge-blending and colour-matching in mapping applications with automatic calibration for black level, brightness uniformity, and stacking.

Geometric Adjustment with Free Grid Correction via Remote Control
Free Grid is a function in Geometric Adjustment that enables convenient grid-based image adjustment using the projector’s remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to compensate for screen distortions. This correction is easily performed by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to smoothly create a distortion-free projection in a wide range of installation situations.

Remote App with NFC Function*1 and Projector Auto-Focus via Smartphone Camera
Smart Projector Control app for Android™ and iOS now includes Near Field Communication (NFC) function to instantly pair smartphone to projector just by touching them together. Once linked, the app accesses an information settings menu that’s readable and writable*2 for easy adjustment without turning on the projector. As well as showing data and allowing certain settings to be changed, the app features an auto-focus function*3 that uses the smartphone’s camera and app UI to achieve fast yet precise image focus.

New Information Monitor

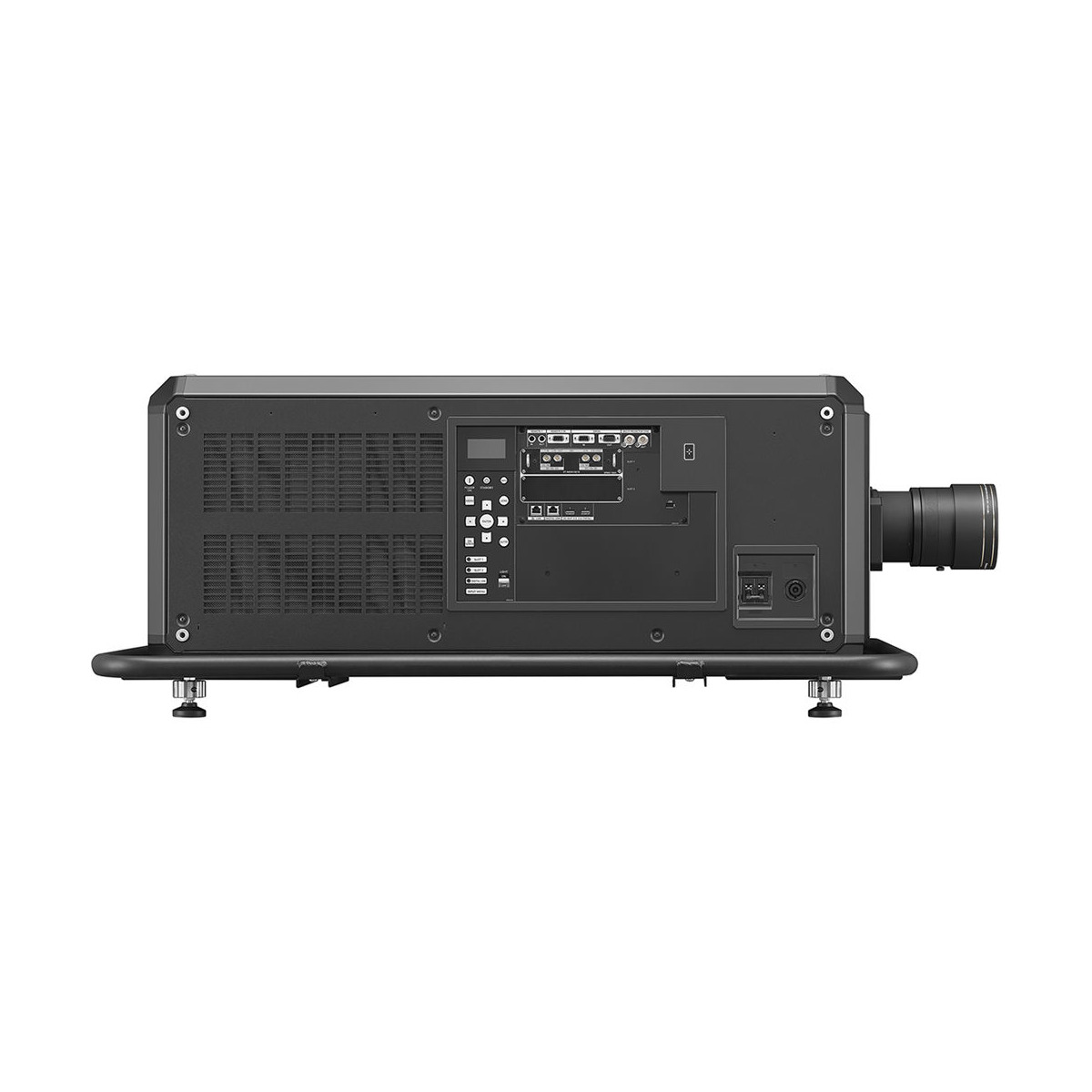

To further simplify setup and operation of the PT-RQ50K, an Information Monitor is located on the side panel adjacent to terminals and physical controls. The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.

Dedicated Lenses Cover All Throw-Ratios
An exclusive new lineup of optional lenses for the PT-RQ50K provides gapless throw-ratio coverage from 1.11–1.70:1 to 4.97–7.76:1, adapting projections to suit the installation site. All six models support powered zoom, lens-shift, as well as lens memory and lens ID for easier on-site adjustments. AFO (Active Focus Optimizer) feature optimizes focus based on content APL, keeping images sharp and in focus.

Shielded Laser Drive with Finless Radiator
* Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % will vary depending on environment and usage conditions. Parts other than the light source may require replacement before 20,000 hours, and check up is recommended around this time.

Solid-State Laser Modules with Failover Circuitry
The SOLID SHINE Laser drive groups laser diodes into discrete modules. In the unlikely event one single diode in a module goes out, Failover Circuitry enables the diodes in the affected series to be bypassed—the remaining, functional diodes continue to operate with imperceptible loss in brightness. If a laser diode fails in other laser projectors, the whole module goes down and the brightness loss is so great that the projector must be taken offline. Panasonic laser diode failover technology adds yet another layer of insurance for events projection when image presentation must be maintained.

Backup Input Guarantees Picture Display
If the primary signal is disrupted, the projector switches to a backup input*1 in just 0.3 seconds at the fastest*2, so image display is maintained when projection mustn’t be interrupted. No screen-blanking occurs during backup input-switching.

Specifications:
Panel size-35.1 mm (1.38 in) diagonal (17:9 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Number of pixels-8,847,360 (4096 x 2160 pixels) x 3
Light source-Laser diodes (Blue LD, Red LD)
Light output-50,000 lm*1 / 51,000 lm (Center)*2
Time until light output declines to 50 %*3             20,000 hours (NORMAL)
Resolution-Native 4K (4096 x 2160 pixels)
Contrast ratio*1-20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal)-2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio
Center-to-corner zone ratio*1    90 %
Lens-New optional lenses for PT-RQ50K (no lens included with this model)
Lens shift
Vertical
(from center of screen) ±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered)
Horizontal
(from center of screen) ±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered)
Keystone correction range-Vertical: ±40 ° (±28 ° with ET-D3QW300), Horizontal: ±40 ° (±15 ° with ET-D3QW300)
Installation-Horizontal/vertical, free 360-degree installation
Terminals
MULTI PROJECTOR SYNC IN-BNC x 1
MULTI PROJECTOR SYNC OUT-BNC x 1
SERIAL IN-D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT-D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN-M3 stereo mini-jack x 1 for wired remote control
REMOTE 1 OUT M3 stereo mini-jack x 1 for link control
REMOTE 2 IN-D-sub 9-pin (female) x 1 for external control (parallel)
DIGITAL LINK-RJ-45 x 1 for network and DIGITAL LINK connections (HD BaseT™ compliant), PJc Link™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Colour compatible
LAN-RJ-45 x 1 for network connection, Plink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
DC OUT USB Connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A)
USB-USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick
Expansion Slot 1-Interface Board for 12G-SDI (ET-MDN12G10) supplied
Expansion Slot 2-Optional interface boards, SLOT NX compatible
Power supply-AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz
Power consumption-4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W)
