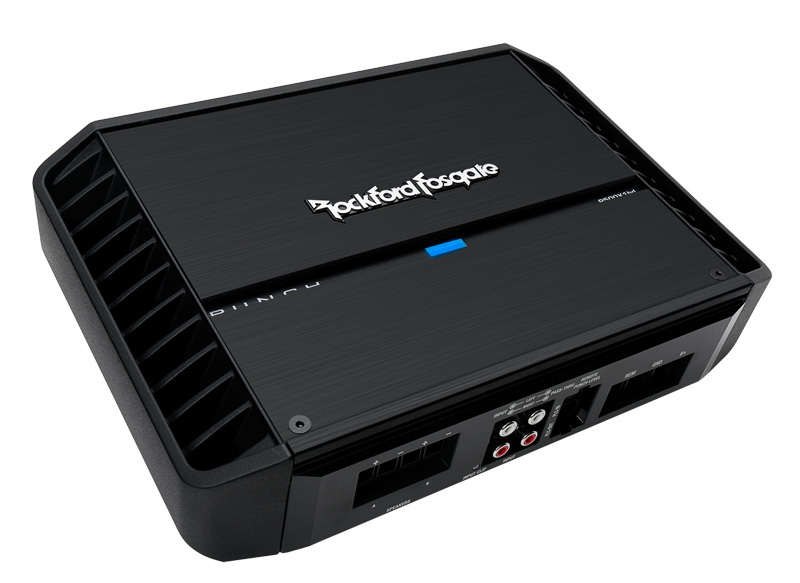

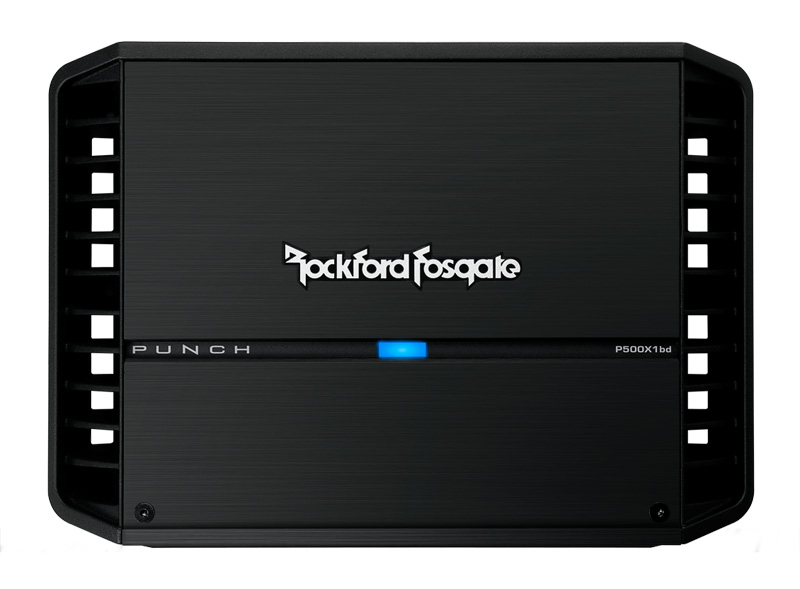

Punch 500 Watt Class-bd Mono Amplifier

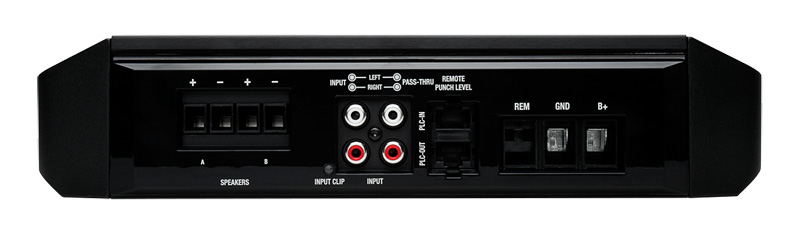

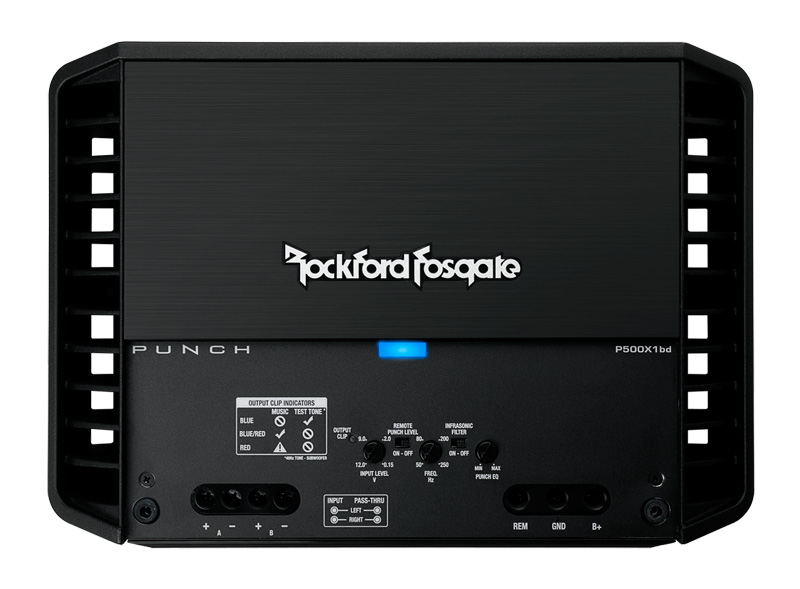

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers. With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease. -High level input capable with Auto Turn-On circuit -Features C.L.E.A.N. Set-up -Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator) -RCA pass-thru outputs -12dB/octave Butterworth crossover -On-board Punch EQ with +18dB boost @ 45Hz. -Muted turn on -Stealth top mounted control panel -Cast aluminum heatsink -Short circuit protection -Over current protection -Infrasonic filter CEA-2006 Guidelines CEA-2006 Power Rating 150W x 1 @ 4OHM �1.0% THD+N Number of Channels: 1 Rated Power (RMS Continuous Power): 150 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm Total Power (Sum of Rated Power): 500 Watts Dynamic Power (PVC/PowerCube): 224 Watts x 1 @ 4-Ohm 410 Watts x 1 @ 2-Ohm 787 Watts x 1 @ 1-Ohm Bridgeable: No Frequency Response: 20Hz to 250Hz +/- 1.0dB Efficiency (average): 86% @ 4-Ohm Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% Crossover Controls: Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave All-Pass (AP): No Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz Input Sensitivity: 150 mV - 12 V Signal Input: Hi/Low level: 1 RCA pair Signal Output: Low level: 1 RCA pair Power Input Connector: Captive C-Clamp Power Wire Gauge: 4 AWG Speaker Output Connector: Captive C-Clamp Speaker Wire Gauge: 8 AWG to 18 AWG Heat Sink Type: Cast aluminum Cooling: Convection Remote Controls: Optional Punch Level Control (PLC2) Ready Visual Indicators: Power/Protect/Thermal LED Input Clip LED Output Clip LED Circuit Topology Class: Class-BD Operating Voltage: 9 - 16 VDC Recommended Fuse (not included): 80 A Max. Current Draw (13.8V Sinewave): 70 A Average Current Draw (13.8V Music): 35 A Suggested Alternator: 75 A Shipping Weight: 10.8 Lbs. (4.89 Kg.) Dimensions (H x W x D): 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm)
