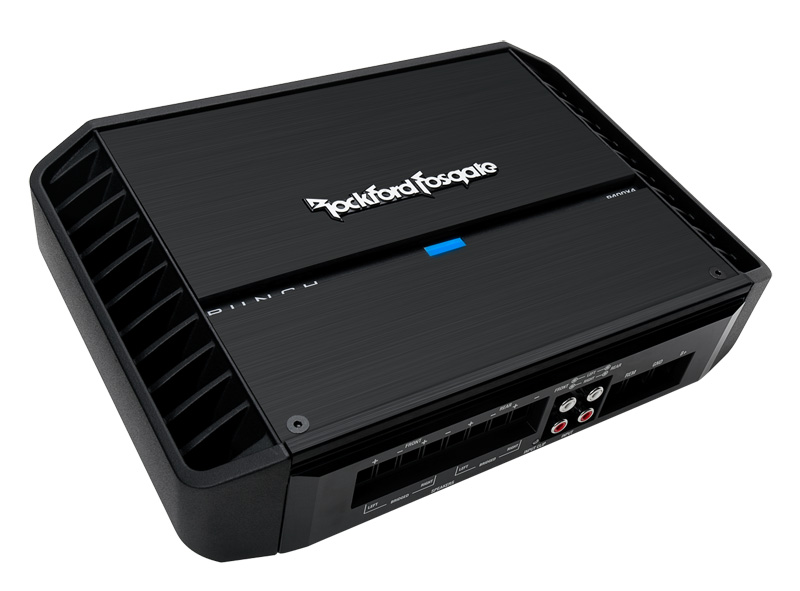

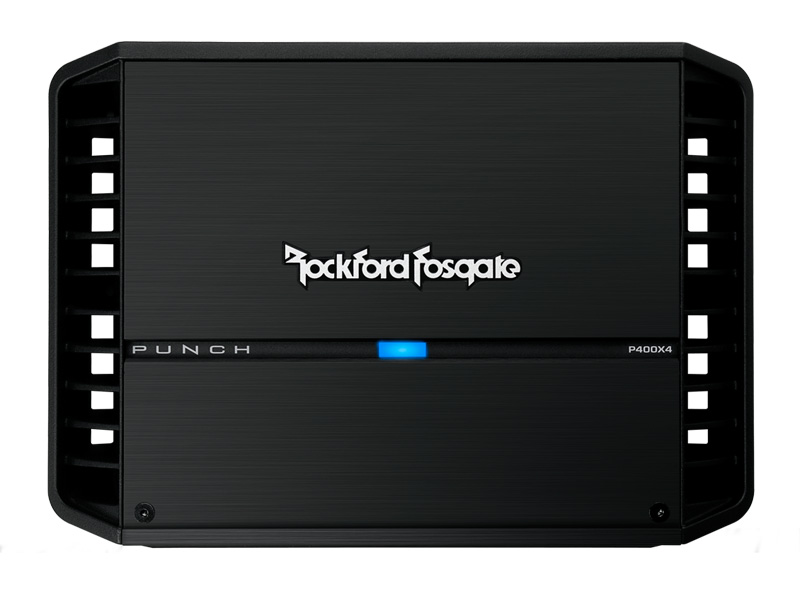

Punch 400 Watt 4-Channel Amplifier

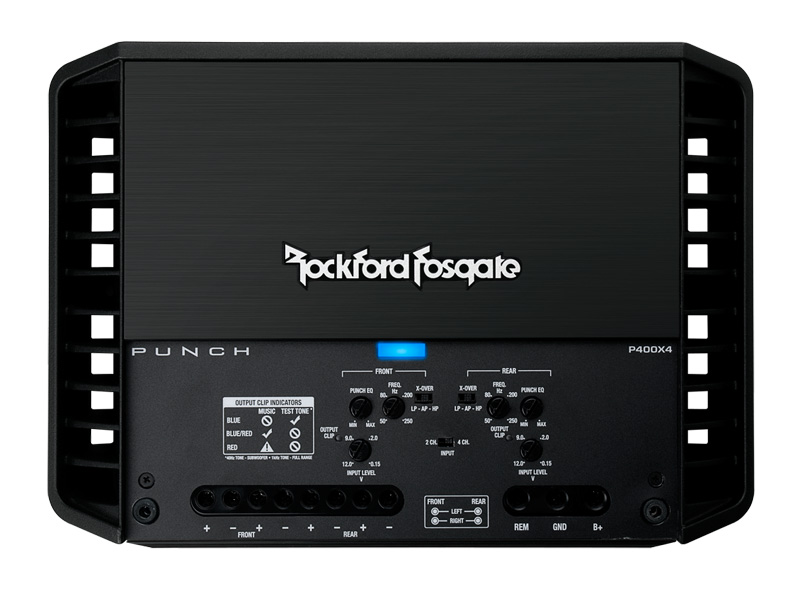

The Punch P400X4 is a 4-channel amplifier producing 100 Watts into all four channels at 2-Ohm. The P400X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels. The P400X4 is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the P400X4 is an excellent amplifier choice for virtually any vehicle. -High level input capable with Auto Turn-On circuit -Features C.L.E.A.N. Set-up -12dB/octave Butterworth crossover -On-board Punch EQ with +18dB boost @ 45Hz. -Muted turn on -Stealth top mounted control panel -Cast aluminum heatsink -Short circuit protection -Over current protection CEA-2006 Guidelines CEA-2006 Power Rating 50W x 4 @ 4OHM 1.0% THD+N Number of Channels: 4 Rated Power (RMS Continuous Power): 50 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged Total Power (Sum of Rated Power): 400 Watts Dynamic Power (PVC / PowerCube): 82 Watts x 4 @ 4-Ohm 137 Watts x 4 @ 2-Ohm 266 Watts x 2 @ 4-Ohm Bridged Bridgeable: Yes Frequency Response: 20Hz to 20kHz + / - 1.0dB Efficiency (average): 67% @ 4-Ohm Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0% 2-Ohm: <1.0% Crossover Controls: Front High-Pass / Low-Pass (HP / LP): 50Hz-250Hz @ 12dB / octave Butterworth Rear High-Pass / Low-Pass (HP / LP): 50Hz-250Hz @ 12dB / octave Butterworth All-Pass: Yes Tone Controls: Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and / or Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and / or Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP / AP / HP switch position Input Sensitivity: 150 mV - 12 V Signal Input: Hi / Low level: 2 RCA pair Power Input Connector: Captive C-Clamp Power Wire Gauge: 8 AWG to 4 AWG Speaker Output Connector: Captive C-Clamp Speaker Wire Gauge: 8 AWG to 18 AWG Heat Sink Type: Cast aluminium Cooling: Convection Remote Controls: - Visual Indicators: Power / Protect / Thermal LED Input Clip LED Output Clip LED Circuit Topology Class: Class-A / B Operating Voltage: 9 - 16 VDC Recommended Fuse (not included): 60 A Max. Current Draw (13.8V Sinewave): 60 A Average Current Draw (13.8V Music): 30 A Suggested Alternator: 75 A Shipping Weight: 10.8 Lbs. (4.89 Kg.) Dimensions (H x W x D): 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm) Dimensional Diagram:
