Marantz | 5 Channel Power Amplifier MM7055

Overview

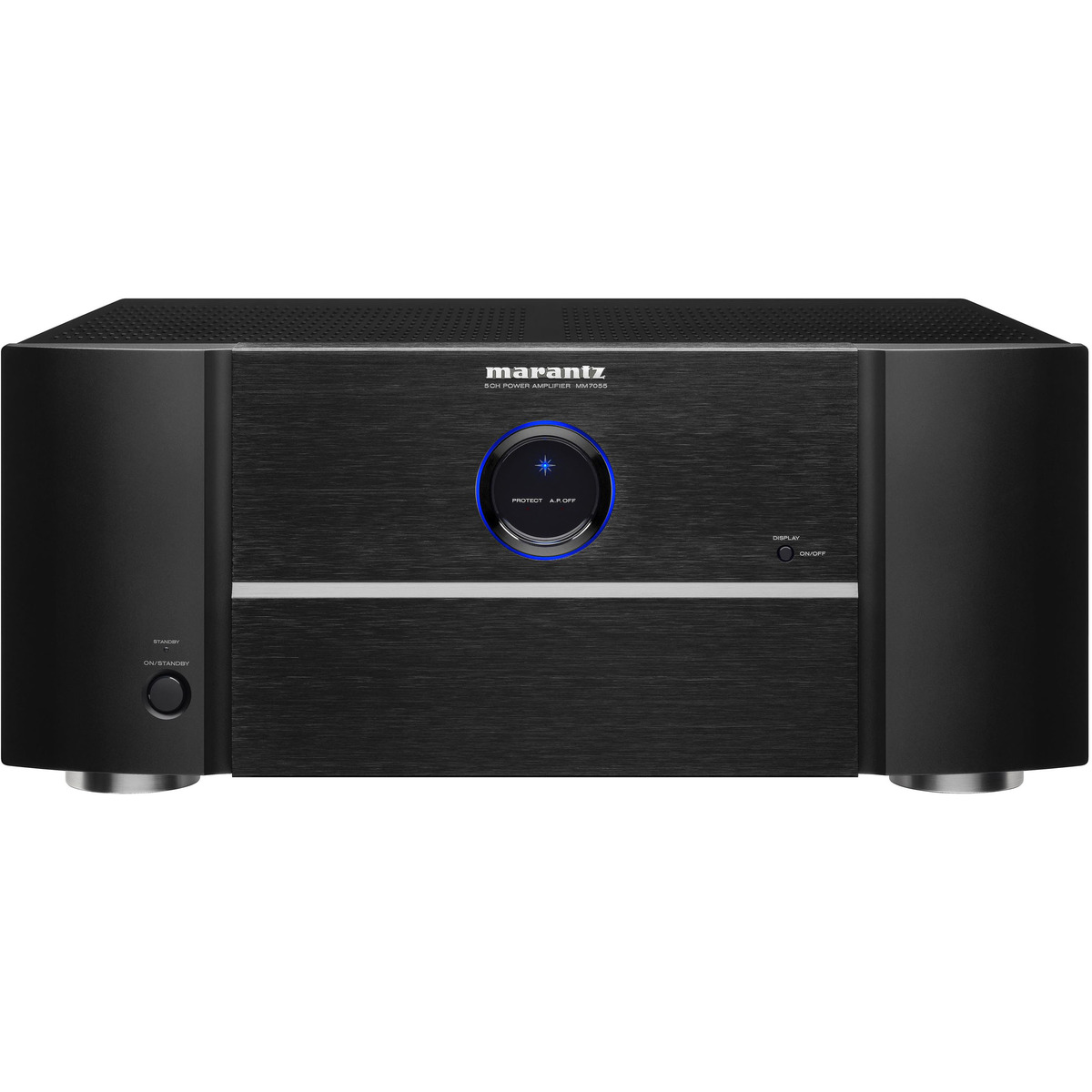

The new MM7055 is the five-channel option in this years extended line-up of main amplifiers. Based on the technology used in the MM8003 and using the exact same chassis, it delivers a thumping 140W rms into 8 ohm to each of the channels, while the ultra-wide bandwidth current feedback technology easily handles the highest SACD frequencies this also makes it ideal for the high definition DTS Master Audio and Dolby TrueHD formats too. The result? Totally precise tonal and image balance, speed and dynamics. And on top of all that, you also get XLR audio inputs, DC triggers and a Marantz control bus system for remote on/off. Theres even a stylish new display screen showing the actual output power. This is power and convenience to take your breath away.

FEATURES Channels 5 HDAM version Power Transformer: Toroidal High Grade Audio Components Customised Components Symmetric PCB layout Aluminium extrusion heatsink

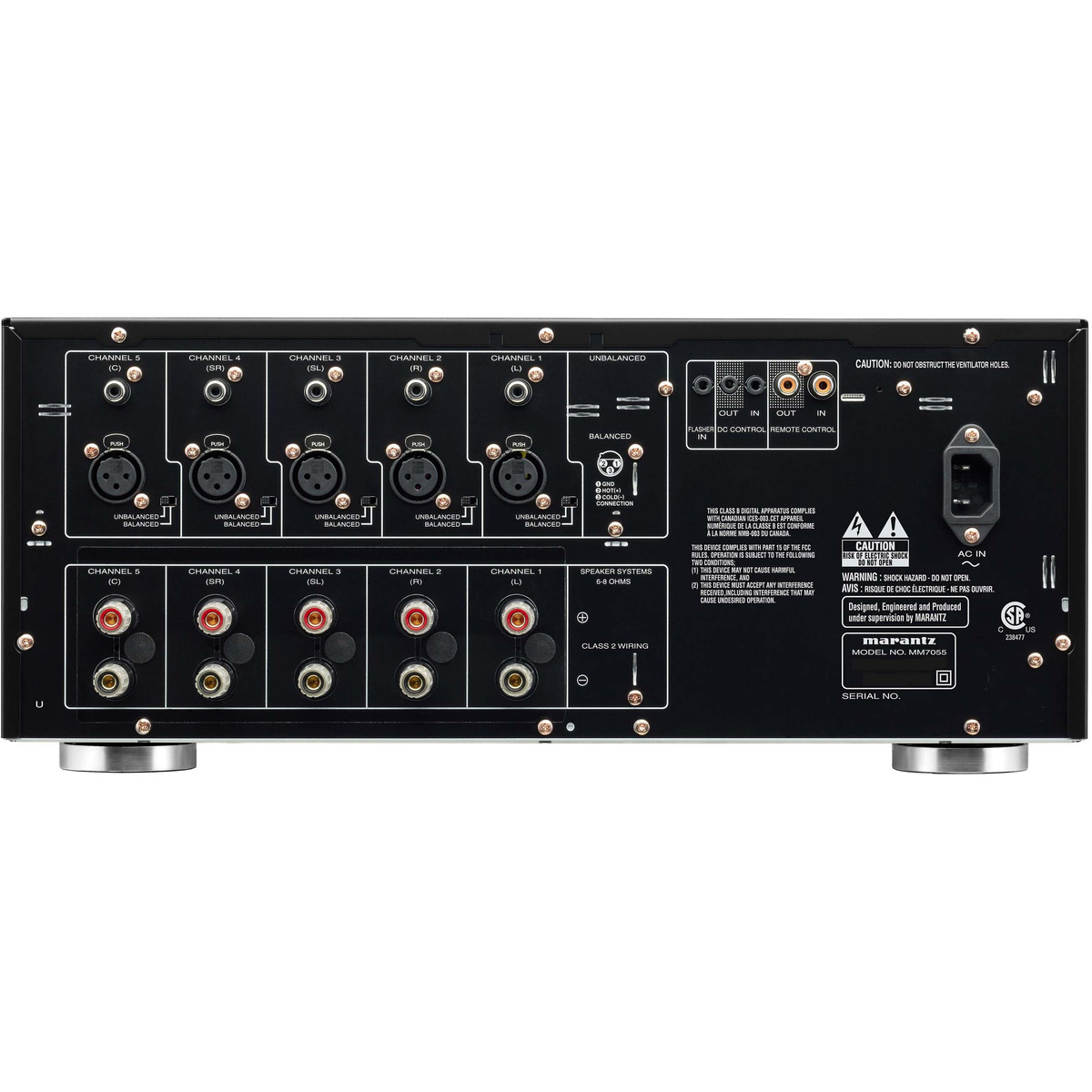

OTHER Linear Drive Power Supply Input Buffer Amp (All inputs/CD only) INPUTS/OUTPUTS Balanced In - 5 Main In -5 Speaker terminal: Marantz/WBT Number of terminals - 5 IR receiver In

SPECIFICATIONS Power Output (8/6 Ohm RMS) 140/170 Watts Frequency Response 8Hz-100kHz Total Harmonic Distortion 0.03% Damping Factor 100dB Input Sensitivity: High level 1.2V/22kohm Input Sensitivity: Balanced High level 2.4V/30kohm Signal to Noise Ratio: High level 105dB

GENERAL Available colors: Gold/Silver/Silver-Gold Power Consumption in W440 Standby Consumption in W0.4 Maximum Dimensions (W x D x H) in mm 440x384x184.5 Weight in kg 15.2
