HDBaseT HDMI Extender Over

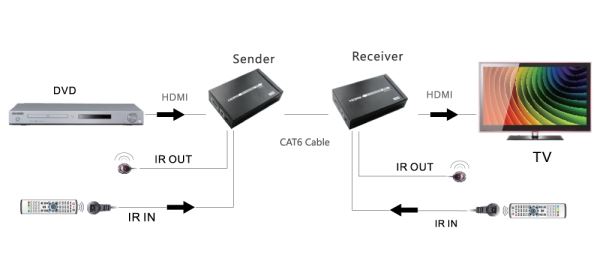

LENKENG HDBaseT HDMI Extender over single Cat cable up to 100m Extends HDMI, Bi-Directional IR & PoE. No Power Adapter Required at Receiver. Up to 100m 1080p@60Hz over cat5e/6. Up to 70m 2K4K@30Hz over cat5e/6. This HDBaseT single network cable extender transmits HDMI signal for up to 100 meters over Cat6 cable, fluently and clearly. It is lossless in signal and supports 3D, 24bits deep colour, 4K2K, CEC and HDCP. Apply HDBaseT extend technology Uncompressed HDMI video signal Support full HD 1080P@60Hz, 3D, 4k2K Extend 1080p signal over cat6a up to 100meters Support bi-directional IR pass back Support HDCP, CEC, 24 deep colour Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD Can be powered by network cable. It only needs to input 12V power for either transmitter or receiver for normal working. Specifications HDMI Signal 4K2K, compatible with HDCP, Support CEC and 24bits deep colour Resolutions Supported 480i/480P/576i/576P/720P/1080i/1080P/3D/4K2K Audio LPCM, DTS Digital, Dolby Digital Network Cable CAT5E, CAT6, CAT6A Transmission Length CAT5E/CAT6 100M Up to 1080p@60Hz 36bpp 70M 1080p@60Hz 48bpp, 1080p@60Hz 3D, 4K2K 30Hz CAT6A 100M Infrared Back Support 20~60kHz wide frequency devices and Bi-directional IR transmission Power Supply 12V/2A DC x1pcs Power Consumption 8W Product Dimension (LxWxH) 98.5x66.5x23mm Enclosure Material Metal Weight TX:79g RX:107g Colour Black
