FUSION MARINE STEREO KIT MS-RA60

Purchase this product


Our Price: $799.00

Or 4 payments of $199.75
Info
Enquire about this product Print Product Information

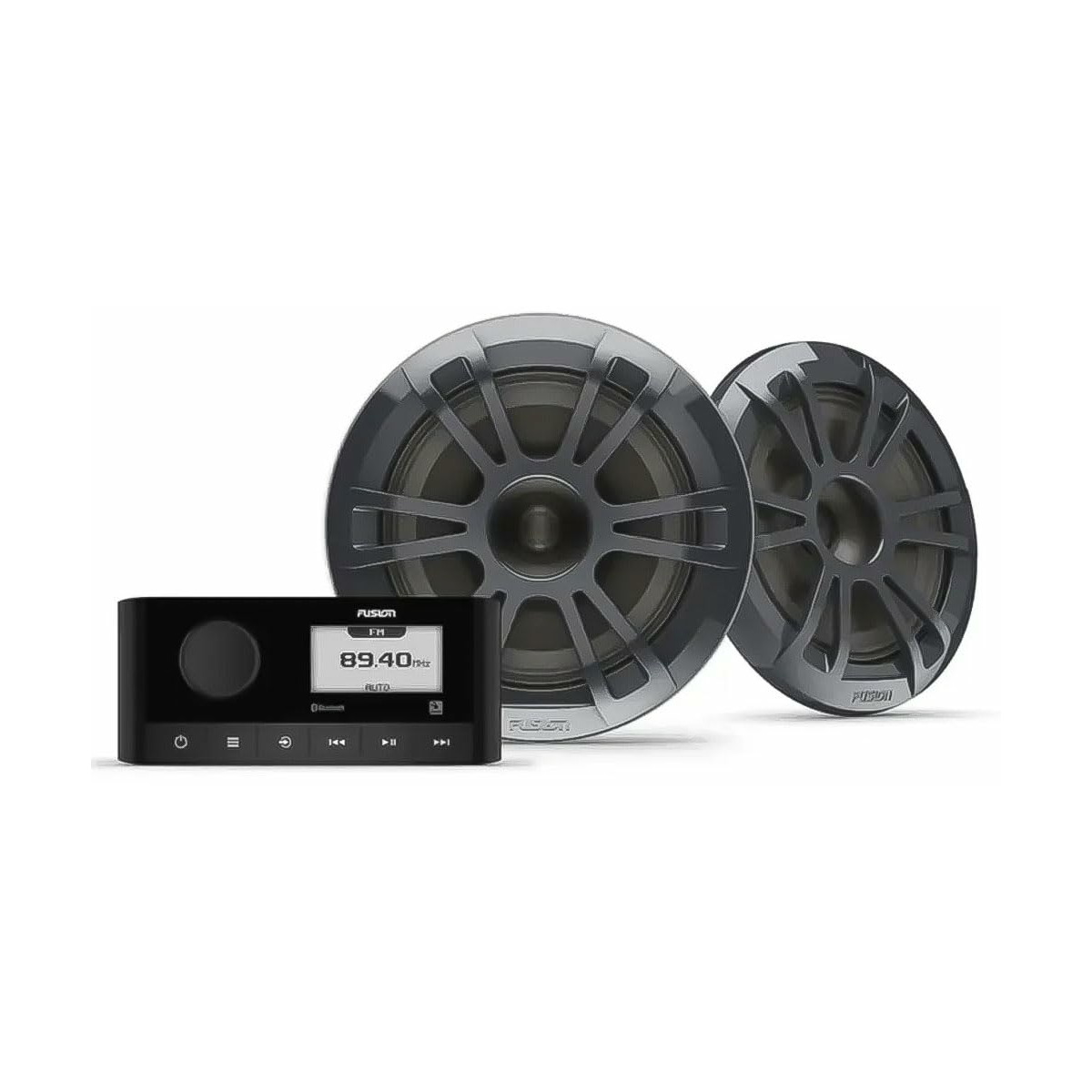

Marine Bluetooth Media Unit and x2 EL Sports 6.5" Speakers


Outfit your boat with an exceptional sound system at an outstanding value.

- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install
- Easily control music from your compatible Garmin MFD1, smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone™ Technology makes you the captain of two separate audio zones
- Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers

Specifications:
Physical dimensions (HxWxD) 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
Weight 11.1 oz (316 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
Bluetooth® wireless range Up to 30 ft (10 metres)
ANT wireless range Up to 10 ft (3 metres)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9" (150 mm)
Display 2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power: 180 W
Rated power output (4 Ohm) 22 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control Yes (with smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
DAB+ ready Yes (DAB tuner built in)
Multi-language interface Dutch, English, French, German, Italian, Spanish
Software updates Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
Warranty 1 year
Sources AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
Auxiliary input One RCA input (AUX)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification)
RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification)
Line out Zone 1 (L + R, requires external amplification)
Subwoofer out Zone 1 (requires external amplification)

Speaker Specifications:
Physical dimensions (HxWxD) 6.93" x 2.32" (176 x 59 mm)
Water rating IP65
Configuration Full range
Speaker size 6.5"
Peak power (Watts) 80 W
RMS power (Watts) 20 W
Sensitivity (1 watt/1 metre) 88 dB
Frequency response 45 Hz-16 kHz
Nominal impedance 4 ohm
Recommended amplifier power (RMS) 20-40 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 0.79"
Cone material Polypropylene cone with cloth surround
Compass-safe distance 100" (254 cm)
Warranty 1 year
Mounting diameter clearance 5.12" (130 mm)
Mounting depth clearance 1.69" (43 mm
