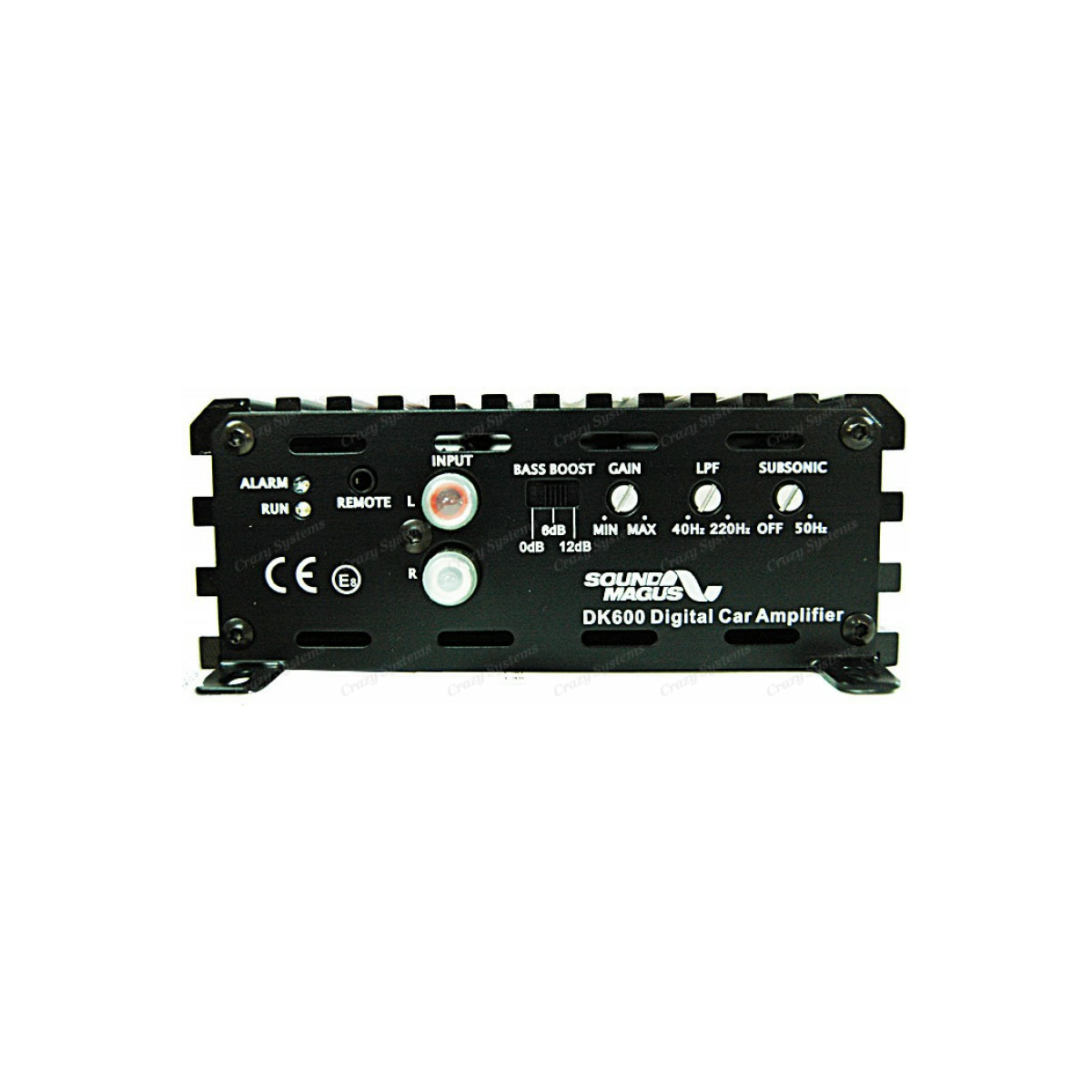

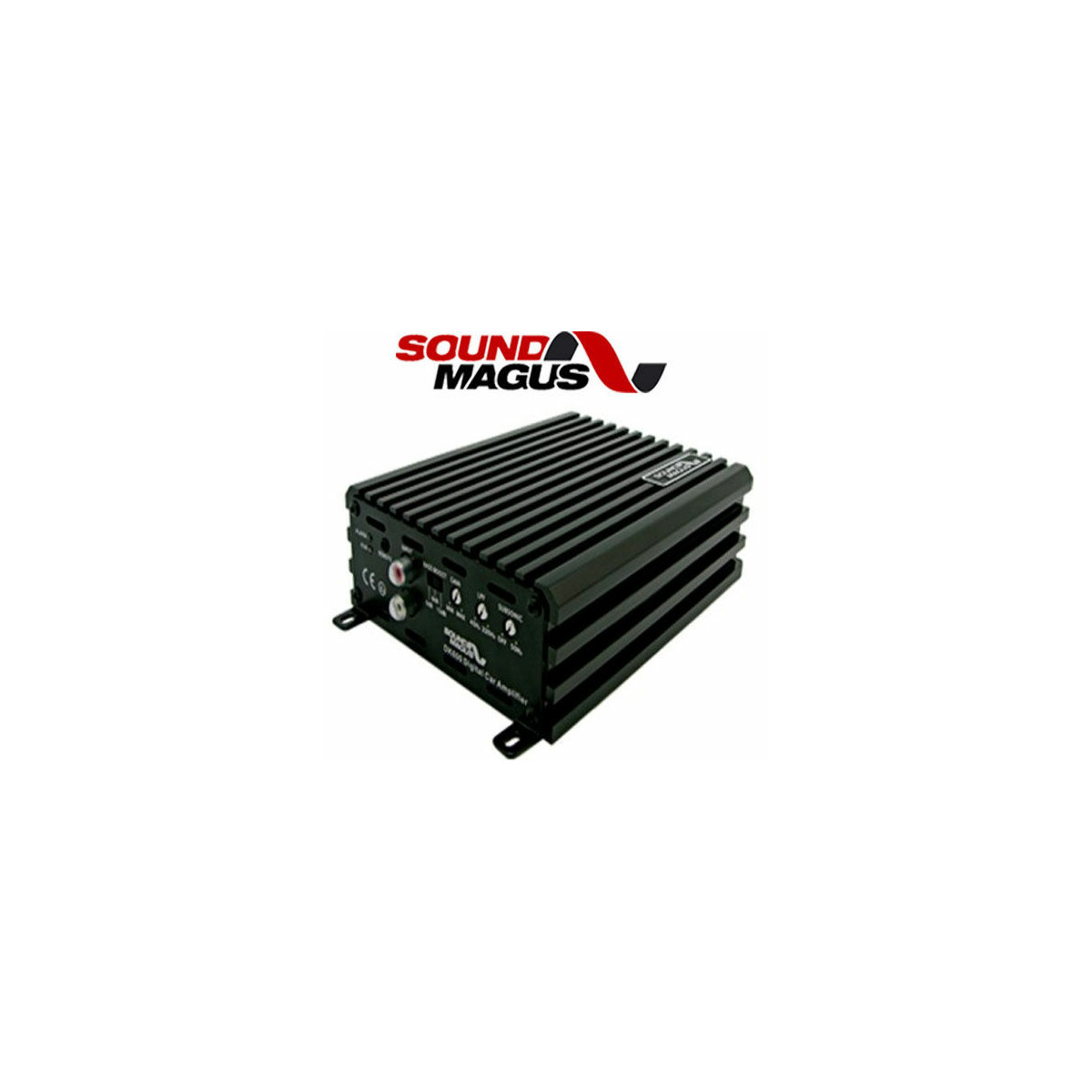

Class D AMP Mono Amplifier – 600w RMS

Upgrade your car audio system with the Sound Magus DK600 Class-D Amplifier. With 600W RMS power output, this amplifier delivers clear and powerful sound performance in a compact and stylish casing enhance your vehicle's audio system.

·         2 ohm load stable.
·         Double Side PCB and SMD components.
·         Adjustable Input level, LPF, Subsonic function.
·         Advanced short circuit, overload, over heat, and low voltage protection.
·         Heavy duty terminals.

Specifications:
·         Product Dimensions : 184(Length) 140(Width) 54(Height)
·         Brand : Sound Magus
·         CLASS D MONO Channel
·         600W x 1RMS (2 OHM, 14.4V)
·         400W x 1RMS (4 OHM, 14.4V)
·         Input Level : 0.2-5 V
·         Frequency Response : 10-220 Hz
·         LPF : 40-220 Hz
·         Sub Sonic Filter (HPF) : 10-50 Hz
·         THD at 4Ohm Load 30% Rated Power : <0.3%
·         S/N Ratio : >80dB
·         Bass Boost : 0-6dB-12dB Switchable
·         Best Efficiency 4ohm : >80% Minimum Load : 2 Ohm - Low Voltage Protection : Yes
·         Overheat Protect Temperature : Protect At 80/176F
·         Warranty – 1 Year*

*Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory or Product Warranty may be void.
