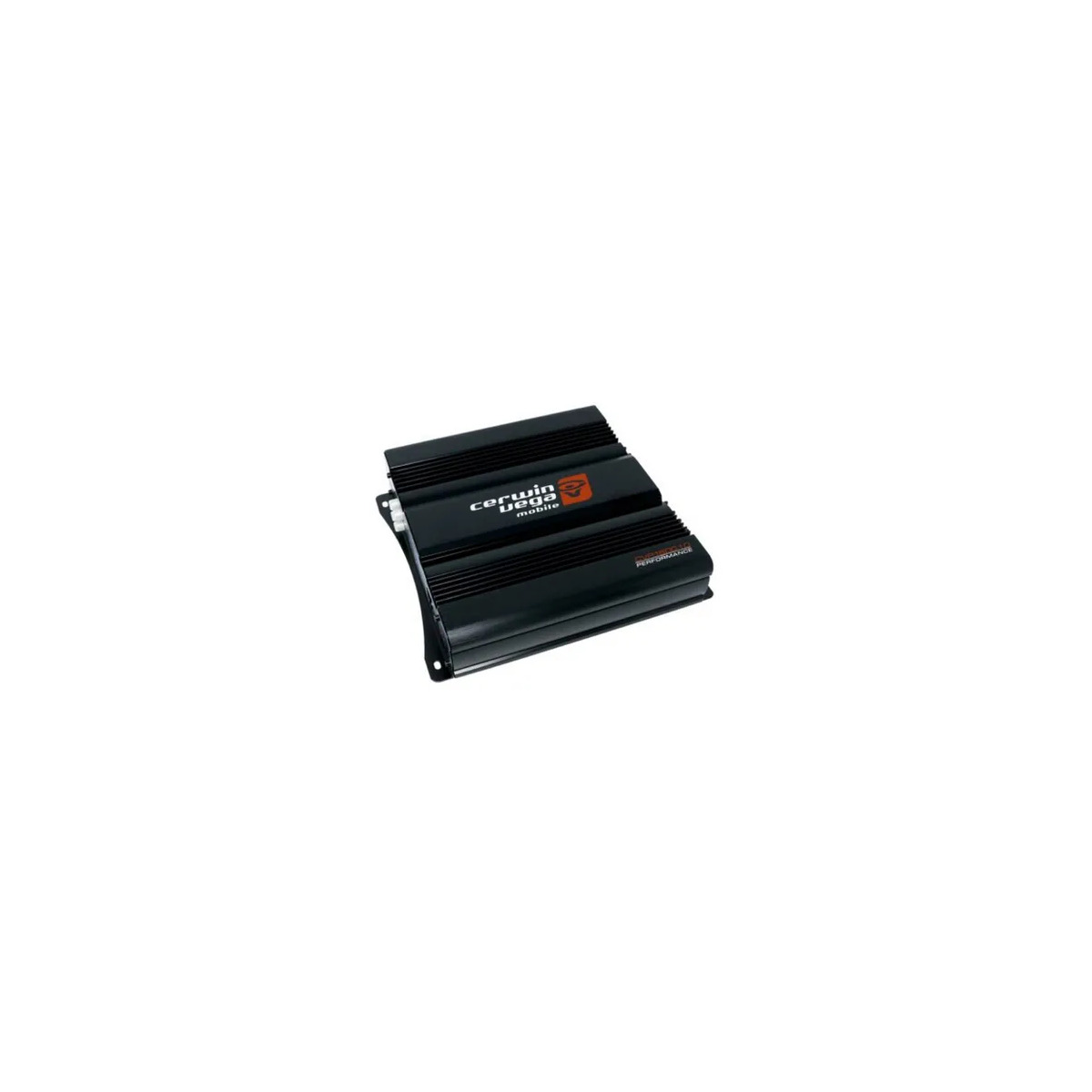

CVP1600.1D – 1-Channel 1600W Class A/B Monoblock Amplifier

Features

• Latest High-Efficiency Class A/B Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion
• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

• 1 Channel Amplifier
• 120W x 1 @ 4Ω RMS
• 200W x 1 @ 2Ω RMS
• Class A/B
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• Power Supply 10-16VDC
• Sensitivity 200mV-6V
• Variable 12dB High, Low, & Subsonic Crossovers
• Fuse Rating - 35 Amp x 1
• Dimensions:  8.67″ x 9.38″ x 2.25″ (220mm x 238mm x 57mm)
