4 CH 60W RMS X 4 @ 4OHM / 90W RMS X 4 @ 2OHM

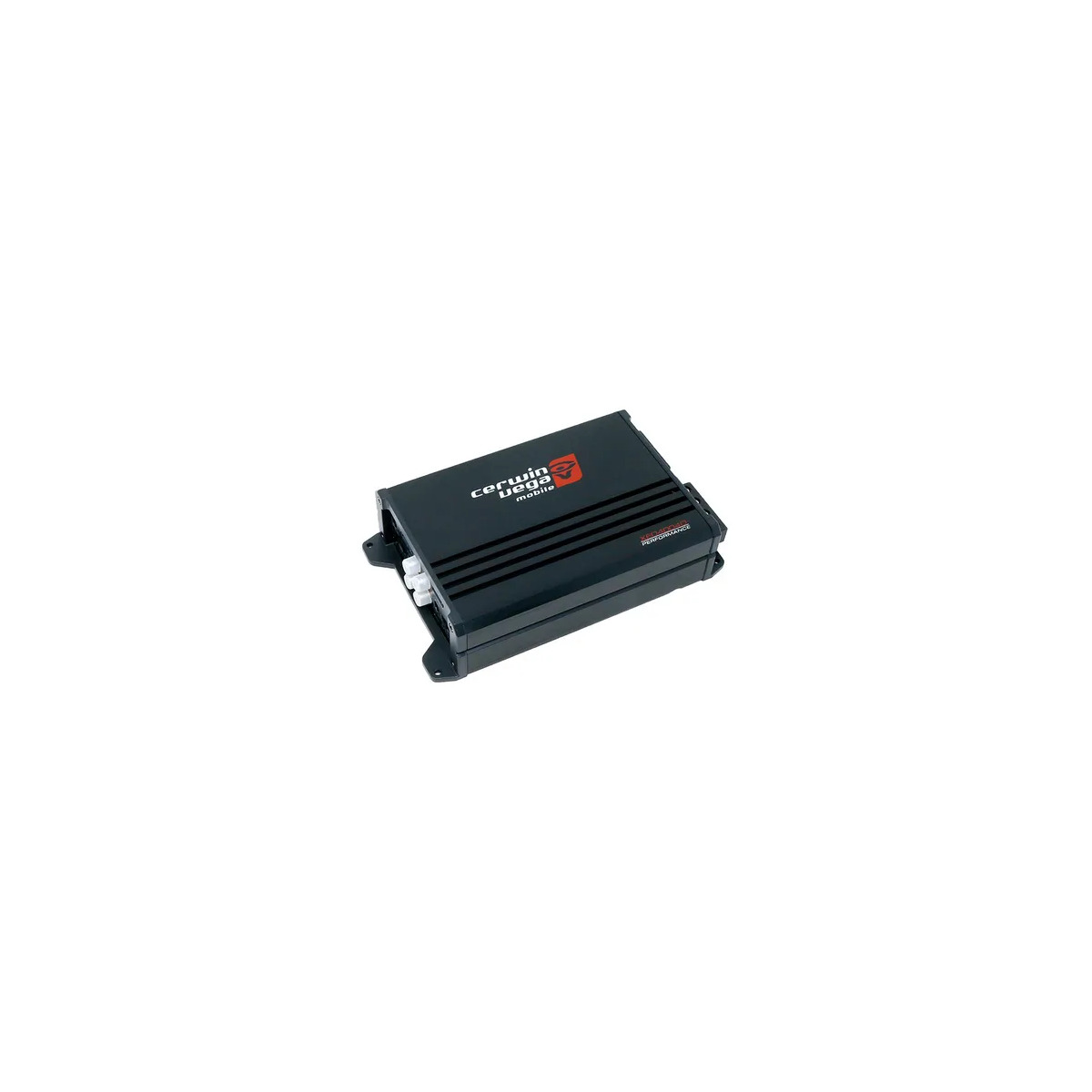

XED4004D - 4 Channel XED Series Amplifier / 400W MAX

Features:

• Latest High-Efficiency Class D Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion
• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications:

• 4 Channel Amplifier
• 60W x 4 @ 4Ω RMS
• 90W x 4 @ 2Ω RMS
• 160W x 2 @ 4Ω RMS Bridged Mono
• 2-Ohm Stereo, 4-Ohm Bridged Full Range Operation
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low-Level RCA Input
• Variable 12dB High, Low, & Subsonic Crossovers
• Fuse - 30 amp x 1
• Dimensions: 6.3" x 4.7" x 1.8" (160mm x 120mm x 46.5mm)
