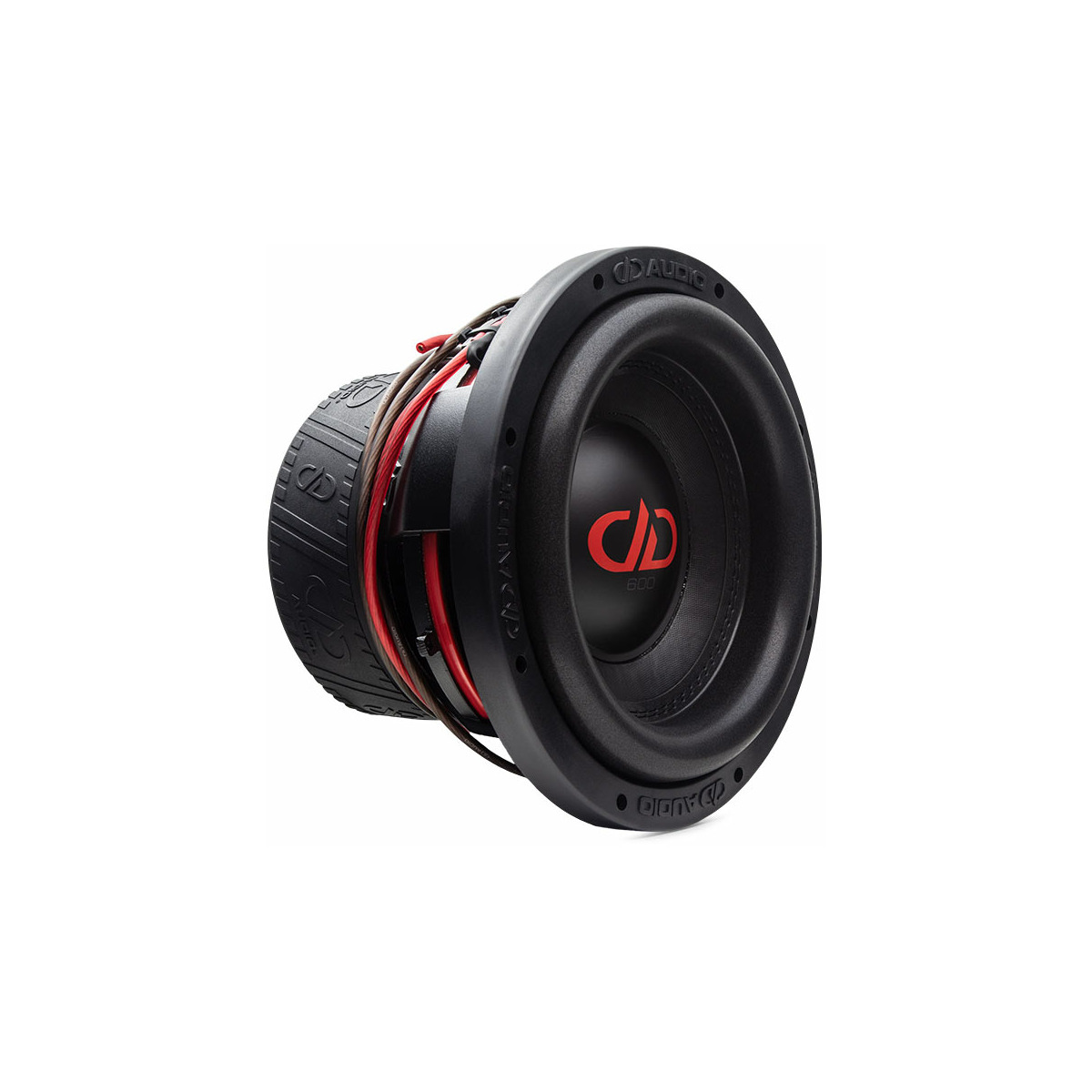

600 SERIES 10" Subwoofer

The 600 Series latest revision is a mean mother “f”.

In the previous “e” revision they got bigger and better; and in this latest “f” revision they receive precision engineered, thermal cooling enhancements of major significance along with some design work that is literally cutting edge. Digital Designs have pushed the already highly efficient 600 subwoofers to meet our evolving performance standards to ensure longer periods of loud, continuous play.

The DD design philosophy is to prioritize the maximization of total efficiency: converting raw power to clean sound, while managing the intense heat created by this conversion.

Given this mandate, the new 600 “f” revision receives a vented aluminum voice coil insert and vented, finned, aluminum heatsink to conduct and transfer heat away from the subwoofer’s most vulnerable components. As the increased power handling will undoubtedly bring with it greater demand for excursion, a taller surround, double stitched to a fiberglass loaded, non-pressed cone, adjoined to a voice coil featuring increased winding length with DD’s proven double layer spider, offers increased Xmax, and elegant styling.

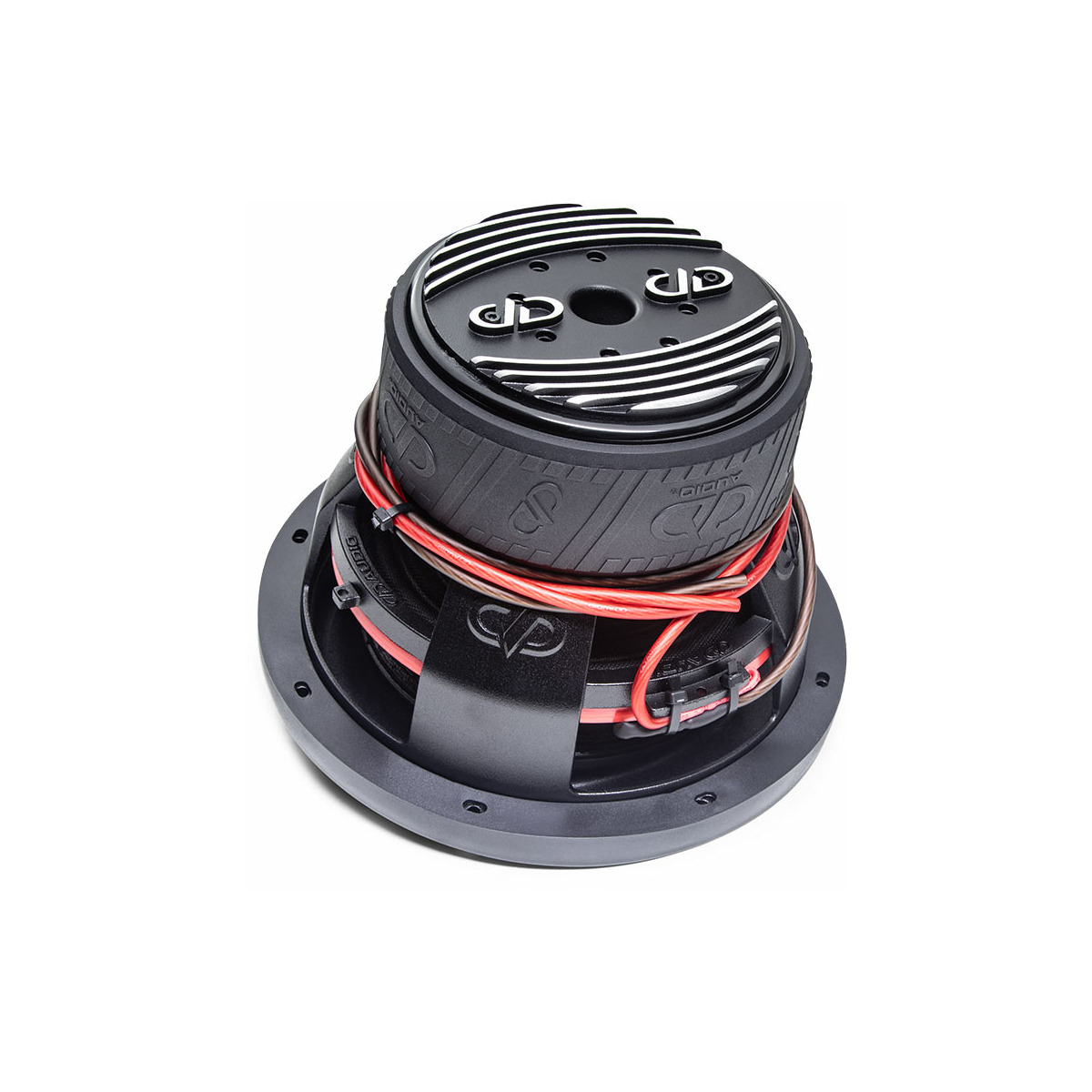

The heat sink features beautifully carved & polished aluminium DD logos, and the motor is wrapped in a rubber boot with an all new embossed design.

Specifications:
·         Speaker Size (In): 10
·         Watts RMS: 1000
·         Watts Peak: 3000
·         Impedance: D2
·         VCD (In): 2.5
·         Piston Diameter (In): 8.5
·         Fs (Hz):34
·         Qms: 5.047
·         Qes: 0.454
·         Qts: 0.416
·         Vas (Liters): 33.91
·         Xmech (MM): 60
·         Xmax (MM): 22
·         Frame OD (In): 10.625
·         Frame OD w/Gasket (In): 10.75
·         Mounting Diameter (In): 9.39
·         Mounting Depth (In): 7.25
·         Motor Diameter (In): 7
·         Motor Depth (In): 3.375
·         Woofer Displacement (CuFt): 0.08
·         Ported Enclosure (CuFt): 1.25 - 1.75
