Z SERIES Monoblock Amplifier

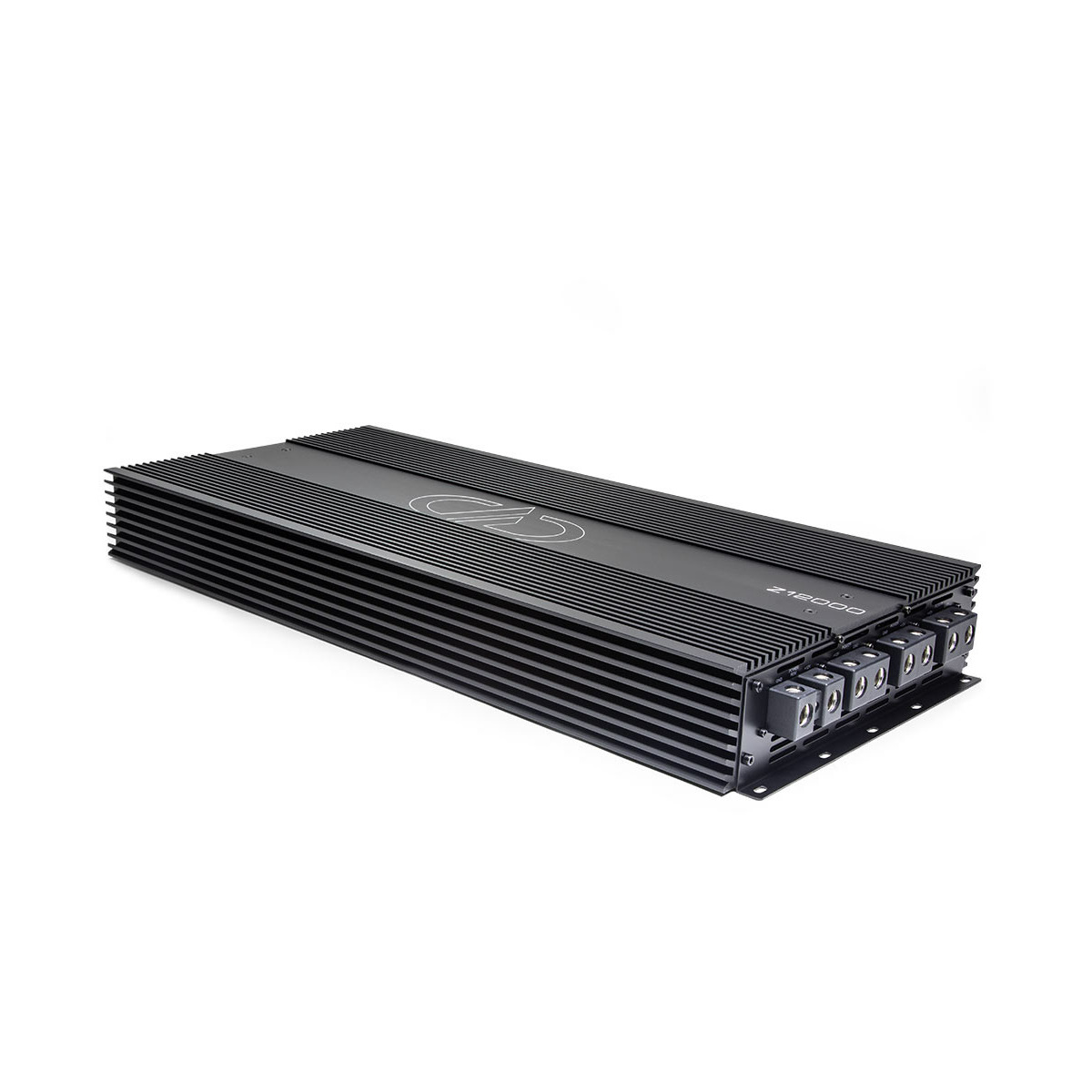

The Z12000 monoblock subwoofer amplifier is the latest offering in the legendary Z series of top-of-the-line powerhouse amplifiers. This amplifier can deliver well above 12,000 watts of continuous, unbridled power. Engineered for performance, it incorporates state-of-the-art circuit optimization for a high-current, half-bridge amp with a surprisingly small footprint that allows for 2 wide installation in many of today’s popular SPL/DEMO vehicles.

·         Optimized High-Current Power Supply
·         ZVL Linking Module Input
·         Variable 24dB/Oct sub-sonic filter
·         HVAC Thermal Management
·         Black Anodized Heavy Duty Z-Style Heatsink

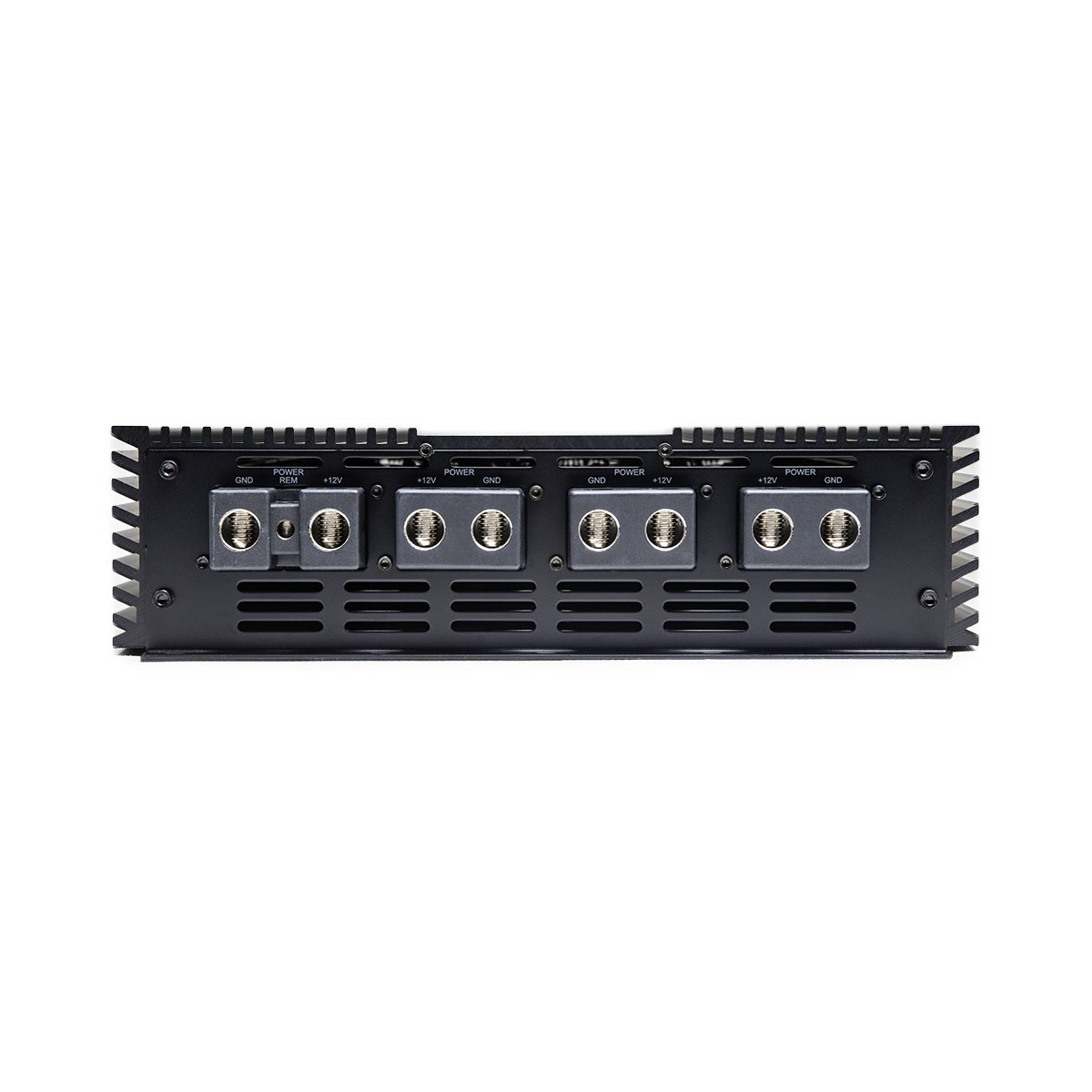

·         Quadruple Power Terminal Blocks
·         Remote Level Control with LCD Voltage Display and Clipping Indicator
·         5-way Protection Circuit

The Z12’s chassis features DD Audio’s exclusive High Volume Air Circulation (HVAC) heat management system. The mass of the heavy-duty extruded aluminum heatsink coupled with intelligent fin design constantly transfers heat to the outside air while an internal brushless fan pulls in cooler air through an elevated bottom panel and end panel vents to maximize air flow over hard working internal components.

Its also ready to connect to the DD Audio ZVL module, giving it the flexibility to easily integrate into multi amp systems to drive the most punishing of subwoofer stages.

All Z Series products are limited run, purpose-built and represent the pinnacle in their product class. During the design process, performance is the primary focus and everything else is ancillary. Reserved for only the most serious audio connoisseur, Z Series products set the bar others reach for.

SPECIFICATIONS:
·         Operating Voltage:           9 - 16
·         Test Voltage:       14.4
·         Output Channel(s):          1
·         Continuous Wattage @4ohm:     4000
·         Continuous Wattage @2ohm:     7000
·         Continuous Wattage @1ohm:     12000
·         Dynamic Wattage:            14000
·         Max Current Draw (Amps):          1200
·         RCA Input Voltage Sensitivity:     8 - 0.2
·         RCA Input S/N:  > 92dB
·         Damping Factor:               > 200
·         Frequency Response (Hz):            10 - 200
·         High Pass Filter: 10Hz - 50Hz
·         Low-Pass Filter: 20Hz - 200Hz
·         ZVL Input:           Yes
·         Power Wire Gauge:          4x0
·         Speaker Wire Gauge:      4x8
·         Dimensions (Inches):      27" x 12" x 3.125"
