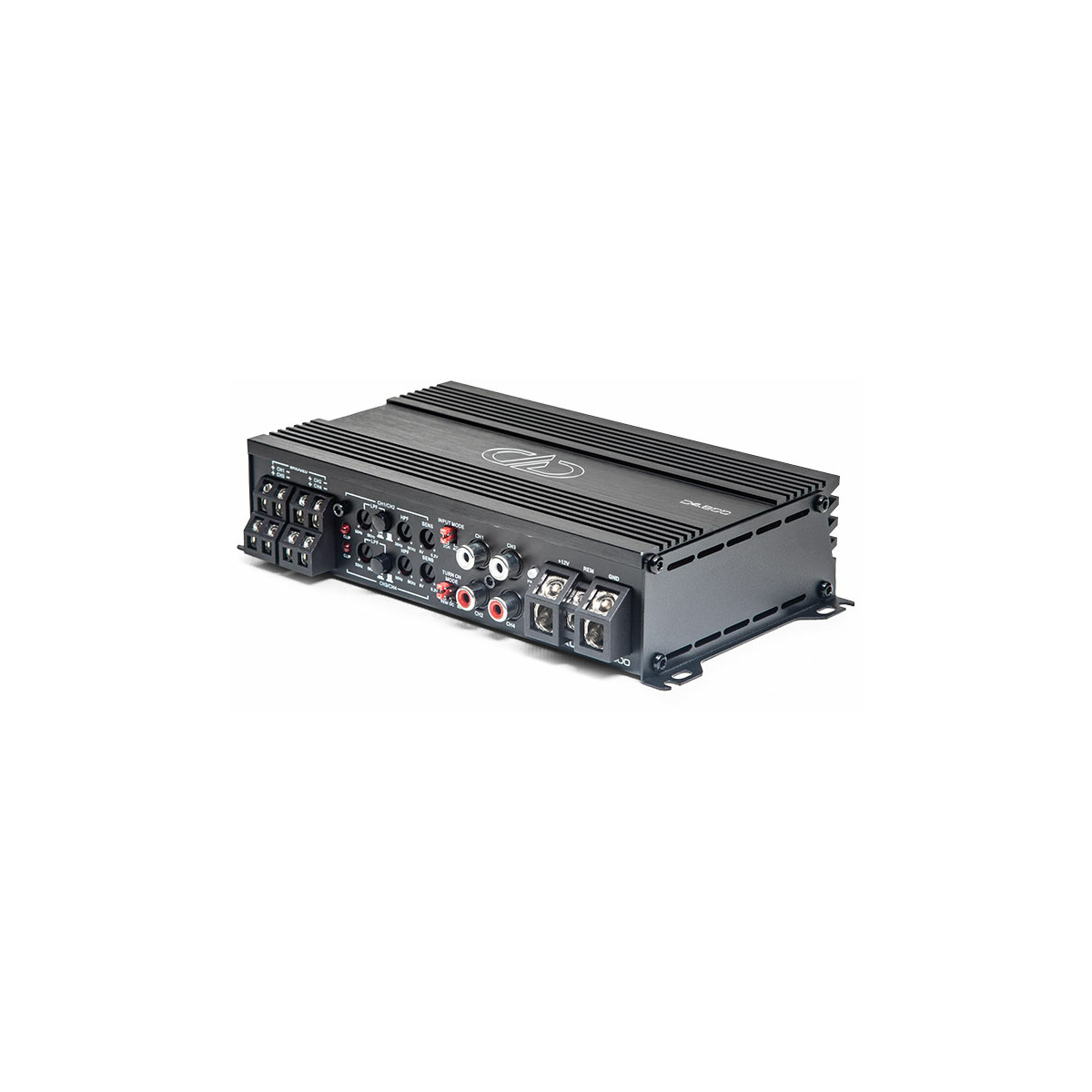

Compact 4 Channel Amplifier

In many of today’s installs, wattage per square inch is a deciding factor on what amplifier gets the job.

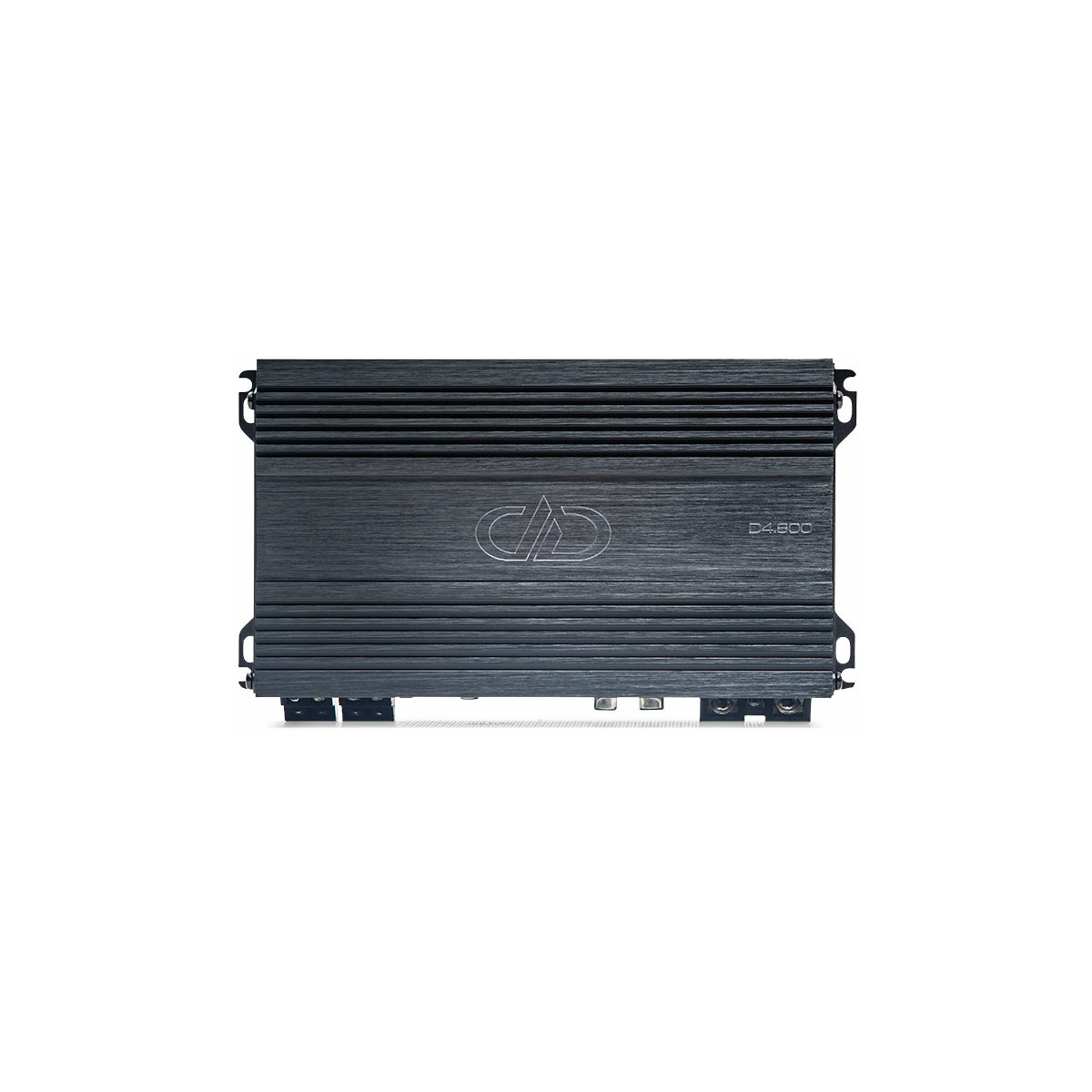

For the D4.800, DD’s engineers were able to take the existing D4.800’s compact chassis, which is only 7” x 4” x 1.7”, and increase the total output by 20%. The D4.800 can cleanly produce 200 watts per channel for a staggering 800 watts of total power.

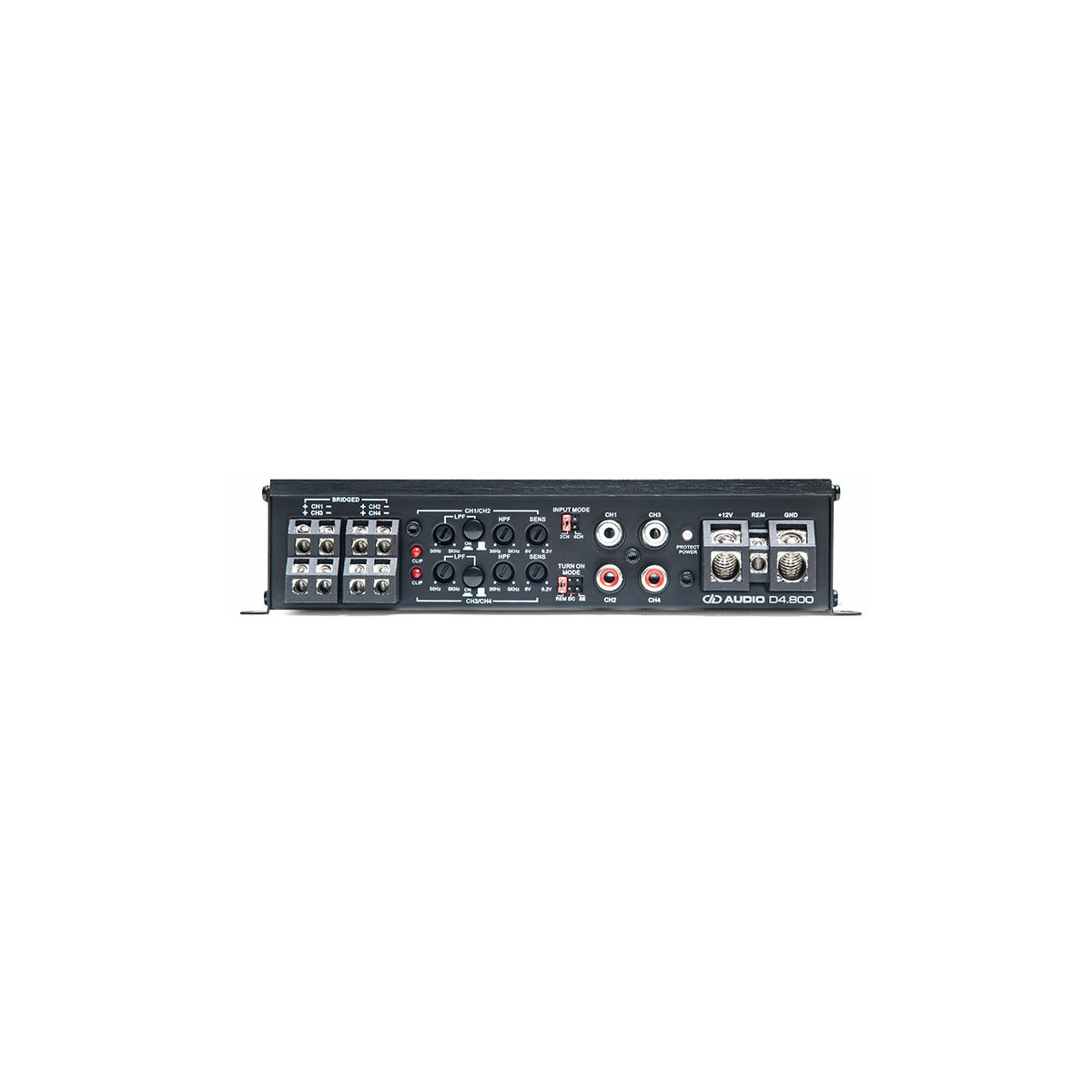

·         Bandpass Crossovers
·         Clipping Indicators
·         Input Mode
·         Auto Turn On
·         Set Screw Power Connections
·         Set Screw Speaker Connections
·         Differential RCA Inputs
·         Discrete Outputs

Beyond its amazing power to size ratio this amp is packed with features not normally seen on amplifiers in this size and price category.

The D4.800 also has conformal coated internal components and sealed back switches making it perfect for motorcycle, boat, and powersport applications. As if this amp didn’t have enough going for it, DD also has a line of made for Harley Davidson brackets that allow the D4.800 to cleanly and securely mount into 2014 and up Harley Road Glides and Street Glides.

SPECIFICATIONS:
·         Operating Voltage: 9 - 16
·         Test Voltage: 14.4
·         Output Channel(s): 4
·         Continuous Wattage @4ohm: 4 x 125 / 2 x 400
·         Continuous Wattage @2ohm: 4 x 200
·         Max Current Draw (Amps): 80
·         RCA Input Voltage Sensitivity: 8 - 0.2
·         RCA Input S/N: > 90dB
·         Damping Factor: > 100
·         THD: < 0.2%
·         Frequency Response (Hz): 30 - 30k
·         Sub-Sonic Filter: 30 - 5k
·         Low-Pass Filter: 50 - 5k
·         Pass Thru Output: No
·         Power Wire Gauge: 4
·         Speaker Wire Gauge: 12
·         Dimensions (Inches): 7 x 4 x 1.7
