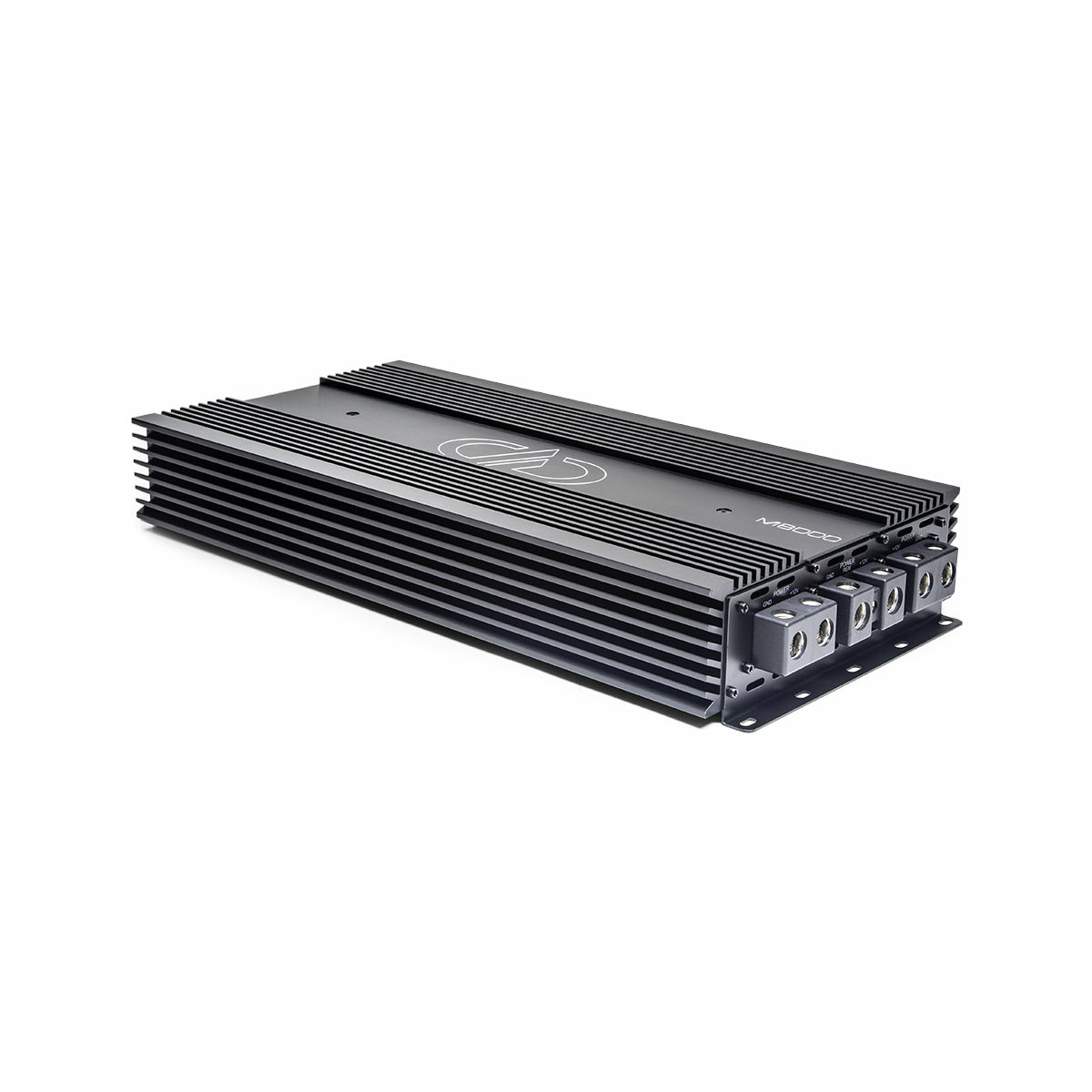

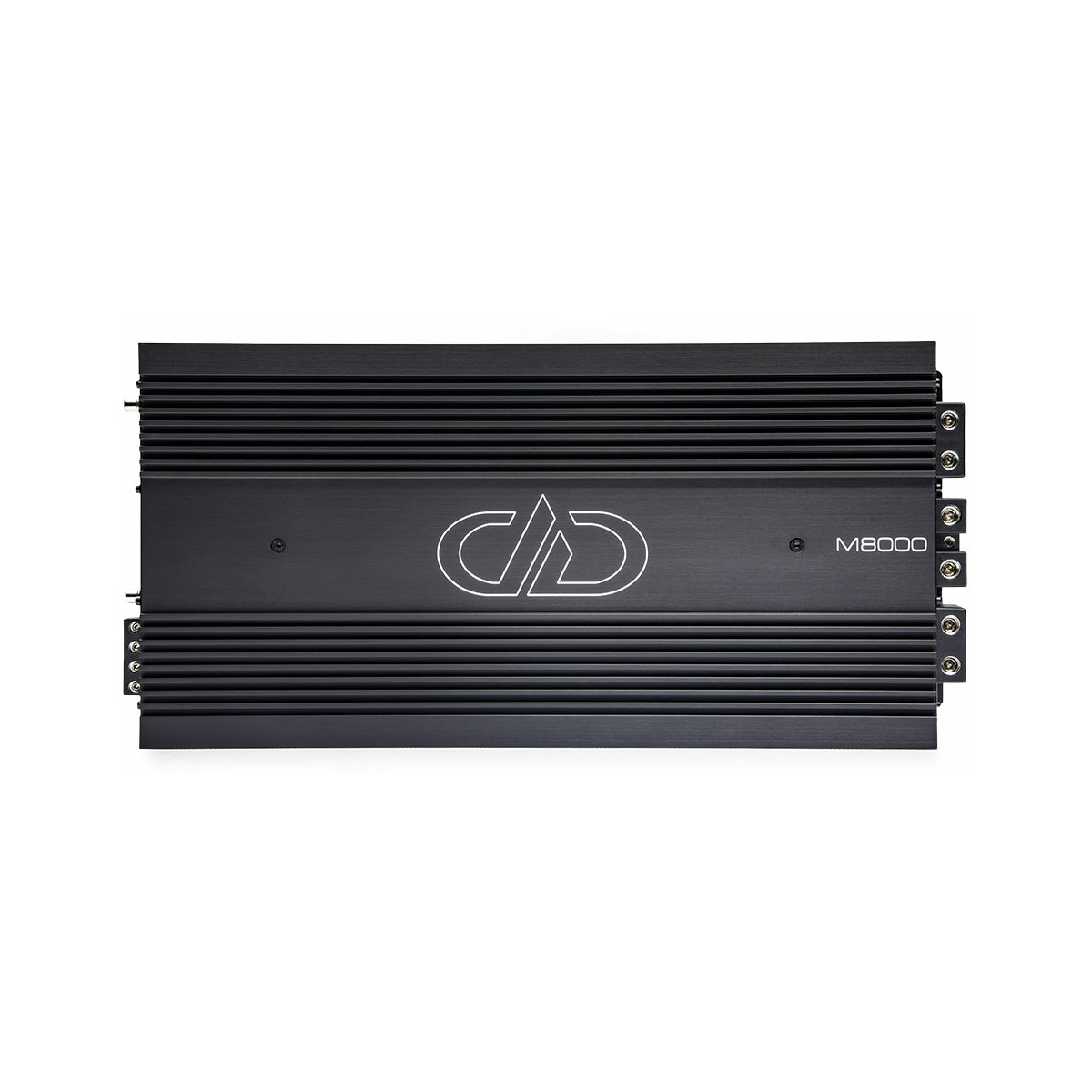

M SERIES Monoblock Amplifier

DD AUDIO continues to redefine the venerable M Series with revisions that greatly improve power and efficiency without increasing unit size. The M Series amplifiers are over-built and purpose driven.
The slightly revised M8000 is our 6th generation M Series high current amplifier circuit, getting enhancements developed for the Z12000 amplifier. This latest revision adds design elements for extended reliability and durability. We beefed up internal high current pathways and tooled new end panels to increase airflow through the amplifier. The internal fan can pull more air through the PCB even when mounted on carpeted or padded surfaces.

The M8000 circuit uses the latest in ultra high current devices, increasing the total current available over the 5th gen M amp designs. These high current, half bridge amps are more compact, lighter and pack more punch than any previous M Series.

The bass hits harder and transients are even cleaner; making this amp truly True To The Source.

·         Optimized Über High Current Power Supply
·         ZVL Linking Module Input
·         24dB/Oct Bandpass Filters
·         Custom Vanity Plate Ready

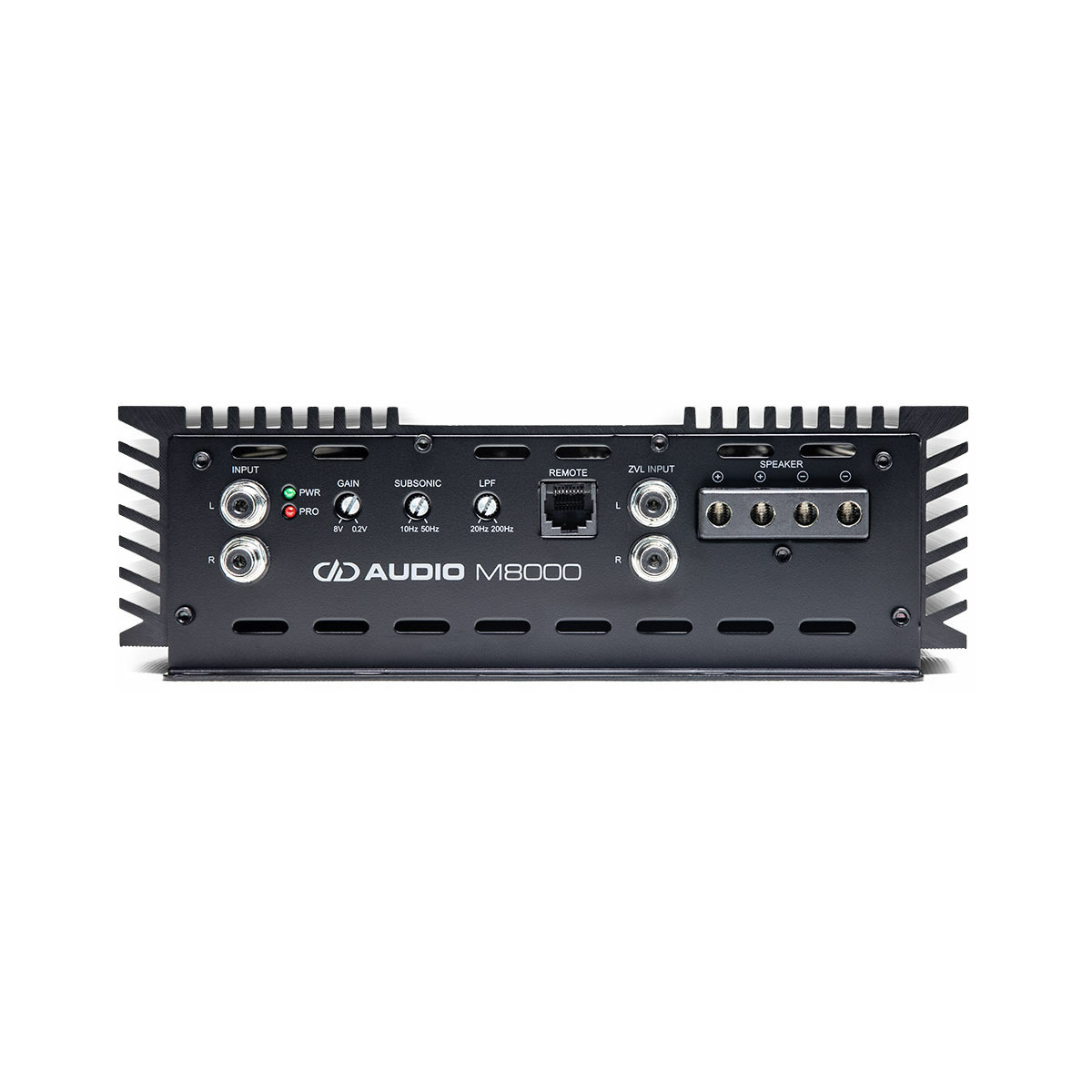

·         Remote / LCD Voltage Display and Clipping Indicator

The next generation of the iconic M Series takes advantage of the latest semiconductor technology and combines it with state-of-the-art amplifier design. This combination to offers power to footprint ratios previously impossible for current driven-half bridge amplifiers. Even though the chassis are more compact, the new M Series hasn’t lost any output power or stability. With robust heatsinks, multiple power and ground inputs, heavy duty PCBs, and top shelf internal components these amplifiers are ready to handle even the most demanding listening sessions.

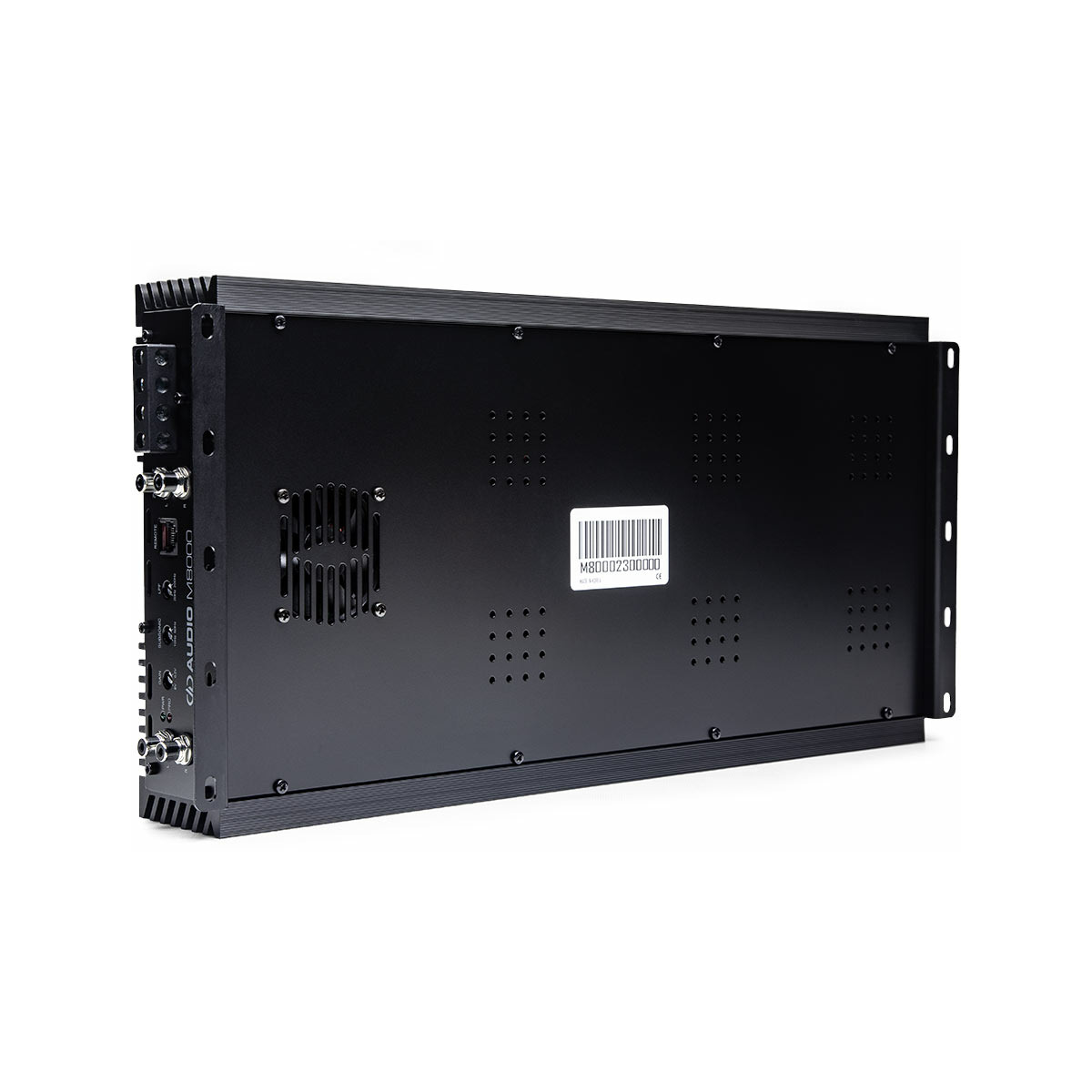

To further enhance performance, the M Series features new end panels, raising the amps off the mounting surface, allowing the internal fan to pull more air through the PCB even on carpeted or padded surfaces.

SPECIFICATIONS:
·         Operating Voltage: 9 - 16
·         Test Voltage: 14.4
·         Output Channel(s): 1
·         Continuous Wattage @4ohm: 3000
·         Continuous Wattage @2ohm: 5000
·         Continuous Wattage @1ohm: 8000
·         Dynamic Wattage: 10500
·         Max Current Draw (Amps): 800
·         RCA Input Voltage Sensitivity: 8 - 0.2
·         RCA Input S/N: > 92dB
·         Damping Factor: > 400
·         THD: < 0.2%
·         Frequency Response (Hz): 10 - 200Hz
·         Sub-Sonic Filter: 10 - 50Hz
·         Low-Pass Filter: 20 - 200Hz
·         ZVL Input: Yes
·         Pass Thru Output: No
·         Remote Control: YES (Remote Included in Box)
·         Power Wire Gauge: 3 x 0
·         Speaker Wire Gauge: 10
·         Dimensions (Inches): 17.75 x 9 x 2.85
