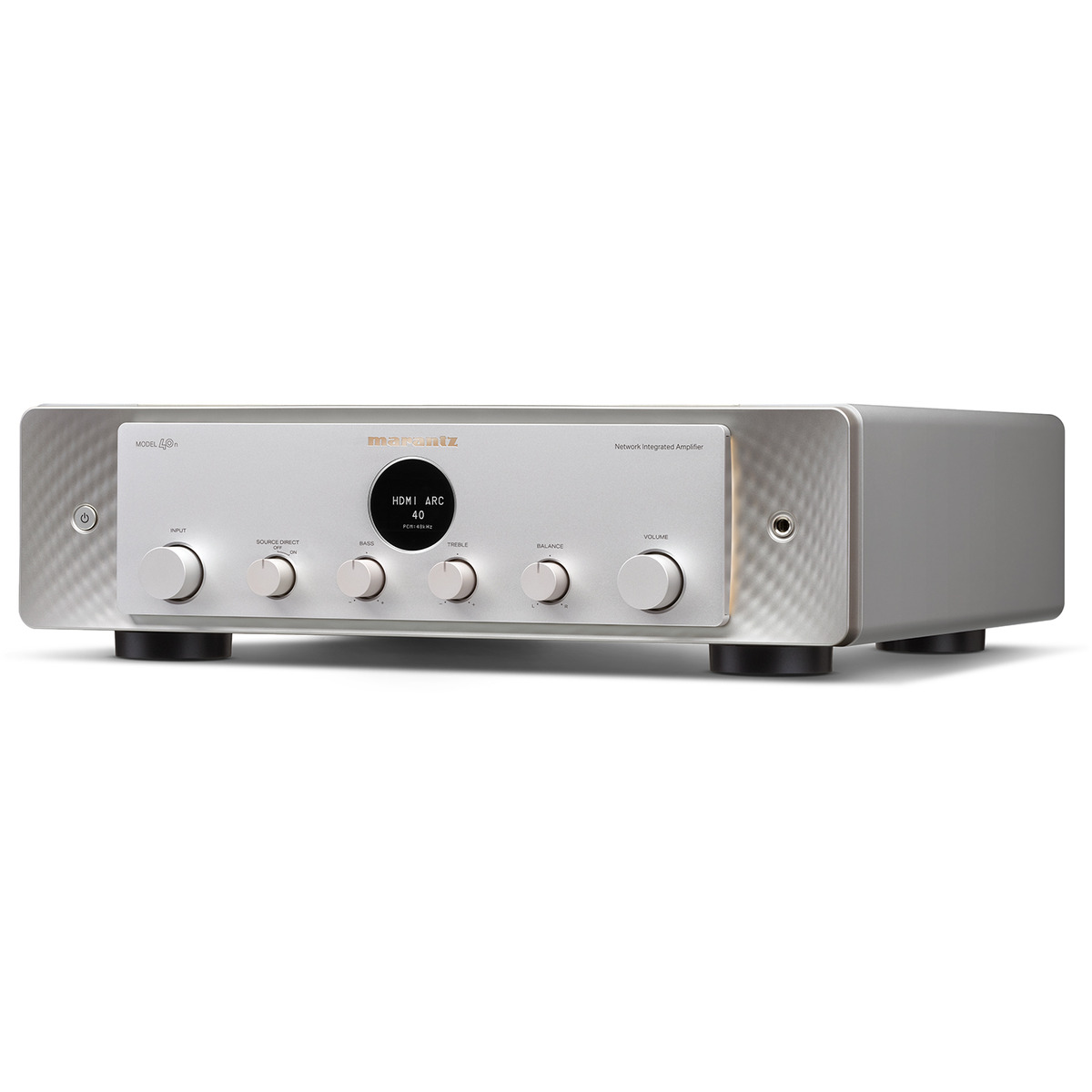

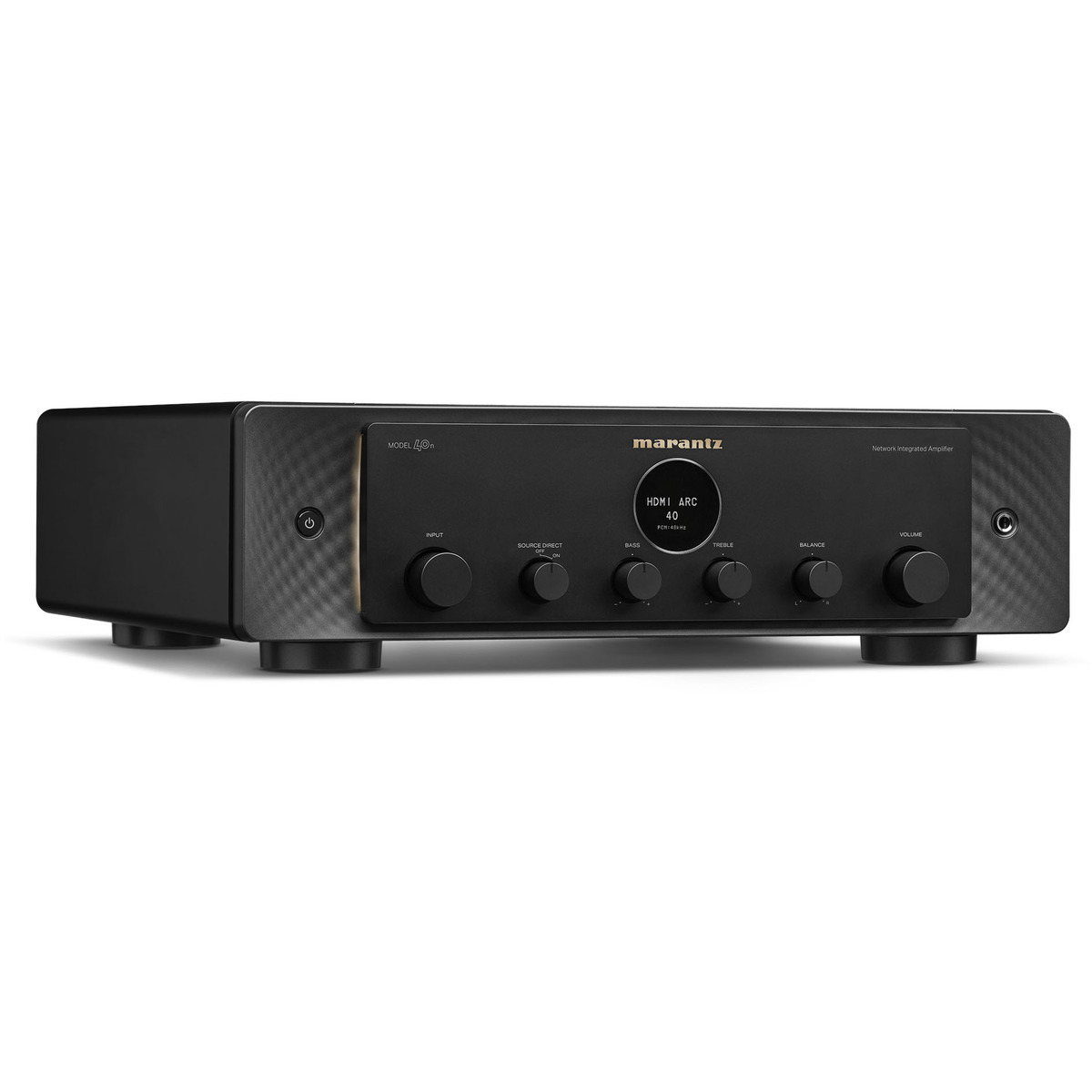

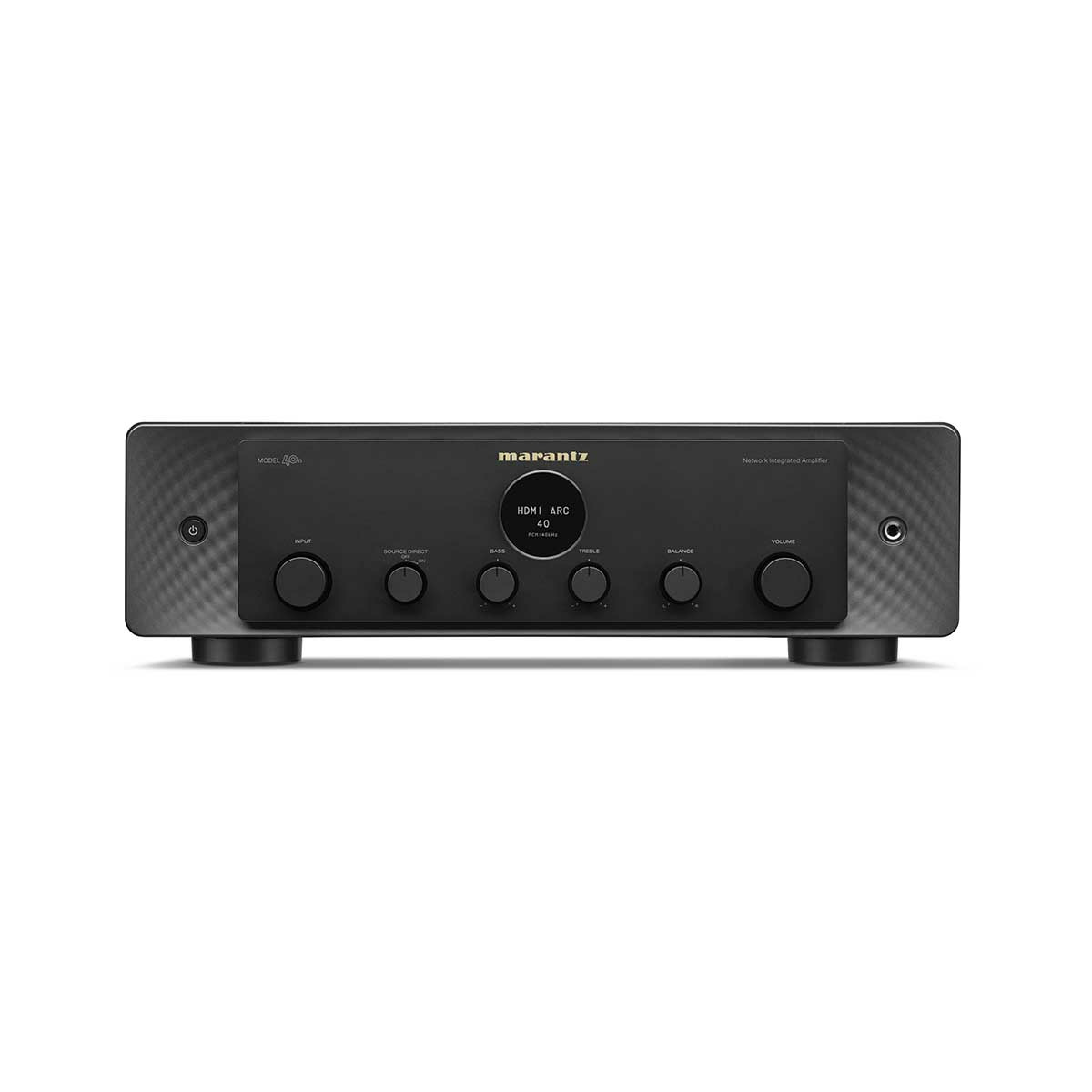

INTEGRATED STEREO AMPLIFIER WITH STREAMING BUILT-IN

The Most Musical Sound From Any Source
A full complement of analog and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.

Stream Millions Of Hi-Resolution Songs
Stream from Spotify, Pandora, Tidal, and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.

Whole-Home Hi-Fi
Create a multiroom musical experience with the MODEL 40n as your home’s music hub.

HDMI Input Adds AV Connectivity
HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.

Multi-room streaming with HEOS Built-in
Effortlessly connect via Bluetooth, Apple AirPlay 2, or directly from the HEOS app to play all your favourites from hundreds of streaming services.

High-Resolution Digital Streaming Built-In
MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won’t need extra equipment to stream your favourite tunes. MODEL 40n supports Spotify, AirPlay 2, Apple Music, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.

The Marantz Musical Phono EQ
The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical Phono EQ is built in so you can connect a turntable with MM cartridge directly to MODEL 40n. You’ll enjoy your favourite records and discover new ones, all without the burden of additional electronics.

Precise Tone Control
Your sound preferences at your fingertips. Adjust bass and treble to suit your sound or bypass for the purest sound possible.

Luxurious Look and Feel
MODEL 40n follows a long line of historic Marantz pieces notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn’t need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.

Hyper Dynamic Amplifier Modules
To preserve the detail, nuance, and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf modules found in other products. MODEL 40n leverages this unique Marantz innovation to ensure whatever you’re listening to is always the most musical.

Subwoofer Output
Deep bass is a visceral and exciting sensation. When partnered with equally excellent speakers, MODEL 40n produces impressive bass. If you want more, add a subwoofer using the dedicated subwoofer output and dial in the low-frequency crossover settings and level for precise integration with your main loudspeakers.

Specifications:
Rated Output Power: 70W + 70W (8ohm)/100W + 100W (4ohm)

Power Amplifier Circuit  HDAM-SA3

Power Transformer: Double Shielded Toroidal
Bass / Treble / Mid / Balance Control: yes / yes / - / yes

Source Direct: yes

Frequency Response: 5Hz - 50kHz

Total Harmonic Distortion: 0.02% (20Hz - 20kHz, 8Ω)

Dumping Factor: 100

Input Sensitivity: Phono input 2 mV / 47 kohm

Input Sensitivity: CD/Line/Recorder 220 mV / 20 kohm

Input Sensitivity: Power Amplifier input  1.6 V / 15 kohm

SN Ratio: PHONO (MM): 87dBCD: 106dB
Phono Input: Yes (MM)

Marantz Musical Phono EQ

Ext. Pre Input (Power Amp Direct): Yes

Preout: No

Analog Input (include Phono) / REC Out (RCA)     4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)

Optical input      1

Coaxial input      1

HDMI    1 / 0 (ARC) PCM only

USB A    1 (Rear), Mass Storage Class5V/1A

Speaker Terminal: SPKT-1+

Remote Control Bus Terminal: Yes (RC-5 In / Out)

Subwoofer Pre-out Low Pass Filter: Selectable

40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
Power Consumption: 220W, 0.3W (Standby)

AC Inlet: Yes

Quick Start Guide: Included

Packaging Dimensions (W x H x D in inches): 21" x 10" x 20.6"

Product Dimensions (W x H x D in inches): 17.4" x 5.1" x 17"
