Premium 9.4 Channel AV Receiver

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming; the Marantz CINEMA 40 is a statement piece and reference level A/V Receiver.

Meet the flagship of Marantz's newly redesigned home theater receiver lineup; the Cinema 40. This receiver looks as good as it sounds, featuring the iconic Marantz porthole display and dimpled front side panels. And these eye-catching design touches only hint at the high-performance audio and video circuitry hiding within the chassis of this sleek receiver.
State-of-the-art 8K video compatibility, nine discrete amplifier channels, and an amazing four subwoofer outputs are only the beginning of the prodigious capabilities of the Cinema 40. At 125 watts per channel, you get plenty of volume and all-encompassing surround sound, great for home theater and music enthusiasts alike. Hyper-Dynamic Amplifier Modules deliver Marantz's warm, detailed, signature sound. Rounding out the high-tech goodness, a high-end digital-to-analog converter decodes high-resolution music files with razor-sharp accuracy.

·         125 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD, with 2 channels driven

·         Marantz's Hyper Dynamic Amplifier Modules (HDAM) offer exquisite detail and dynamic range while reducing noise

·         Dolby®, DTS®, and Auro-3D® surround sound decoding

·         Dolby Atmos® and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound

·         Dolby Atmos Height Virtualization and DTS Virtual:X create three-dimensional effects without height speakers

·         IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

·         Audyssey speaker calibration and system optimization

·         MultEQ XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance

·         Dynamic Volume anticipates loud sounds to keep volume levels even

·         Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes

·         Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room

·         Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Performance
The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Making sound the Marantz way is a seamless fusion of art and science, practised by artisanal creators who balance and select components individually for their sonic qualities — they are the Sound Masters.
CINEMA 40 is a state-of-the-art high-performance piece. The characteristic warm and dynamic Marantz sound is obvious upon first listen. Discrete Hyper Dynamic Amplifier Modules, current feedback amplification, and other technologies in CINEMA 40 elevate the performance of your theatre well beyond expectations.

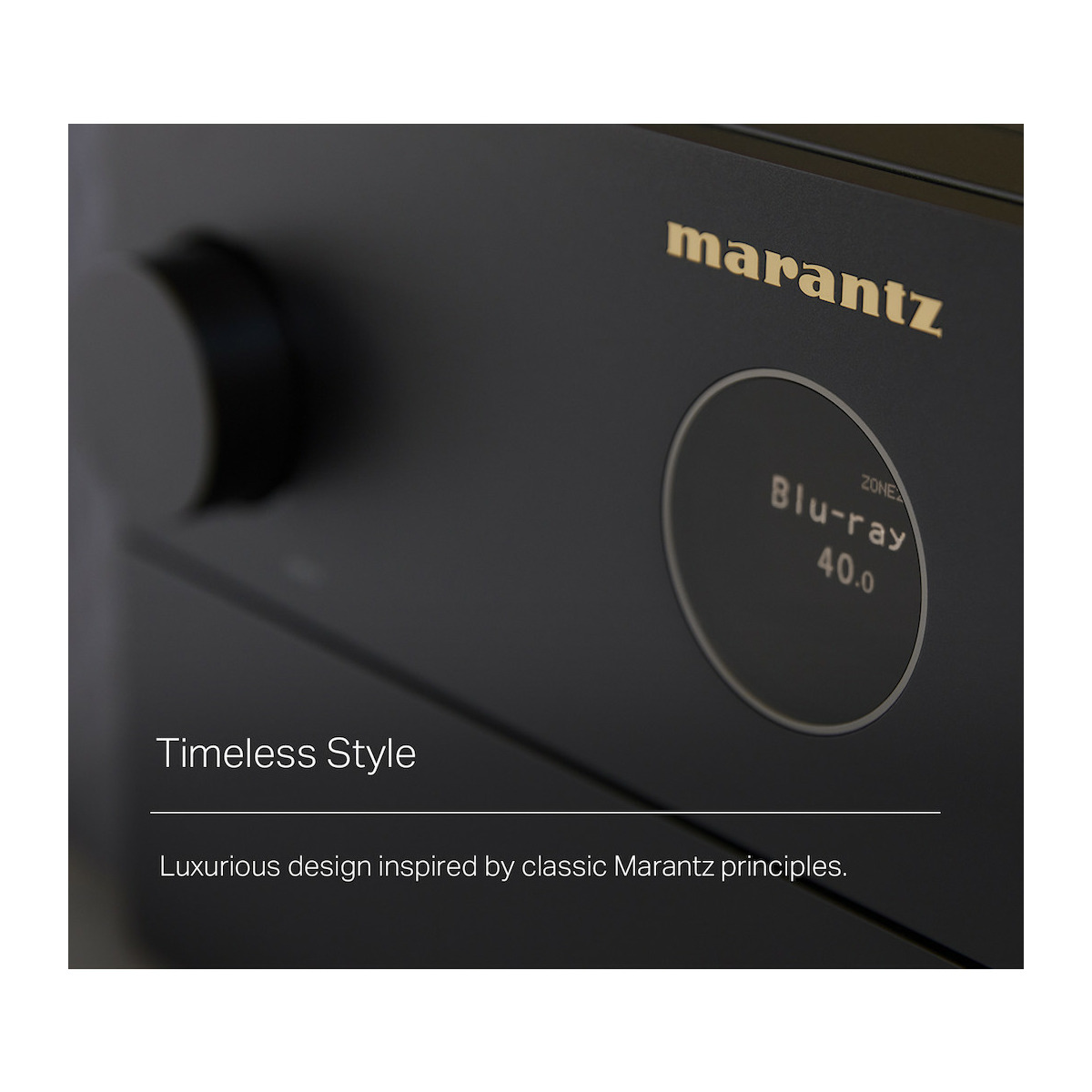

Style
Excellence is heard and seen. The Marantz CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Marantz design is timelessly elegant— expressing the musical soundscapes the products create. Our philosophy of balance and symmetry is evident in our sound and our design. Premium materials are expertly crafted and combined for each new piece.
While substantial in stature, CINEMA 40 is elegantly constructed using steel and aluminum casework and knobs. The subtle texture molded into the front panel is lit by the dimmable soft glow of sidelights on either side of the control surface.

Customizability
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 40 your own.
Your cinema is an integral part of your home. Therefore, Marantz has provided a rich assortment of connections and configuration options to make CINEMA 40 your ideal piece. Tune your loudspeakers to perfection with the included Audyssey MultEQ XT32 making even challenging acoustic spaces ideal listening environments.

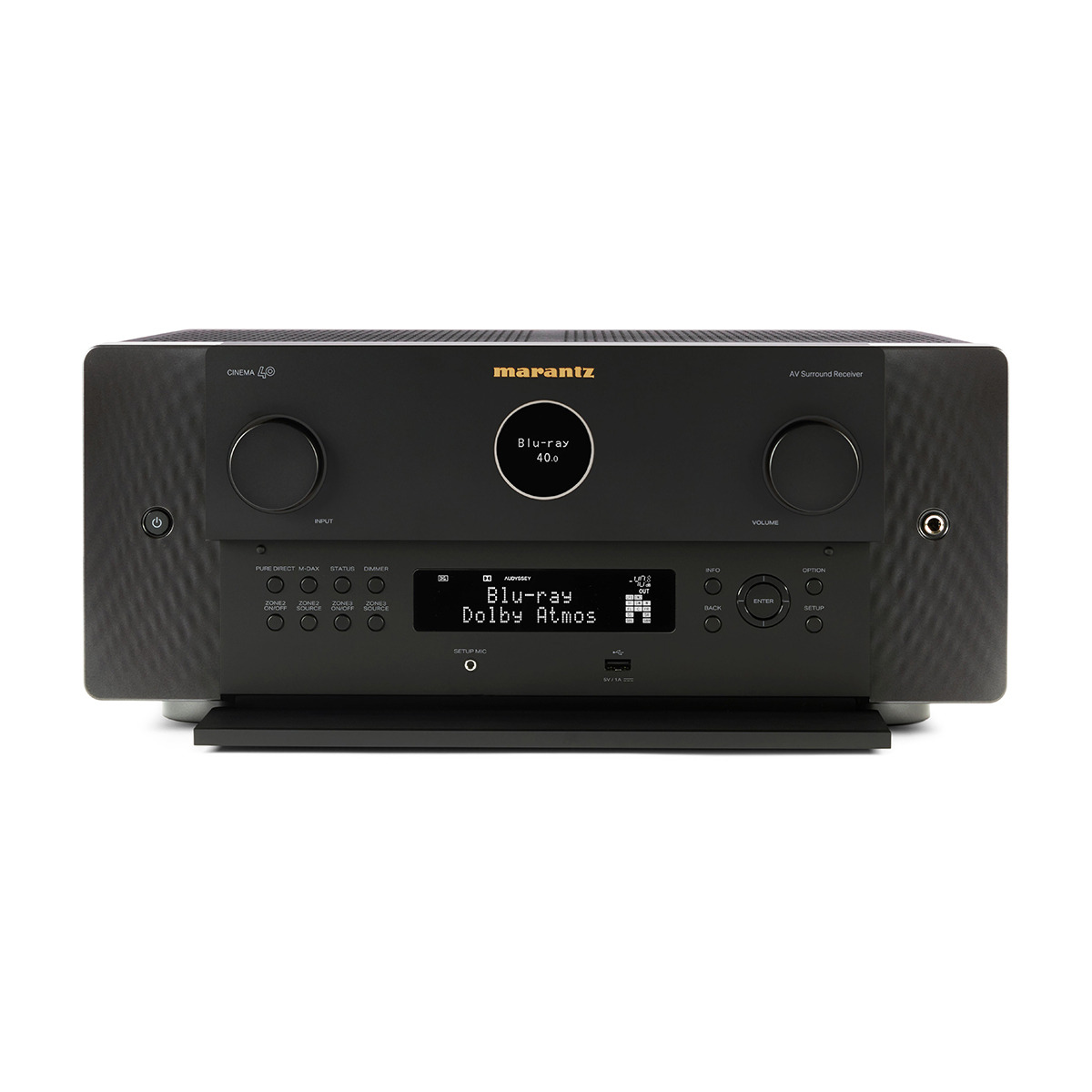

Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
While CINEMA 40 may be complex within, everyday use and setup is not. An included quick start guide and on-screen setup procedure make configuration easy. An included metal backlit remote provides access to most often used features. Advanced HDMI connectivity allows you to use your TV remote for power and volume. Support for all major home automation protocols is included. Finally, CINEMA 40 responds to voice commands from popular voice assistants like Hey Google, Alexa, and Siri.

Compatibility
Seven HDMI inputs, plus digital, analog and phono inputs plus loudspeaker and pre-amp outputs ensure connectivity to virtually any other components you may have.
CINEMA 40 sits at the center of your home entertainment universe. Seven HDMI inputs are available, and all are 8K compatible. HD and 4K sources can be upscaled to 8K. A perfect mix of traditional analog and digital inputs, plus turntable compatibility make CINEMA 40 a perfect partner for however you choose to listen.

Upgradeability
Extensive input and output options plus a powerful software ecosystem make CINEMA 40 easy to upgrade as your home theatre grows.

Home cinema is an investment in your own enjoyment and well-being. With its extensive connectivity and highly capable technological underpinning, you can add new components to expand your system for many years to come. 11.4 channel pre-amp outputs provide opportunities to expand your loudspeaker layout with outboard amplification.

Marantz HDAM-SA2
To preserve the detail, nuance, and essence of the music you love, Marantz developed Hyper Dynamic Amplifier Modules (HDAM) which are superior in their speed and response to off-the-shelf modules found in other products. HDAM design is unique and different to each Marantz product carefully designed by Marantz engineers and sound masters. CINEMA 40 leverages this unique Marantz innovation — in its superior Discrete version, beloved in the SR8015 — to ensure whatever you’re listening to is always the most musical.

Dolby Atmos® and Dolby Atmos Height Virtualization Technology
Feel every dimension in Dolby Atmos®. Upgrade your home theater with a 5.1.2 speaker setup, unleash a fully immersive 3D audio experience from Dobly Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensation from legacy content. For those without 5.1.2 setup, Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound only from 7.1, 5.1 or 2.1 speaker setup. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon Music HD and TIDAL through a compatible streaming device.

DTS:X® and DTS Virtual:X
DTS:X immersive audio content places sound where it would naturally occur in space, creating life- like, multi- dimensional audio. The DTS Neural:X upmixer offers improved immersion and heightened realism for legacy content. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker setup.

Auro-3D® Experience
Putting you in a cocoon of life-like sound, Auro-3D® elevates the home theater experience to amazing new levels by delivering the excitement of three- dimensional sound for music, games, broadcast, and films. The Auro-Matic up- mixing engine will enhance your existing audio-visual collection.

IMAX® Enhanced
Get the most premium at-home entertainment experience with IMAX® Enhanced — the latest technology from DTS that sets a new standard for home theater imaging, sound, scale, and clarity. Watch clearer pictures and brighter images. Feel immersive, heart- pounding audio and experience premium content digitally remastered by IMAX.

High-Resolution Audio Support
Discover the incredible fidelity of Hi-Res Audio tracks with the ability to decode up to 24- bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks via the front panel USB port and network sources. You can also listen to other popular file types such as MP3.

HEOS® Built-in Multi-Room Streaming
HEOS® Built-in technology lets you enjoy your favorite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, Amazon Music HD, TuneIn, SoundCloud, TIDAL, Napster, Deezer or your local music file libraries. With additional HEOS components, like HEOS-capable speakers, play all your music in one room or many.

Roon Tested
Subscribe to Roon to get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews, and more.

Masterful 8K HDMI Connectivity
The new Marantz CINEMA 40 includes seven HDMI inputs and three outputs for all your favourite sources. All inputs support 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, and BT.2020 pass-through, and HDCP 2.3, the latest in copy protection standards, are supported on all HDMI inputs. Showcasing the latest HDMI technology and specifications, the new Cinema 40 lets you take your home entertainment up a notch with HDR10+, Dynamic HDR, ALLM, VRR, and QFT support. The video processor is also capable of upscaling your native video source up to 8K quality.

Bluetooth, Wi-Fi and AirPlay 2 Capability
A dual antenna system lets you stream the most popular music services via Bluetooth, Wi-Fi, and AirPlay 2. Listen to your playlists on Spotify, Pandora, TuneIn, Deezer and more. Use AirPlay 2 to enjoy Apple Music with ease.

Multi-Source, Multi-Room
Watch a movie in one room while another family member plays a song from Spotify in a different zone without interruption. Enjoy up to a 9.4 channel surround sound in the main room and a separate source or music stream in a second zone. Hook up a separate stereo amp and speakers to the second zone pre-out.

All Zone TV Audio
Share the main zone TV audio to all your zones without losing fully discrete multi- channel playback in the main zone. Select “Source” for the second zone from the Marantz AVR Remote app so that main zone audio will not switch to stereo PCM.

Smart TV Connectivity
Marantz CINEMA Series can be controlled with your Smart TV remote via the HDMI CEC functionality associated with your TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON and begin controlling the Marantz with your TV remote. The Smart Menu home screen offers quick access to source and surround mode selections, the AVR's setup menu and four Smart Selects.

Marantz AVR Remote App
The Marantz AVR Remote app for iOS and Android provides complete control over the latest Marantz network AV receivers and pre-amps. Use it to power on/off, adjust volume, input, and settings, or switch instantly to the HEOS® Built-in app.

Convenient Smart Select Functions
The included remote has four Smart Select function buttons so you can store your preferred or frequently used settings and call them up easily on the fly — including input source, volume level, sound mode, and Audyssey configuration. With the push of a button, the Marantz instantly configures the receiver to your desired setting at any time.

Easy Setup Experience
The included Quick Start Guide provides simple and direct instructions to get started. Once you connect your TV to CINEMA 60 via HDMI, the Marantz Setup Assistant appears on your TV screen and guides you through setup. The Setup Assistant helps you adjust crucial settings for the best possible sound quality, whatever your configuration.

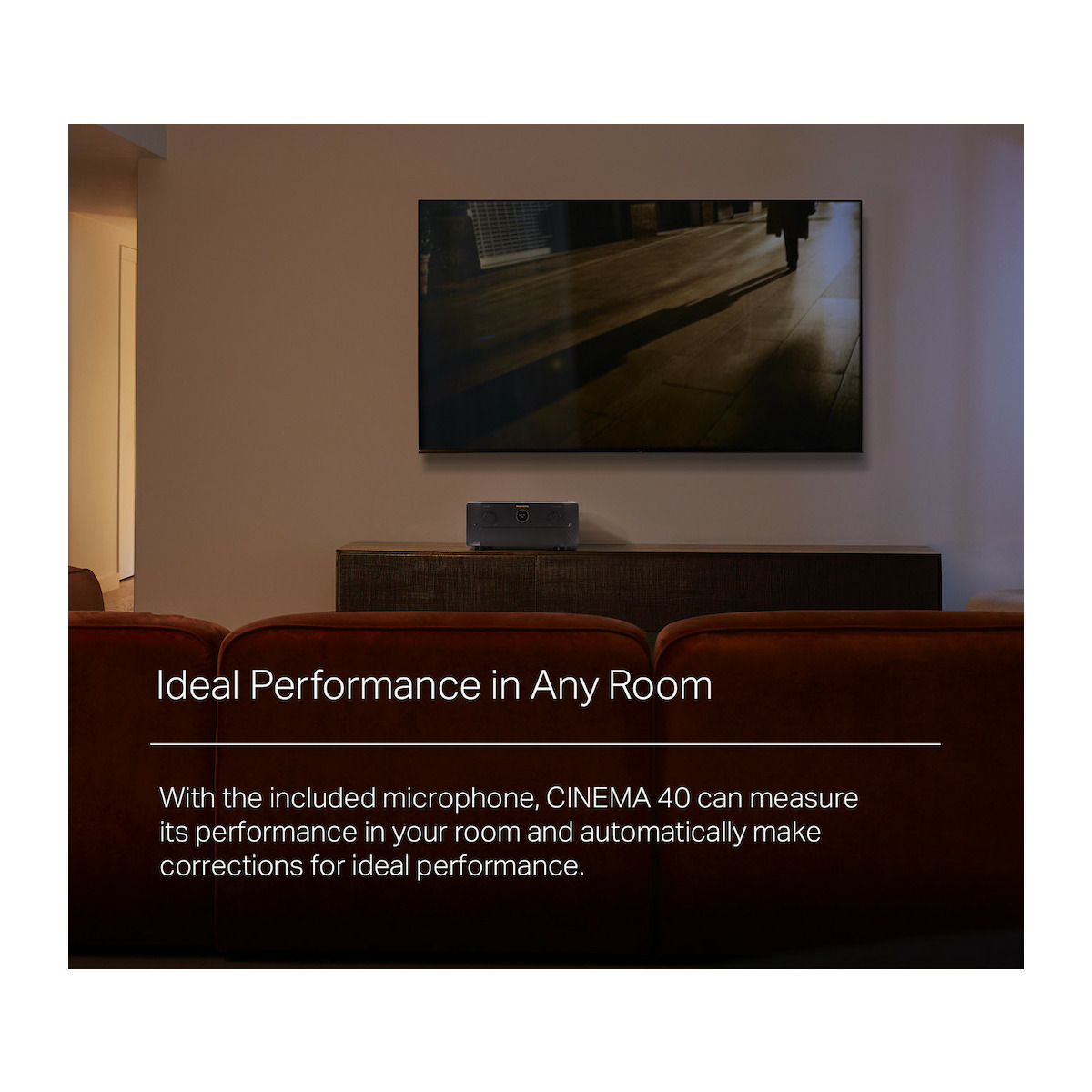

Advanced Audyssey MultEQ XT32
Equipped with the full Audyssey suite of advanced DSP algorithms, the CINEMA 40 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker’s output (including the subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbours or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes and is available for purchase in iOS App and Google Play stores.

Dirac Live Optional Upgradability
The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live® Room Correction applies state-of-the- art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility, and a deeper, tighter bass not otherwise possible. Fully tunable to your preference. Select Marantz AV receivers and AV preamplifiers support Dirac Live Upgradability. You can purchase a Dirac Live license key to unlock the functionality. Visit dirac.com for more information about Dirac Live.

External Control Capabilities
Features IP control capabilities for easy customization and compatibility with third-party integration solutions. The Marantz CINEMA Series offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. IR (infrared) remote control input and output are included on the rear panel for remote control compatibility with other components in your home theatre system.

Pre-Amplifier Mode
With Pre-Amplifier Mode, your receiver works as a perfect 11.4 channel AV preamplifier with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers. The receiver features 11.4 channel pre-outs. You can also disconnect only selected speaker channels so that you can use receiver's built-in amplification to drive non-critical channels, yet getting cleaner signal path for the channels driven by external amplification such as Front L+R. Enjoy the best of the both worlds.

Phono Input for Turntables
With the built-in phono EQ, you can connect your turntable directly to the AV receiver's MM phono inputs and play vinyl records. Enjoy your vintage collection with exceptional quality and sound.

4 Independent Subwoofer Outputs
Immerse yourself in evenly distributed, accurate bass. Featuring up to four subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, room-filling bass.

Two Subwoofer Modes
Giving you even more freedom to tweak your subwoofer settings to your preference when you are connecting more than 2 subwoofers. Select "Standard" if you want evenly distributed bass performance equally throughout the room. Audyssey sub EQ HT will be engaged to provide a global filter to all subwoofers and will give you broader sweet spot in the room. Select "Directional" if you want more directional bass performance seamlessly integrated into each speaker channel closest to each subwoofer. Bass feels different depending on where you sit in the room.

MPEG-H
MPEG-H is a 3D immersive audio coding standard developed by the ISO/IEC Moving Picture Experts Group (MPEG) and Fraunhofer IIS for broadcasting content, currently available in Korea, China and Brazil. MPEG-H decoding is supported globally for select Marantz AV receivers and AV preamplifiers.

360 Reality Audio
Immerse yourself in sound all around you. As real as if you are there at a live concert or with the artist recording in a studio. With 360 Reality Audio, music has never been so immersive and so real. Select Marantz AV receivers and AV preamplifiers are capable of 360 Reality Audio playback by connecting a Google Chromecast device to the AV receiver via HDMI. Currently, casting of 360 Reality Audio content from music streaming services are not yet available; stay tuned for further updates.

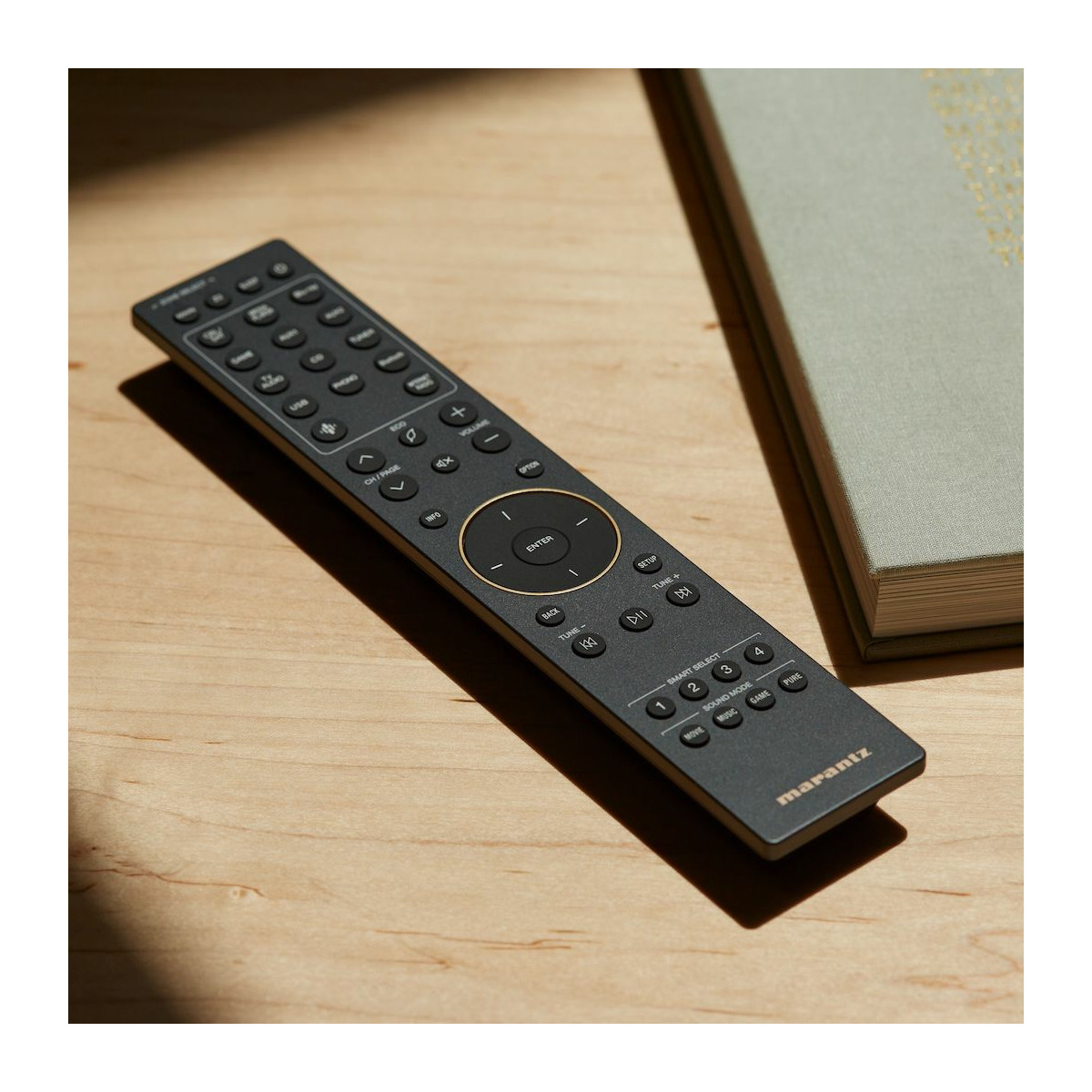

Back-lit Remote
The receiver comes with a backlit remote to help you control the receiver in a dark theatre setting so that the entire experience will not be stopped or disturbed by just controlling the receiver.

Specifications:
Number of Powered Channels: 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)  125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)      165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)        235 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: Yes
Bi-Amp Drive: Assignable
Inputs & Outputs:
Composite In / Out: 2 / 0
Component In / Out: 1 / 0
HDMI In / Out: 7 / 3
Multi-Room Video Out via HDMI:Yes
Analog In / Fixed Level Out:5 in / 0 out
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / 0
Multichannel Preamp Out:11.4
Subwoofer Out: 4 (independent)
7.1 multichannel input: No
Number of Speaker Terminals: 11
Speaker A / B: Assignable
Multi-Room Speaker Terminal: Assignable
Front Inputs: USB-A
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
AM/FM Tuner: Yes
HDMI:
Total HDMI Inputs / No. Support 8K: 7 / 7
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
Analog to HDMI Video Conversion: Yes
HDMI Upscaling 1080P/4K to 8K
Max resolution @ framerate: 8K @ 60Hz, 4K @ 120Hz
Audio Return Channel: ARC, eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI: Yes
Auto LipSync: Yes
Performance Technologies:
Copper Plated Chassis: No
Toroidal Power Supply Transformer: No
Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
Pure Direct Mode (PDM): Yes
Gold Plated RCA Terminals: Yes
Clock Jitter Reducer: Yes
Front Display: 2 line FLD + port hole OLED
GUI Languages: 9
Setup Assistant: Yes
Smart Select on Remote: Yes
Firmware Update by Network / USB: Yes / Yes
Power:
ECO Mode: Yes
Auto Power-Off: Yes
Sleep Timer: Yes
Power Consumption (W): 710
Power Consumption No-Sound (ECO on/off) (W): 65 / 110
Standby Consumption (W): 0.2
CEC Standby Consumption (W): 0.5
Network Standby Consumption (W): Less than 2.0
Maximum Dimensions:
Antenna:Horizontal:(W x D x H) in inches: 17.3 x 15.8 x 7.3
Antenna:Vertical :(W x D x H) in inches: 17.3 x 16.2 x 10
W/o Antenna:(W x D x H) in inches: 17.3 x 16.2 x 7.3
Weight in lbs.     33.3

What's in the box: Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
