15.4 Channel Home Theatre Pre-Amplifier/Processor

The Marantz AV 10 is a reference-level 15.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro Auro 3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-in streaming.

·         Home theater preamp/processor with 15.4-channel processing
·         Supports up to 15 speakers with external power amps, like the matching AMP 10
·         Marantz's HDAM (Hyper Dynamic Amplifier Modules) circuit boards offer exquisite detail and a wide dynamic range
·         Toroidal power supply ensures low-noise, high-performance picture and sound
·         Dolby®, DTS®, and Auro-3D® surround sound decoding
·         Dolby Atmos processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
·         Dolby Atmos Height Virtualization and DTS Virtual:X® create three-dimensional effects without height speakers
·         IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
·         HDMI video conversion upscales 1080p and 4K signals up to 8K
·         MultEQ XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance
·         Dynamic Volume anticipates loud sounds to keep volume levels even
·         Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes
·         Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room
·         Low Frequency Containment reduces the amount of bass that bleeds into other rooms
·         Audyssey MultEQ Editor app for further audio customization (paid app; not included)

Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Achieve the Best Sound Possible
Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for AV 10.

Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology Leader
The AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design
A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance
Our Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style
Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customizability
Thoughtfully curated connectivity options and fine tuning ability allow you to make AV 10 your own.

Effortless
Included aluminum remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Specifications:
DTS HD Master / DTS:X / DTS:X Pro  – Yes / Yes / Yes

DTS Neo:X / DTS Neural:X  – No / Yes (15ch)

DTS Virtual:X – Yes

IMAX Enhanced –  Yes

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music  – Yes / Yes / Yes / Yes

Dolby ProLogic Ilz / Dolby Surround –  No / Yes

Auro 3D  – Yes

360 Reality Audio / MPEG H –  Yes / Yes

Multichannel Stereo  – Yes

Max Number of Processing (Preamp) Channels –  15.4

Sound Enhancements

Copper Plated Chassis  – Yes

Power Transformer: Toroidal / EI  – Yes / No

Current Feedback Topology  – Yes

Hyper Dynamic Amplifier Modules (HDAM)  – Yes

Pure Direct  – Yes

Gold plated RCA terminals  – Yes

Clock Jitter Reducer –  Yes

Audyssey  – MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume –  Yes / Yes

Audyssey LFC  – Yes

Dirac Live upgradability –  Yes

Compressed Audio Enhancer: MDAX2  – Yes

Network

HEOS Multi-room and Streaming  – Yes

Bluetooth Re-transmit for Bluetooth headphones –  Yes

Alexa / Google Voice Assistant / Apple HomePod  – Yes / Yes / Yes

Network Audio Sharing  – Yes

Lossy formats: MP3 / WMA / AAC  – Yes / Yes / Yes

Lossless formats: FLAC / ALAC / WAV  – Yes / Yes / Yes

Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 –  Yes / Yes / Yes

DSD Audio Streaming  – Yes (2.8/5.6MHz)

FLAC HD 192/24  – Yes

WAV 192/24  – Yes

ALAC 192/24  – Yes

Gapless Playback  – Yes (FLAC, WAV ,ALAC ,DSD)

AirPlay Audio Streaming  – Yes (AirPlay2)

Internet radio  – Yes (TuneIn)

Spotify*  – Yes (connect)

Pandora –  Yes

SiriusXM  – Yes

Other Streaming Services * Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix

Roon Tested  – Yes

Compatible with Remote APP for Smart Phones Marantz AVR Remote

Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle

Ethernet Ports  – Yes

Wi-Fi  – Yes

Bluetooth – Yes

HDMI

HDMI Inputs: Back / Front  – 7 / No

HDCP2.3 support – Yes

HDMI Outputs: Main / Zone   – 2 / 1

HDMI to HDMI Scaling 1080P/4K to 8K

GUI Overlay on HDMI  – Yes

HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB  – Yes / Yes

8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)

HDMI 2.0: 3D / 4K / CEC / ARC –  Yes / Yes / Yes / Yes

Enhanced ARC –  Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR –  Yes / Yes / Yes / Yes / Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming –  Yes

Variable Refresh Rate / Quick Frame Transport –  Yes / Yes

3D Signal Pass-Through  – Yes

8K signal pass-through / scaling / GUI overlay –  Yes / Yes / Yes

4K Signal Pass-Through / Scaling / GUI Overlay  – Yes / Yes / Yes

HDMI pass-though in standby mode  – Yes

Picture Adjust / Noise Reduction  – No / No

CEC – Yes

DSD Audio Capability  – Yes

Audio Return Channel  – Yes

Auto LipSync  – Yes

Multi-room / CI

HEOS Multi-Room Integrated –  Yes

HEOS Link Compatibility: IR/ IP –  Yes / Yes

Multi-Room Zones  – 3

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes

Zone Audio Output: Speaker / Preout No / Yes

Zone HDMI Output from HDMI Source –  Yes

IP Control / RS232 Control / Web Control / App Control –  Yes / Yes / Yes / Yes

IR Flasher In  – Yes

Marantz Remote Bus  – Yes

DC Trigger Output 2

HDMI Diagnostics  – Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32 Dirac Live (upgrade)

Front Display 2 line FLD + port hole OLED

Graphic User Interface - GUI Modern HD GUI

GUI Languages  – 3

Setup Assistent  – Yes

Smart Select –  Yes

Firmware Update by Network / USB  – Yes / Yes

Variable Cross Over  – Yes

Optimized Bass Redirection  – Yes

Bass Sync –  Yes

Auto Power off –  Yes

Sleep Timer  – Yes

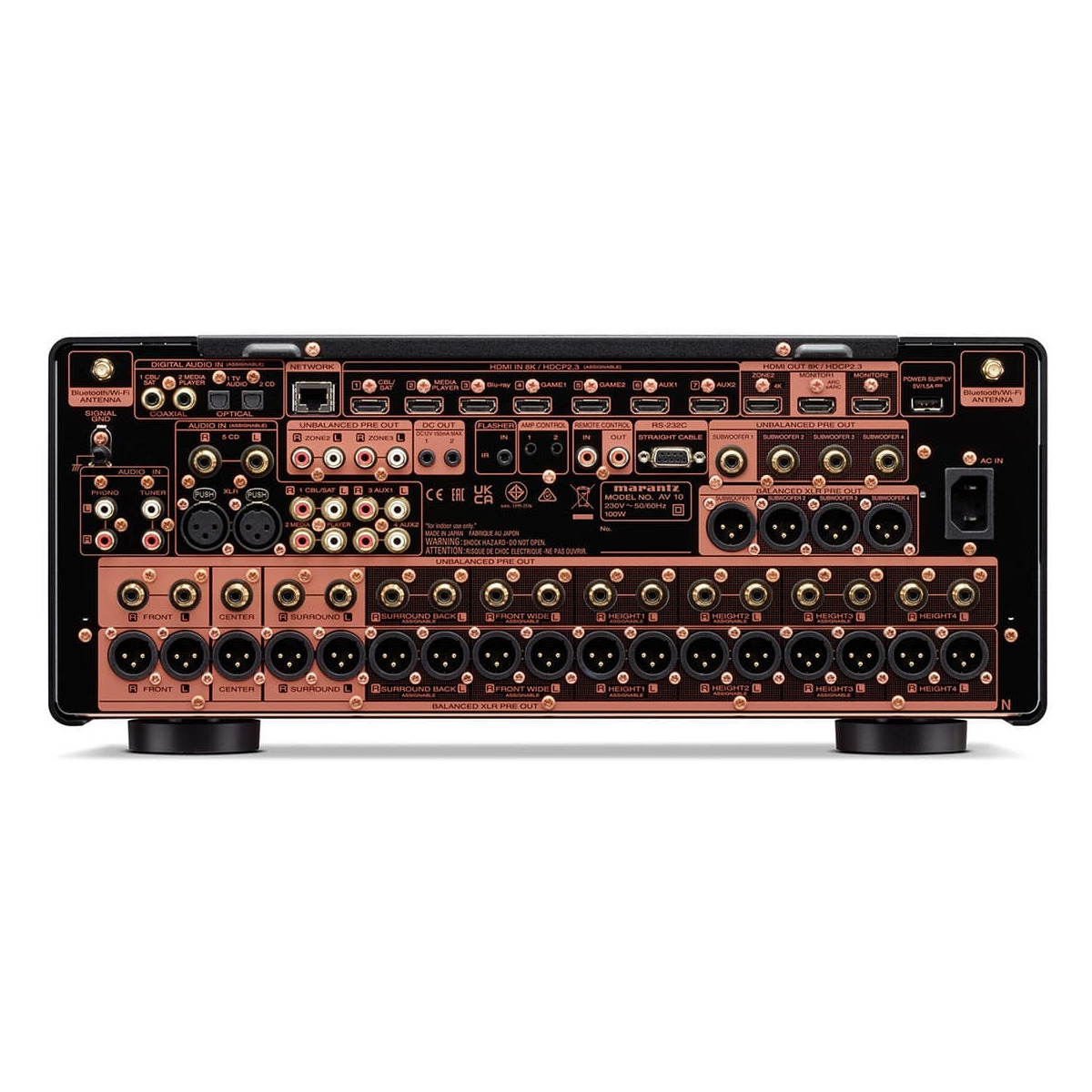

Inputs/Outputs

Composite In / Out –  No / No

Component In / Out  – No / No

HDMI In / Out 7 / 3

Multi-Room Video Out: Video / HDMI No / Yes

Analogue In / Out 5 (1x XLR) /  – No

Phono (MM) In  – Yes

Digital In: Optical / Coaxial 2 / 2

Multi-Room Out: analog / digital 2 / No

Multichannel Pre Out  – Yes (17.4 RCA & 17.4 XLR)

Subwoofer Out 4 (independent)

Speaker A / B assignable pre out

Bi-amp drive assignable pre out

Multi-Room Speaker Terminal pre out

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB  – No / No / No / No / Yes

USB Audio / Made for iPod / Made for iPhone  – Yes / No / No

AM/FM Tuner – Yes

General

Metal Front Panel Yes

System Remote Control RC047SR

Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes

Power Consumption in W 100

Standby Consumption in W 0.2

CEC Standby Consumption in W 0.5

Network Standby Consumption in W Less than 2.0

Weight in lbs. 37.0

Dimensions: 17.4 x 19.8 x 7.4

What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
