LCD Laser Projector

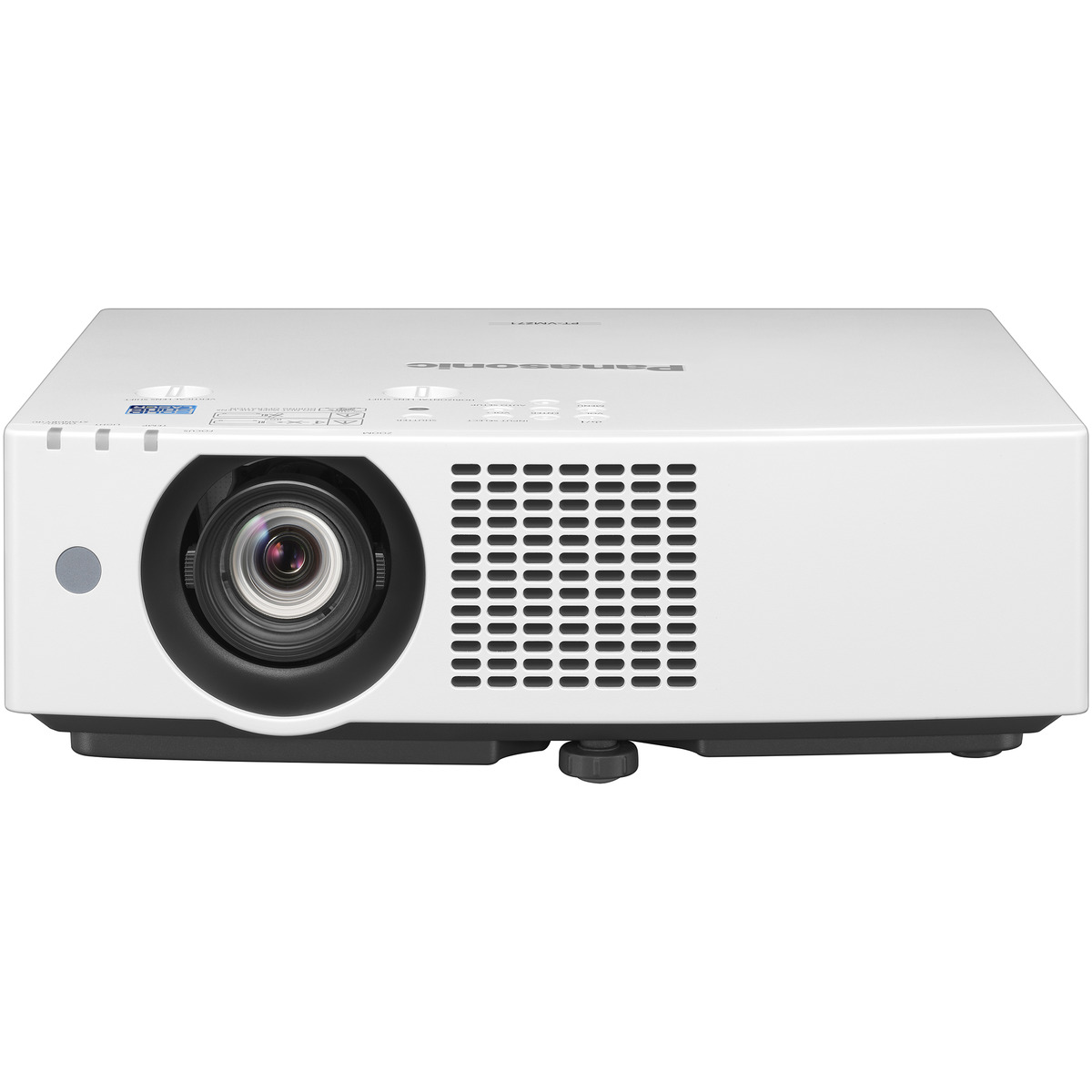

The Panasonic PT-VMZ71 LCD Laser Projector is the world’s smallest and lightest LCD laser projector in its class, bringing smooth styling and quiet operation to seamlessly harmonise with your interior space.
Weighing just 7.0 kg, the PT-VMZ71 series is the smallest and lightest LCD laser projector in its class with up to 7,000 lm of brightness from a compact, easy-to-manage body. Its lightweight design makes it portable enough to carry from room to room, and simple to install on almost any ceiling. The projector’s smooth styling and quiet operation will harmonise with your interior space, blending in and keeping attention focused on the presentation.

The Panasonic PT-VMZ71 LCD Laser Projector has high brightness in compact and lightweight body. Designed for education and corporate applications.

·         Compact and lightweight LCD laser projector

·         Installation flexibility adapts projection to any space

·         Clear images that are easy to see in bright rooms with up to 7,000lm (PT-VMZ71) / 6,200lm (PT-VMZ61) / 5,200lm (PT-VMZ51)

·         High resolution WUXGA image reproduction

·         High 3,000,000:1 dynamic contrast ratio

·        Bright, High-Visibility Images in Well-Lit Spaces
Because office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, the PT-VMZ71 series generates up to 7,000 lm of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.

New 6-Point Screen Adjustment for Projection into Room Corners

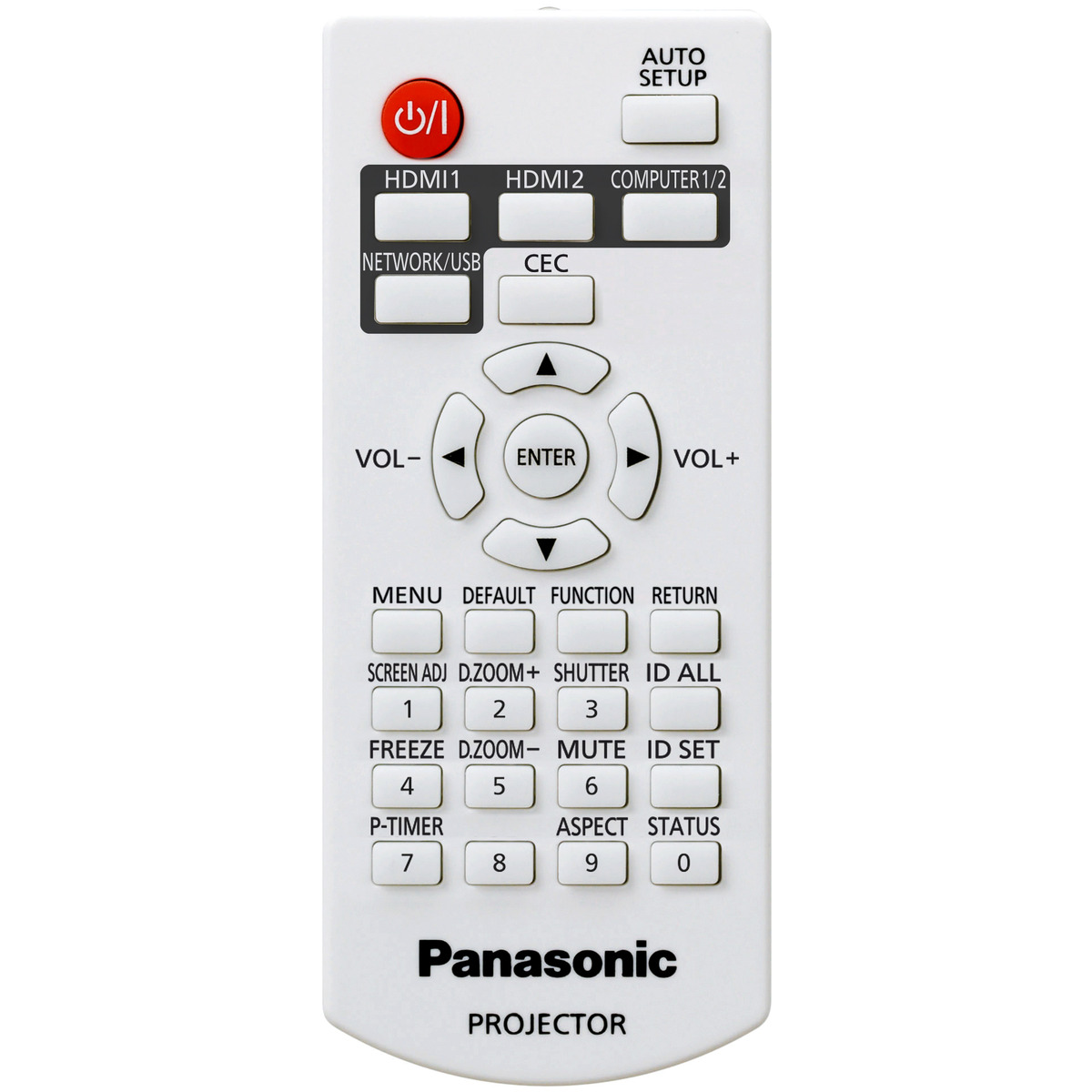

The PT-VMZ71 series is the first Panasonic projector to feature 6-Point Screen Correction. It allows you to perform 4-Corner and Horizontal/Vertical Keystone Correction via remote control to remove trapezoidal distortion when projecting from an angle, such as a high ceiling. An extra two control points located at center top and bottom of the screen can be used to remove distortion when projecting an image into the corner of a room.

New Digital Zoom Extender Function
In some cases, the throw-distance required to produce an image at the desired size might exceed the projector’s optical zoom range. Panasonic answers the problem with a new Digital Zoom Extender function equipped for the first time on the PT-VMZ71 series. It provides a convenient way to fit the image to your screen beyond optical zoom range, reducing the need to relocate your projector mounts and potentially saving you time, money, and hassle on your next refreshment cycle.

Specifications:

Projector type    LCD projectors

LCD Panel | Panel Size    PT-VMZ71, PT-VMZ61 & PT-VMZ51S: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)

LCD Panel | Display System          Transparent LCD panel (x 3, R/G/B)

LCD Panel | Drive Method            Active matrix

LCD Panel | Pixels             2,304,000 (1920 x 1200) pixels

Light Source        Laser diode

Light Output*1 *2            PT-VMZ71: 7,000 lm / PT-VMZ61: 6,200 lm / PT-VMZ51S: 5,200 lm

Time until light output declines to 50 %*3             20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution           WUXGA (1920 x 1200 pixels)

Contrast Ratio*1               3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen Size (Diagonal)    0.76–7.62 m (30–300 in), 16:10 aspect ratio

Center-to-corner zone ratio*1     85 %

Lens       1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm

Lens shift | Vertical (from center of screen)           +44 %, 0 % (manual)

Lens shift | Horizontal (from center of screen)     +20 %, -20 % (manual)

Keystone Correction Range          Vertical: ±25 °, Horizontal: ±35 °

Installation          Ceiling/floor, front/rear, free 360-degree installation

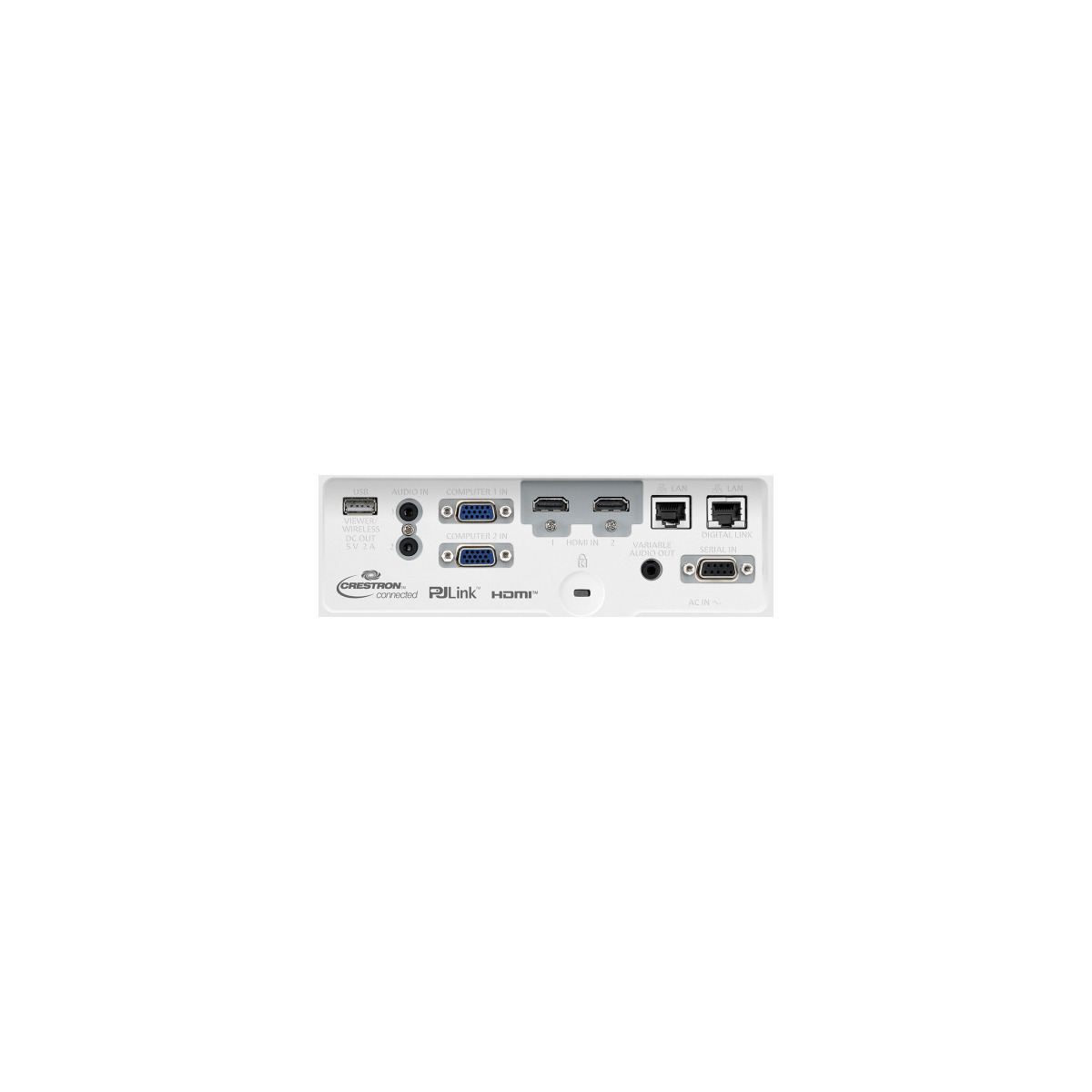

Terminals | HDMI In        HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported

Terminals | Computer 1 In            D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

Terminals | Computer 2 In            D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

Terminals | AUDIO 1/2 IN             M3 stereo mini-jack x 2

Terminals | Variable Audio Out   M3 stereo mini-jack x 1

Terminals | Serial In        D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

Terminals | DIGITAL LINK/LAN    RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],HDCP, Deep Color, 4K/30p*4 signal input)

Terminals | LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]

Terminals | USB(VIEWER/WIRELESS/DC OUT)      USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5)

Power Supply     AC 100 V–240 V, 50/60 Hz

Power Consumption       PT-VMZ71: 420 W(TBD) / PT-VMX61: 370W (TBD) / PT-VMZ51S: 315 W (TBD)

Built in Speaker 10 W monaural

Cabinet Materials             Molded plastic

Filter*6 Included (Estimated maintenance time: approx. 20,000 hours)

Operation noise*1           PT-VMZ71 & PT-VMZ61: 39 dB (NORMAL/ECO), 29 dB (QUIET) / PT-VMZ51S: 37 dB (NORMAL/ECO), 27 dB (QUIET)

Dimensions (W x H x D)  399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)

Weight with supplied lens*7        PT-VMZ71: Approx. 7.2 kg (15.87 lbs) / PT-VMZ61: Approx. 6.9kg (15.21lbs) / PT-VMZ51S: Approx. 6.5kg (14.33lbs)

Operating Environment Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation)
