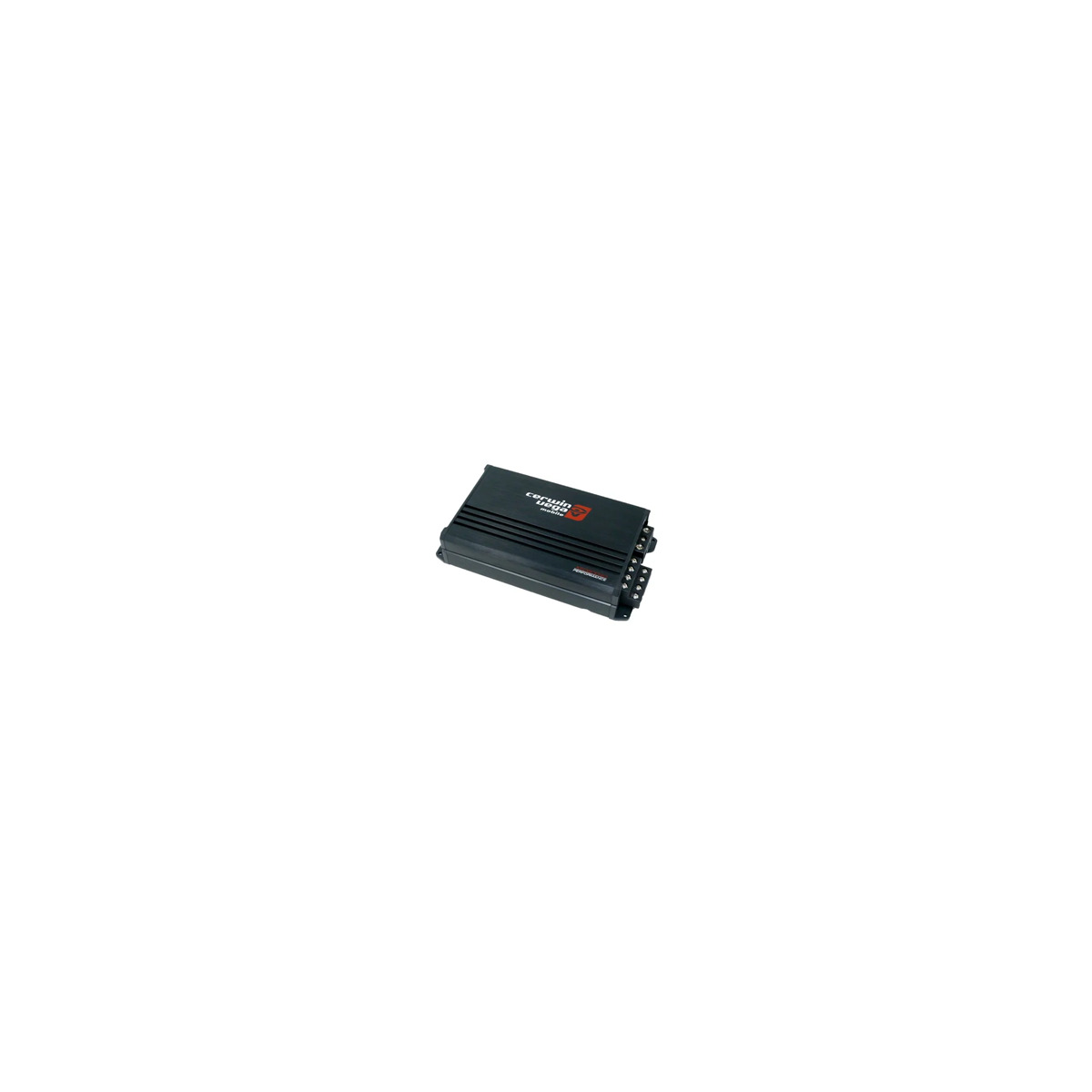

4 CHANNEL XED SERIES AMPLIFIER

FEATURES:

·         Latest High-Efficiency Class D Topology

·         Compact Size with Ambient backlit logo

·         RCA “Pass Thru” output for easy system expansion

·         Fully Variable Crossovers (12dB per octave)

·         Handles HI and LO level input to 12V

·         2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode

·         Proprietary Vega Bass Boost EQ Up To 12dB

SPECIFICATIONS:

·         4 Channel Amplifier

·         80W x 4 @ 4Ω RMS

·         120W x 4 @ 2Ω RMS

·         2-Ohm Stereo, 4-Ohm Bridged Full Range Operation

·         Direct Short, Thermal, & Overload Circuits Protect Amplifier

·         200mV-6V High Level or Low-Level RCA Input

·         Variable 12dB High, Low, & Subsonic Crossovers

·         Fuse - 25 amp x 2

·         Dimensions: 7.1" x 4.7" x 1.8" (180mm x 120mm x 46.5mm)
