MB3.5 - Designed & Engineered in Denmark

Overview

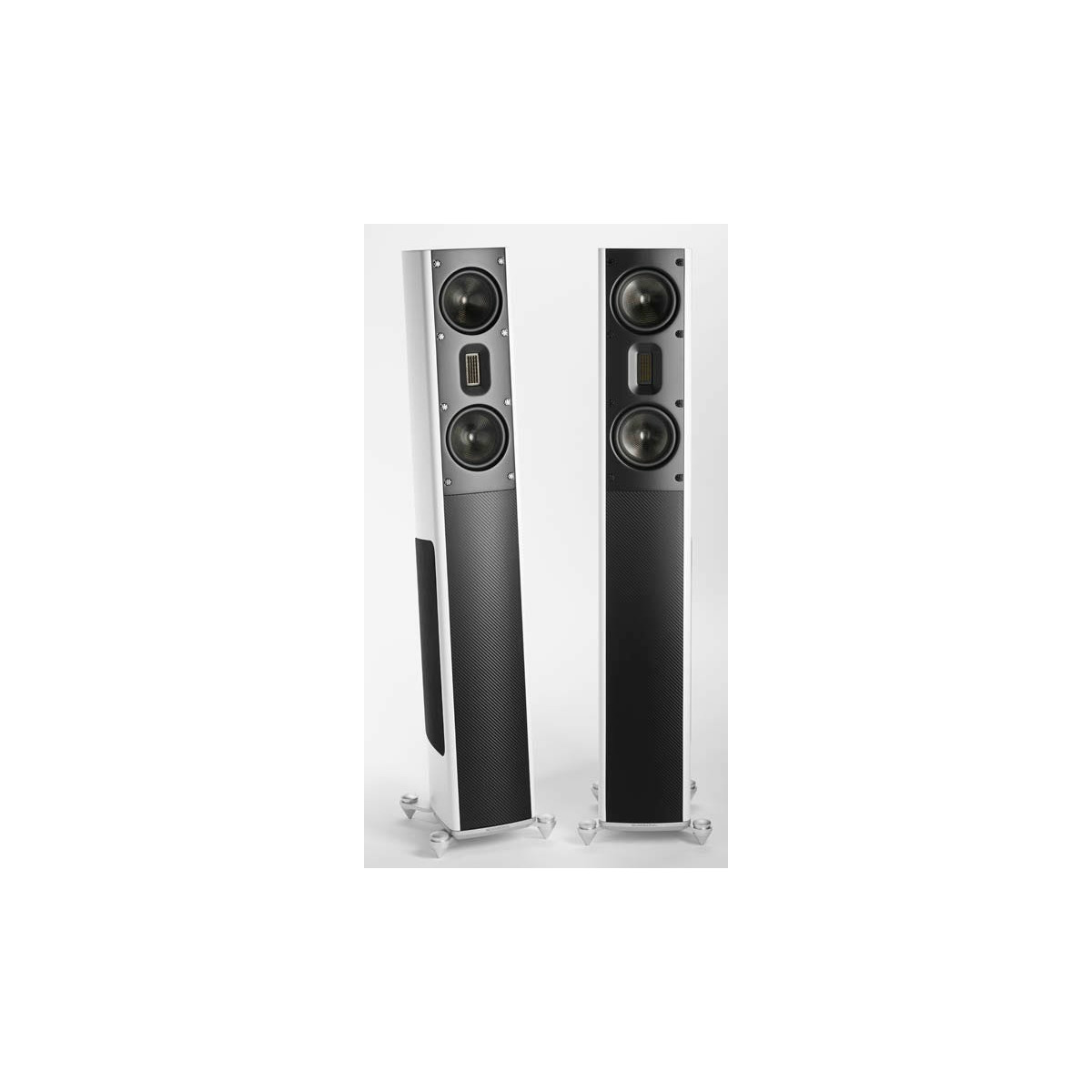

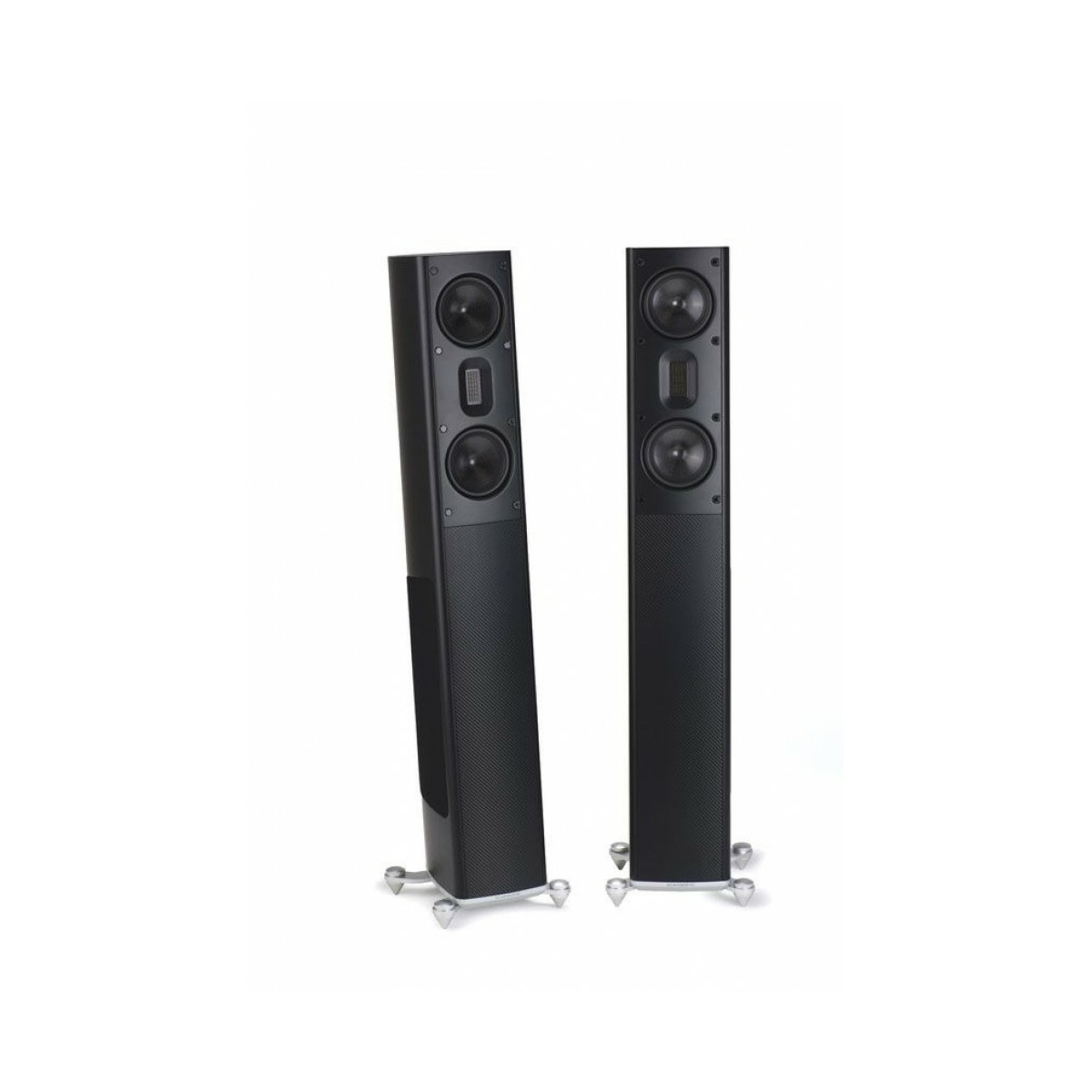

The MB3.5 B is a slim floorstander with two 5,25” carbon-coned drivers, a sealed ribbon tweeter and two 6.5” woofers. The MB3.5 B works as a 3-way speaker, where the two midrange-woofers are supported by two 6.5” aluminum coned woofers. The two carbon midrange-woofers are run in series for increased power handling.

The MB3.5 B cabinet is heavy, braced and curved, with carbon reinforcements. The speaker is crossed over at 2600 Hz and the two added side woofers assist up to 150 Hz.

The MB-series features high quality crossover with top quality components. The filter has been carefully tailored to linearize the frequency region where cone and cabinet geometry play a role and also to carefully tune the speaker to a natural sounding frequency response.

Specifications

• Size, mm. (BxHxD): 178 x 1138 x 286
• Weight, kg.: 20,8
• Freq. response: 27 Hz – 40 KHz
• Impedance: > 5 ohm
• Sensitivity: 89 db
• Crossover: 150 Hz + 2600 Hz / Minimum phase
• Enclosure: Curved, heavily braced, ventilated box design with front loaded port and adjustable aluminum feet
• Drive units: 1 x Ribbon tweeter • 2 x 5,25″ Mid/Woofer • 2 x 6,5″ Woofer (Side firing)
• Black-silk, White-silk or Walnut
• Amplification: We recommend high quality amplifiers >50W
