X3 - Hand made in Denmark (Special Order Only)

Overview

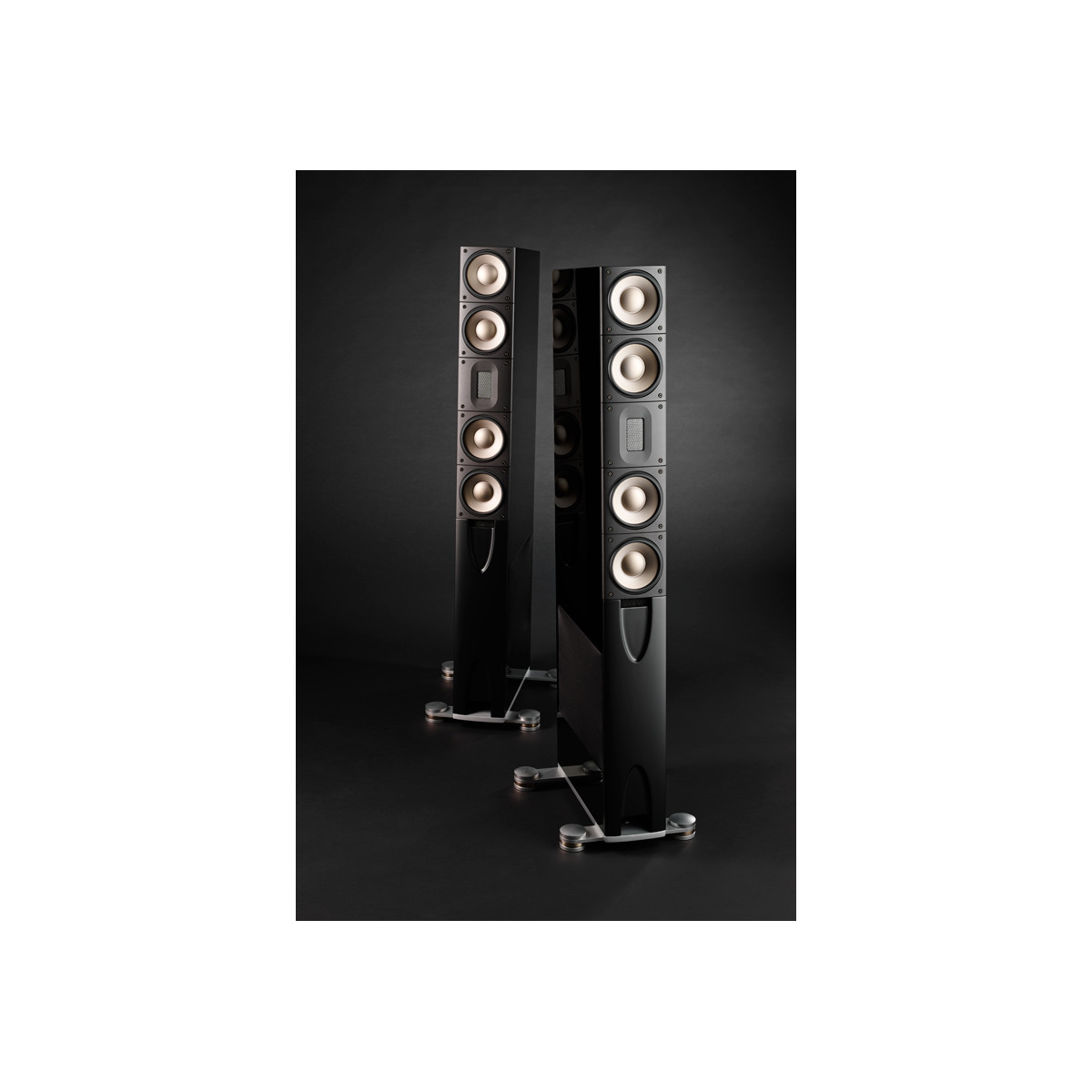

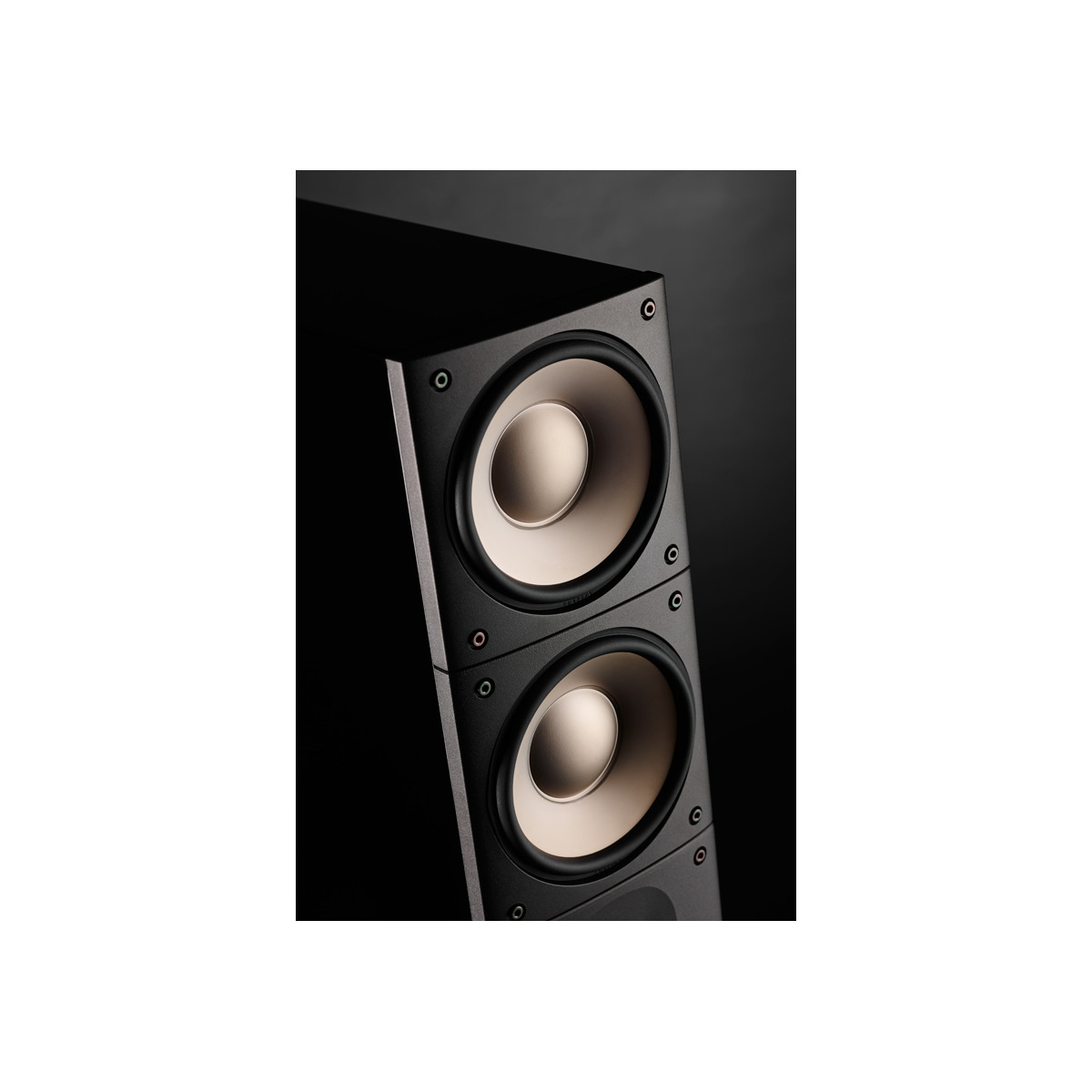

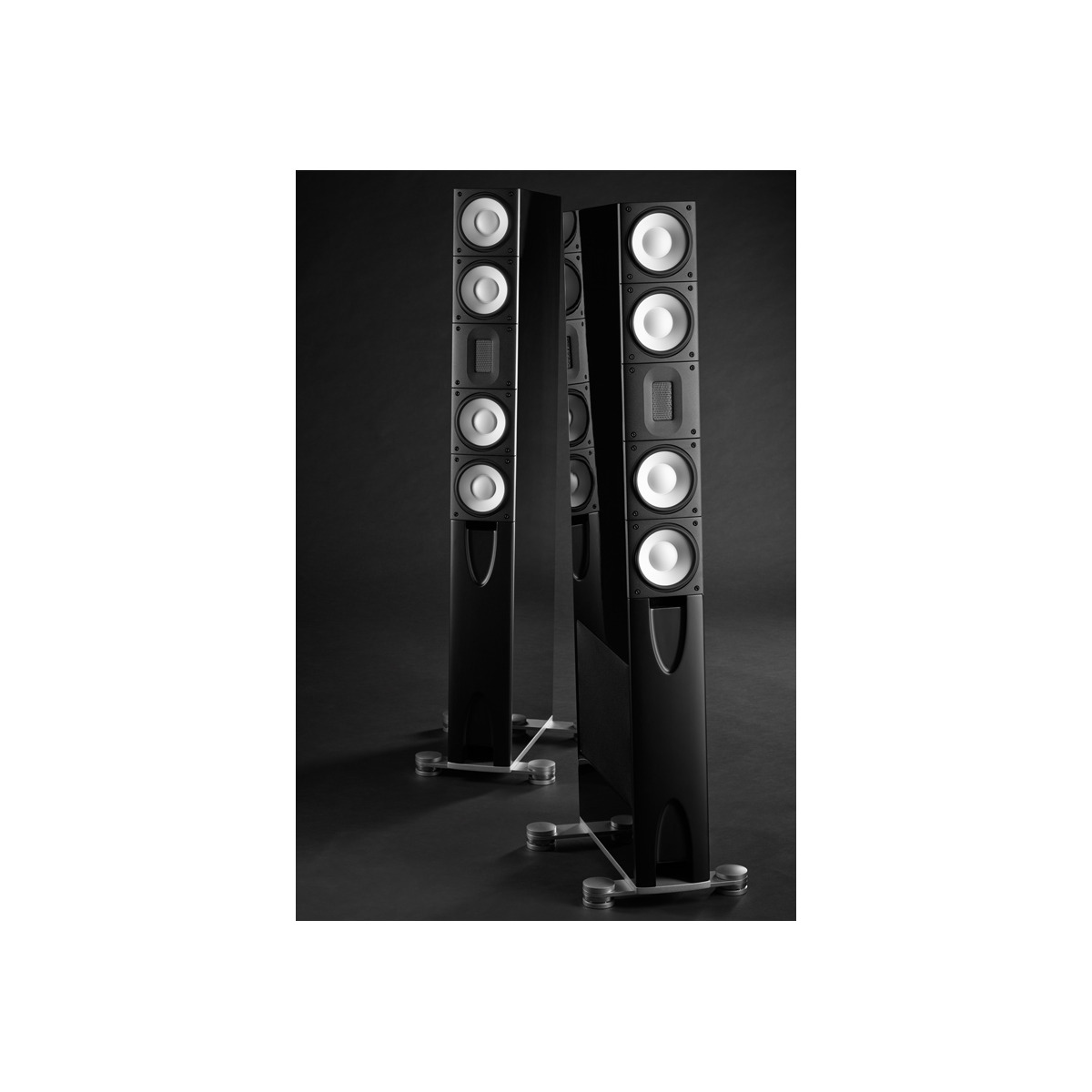

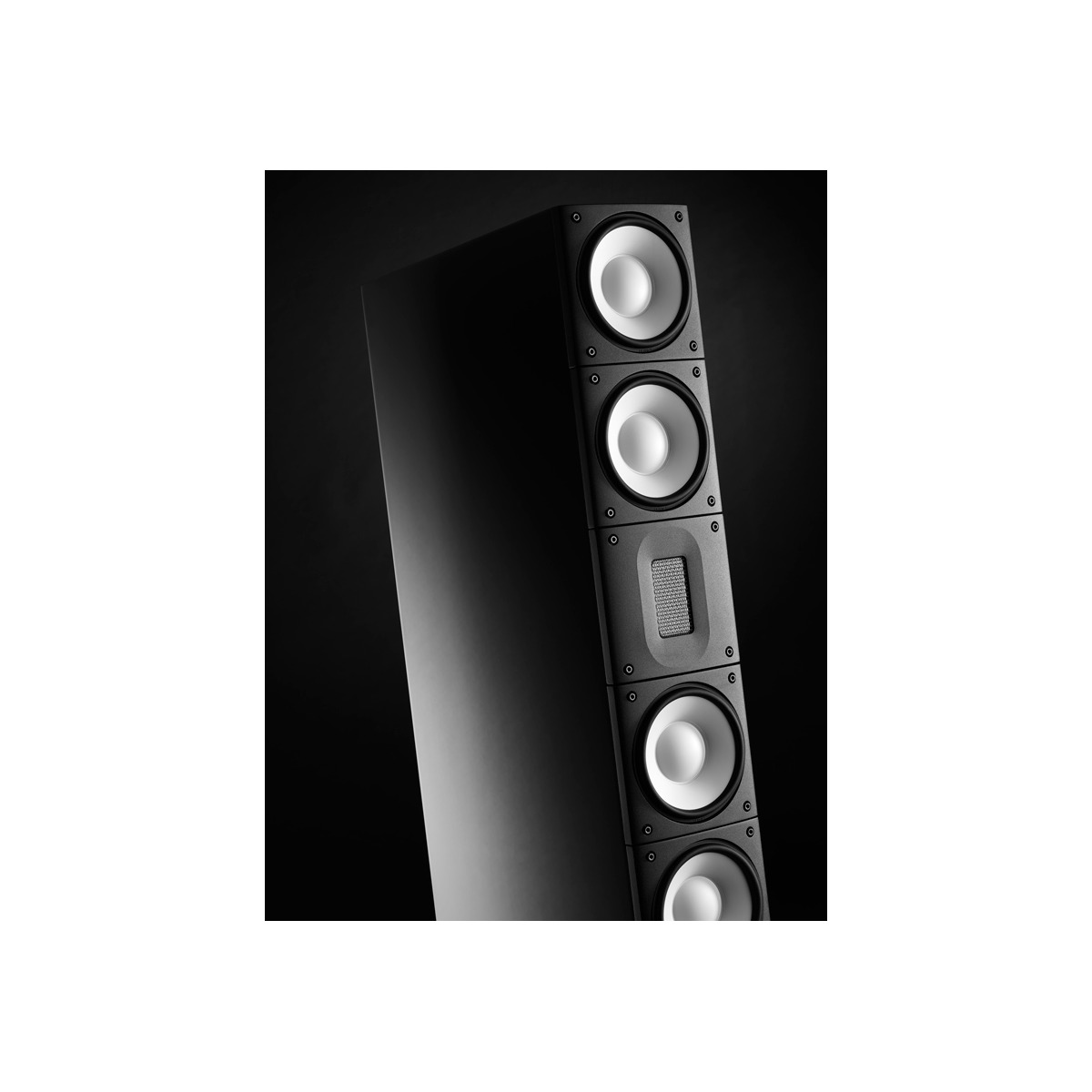

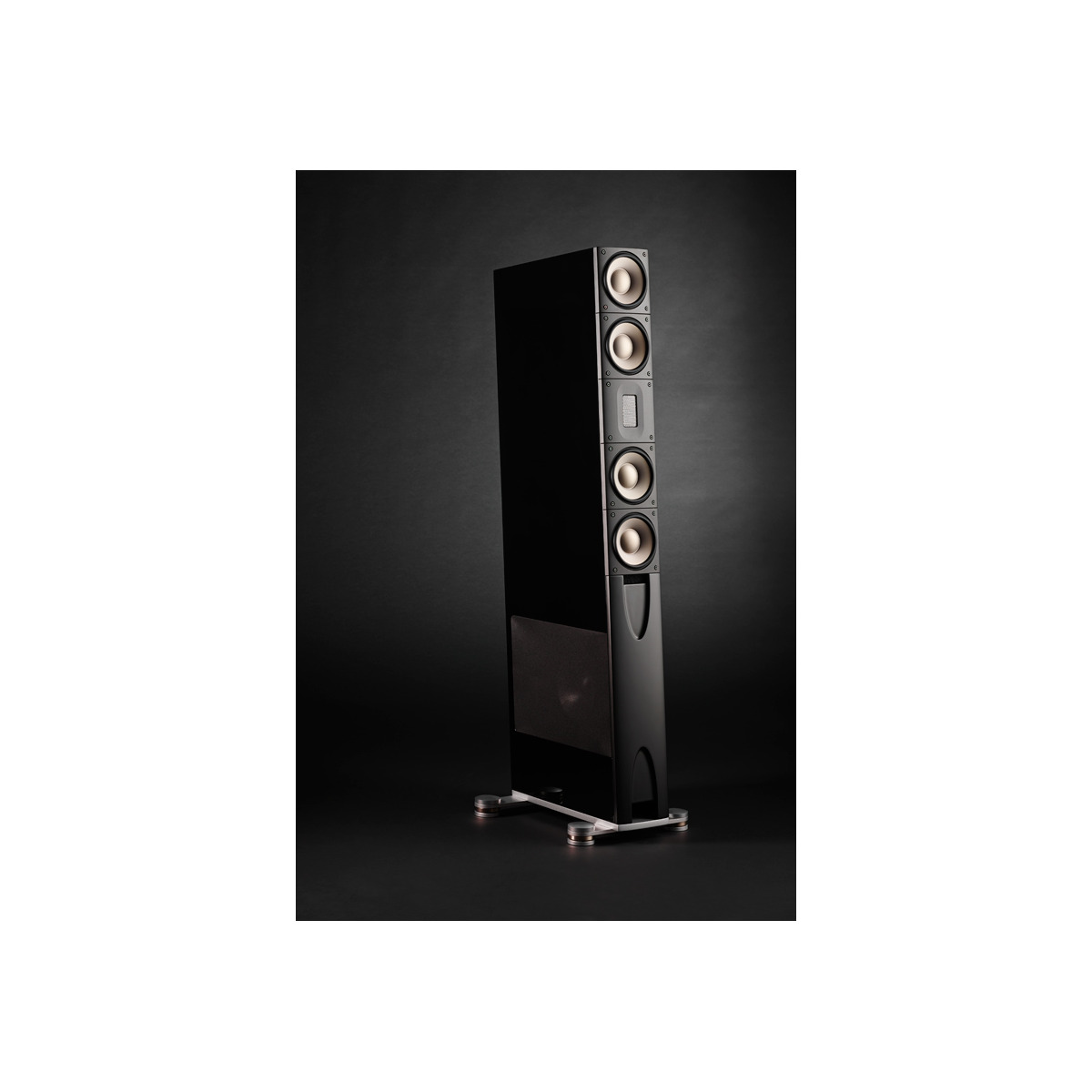

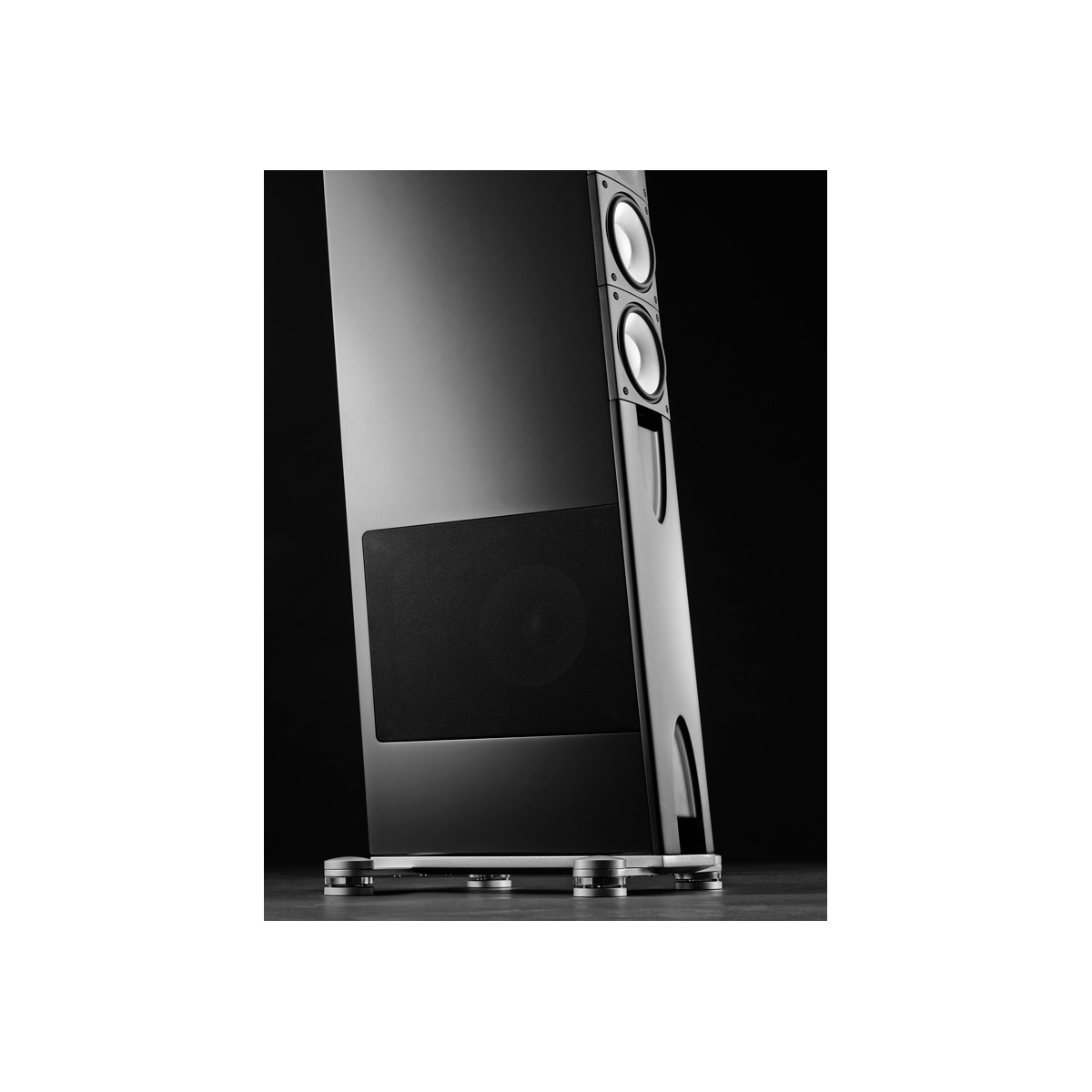

The Raidho Acoustics X3 and X3T are a 2.5-way Raidho loudspeaker designs. The X3/T is equipped with four dedicated 4-inch ceramic, ceramic/titanium mid-bass drivers and one 8-inch side-mounted bass driver. Central is the Raidho Acoustics’ one-of-a-kind sealed-ribbon tweeter that employs an array of neodymium magnets to create an extremely powerful force field, in which an ultra-thin membrane is suspended. The weight of the membrane in the Raidho ribbon tweeter is less than 0.02 grams. Due to the low membrane mass, the tweeter stores no energy and has no resonances. This special tweeter design does not leave any ‘sonic fingerprint’, which makes its performance extraordinaire. The central pair of the four mid-bass units extend from the deepest bass to the midrange crossover at 3 kHz. The outer pair of the mid-bass units gradually relieve the inner pair starting at 250 Hz and extend to the deepest bass, thereby reducing the dynamic doubler distortion and increasing the speakers dynamic handling capability. The X-3 side-mounted 8-inch bass driver solidifies performance in the lowest frequencies.

Specifications

• Size: 143 x 1270 x 410 mm (380 x 1290 x 410 mm incl. spikes)
• Weight: 40 Kg
• Freq. Reponse 35 Hz – 50 KHz
• Impendance: >6 ohm
• Sensitivity: 85 dB 1W 2.83 V/m
• Crossover: 180 Hz and 3.5 KHz 2. Order
• Enclosure: Internal vented design Port in front
• Drive units: 1 sealed ribbon tweeter 2 100 mm Ceramic driver 2 100 mm mid-bass driver 1  8″ aluconed dynamic bass driver
• Finish: Black Piano
• Amplification:  > 50 W (Though we have seen excellent results with small tube amplifiers)
