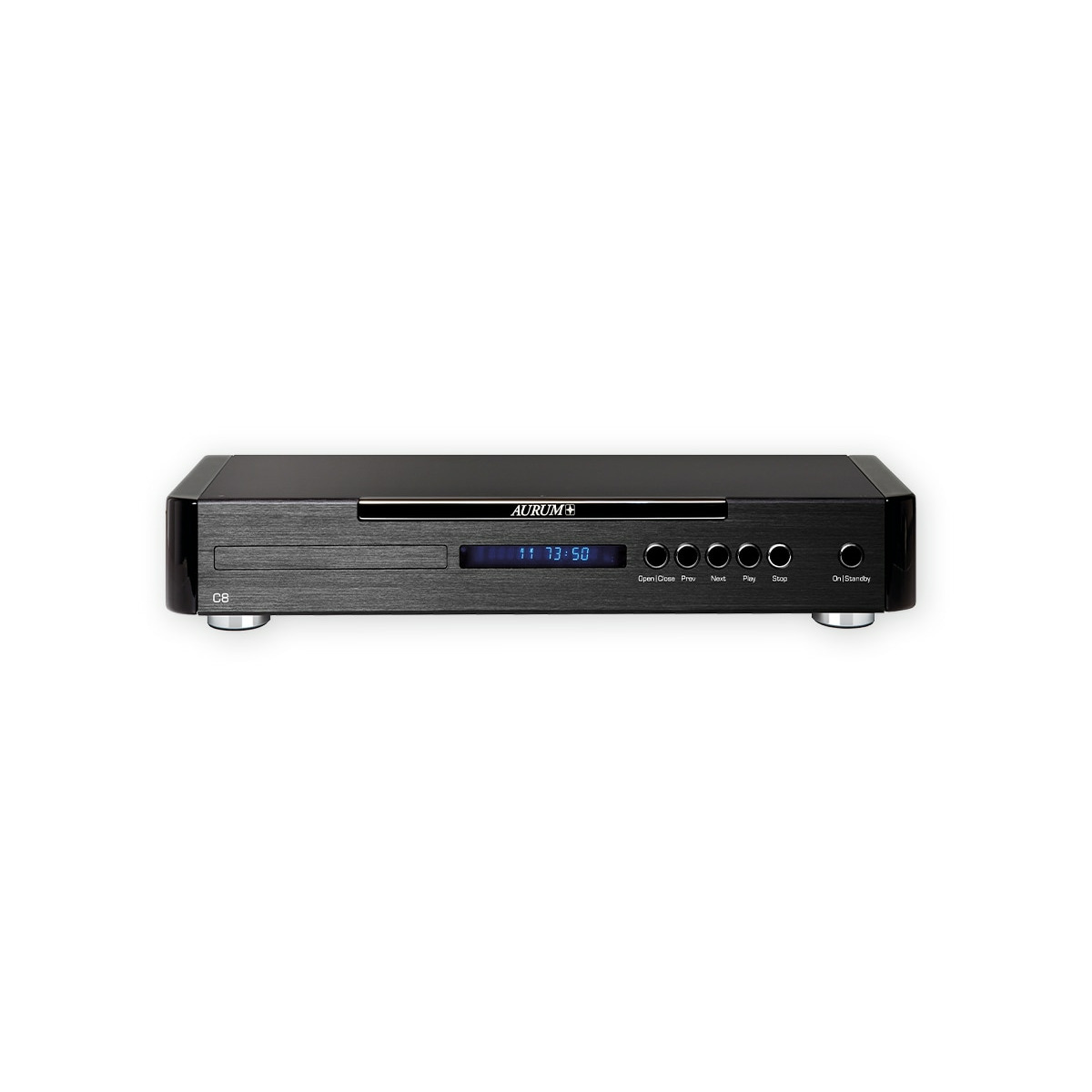

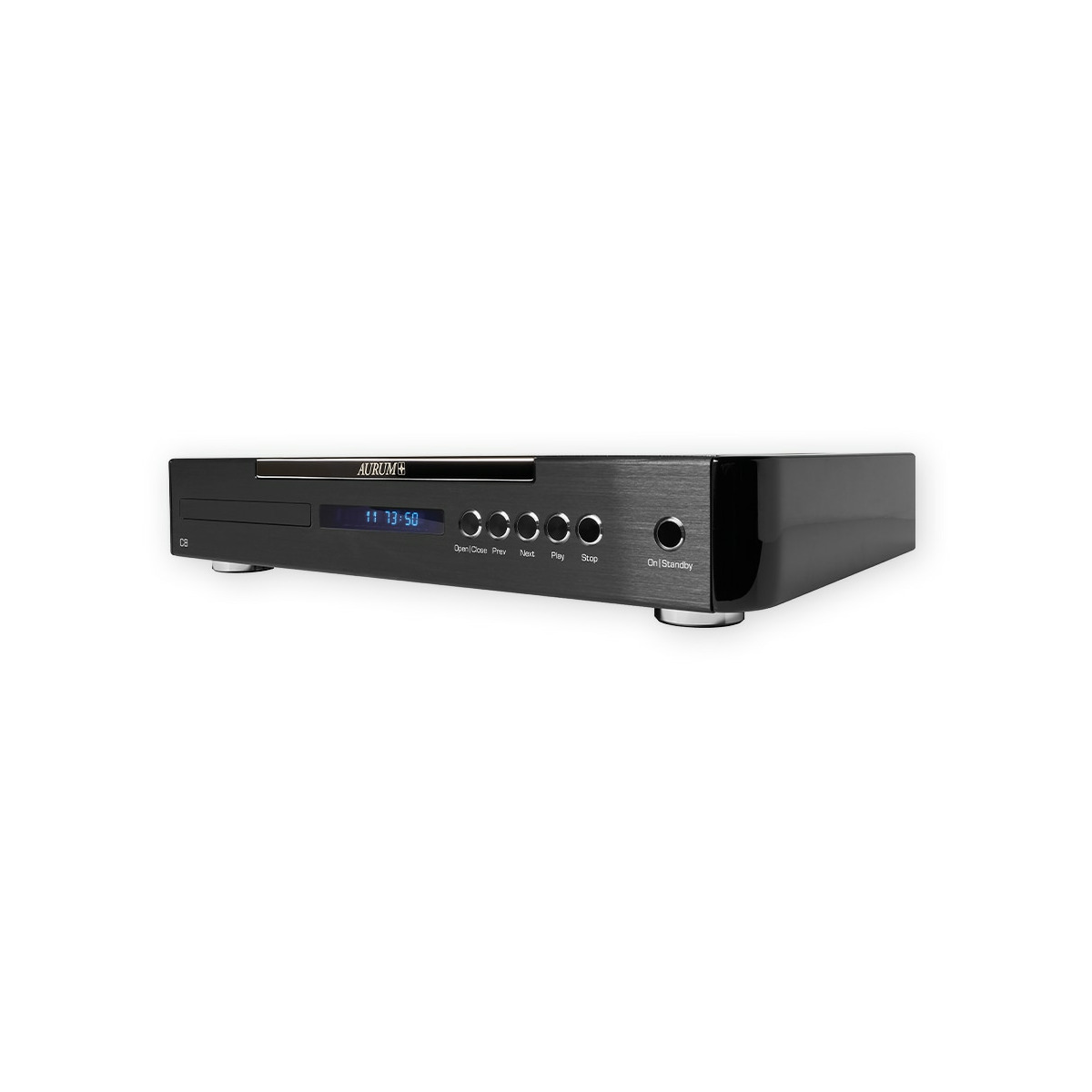

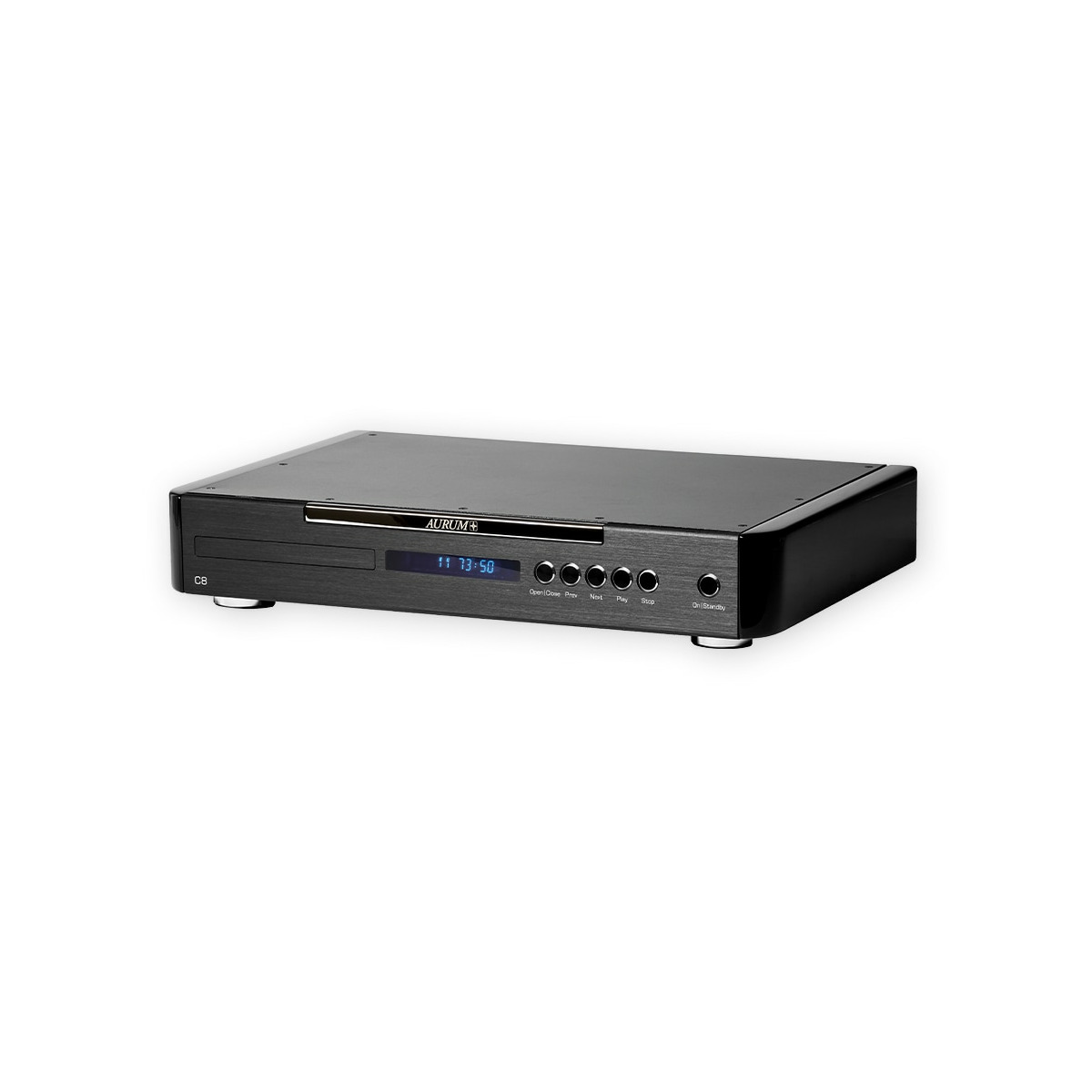

Quadral AURUM C9 - Made in Germany (Special Order Only)

Overview

Due to its uncompromising architecture, our AURUM C9 reference CD player provides the bits & bytes of a CD to reach their true potential totally unclouded. An undocked drive surrounded with sophisticated vibration dampers is just one of many technical highlights helping to make this a true reference class player.

As true a reproduction to you actually being there when originally recording or performing is another testimony to the abilities of the C9 player.

Features

Level of protection

• Class-A output stage for low distortion sound and great sonority. • Undisturbed operation at the highest level through individually decoupled sections.

• Separate power supplies for standby power and digital and analogue modules.

• The wideband filter clears external balanced disturbances from the power grid and unbalanced disturbances from the housing and „ground wire“.

• Disturbing buzzing of the ring core transformer is prevented by an additional filter.

Laser unit

• Permanent automatic adjustment of the laser unit (by continuous adjustment of focus, tracking and EF balance of the digital part, the device plays CDs extremely accurate, even after years).

• Additional vibration protection.

Digital signal processing

• Burr Brown D/A Converter with 24bit/192KHz.

• Bessel filter for optimal pulse transmission for best sound behavior.

• Master clock generator for increased precision (witch distinguishes it from other CD players of its class).

• additional sound enhancement and temperature stability.

• Reclocking concept for all relevant levels and highest accuracy in timing.

Specifications

• Analog output unbalanced 0dBr 2,0V
• Noise-voltage gap Cinch -92dB unaffected
• Harmonic distortions <0,005%
• Frequency response 1Hz-22kHz(-3dB)
• Power supply 115V / 230V switchable
• Standby connection <0.35W

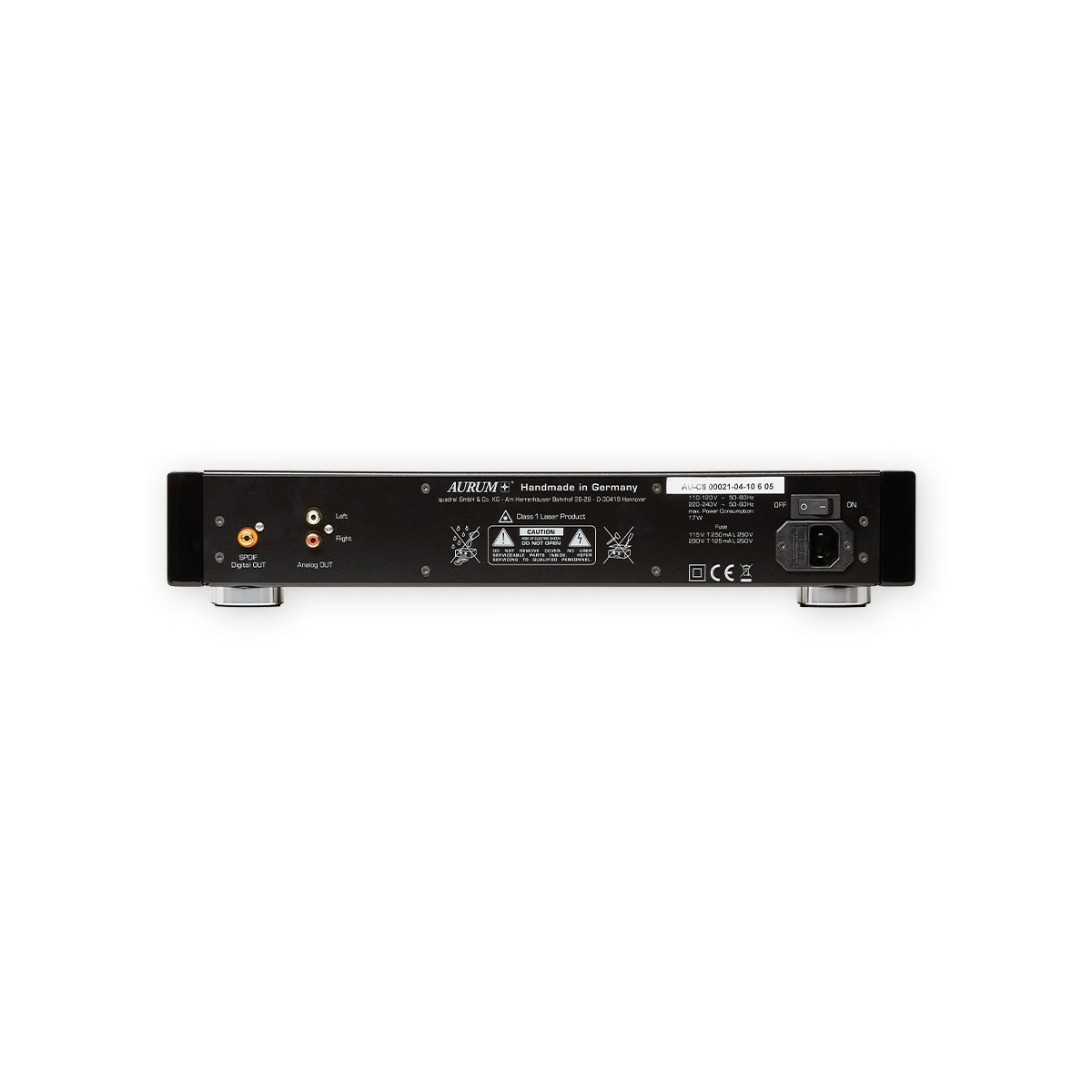

• Outputs 1 pair of analog cinch, 1x coaxial digital
• Size (w x h x d) in cm 45,3 x 8,2 x 30,5 cm
• Weight in kg 6,80 kg
