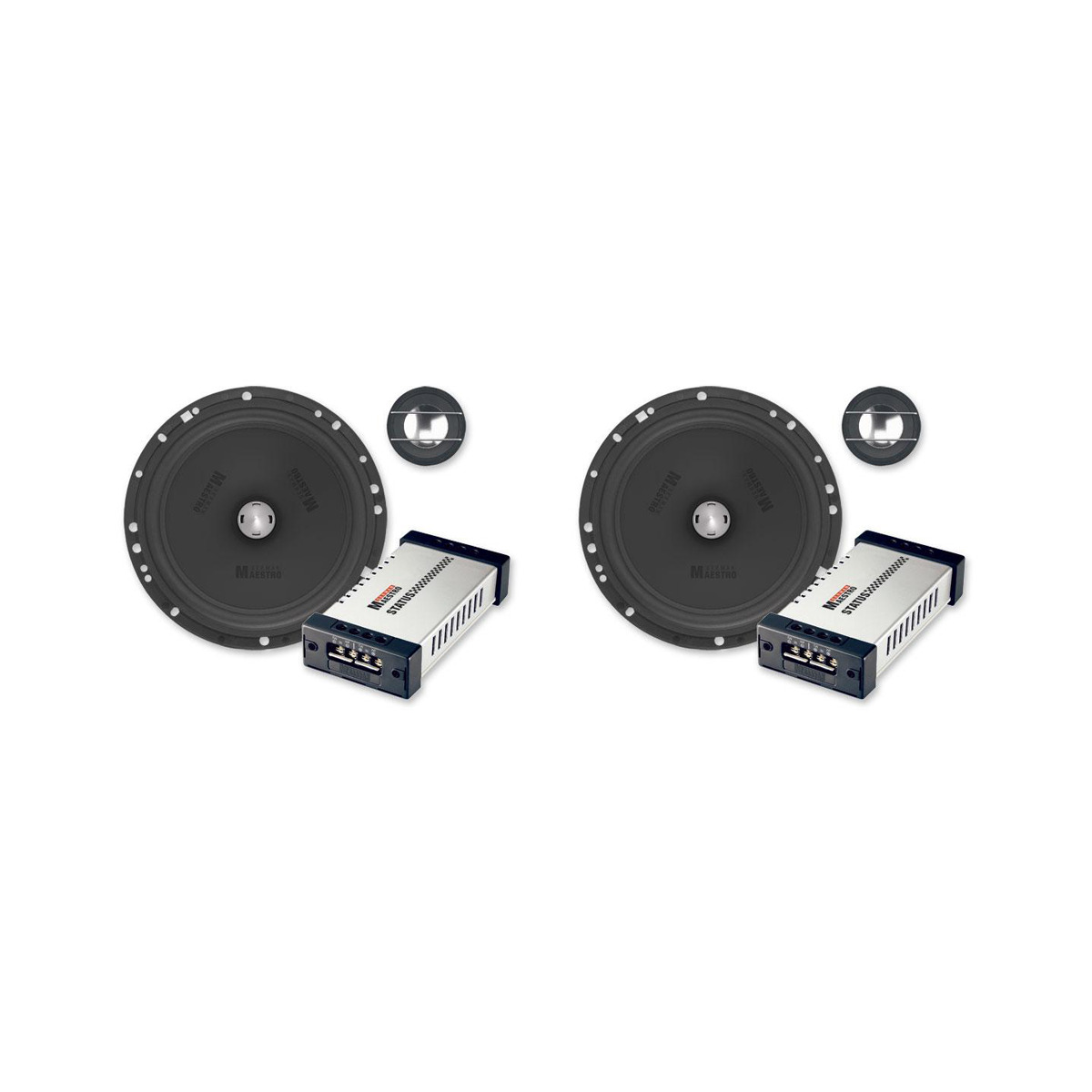

SV6509 – Made in Germany

Overview

The GermanMAESTRO STATUS-Line stands for „State-of-the-Art“-products and proves, that intelligent “Made in Germany” quality can also set new standards with regard to loudspeakers.

With these high-end systems, there is nothing left to be desired regarding sound performance and installation comfort. The most innovative component of the STATUS-line is the two-section titanium dome tweeter ST40WS in UltraSphere™-Technology. The very linear frequency response of the ST40WS over the whole useful range grants a pleasant sound experience in the highest quality and clarity. The extremely wide and homogenous radiation of the tweeter minimizes distortions caused by imbalanced reflections inside the car. Further, the extremely high SPL-capability and power rating, the very good harmonic distortion and the extremely huge usable frequency range from 1,2 kHz – 32 kHz make the ST40WS become a benchmark setting product.

Features

• Tweeter based on exclusive UltraSphere™-Technology with inverted two-piece titanium dome and extremely powerful neodymium ring magnet system
• Woofer with two-piece carbon-fibre reinforced plastic chassis and polypropylene cone magnet system with specially designed metal cover for additional cooling
• Edge wound 1" (25mm) voice coils
• Connection terminals gold-plated allowing for the best possible signal transfer
• STATUS Performance-crossover with unique MultiMOUNT System (MMS) for limitless mounting possibilities. Three-level tweeter attenuator with rotary switch. Selected parts
• Bi-wiring and bi-amping enabled
• Surface mounting rings, grilles and additional mounting accessories included
• STATUS SV 6509 Active without passive Premium Performance crossovers
• Separate or coaxial mounting

Specifications

• Diameter T/W: 40 mm (1.6“) / 16 cm (6.5“)
• Principle: 2-Way-Compo./Coaxial-System
• Power Handling: 60 W RMS / 195 W Max.
• Freq. Response: 30 – 32.000 Hz
• Impedance: 4Ω
• Crossover Frequency: 2.900 Hz
• Sensitivity: 87 dB (2,83V/1m)
