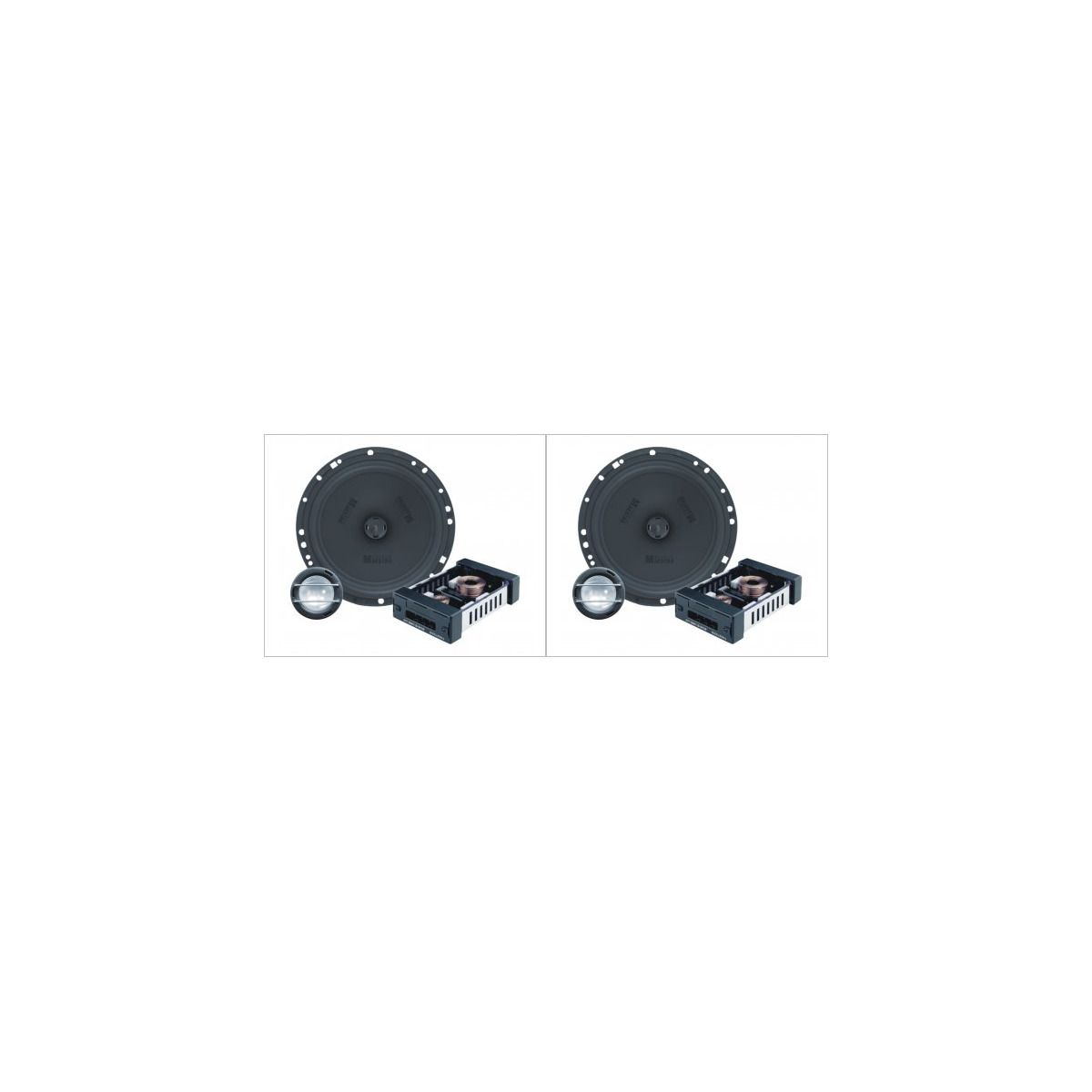

EV6508 – Made in Germany

Overview

The GermanMAESTRO EPIC-line convinces by the extreme wide range of possible applications. No matter if 4”, 5”, 6.5”, 6x8 or 6x9 System, the EPIC-line provides the comfort to conveniently switch the installation-scenario from a component installation with the tweeter placed at a random position to a coaxial installation with woofer and tweeter on same axis.

The magnetic lock system allows you to mount the tweeter in the center of the woofer with an easy hand grip. Further, there are ultra-flat 4”, 5”, and 6.5“component systems available with a front-magnet system made from high energy neodymium magnets. The most shallow system has a total mounting depth of just 1.27”/32,25mm. For extraordinary installations, there is also an 8” 2-way and 3-way system available.

Another specialty of EPIC-line is the extremely compact titanium-dome tweeter ET 20 WS with no more than 0.8”/20mm dome diameter. Regardless of this very compact size, this tweeter in MegaSphere™ technology is still very SPL capable and has a very fine sound reproduction and is also available as a separate upgrade-kit.

Features

• Ultra-compact-sized tweeters based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system in metal housing with Concerted Thermal Compensation (CTC) for optimized heat dissipation
• Woofer with two-piece plastic chassis, polypropylene cone and magnet system cooled by specially designed metal cover
• Edge wound 1" (25mm) voice coils
• EPIC crossover with unique MultiMOUNT system (MMS) for limitless mounting possibilities. Three-level tweeter output
• Surface mounting rings, grilles and additional mounting accessories included (EV 6808 without woofer grills)
• Separate or coaxial mounting with EV-Systems

Specifications

• Diameter T/W : 20 mm (0.8“) / 16 cm (6.5“)
• Principle: 2-Way-Compo./Coaxial-System
• Power Handling: 60 W RMS / 195 W Max.
• Freq. Response: 30 – 30.000 Hz
• Impedance: 4Ω
• Crossover Frequency: 4.000 Hz (6/12 dB/Okt.)
• Sensitivity: 88 dB (2,83V/1m)
