On Wall Speaker

SuperSat Satellite Speaker Models Overview

Every GoldenEar SuperSat satellite speaker model takes advantage of the extraordinary GoldenEar High‐Velocity Folded Ribbon (HVFR™) design tweeter. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion‐like pleated diaphragm, rather than pushing it as conventional drivers do. The result is better impedance matching to the air in the room with greater control, smoother more extended response with lower distortion and dramatically improved dynamic range. Each SuperSat speaker model also utilizes GoldenEar’s ground‐breaking 4.5" cast-basket upper bass/midrange drivers, which incorporate our proprietary Multi-Vaned Phase Plug design (MVPP™) as well as our proprietary computer optimized cone topology, arranged in a D’Appolito array surrounding the HVFR tweeter.

SuperSat 60/60C Satellite Speakers Overview

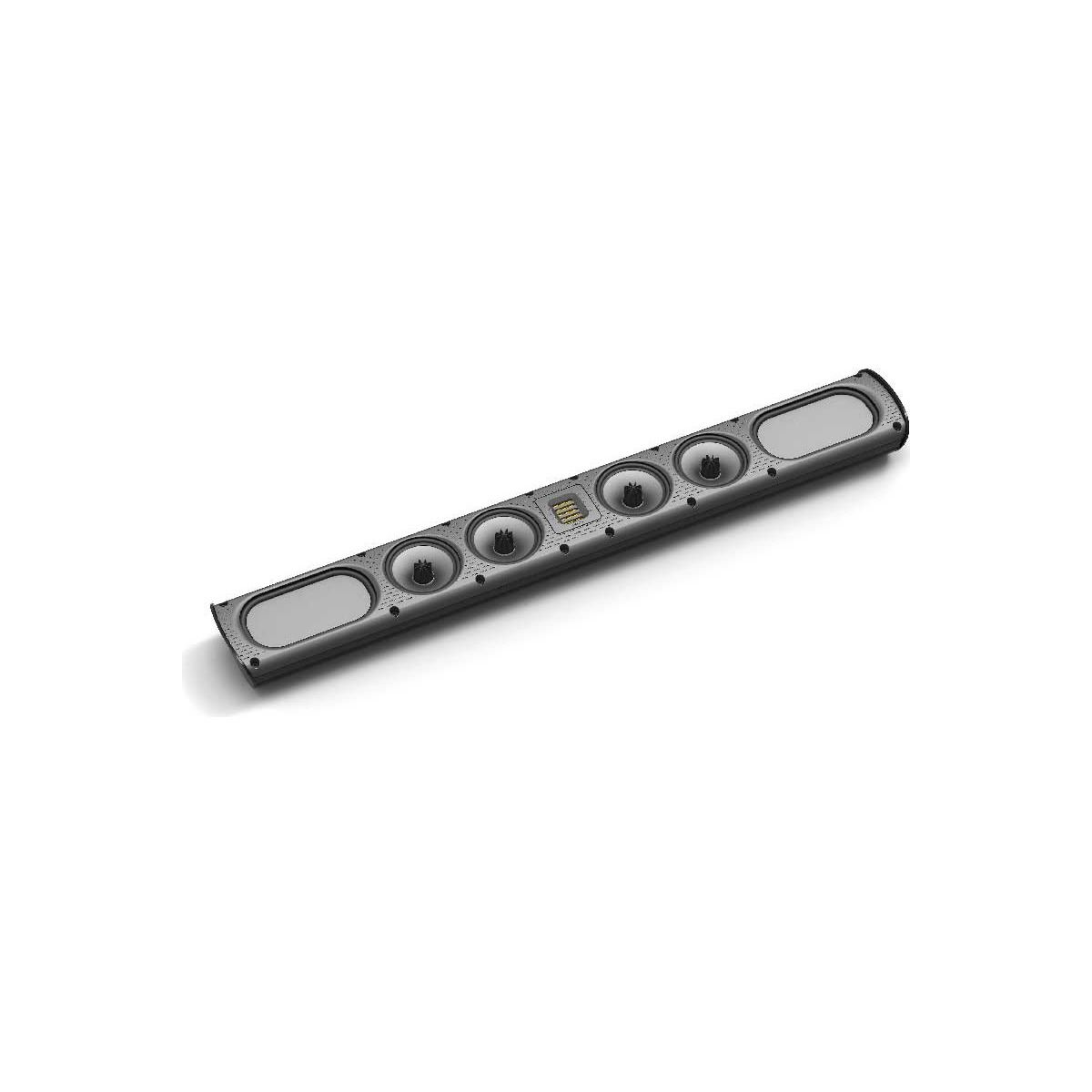

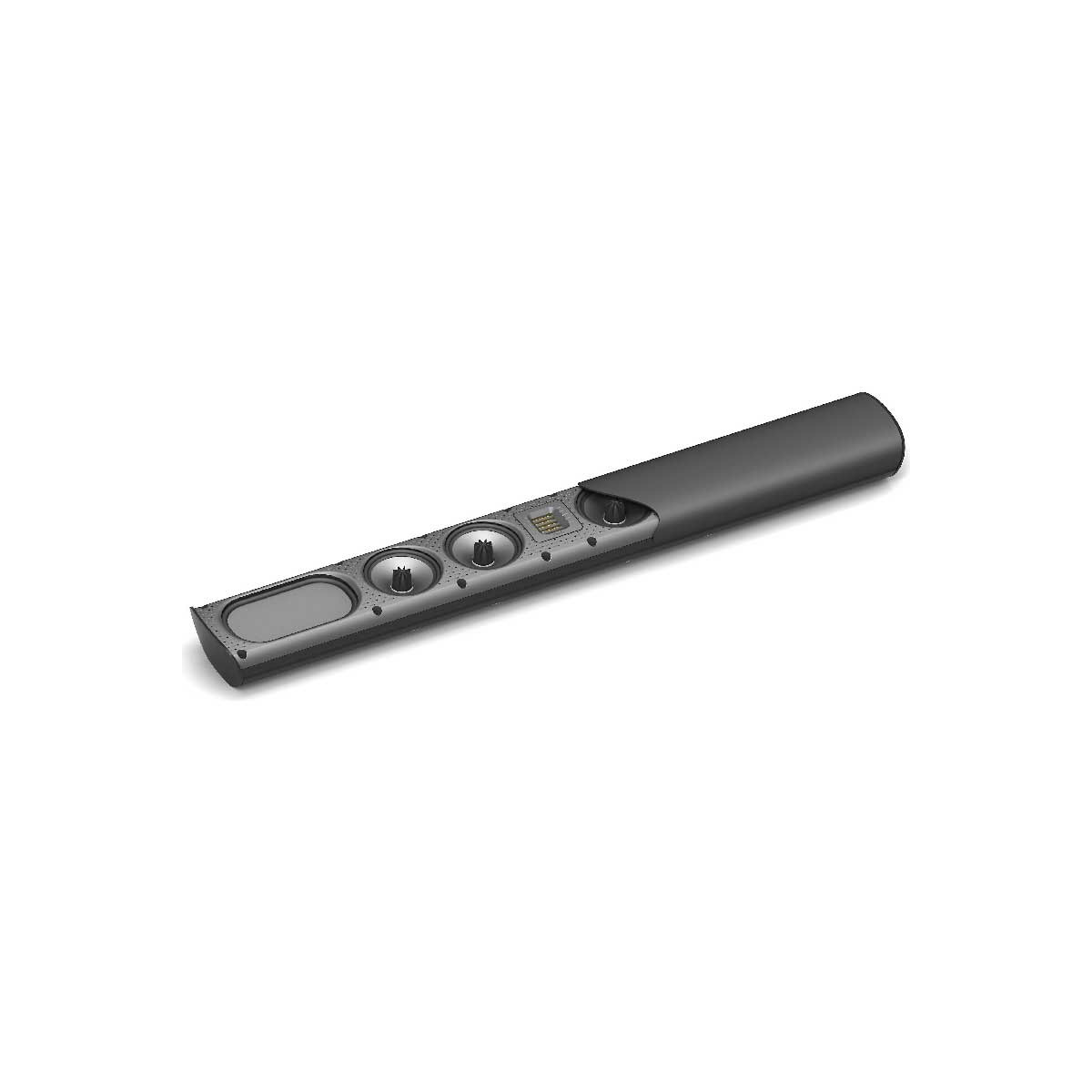

The SuperSat 60 and 60C (SuperSat 60 - left, shown on optional Table/Shelf stand) are larger, more powerful versions of our award-winning SuperSat 50 and 50C. They are designed to complement 60" and larger screens when used as left and right channels and mounted vertically next to them, as well as all screen sizes when used as a horizontal center channel or mounted on their optional stands. They provide a larger, more powerful, higher power-handling step-up from our SuperSat 50C when used as a center channel paired with any of our Triton Towers or with any of our other speakers including the SuperSat 50s.

The sleek, attractively sculpted cabinet follows the same design philosophy that won the SuperSat 50 the highly respected Resi Award as the industry’s best looking on-wall loudspeaker. It is constructed from aerospace-grade aluminum and finished in gorgeous piano-gloss black. It contains four GoldenEar engineered 4.5" cast spiderleg-basket bass/midrange drivers with Multi-Vaned Phase-Plugs (MVPP) configured in a two-stage D’Appolito Array surrounding our signature High-Velocity Folded Ribbon high-frequency radiator. Two 4" x 7" quadratic planar low frequency radiators complete the driver complement, perfectly loading the bass/midrange drivers for open, boxless midrange and extended low-frequency response.

The SuperSat 60 and 60C’s very thin depth makes them perfect for wall mounting next to the latest super thin TVs. This is easily accomplished using the threaded inserts or keyhole mounts on the rear. Dual adjustable feet allow multiple angles when shelf-mounting the horizontal center-channel 60C. In addition, optional floor and tabletop stands are available for vertical mounting - note total height of speaker and floor stand is 48".

Specifications

-Dimensions 35˝ (88.9 cm) H (W) x 4-3/4˝ (12.1 cm) W (H) x 2-3/4˝ (7 cm) D

-Weight Product: 11 lbs (5 kg) / Shipping: 15 lbs (6.8 kg)

-Frequency Response 50 Hz - 35 kHz

-Efficiency 92 dB

-Nominal Impedance Compatible with 8 ohms

-Driver Complement Four - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers Two - 4˝ x 7˝ Quadratic Planar Low-Frequency Radiators One - HVFR™ High-Velocity Folded Ribbon Tweeter

-Recommended Amplification 20 - 300 watt/channel
