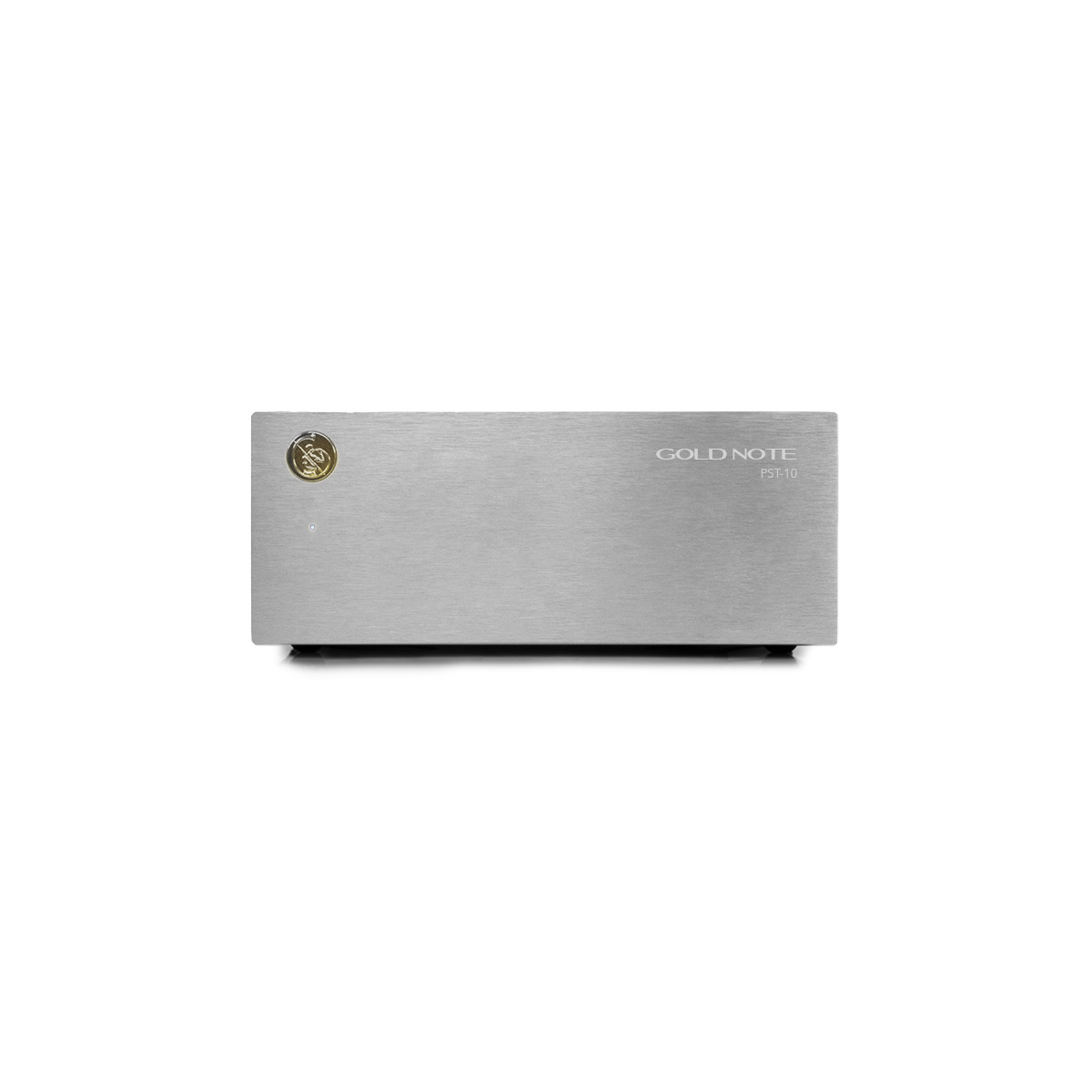

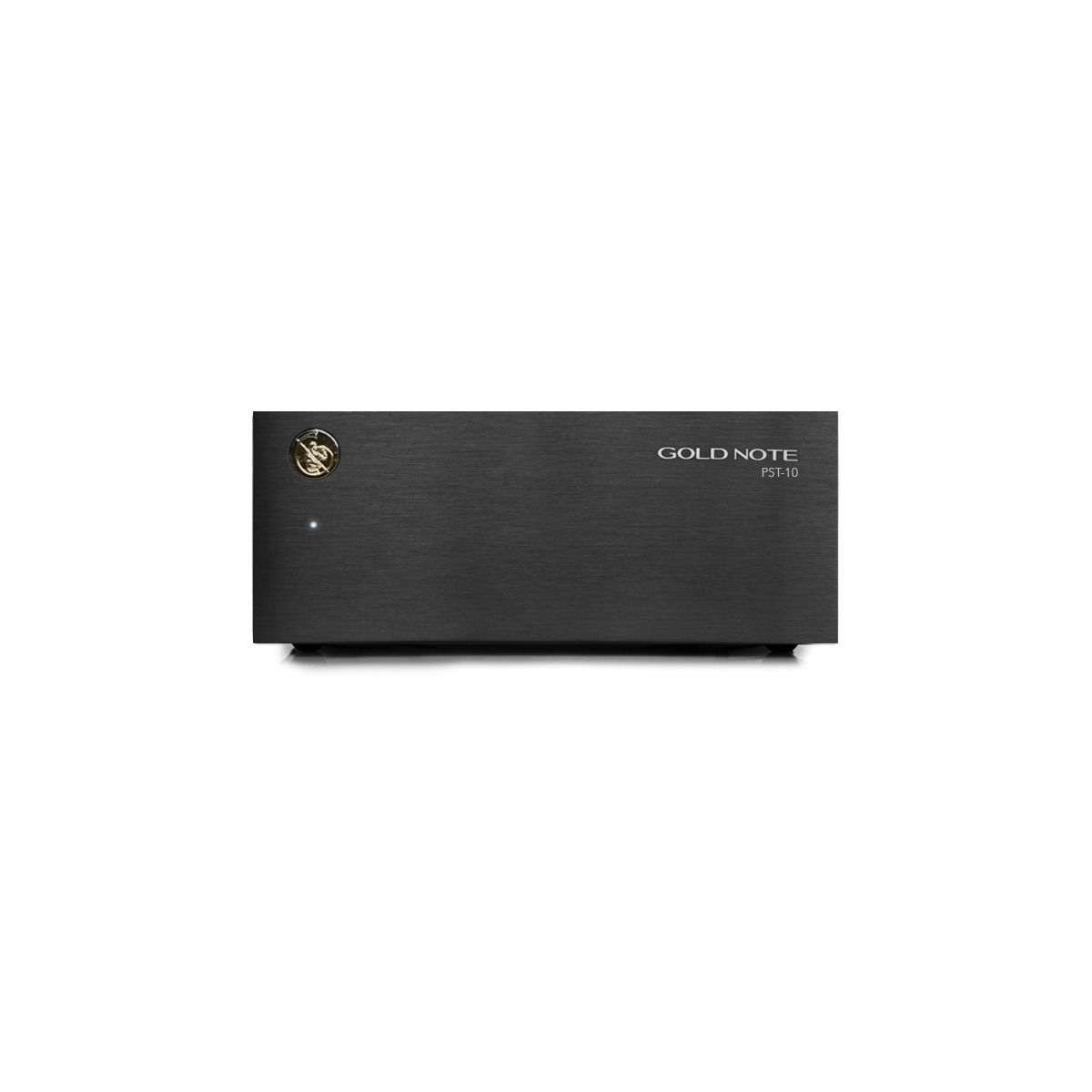

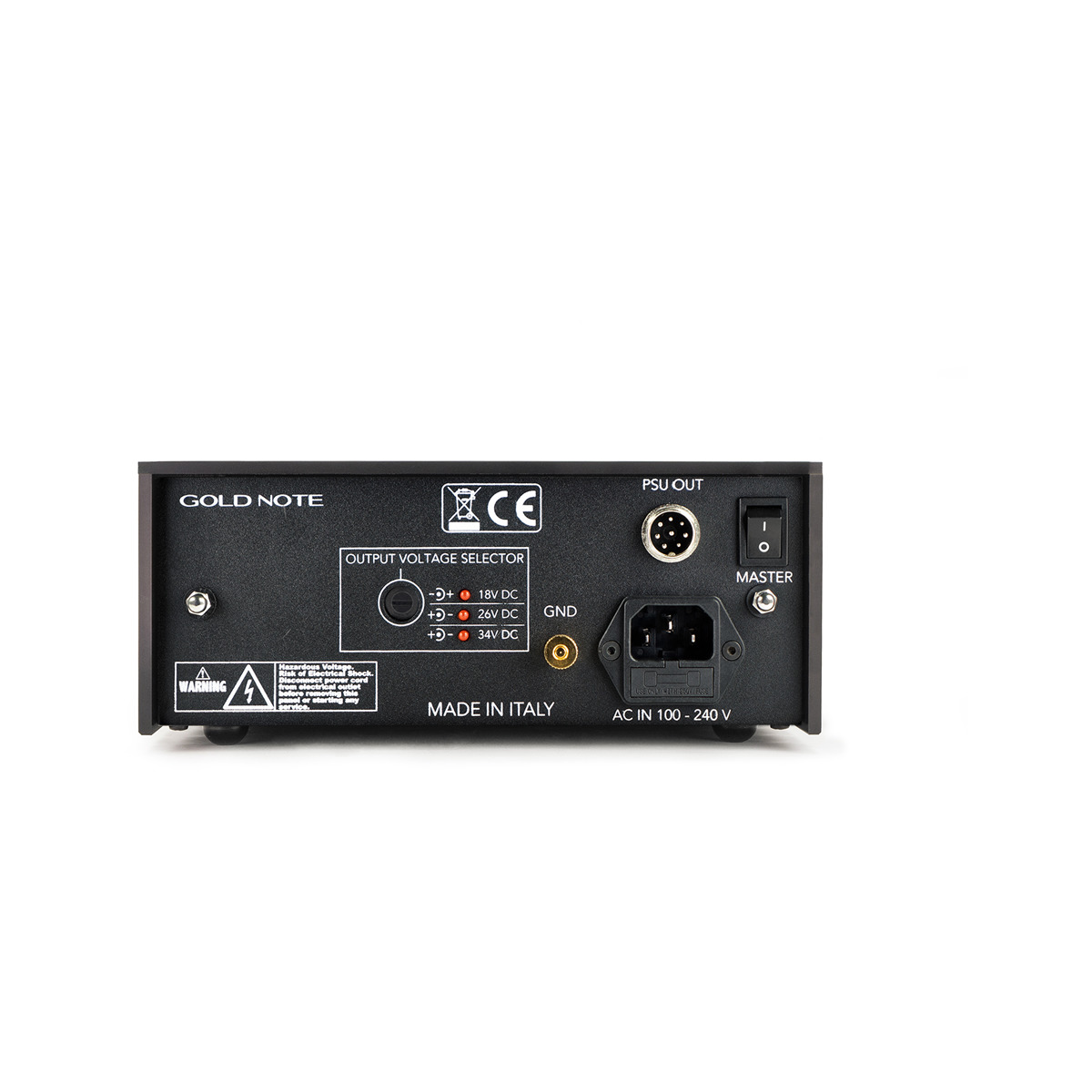

PST-10 - Made in Italy (Special Order Only)

Overview

THE EXTERNAL POWER SUPPLY DEDICATED TO GOLD NOTE TURNTABLES

The PST-10 is designed to enhance the performance of Gold Note turntables by implementing our analogue systems according to our modular philosophy.

This special power supply leverages a super inductive dual-choke hybrid design – with a filter on the analogue stage.

Our proprietary Dual-Choke design perfectly filters the voltage to eliminate any interference and electrical noise from the power system, providing an effective shielding from the power grid and creating the ideal working environment for the turntable to perform at its best.

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution, and finer audio details guaranteeing the best realism and musicality.

Specifically designed for our turntables, the PST-10 features a 4-stage architecture with 4 ultra-low-noise voltage regulators. The power supply uses 4 transformers of which 3 are dedicated to the power supply and 1 to the inductive choke filter.

To guarantee the best performance, the PST- 10 is supplied with a custom 1,5m power cord made with a silver-core conductor cable.

Specifications

• TECHNICAL FEATURES Four audio grade transformers Four ultra low noise voltage regulators
• MAXIMUM VARIATION OF OUTPUT VOLTAGE 0,05 %
• LINE NOISE REJECTION >80dB
• COMMON MODE NOISE REJECTION >80dB
• FULL POWER RESPONSE TIME <2,5µsec
• CONNECTING CABLE Silver custom cable powering the turntable
• POWER SUPPLY 100-120V / 220-240V with auto sense, 50/60Hz
• POWER CONSUMPTION 25W
• DYNAMIC POWER >50W
• STAND BY POWER <1W
• DIMENSIONS 200mm W | 80mm H | 260mm D
• WEIGHT Kg. 3 – net Kg. 4 – boxed
