Pianosa - Made in Italy (Special Order Only)

Overview

THE ATTENTION TO THE SMALLEST DETAILS AWAKENS NEW MUSICAL SENSATIONS

The Pianosa, just like the Mediterraneo and the Giglio, offers a unique combination of high-quality materials and refined technical solutions to achieve the purest audio execution.

The Pianosa follows the sonic philosophy experimented with the full range of GN turntables, taking advantage of the experience and knowledge we developed working on innovative shapes and quality materials.

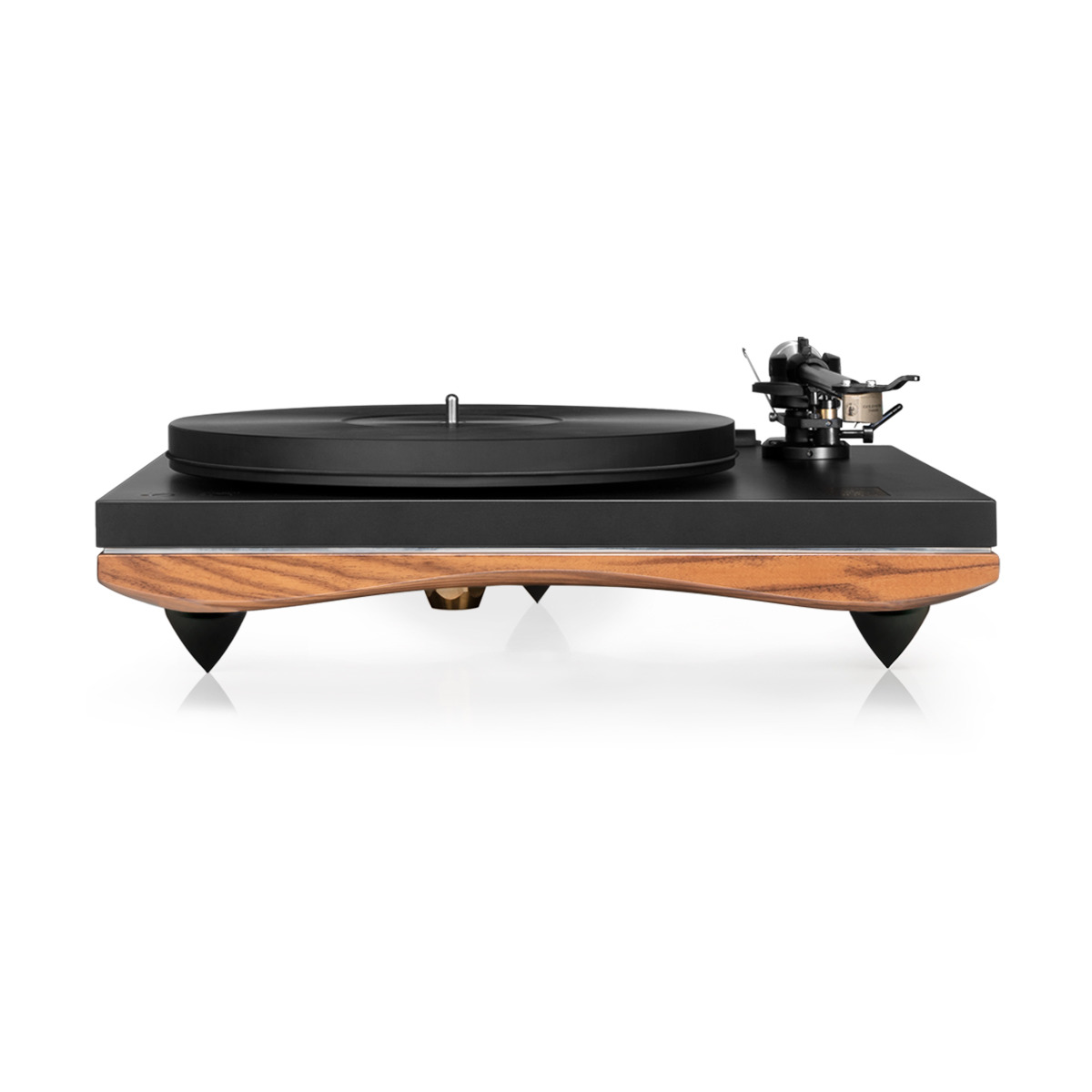

The Catenary curved plinth, made of Italian walnut hardwood or black lacquered MDF, is handcrafted by the best Italian wood-making artisans who carefully treat every single piece of selected wood, shaping the core of the turntable.

The wooden plinth is coupled with a 20mm thick MDF plinth and reinforced with a 3mm stainless steel plate to provide incredible rigidity.

The result is an audio performance that exceeds any expectations.

The electronics that control the power driving the 12V synchronous motor and the specific materials chosen for the Pianosa come directly from the flagship models. It results in a zero vibrations device and an improved torque delivering the greatest dynamic and the finest detail.

The Pianosa features our high-precision platter bearing/spindle design with the lowest coupling tolerance available.

The rectified spindle is made of hardened steel and it precisely matches the chromed ball bearing, reaching the perfect low noise rotational consistency.

Specifications

• WOW & FLUTTER 0,1%
• RUMBLE -77dB
• SPEED 33⅓rpm and 45rpm ±0,1%

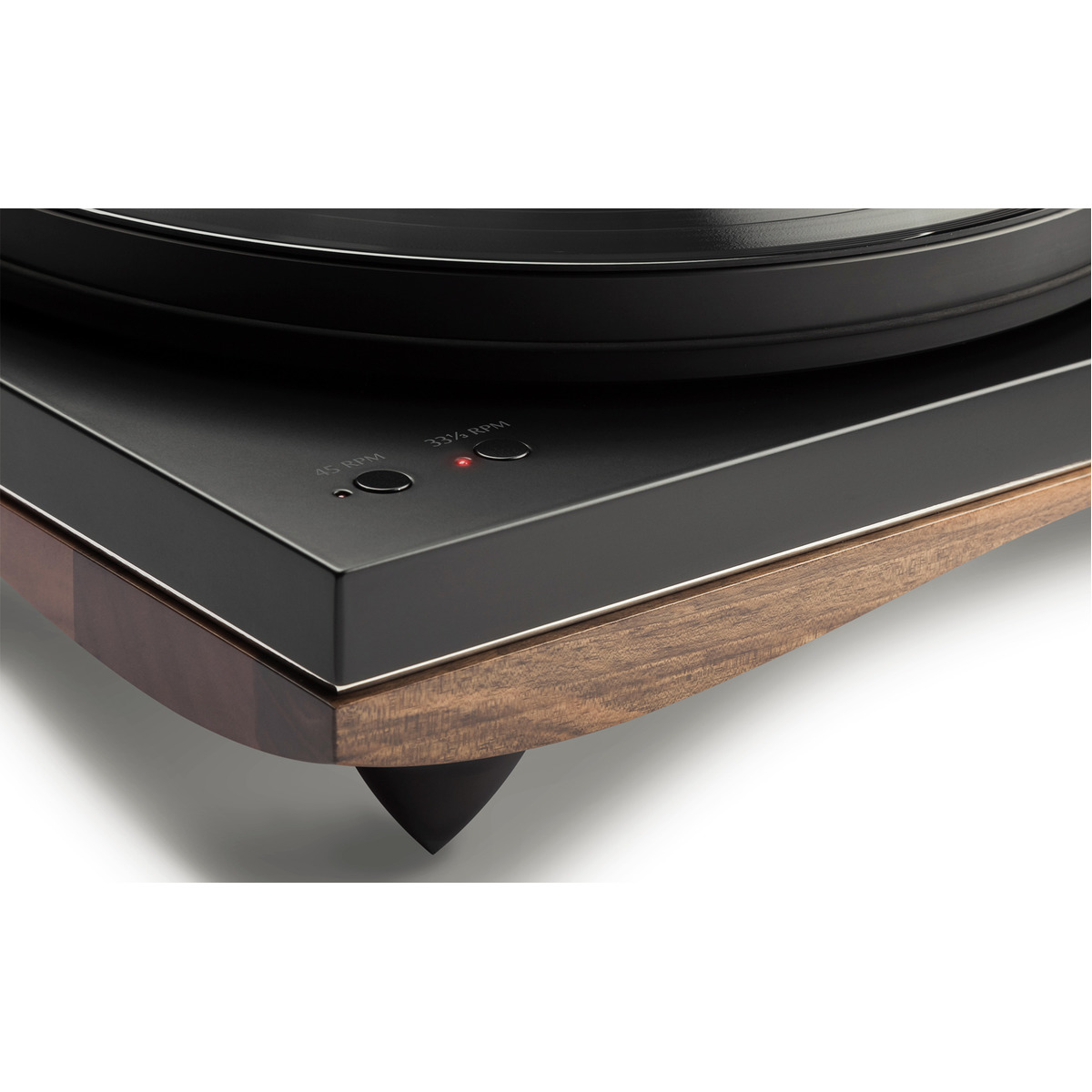

• SPEED CHANGING Electronic with fine pitch control
• TRANSMISSION 70 shores rectified NBR belt
• MOTOR high torque 12V synchronous
• PLATTER 23mm Dampened Poly-Vinyl
• PLATTER SPINDLE Split-Spindle™ clamping design
• PLATTER BEARING Chromed Steel 5mm ball bearing
• TONEARM Gold Note B-5.1
• DUST COVER Transparent with hinges
• POWER CONSUMPTION max 27W
• POWER SUPPLY 18V output 100-240V / 50-60Hz
• DIMENSIONS 425W | 200H | 360D mm | 550W | 480H | 480D mm – boxed
• WEIGHT Kg. 13.5 – net Kg. 18 – boxed
