MEDITERRANEO - Made in Italy (Special Order Only)

Overview

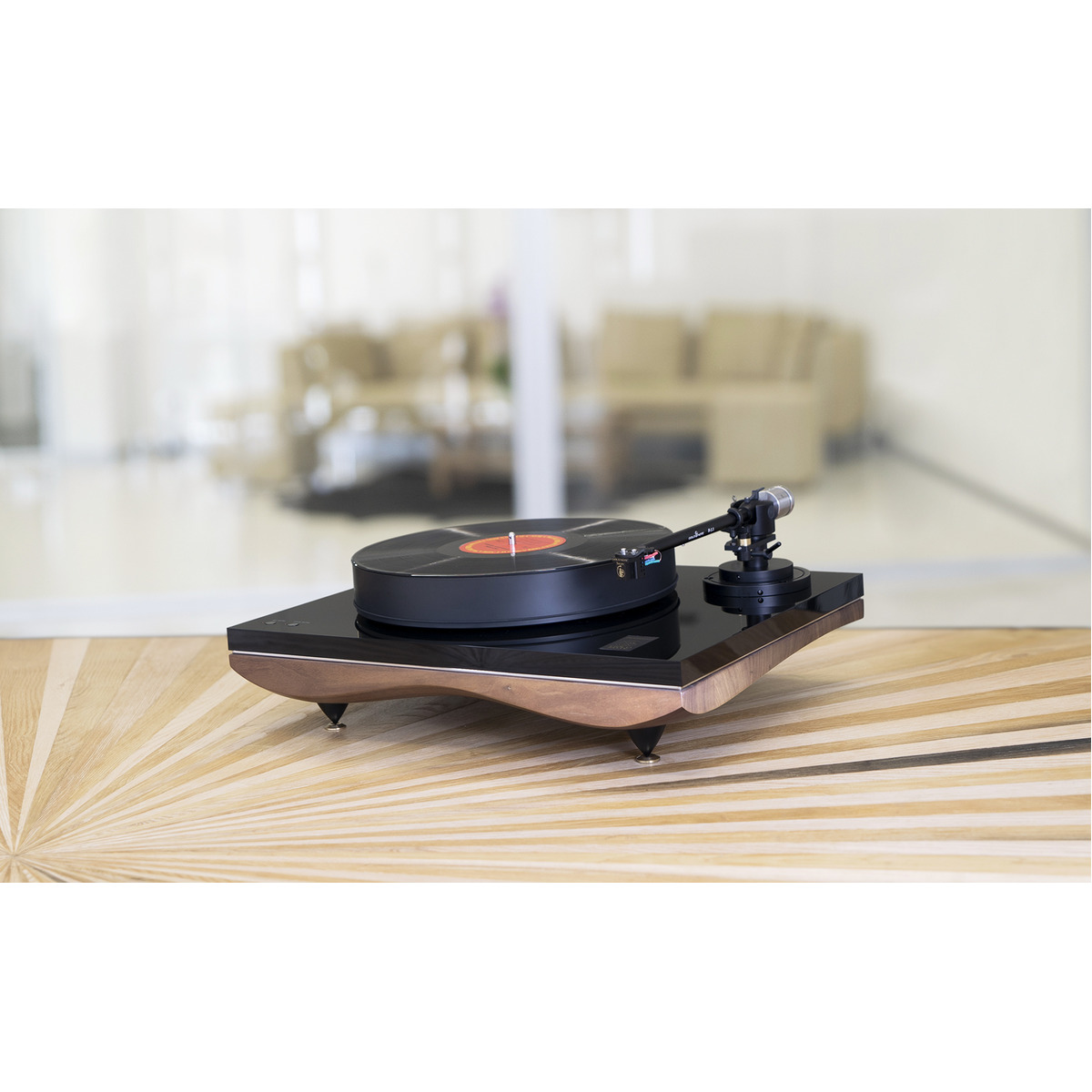

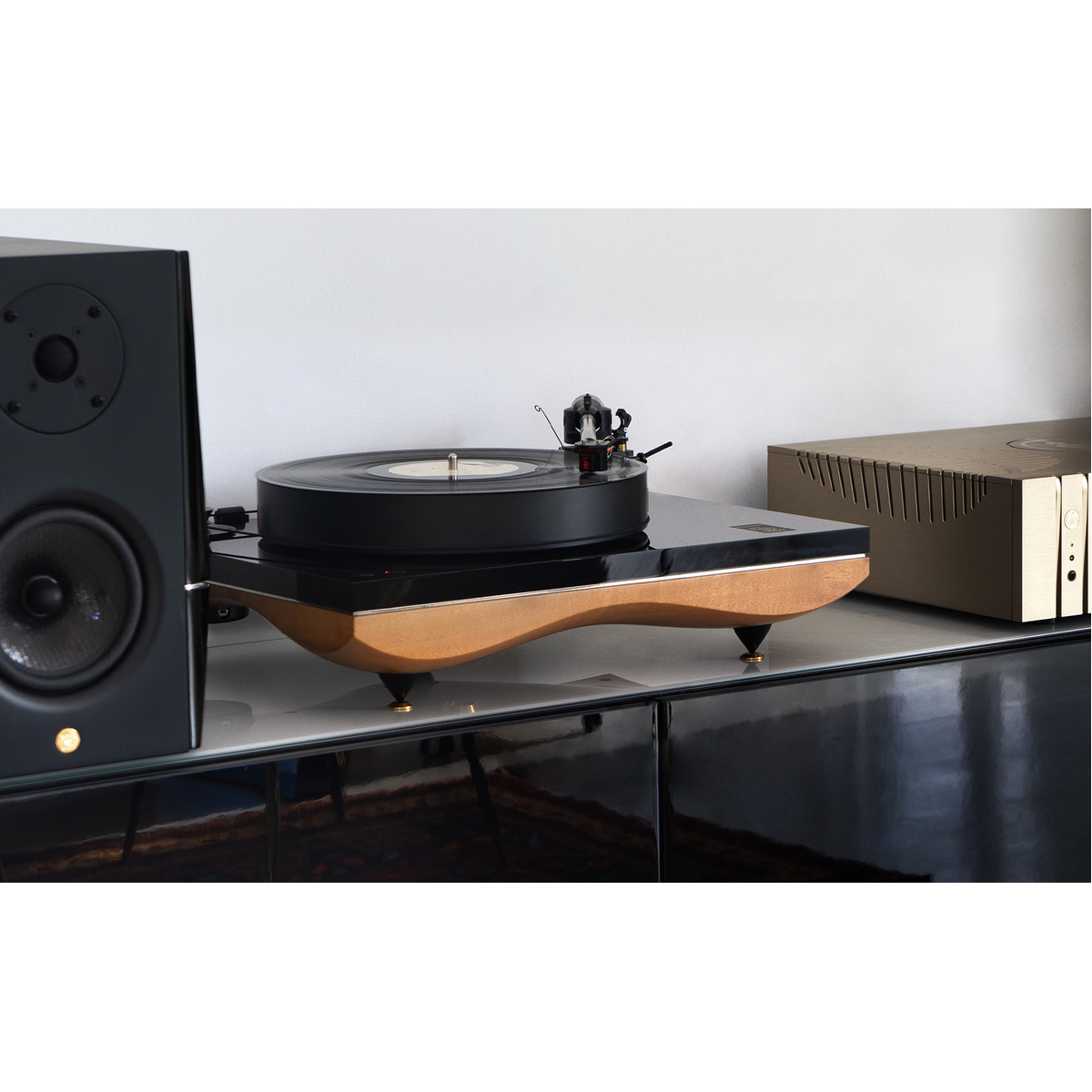

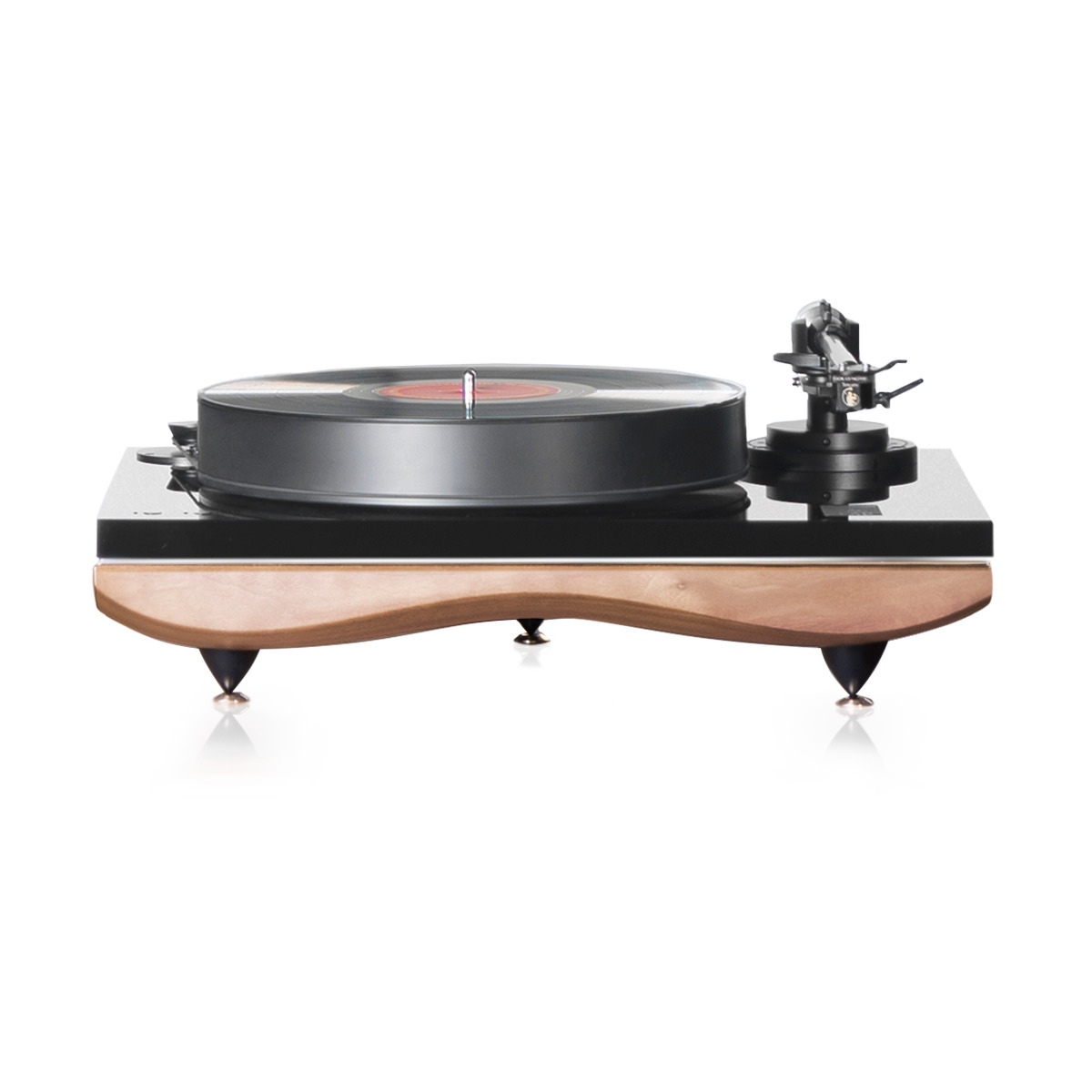

MEDITERRANEO ITALIAN WALNUT + B-7 CERAMIC

BEAUTY AND TECHNICAL PERFECTION COMBINED FOR MUSICAL PLEASURE

Inspired by our Italian heritage, the Mediterraneo turntable combines beauty and technical perfection into a unique instrument for musical pleasure. It is our own ode to musical passion and dedication to vinyl.

The 60mm thick curved plinth design is based on the Catenary curve, a highly efficient concept developed by the Renaissance pillars, Michelangelo Buonarroti and Galileo Galilei.

Made of Italian walnut hardwood, the chassis benefits from the quality of such noble material: exceptional elasticity, strength, and high density.

The triple plinth structure is reinforced by a compelling 20mm board in polished acrylic and a 3mm thick stainless steel board to improve its exceptional damping quality and stability. The wooden base sits on three elegantly shaped and adjustable spikes made of anodised aluminium.

The 45mm thick high-precision platter made of high-density POM is belt- driven and powered by a proprietary control system developed on a Quadral-Core micro-controller enhanced by an audio converter. The power control rebuilds the AC wave to perfectly drive the 12V synchronous motor, removing vibrations while improving its torque, to deliver the greatest dynamic and the finest detail.

The Power Supply Unit electronically controls the 33⅓rpm and 45rpm mode as well as the fine speed adjustment, storing all settings into memory. The Mediterraneo features a 80mm long bearing/spindle design, made of the hardest rectified carbon steel to achieve perfect working fluidity. The bearing system is made of bronze guaranteeing the smoothest platter rotation.

Specifications

• WOW & FLUTTER 0,1%
• RUMBLE -80db
• SPEED  33⅓rpm and 45rpm ±0,1%
• SPEED CHANGING Electronic with fine pitch control
• TRANSMISSION 70 shores rectified EPDM belt
• MOTOR High torque 12V synchronous
• PLATTER 45mm thick high-density POM
• PLATTER SPINDLE Split-Spindle™ clamping design
• PLATTER BEARING Tungsten 5mm ball bearing
• TONEARM Gold Note B-7 Ceramic (or opt. B-5.1)
• DUST COVER Transparent acrylic with hinges
• POWER CONSUMPTION max 27W
• POWER SUPPLY PST-1 18V output 100-240V / 50-60Hz
• DIMENSIONS 470mm W | 210mm H | 360mm D | 590mm W | 510mm H | 510mm D – boxed
• WEIGHT Kg. 20 – net Kg. 26 – boxed
