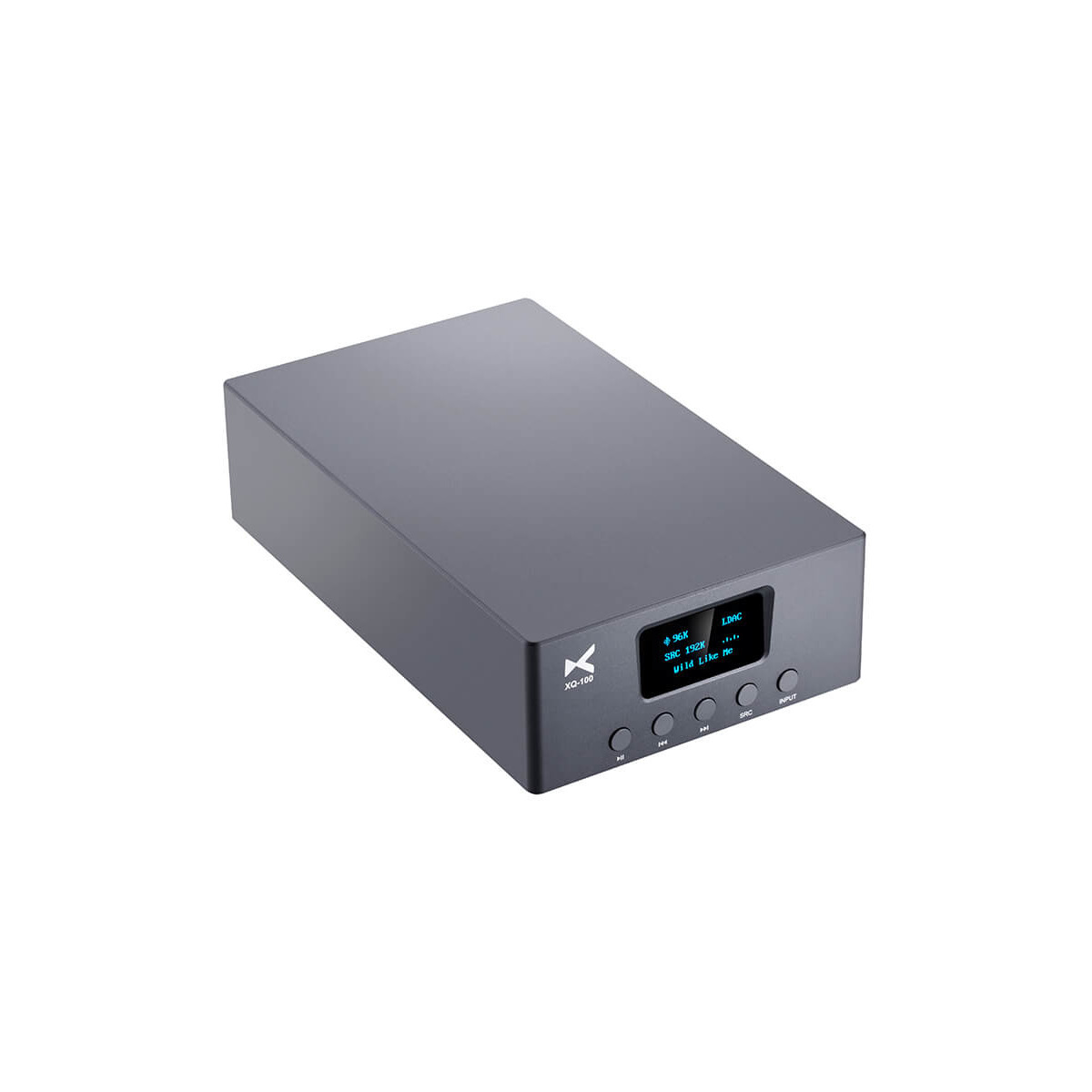

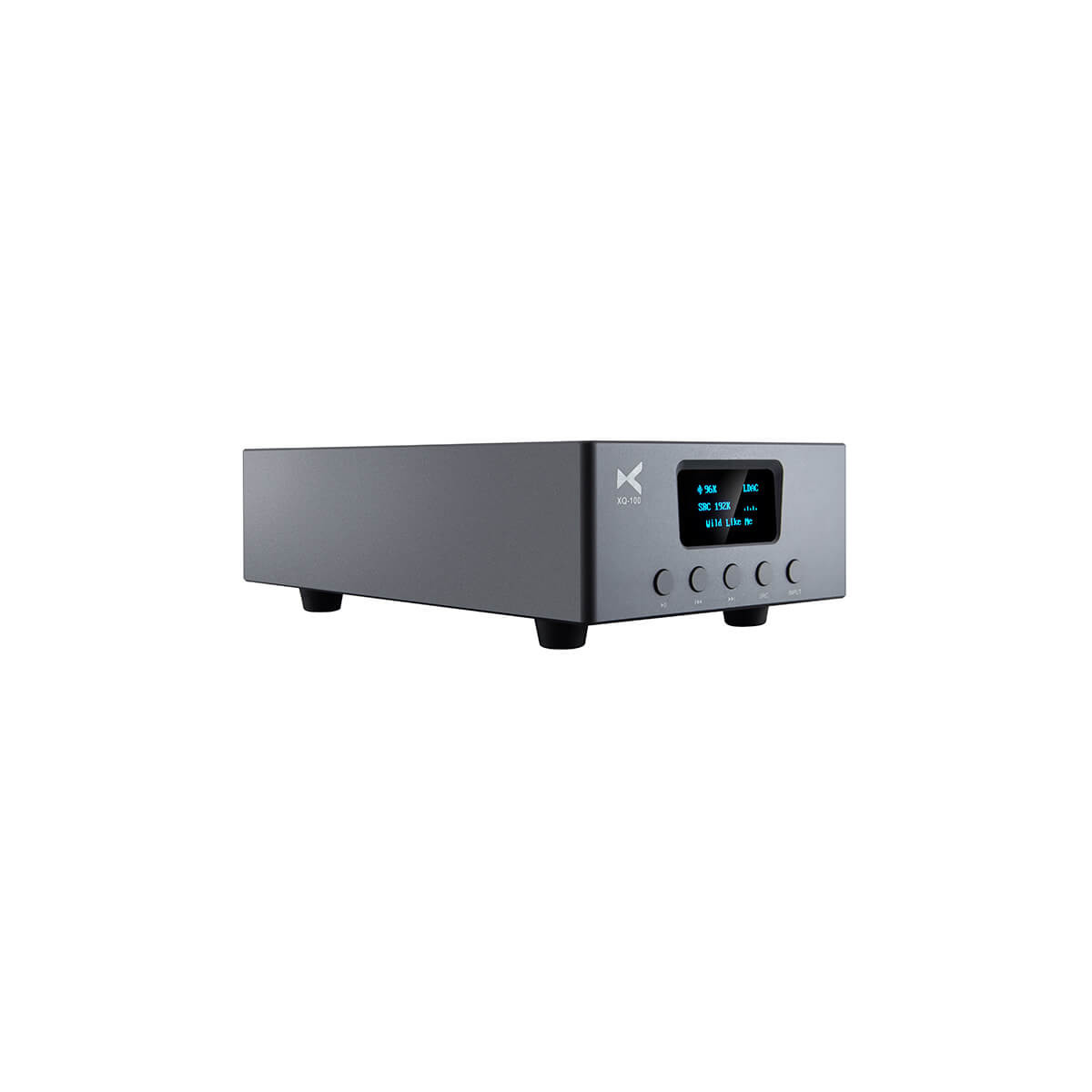

Bluetooth Audio Receiver Converter

Features

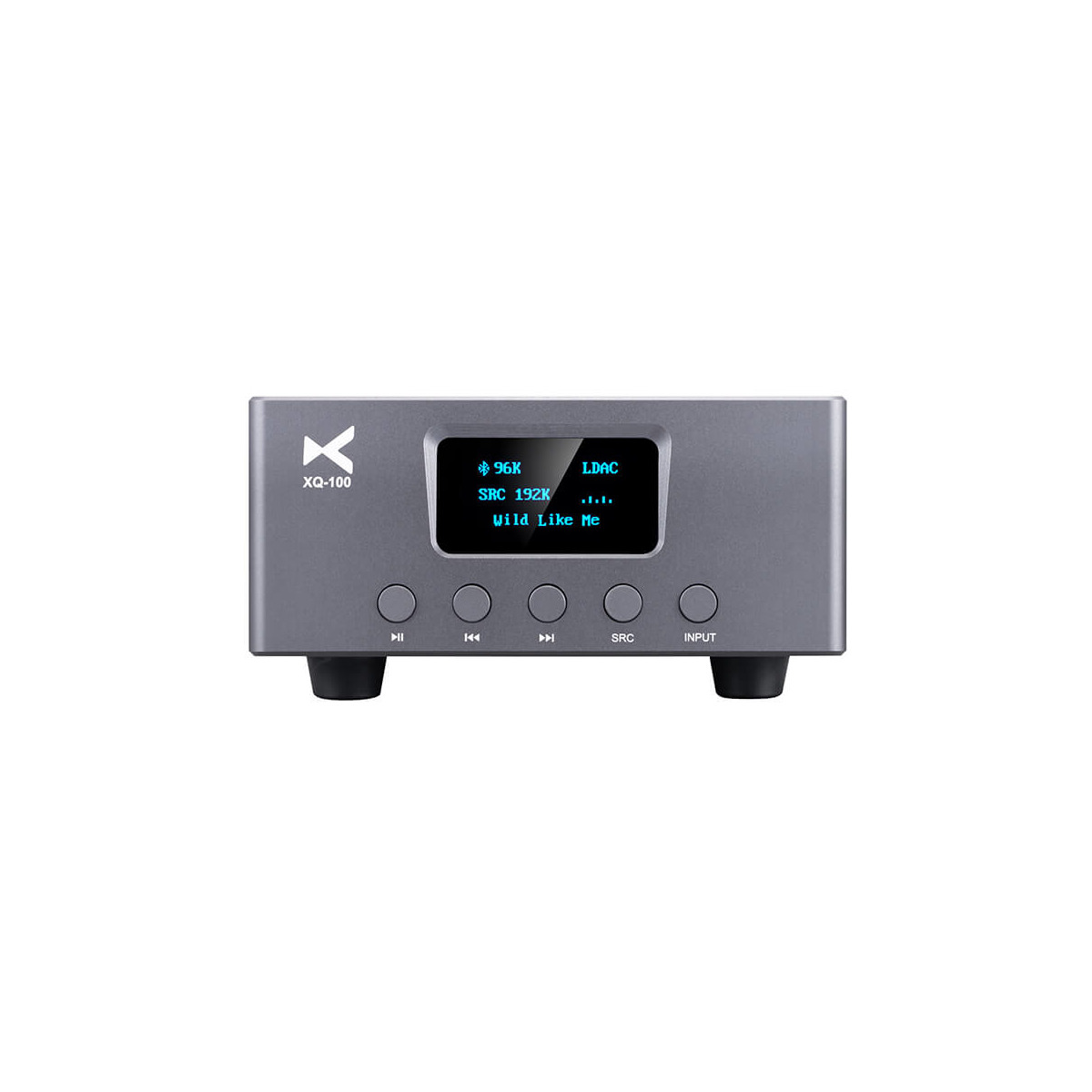

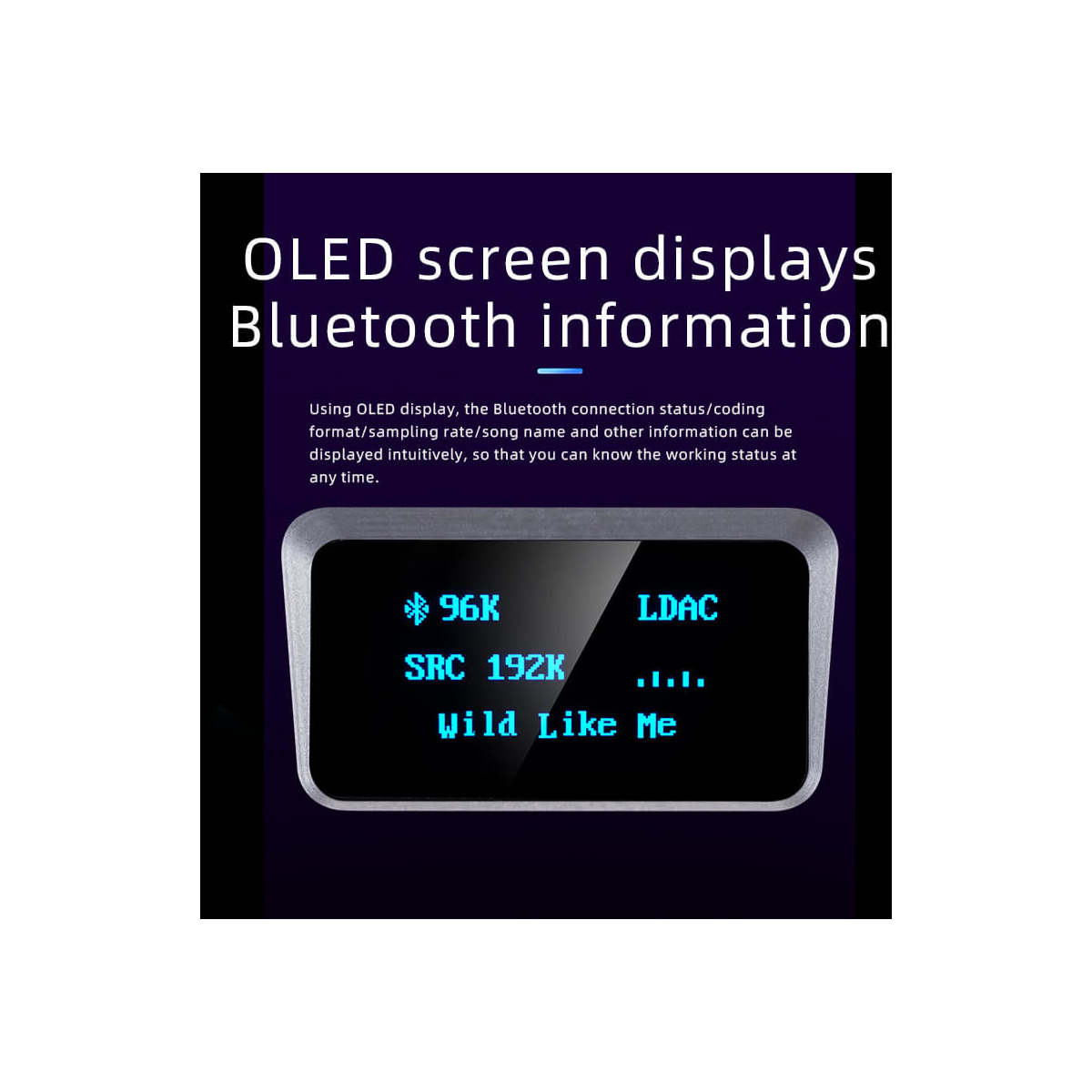

• OLED screen display to reach music information.
• Adopt CSR8675 Bluetooth chip, support SBC, AAC, aptX HD, LDAC, and other audio formats

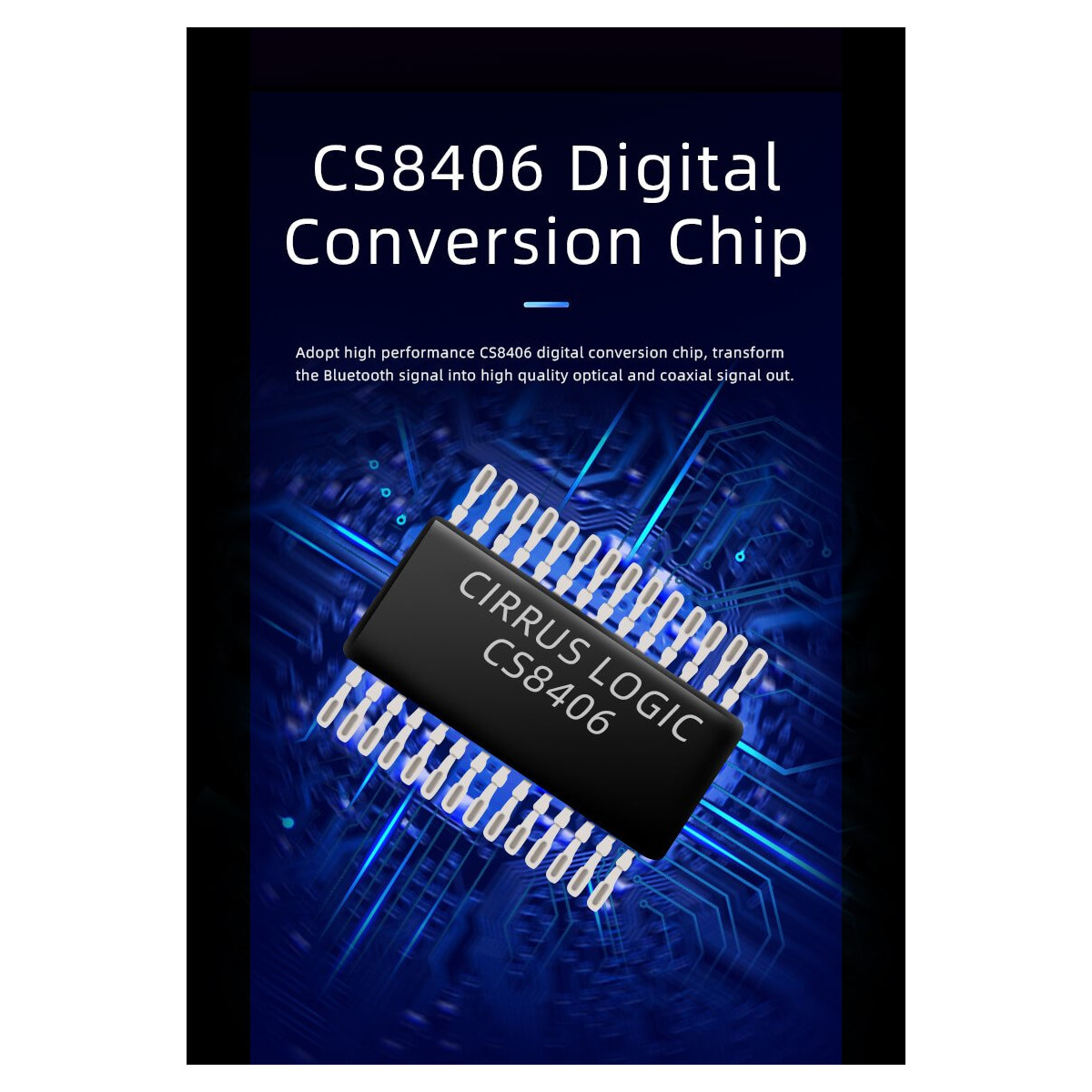

• Utilizes high-performance CS8406 as digital output conversion chip to get high output signals

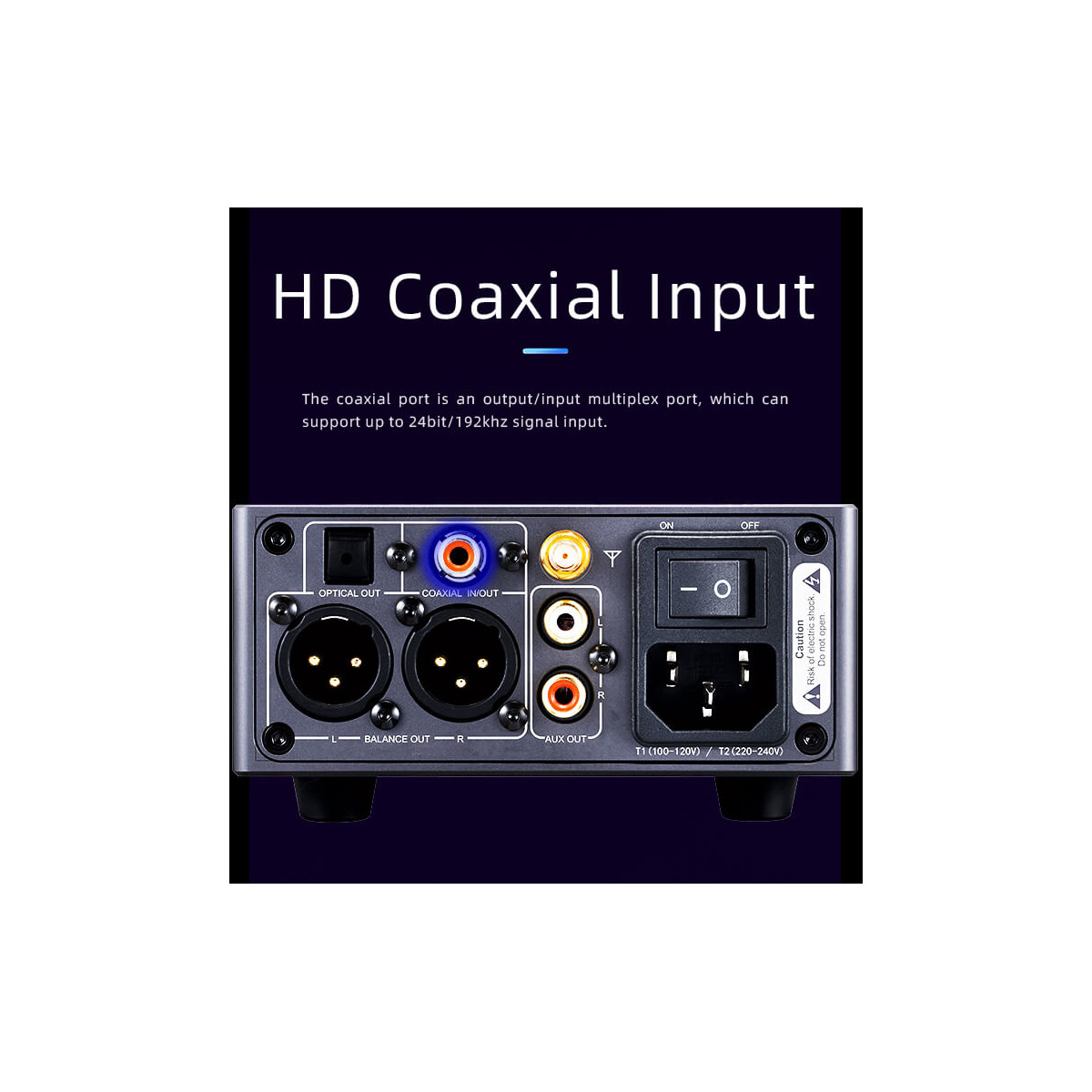

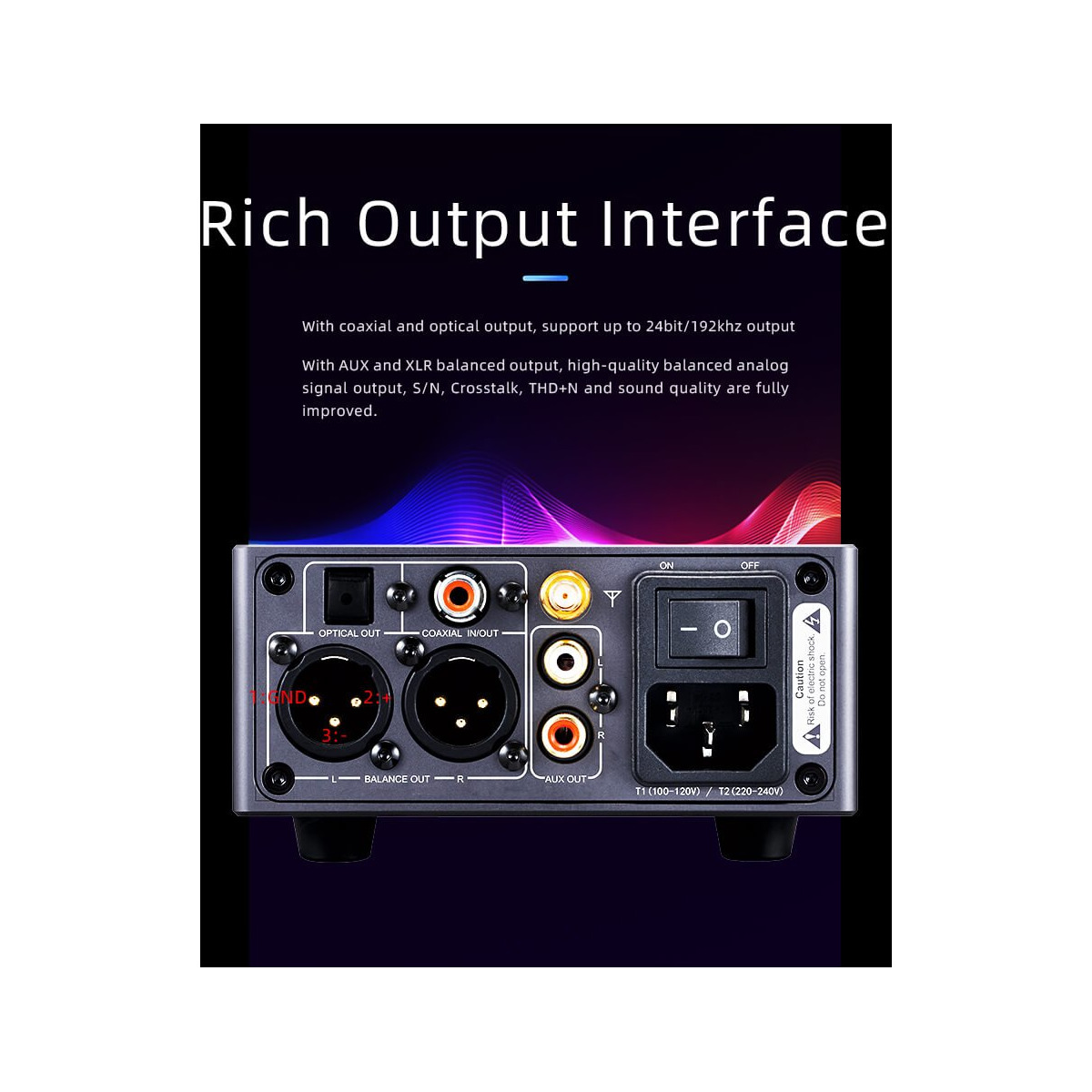

• in Coaxial/Optical

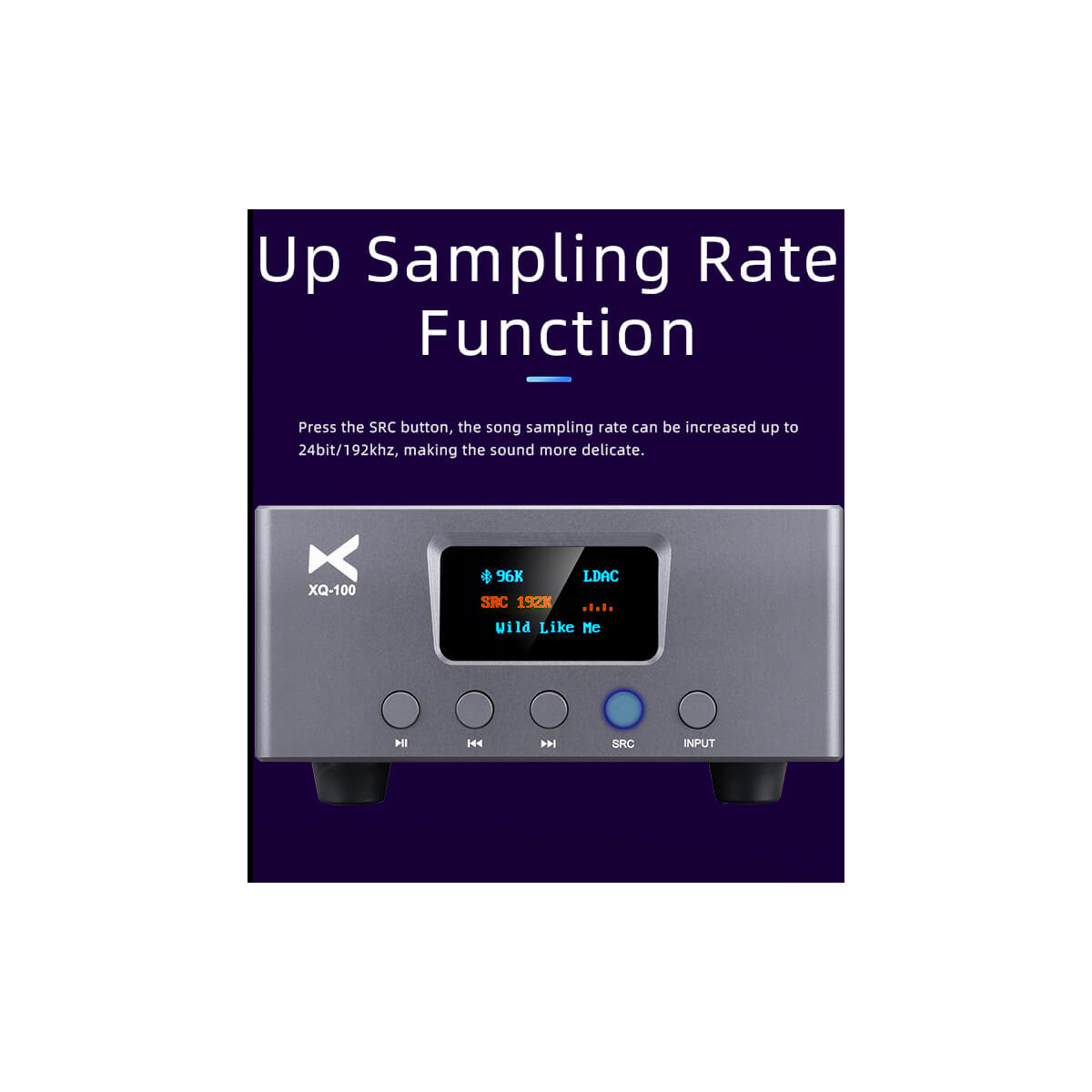

• Up-frequency function, up to 24Bit/192kHz, which makes the sound more delicate.

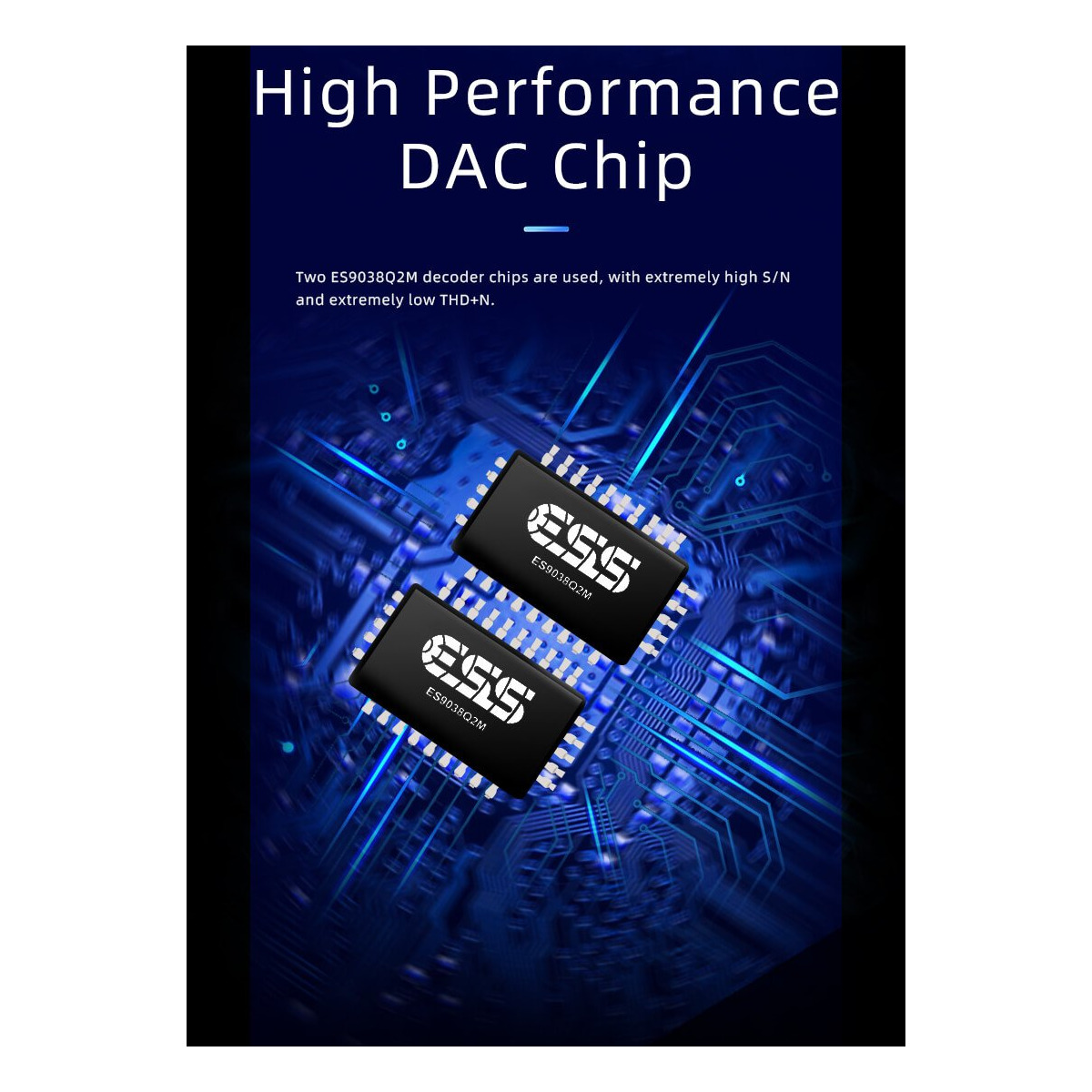

• 2* ES9038Q2M decoding chip, for clear and high-resolution analog signals.
• With high-quality digital/analog output, it can be connected to any power amplifier/speaker

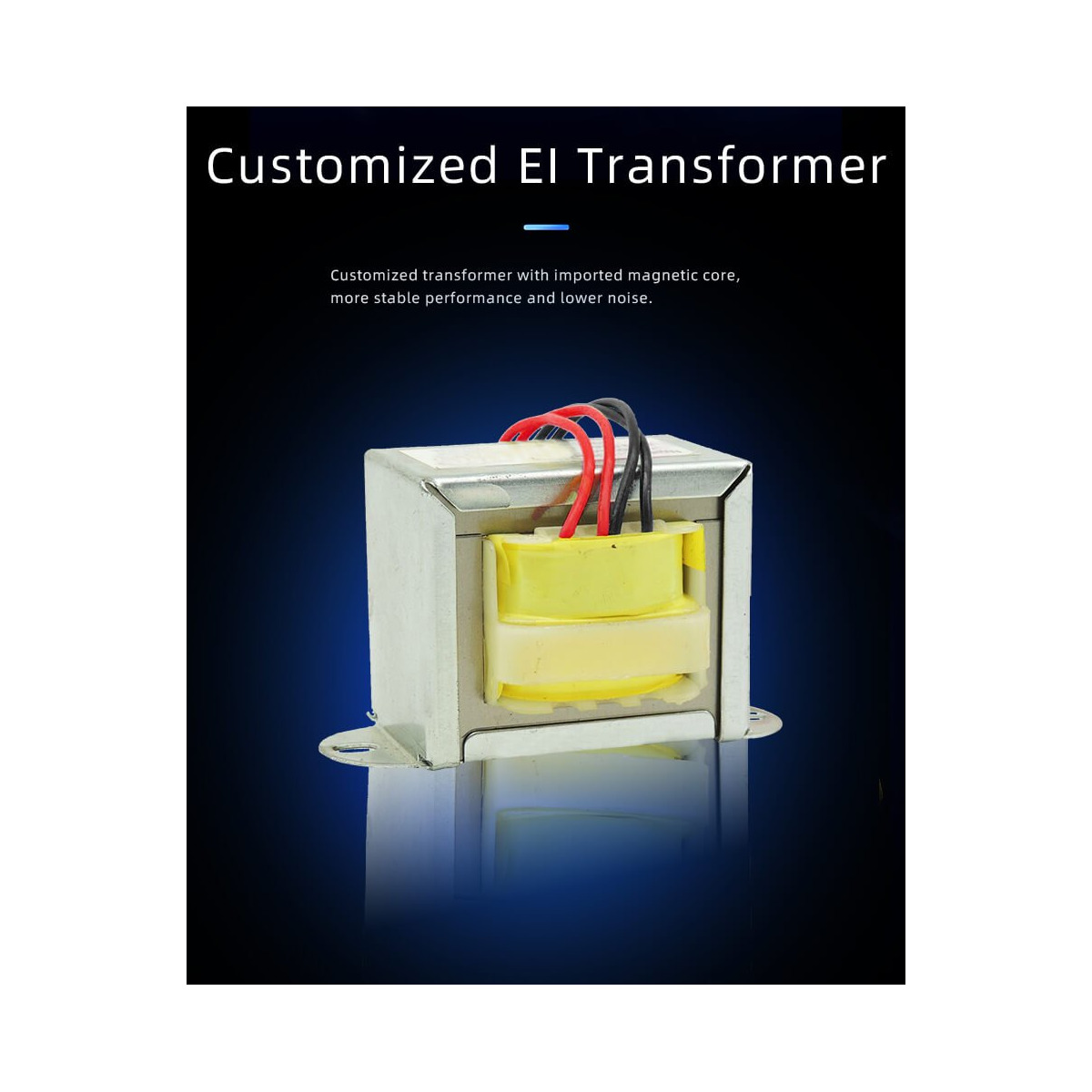

• The customized EI transformer is used as the power supply system, which has more stable performance and lower noise.

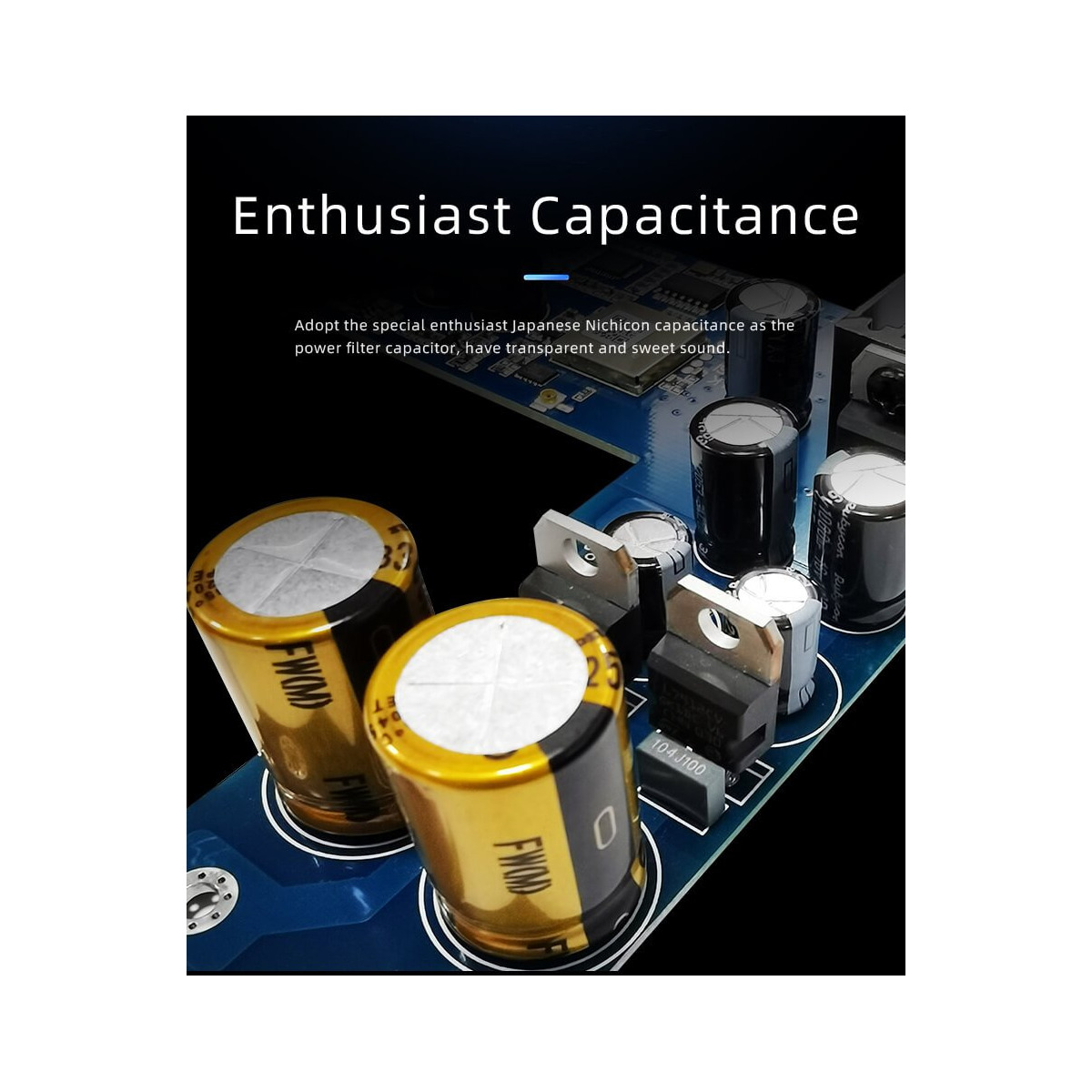

• Use the NICHICON capacitor at a high level as the main filter capacitor, which sounds compliant and transparent.

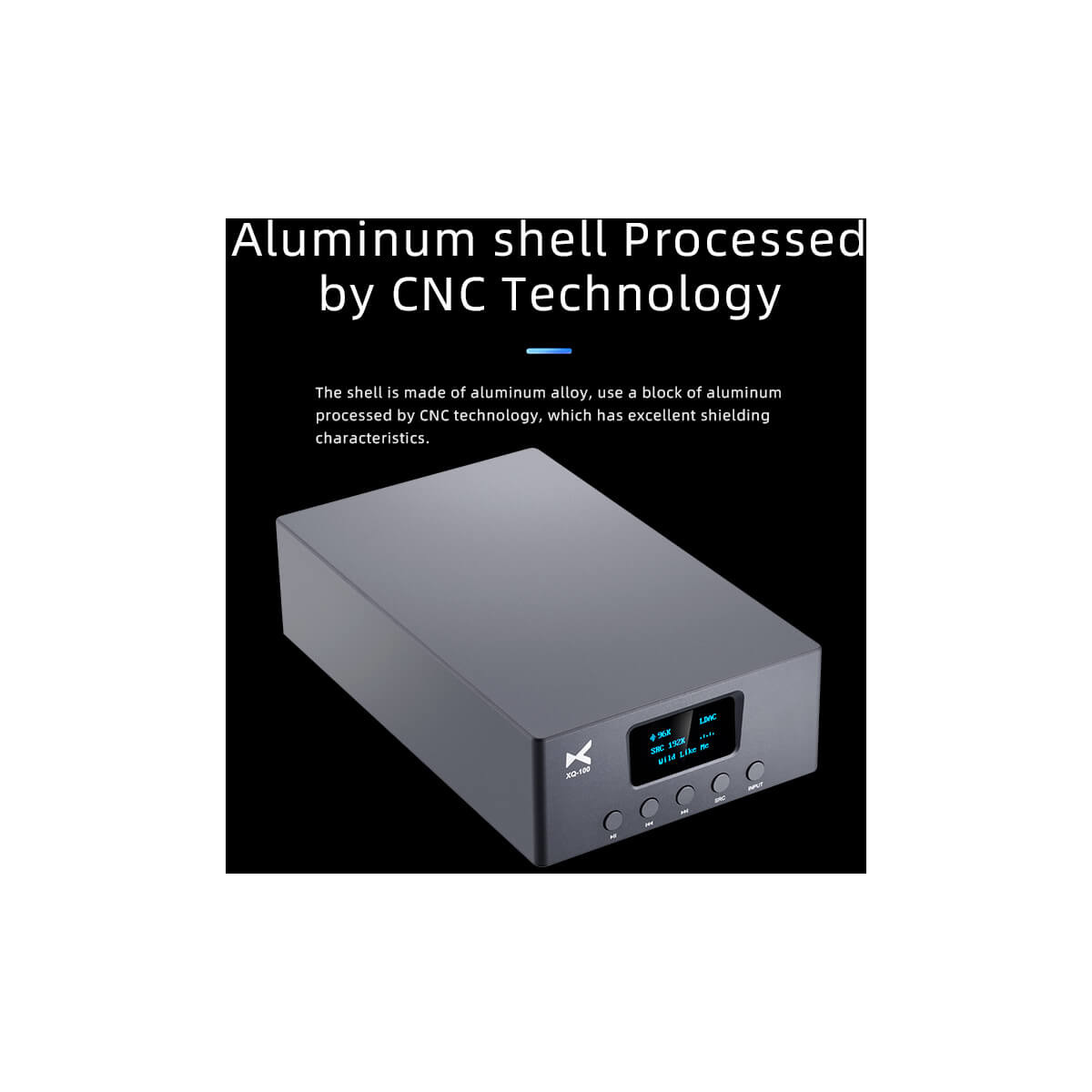

• The outer shell is made of CNC
• The Bluetooth antenna with external high gain can transmit a longer distance and a stable signal.

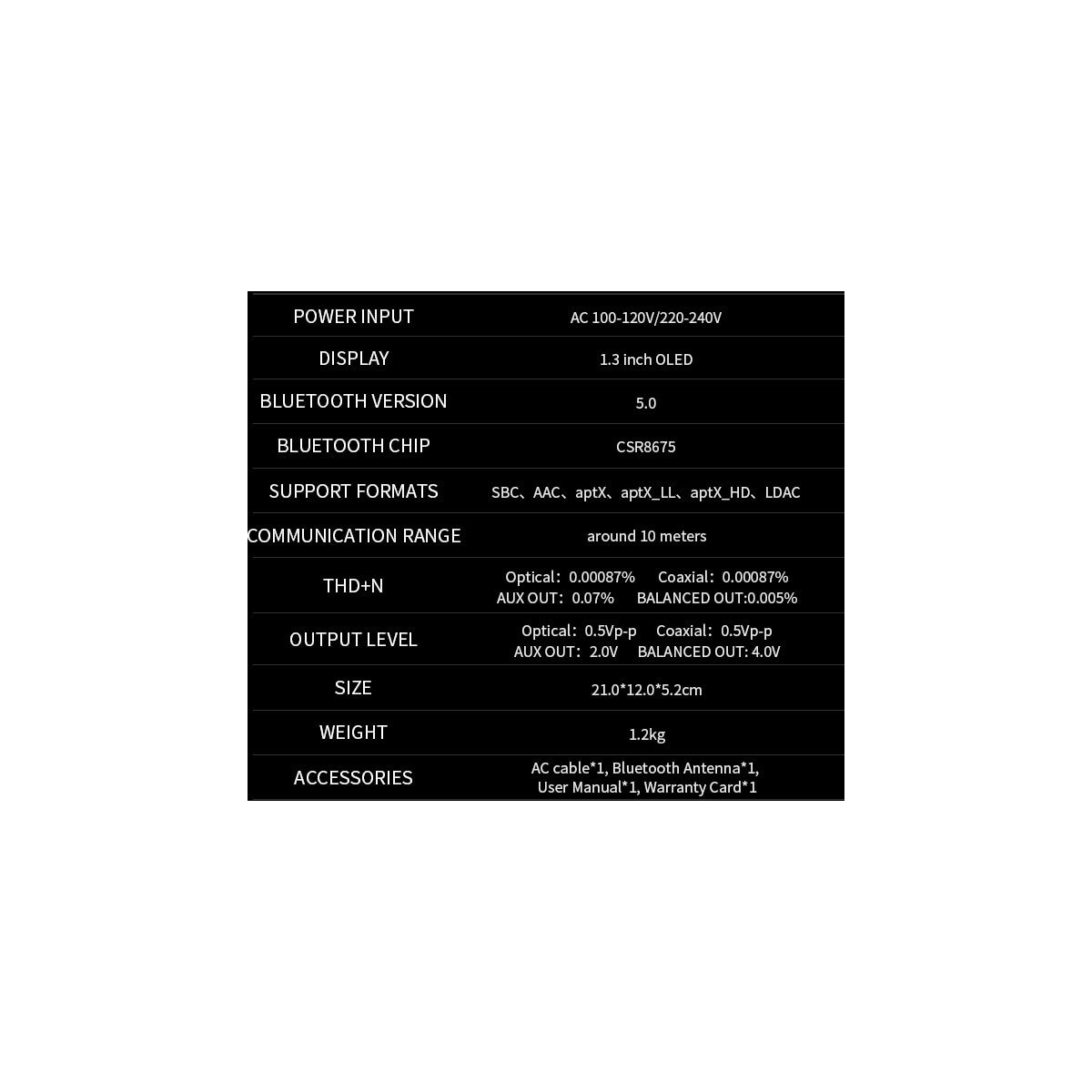

Specification

• Supply: AC 100- 120V/220-240V
• Screen: 1.3inch OLED
• Bluetooth: 5.0
• Bluetooth Chip: CSR8675
• Audio Formats: SBC、AAC、 aptX、 aptX_ LL、aptX_ HD、LDAC
• Transmission distance: 10M
• Distortion： OPT: 0.00087%, COA: 0.00087%
• AUX OUT: 0.07%, BAL ANCED OUT:0.005%
• Vp-p: OPT: 0.5Vp-p COA: 0.5Vp-p
• AUX OUT: 2.0V BAL ANCED OUT: 4.0V
• Size: 21.0* 12.0*5.2cm
• Weight: 1.2kg
• Accessories: Power cord*1, Antenna*1, Manual*1, Warranty Card*1
