Rubicon Water-Resistant 4Ch Amplifier

Overview

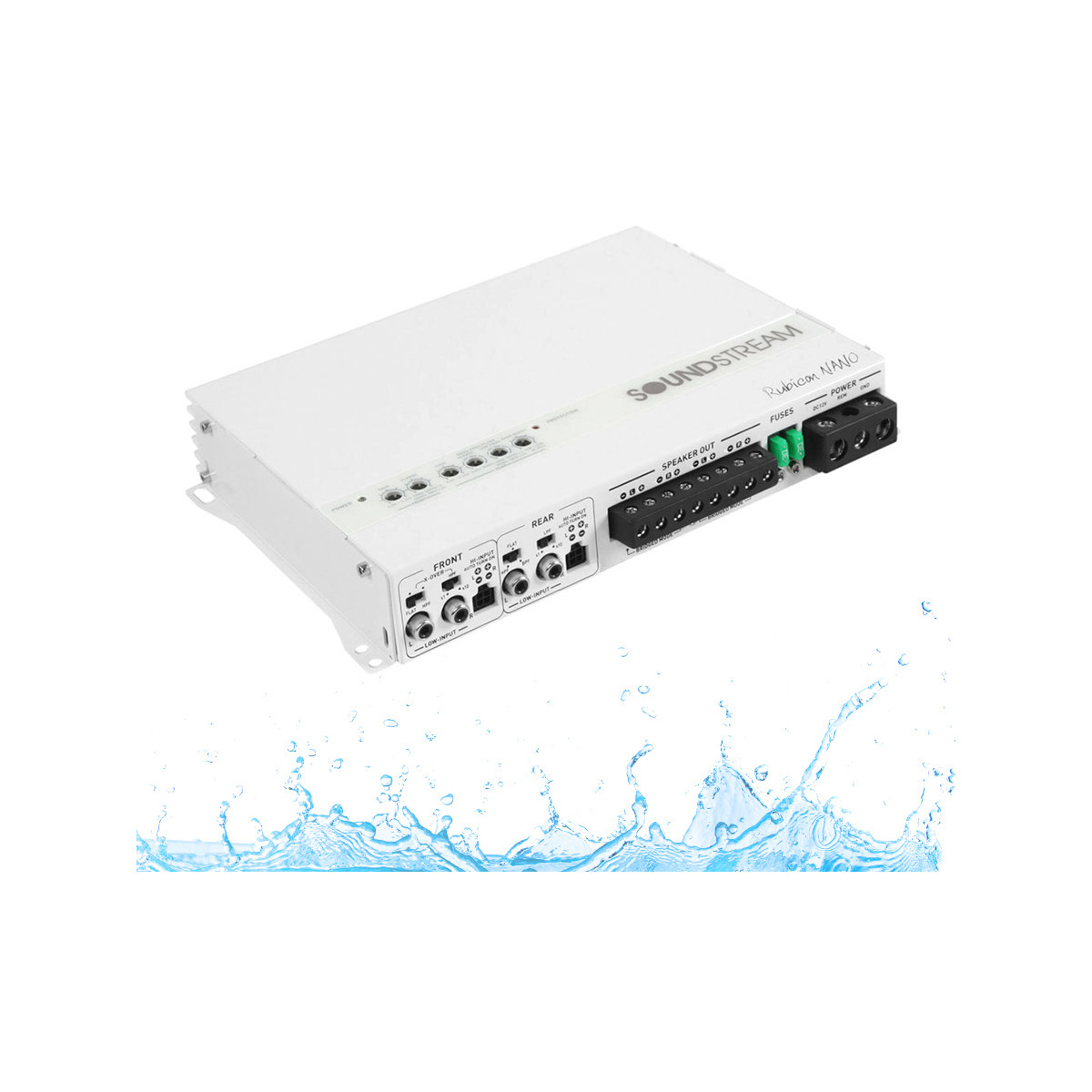

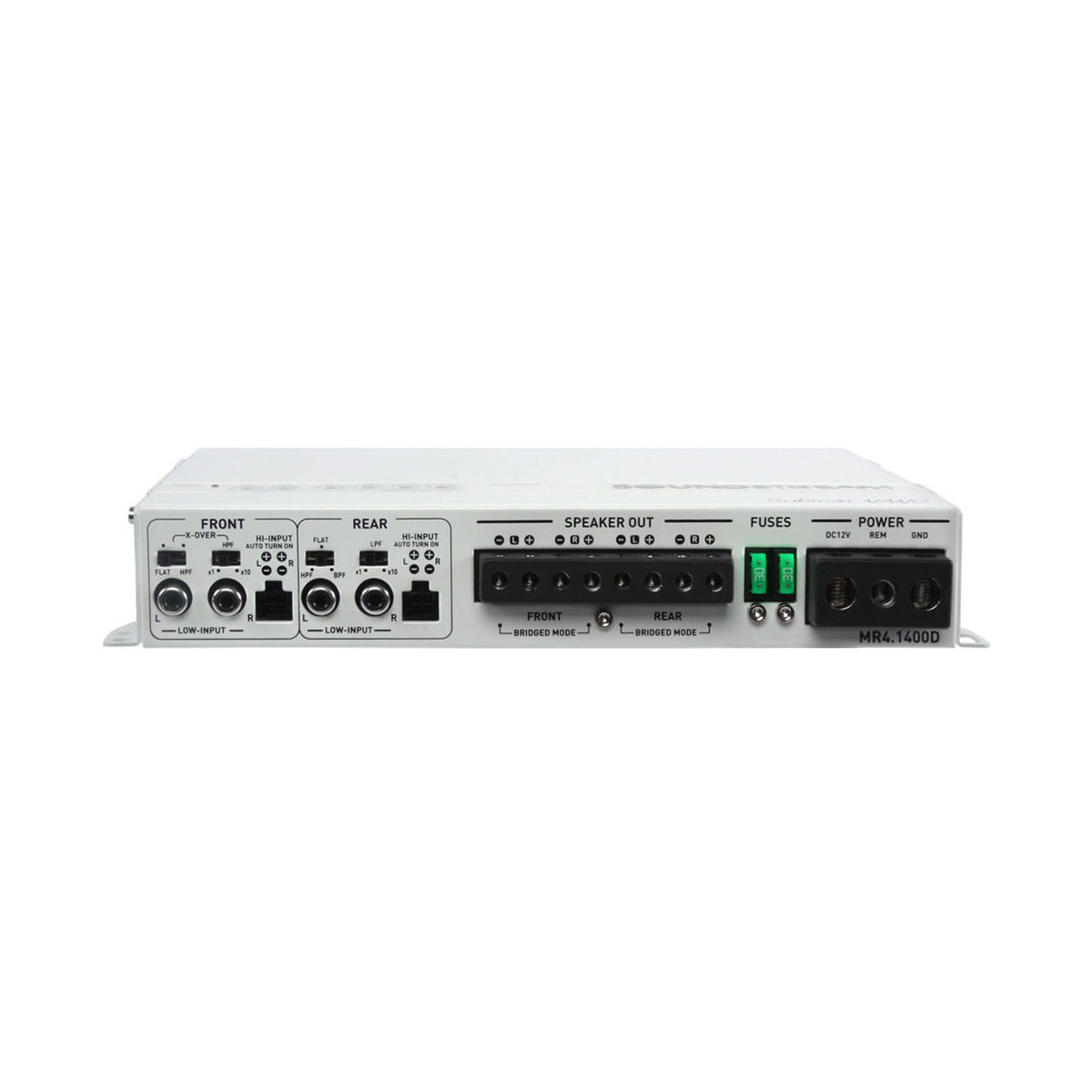

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice this amplifier’s color; that’s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

Specifications

• Max Power 1,400 Watts
• RMS Power @ 4Ω 125W x 4
• RMS Power @ 2Ω 175W x 4
• RMS Bridged @ 4Ω 350W x 2
• Remote Gain Control N/A
• Low Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
• High Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
• Bass Boost 0-6-18dB (Rear)
• Bass Boost Frequency 45Hz (Rear)
• Subsonic Filter N/A
• Frequency Response 10-50KHz
• S/N 104dB
• Input Sensitivity 200Mv-6V
• THD <0.05%
• Operation Voltage 9V-16V DC
• Fuse Rating 30A x 2
• Dimensions
• (8.25″W x 2.75″H) 9″ L
• RMS Power 4Ω 125W x 4
• RMS Power 2Ω 175W x 4
• RMS Bridged 4Ω 350W x 2
