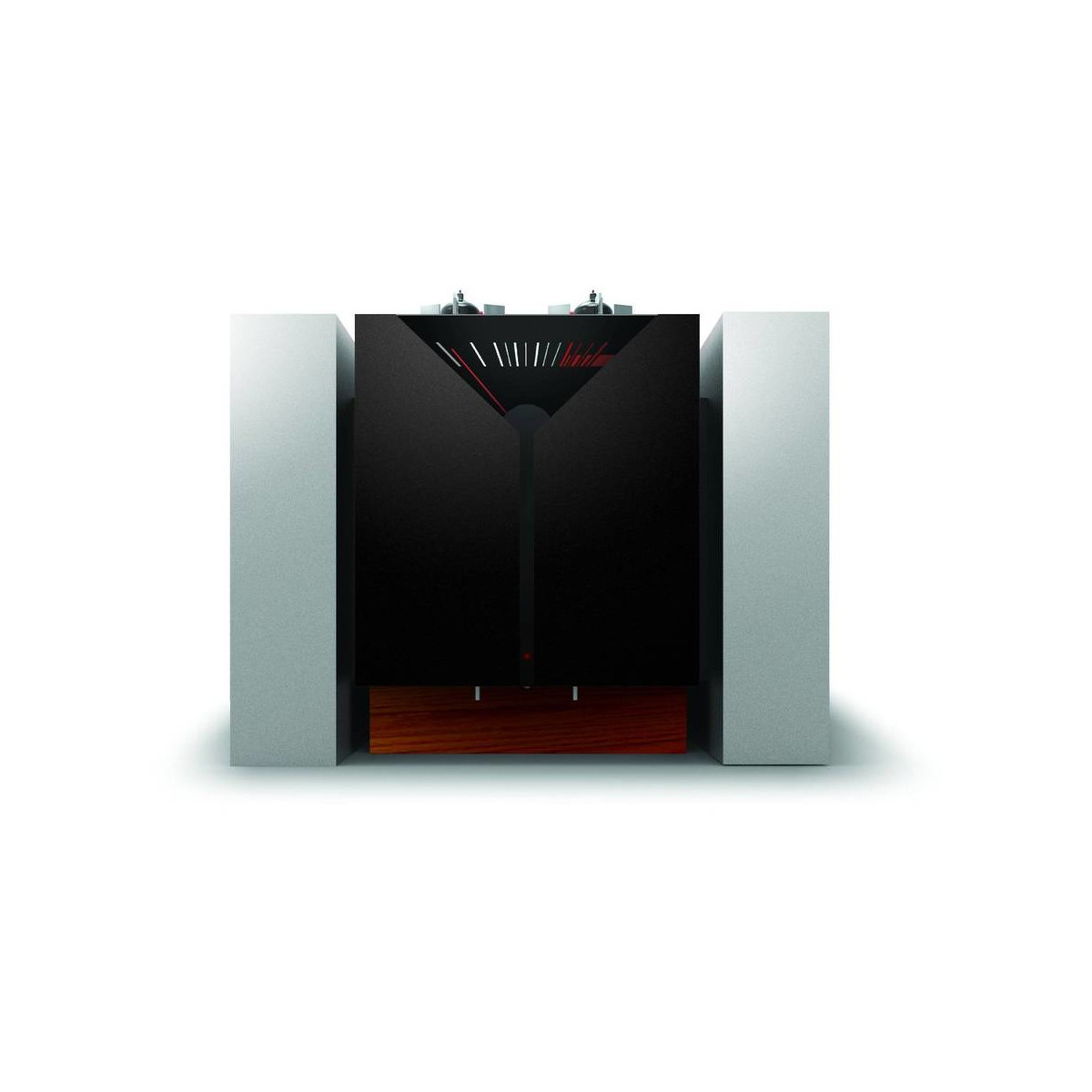

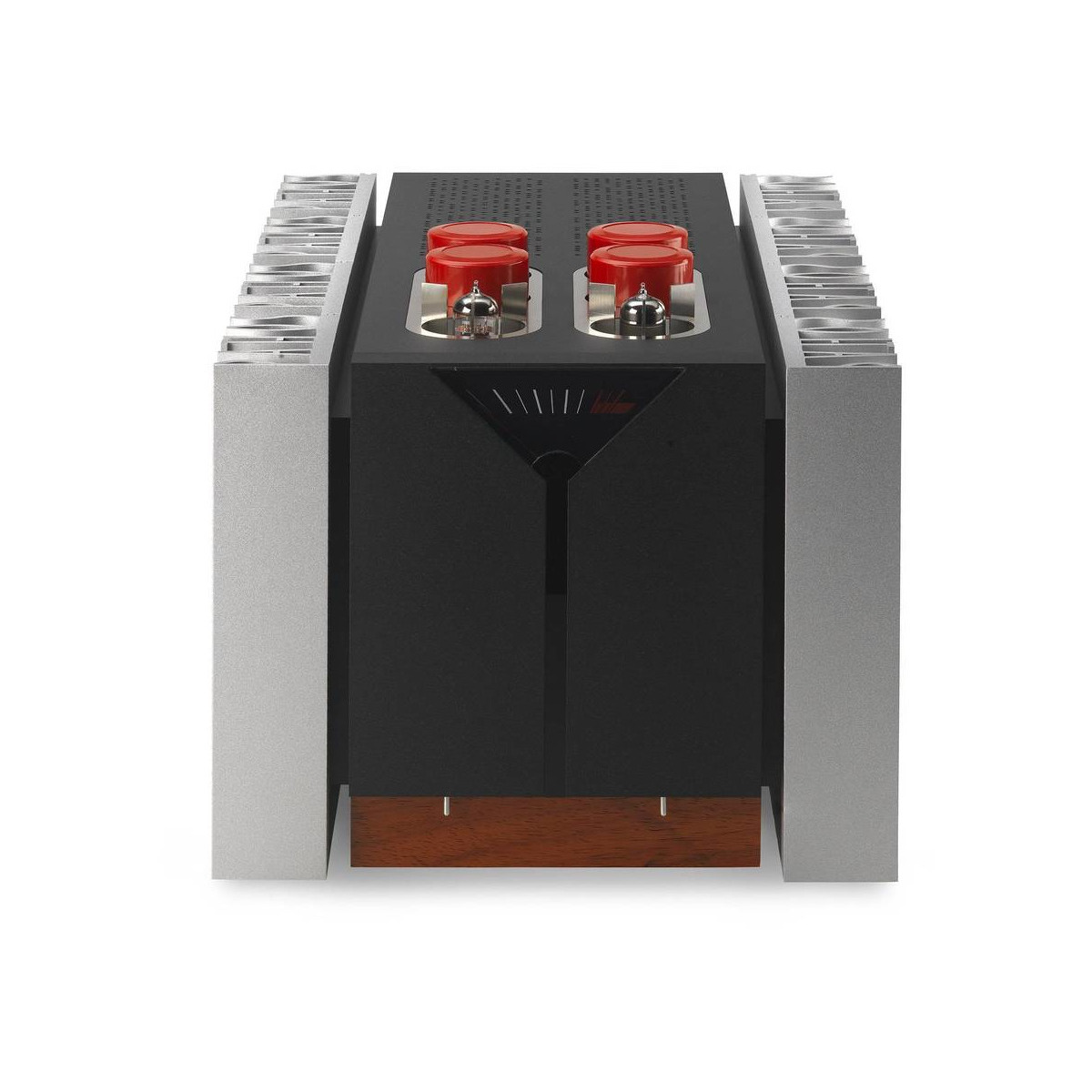

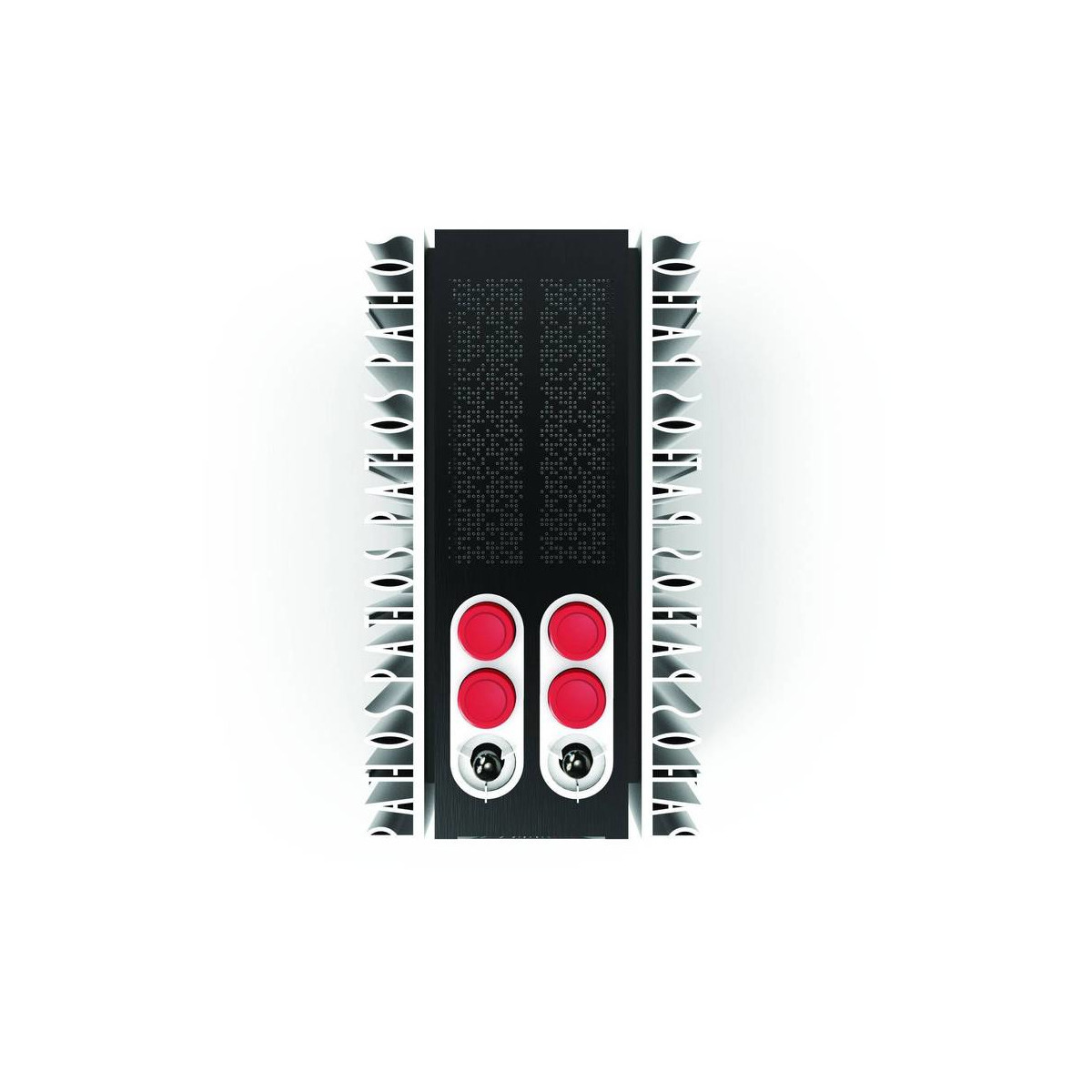

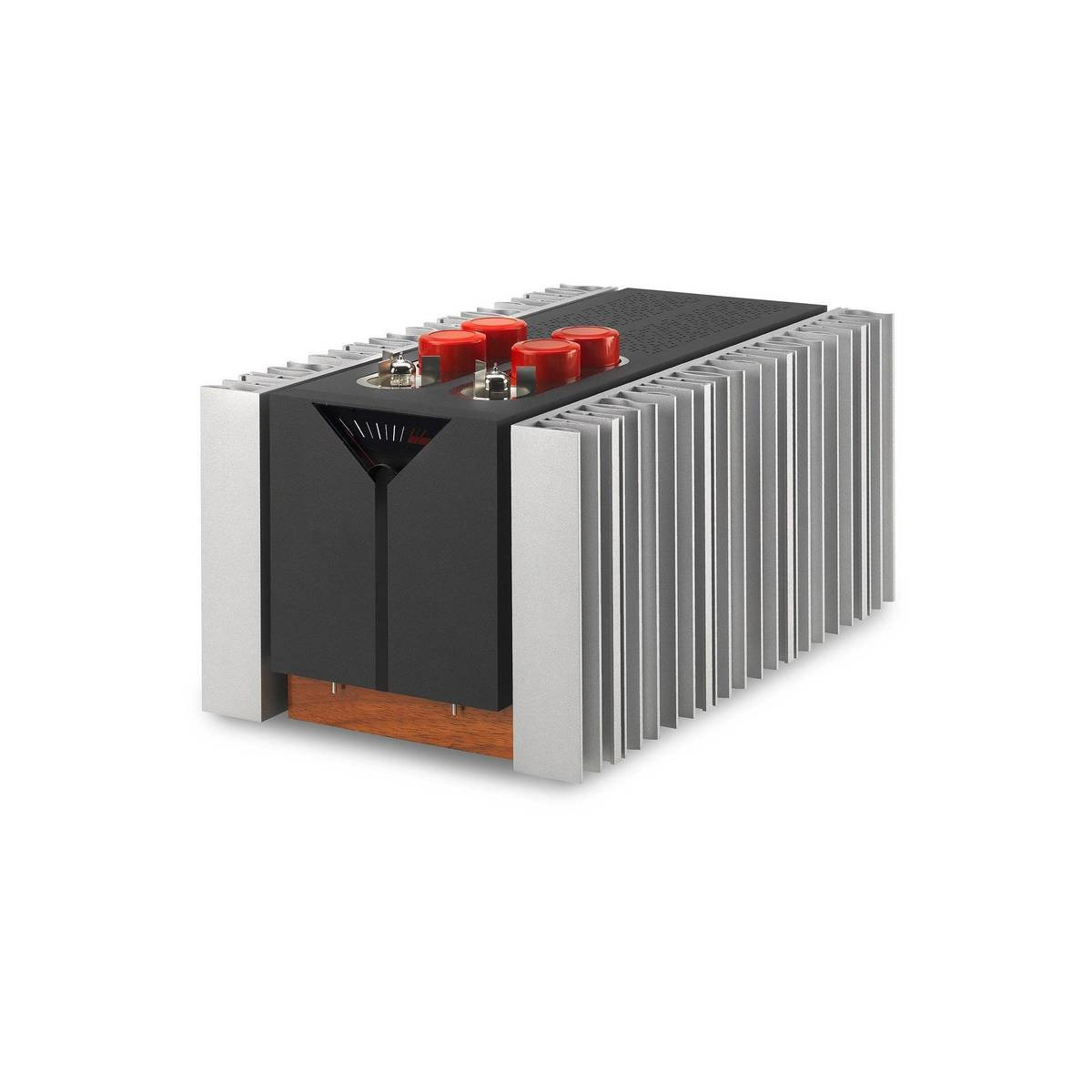

INPOWER MKII - Made in Italy (Special Order Only)

Pure Class A Monoblock Power Amplifier

Overview

A fully balanced, double InPol pure class A amplifier. InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a Pathos patented system that allows for much greater output in pure Class A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a high-current gain and voltage gain together.

The tube amplifier amplifies the input signal voltage, and InPol supplies the current to drive the loudspeakers without any further amplification. The technology allows an increase in the theoretical output in pure Class A of between 25% and 50%. Together with a low output impedance and a double InPol circuit, the amplifier offers a high damping factor for immense control over the loudspeaker drivers.

Specifications

• Output power: 120 W at 8 ohm
• Input impedance: 20 kOhm
• Frequency response: 5 Hz - 60 kHz +/- 3 dB
• SNR: >100 dB
• THD: <0.4 % up to maximum power
• Power consumption at rest: 350 W
• Dimensions (WHD): 12.5" x 10.6" x 21.6"
• Weight: 83.7 lb
