INPOL HERITAGE - Made in Italy (Special Order Only)

Tube Hybrid Integrated Amplifier

Overview

A pure class-A ECC803S input stage pairs with Pathos' double INPOL technology offering high output with exceptional damping

Think of the directness of SET with the control and damping of solid state. Pathos' patented and unique InPol technology allows the tube input stage to effectively drive your speakers with no further amplification. A dual InPol circuit delivers the low impedance and high current needed for a high damping factor, allowing for immense control over your loudspeaker drivers.

InPol (Inseguitore Pompa Lineare or Linear Pump Follower) is a Pathos patented system.  that allows for much greater output in pure class-A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a both a high current and high voltage gain.

Specifications

• Type: Pure class A, double INPOL technology, fully balanced digital bias/gain set technology
• Tubes: 2 x ECC803S Tung-Sol
• 2 X 6H30 Sovtek
• Output power: 2 x 80 W @ 8 ohm
• Frequency response: 2 Hz – 200 kHz ± 0.5 db
• Max input voltage: 10 VRMS
• Input sensitivity: 780 mVRMS
• Input impedance: 20,000 ohm
• Volume regulator: Purely resistive relays
• THD: 0.1% @ 80 W
• S/N Ratio: > 100 dB
• Gain: 33 db unbalanced, 39 db balanced

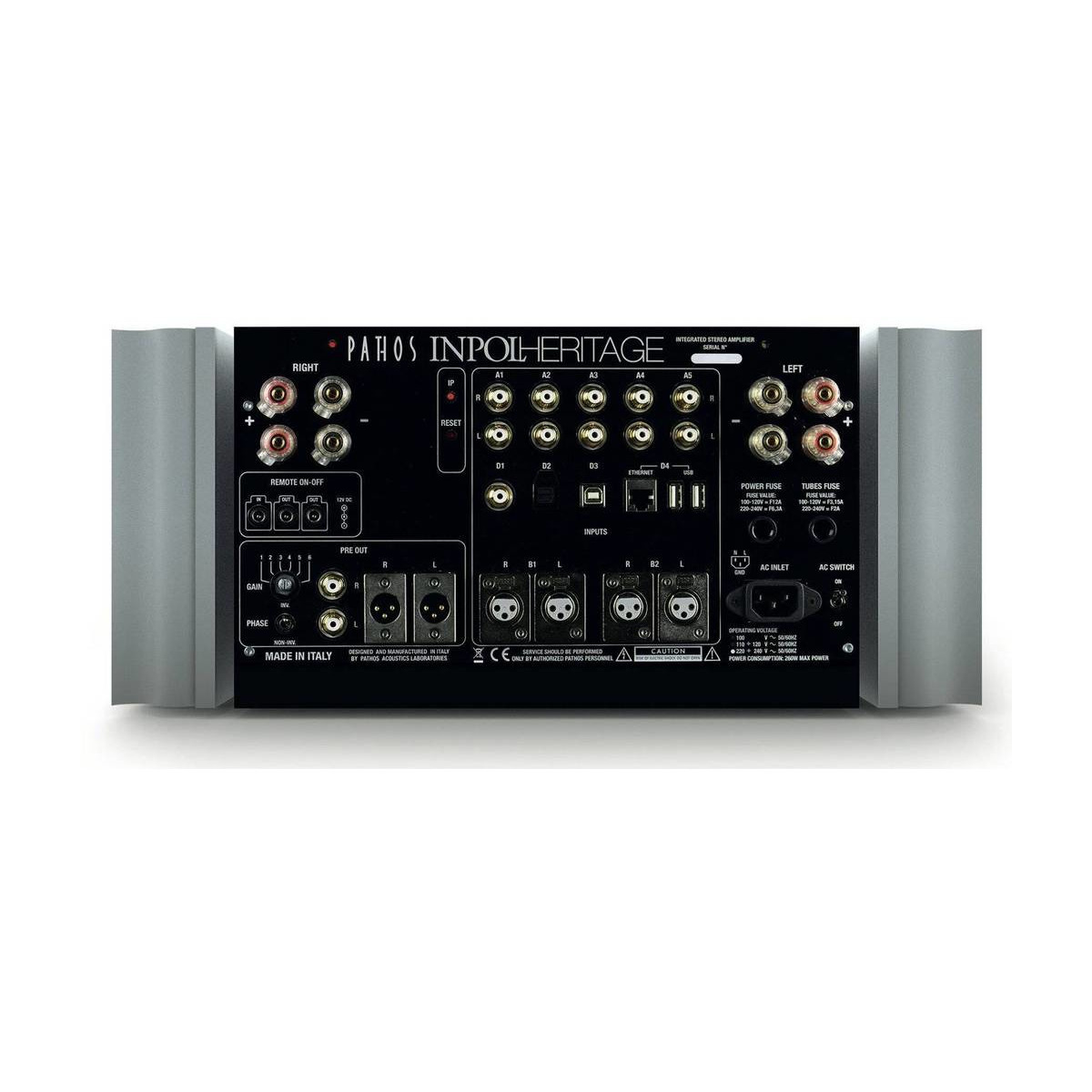

• Analog inputs: 2 x XLR, 4 x RCA line inputs
• Digital inputs (only with optional HiDac Mk2 board): 1 x USB B , 1 x S/PDIF coaxial, 1 x S/PDIF optical
• Outputs: 1 x pre out RCA, 1 x pre out XLR. Four levels of output gain, phase selection
• Dimensions (WDH): 17.7" x 21.8" X 9"
• Net Weight: 127.8 lb (58 kg)
