12 channel multi-zone high-power amplifier

12 channel multi-zone high-power amplifier

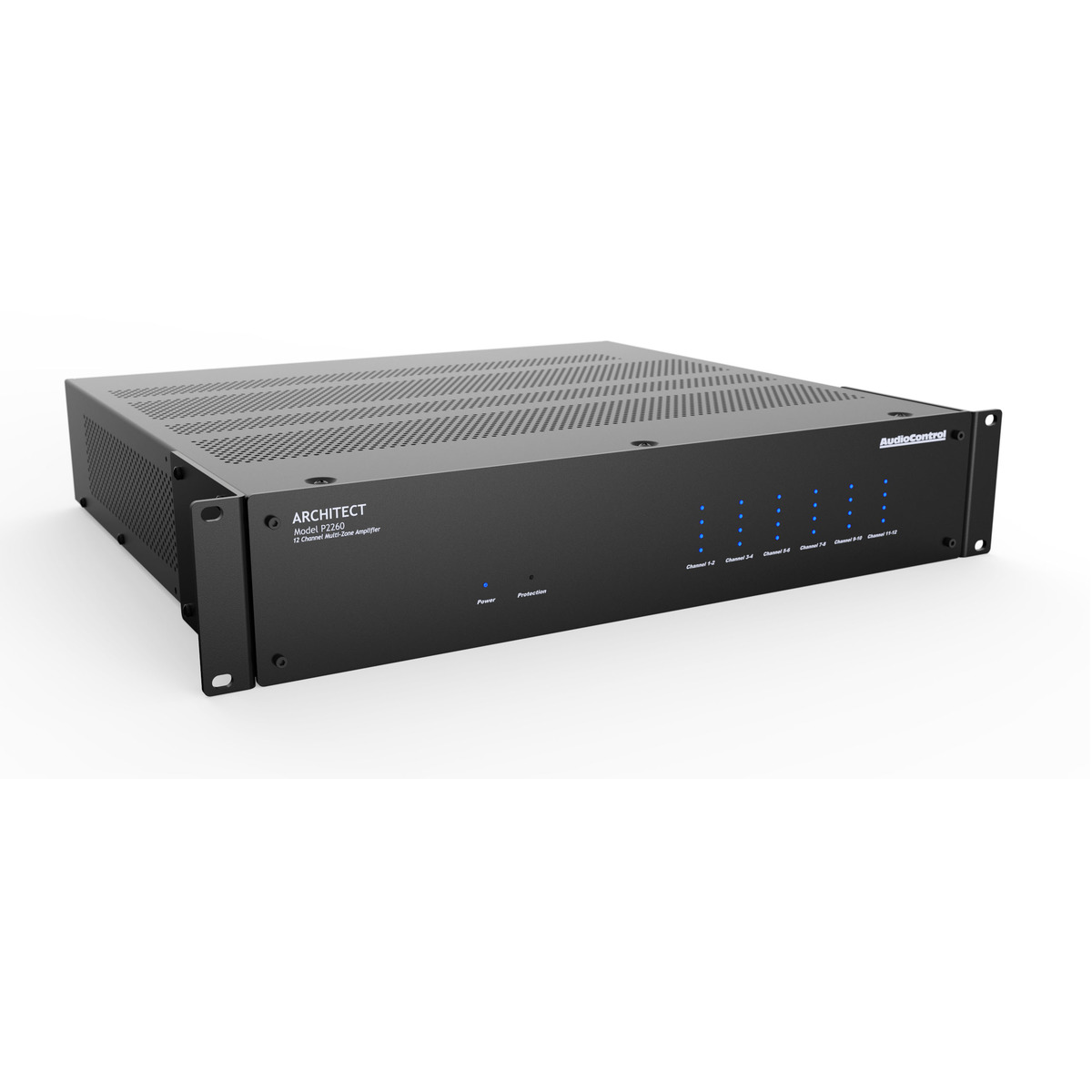

The Architect ‘P’ Series superbly complements Audio Control’s popular high-power Architect multi-zone amplifier series with an industry leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels driven.

he P2260 uses a cool running proprietary design, including Audio Control’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.

Available in a robust black powder coat finish, the Architect Model P2260 is designed, engineered, and manufactured at Audio Control’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with Audio Control’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through Audio Control authorized dealers.

Features
12 Channels of High Power and Audio Control Performance

100 watts per Channel at 8 Ohms (All Channels Driven)

200 watts per Channel at 4 Ohms (All Channels Driven)

Bridgeable as an 6 channel amplifier at 400 watts

Low Standby Current Draw of Less Than 1 Watt

Compact Design Fits into 2 Rack Spaces

LightDriveTM Anti-Clipping Protection Circuitry

2 x Input Buses (Digital and Analog)

Local Zone Input Trigger

12v Trigger Input and Output

Signal-Sensing on All Channels

Input Busing and Level Controls

Mono switch for Improved Bridging

Beefy Rack Mount Brackets Included

Five Year Audio Control Warranty
