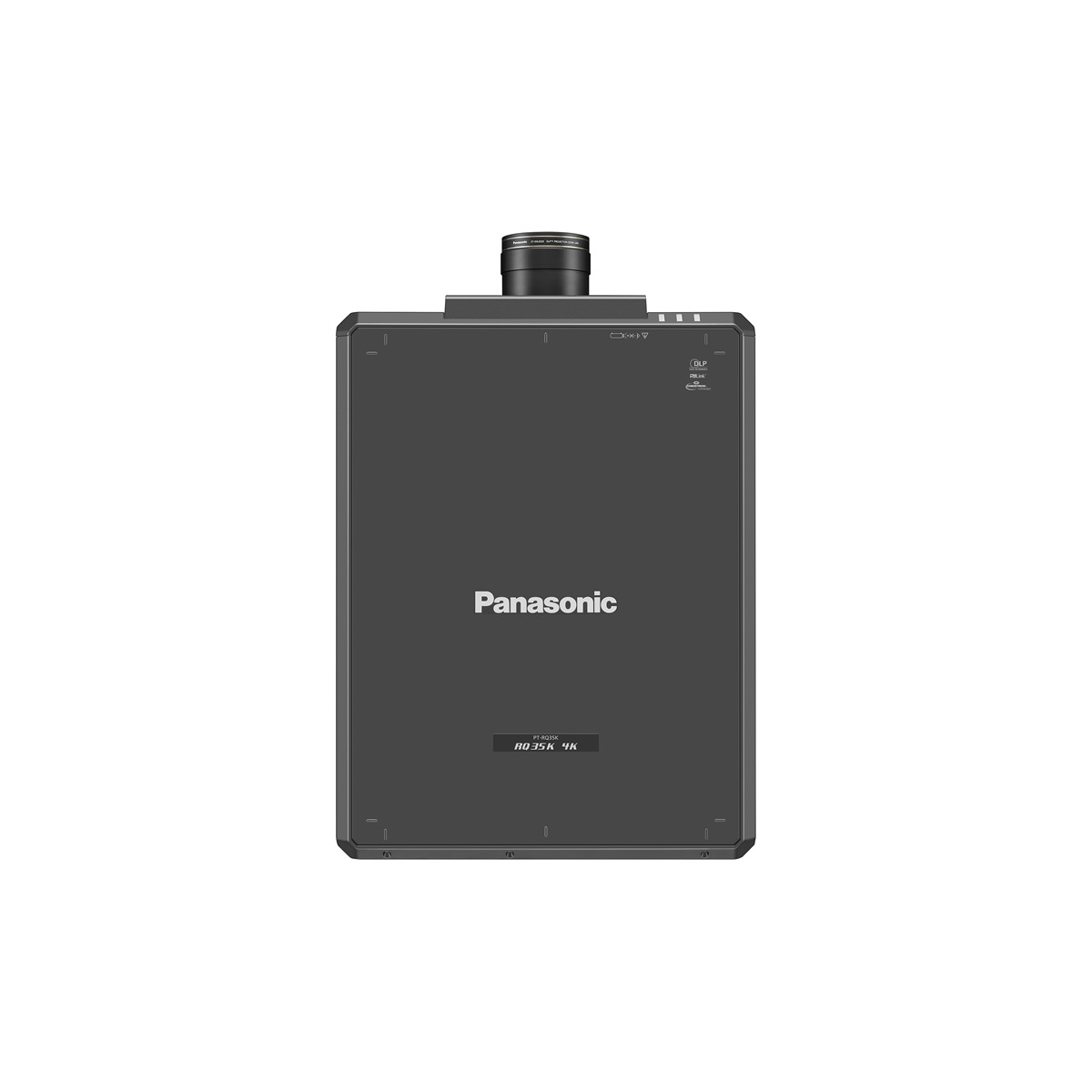

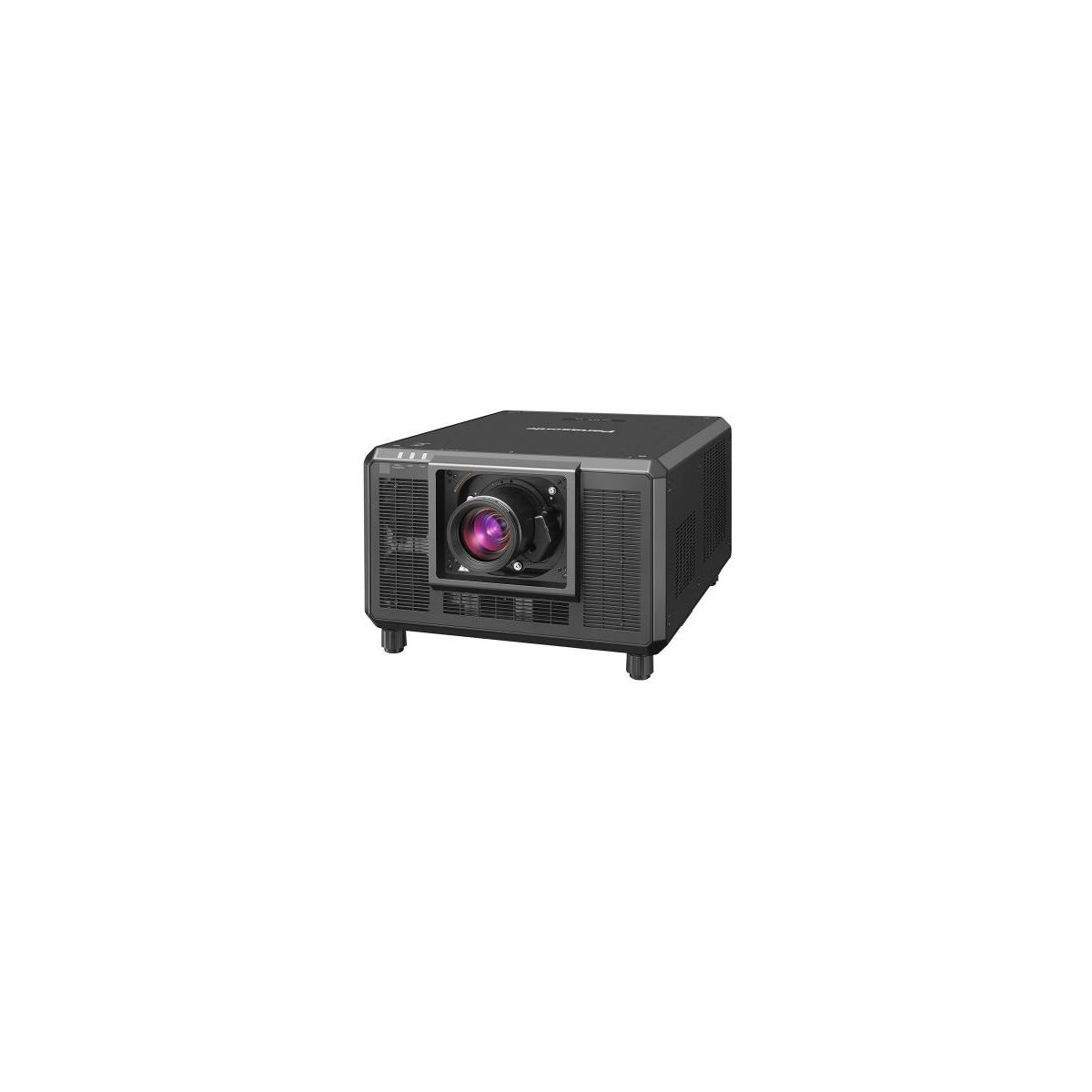

Laser Projector (Excludes Lens)

Revolutionizing Projection with Streamlined Workflow
Despite its high brightness and jaw-dropping image quality, PT-RQ35K is the smallest and lightest 3-Chip DLP™ 4K projector in its class and can be transported and installed with just two people. Save on labour costs and enjoy greater convenience when backyard space is limited.

Spellbinding Picture Quality
A combination of two blue and one red laser expands colour-space reproduction by 114 %*4 over the PT-RQ32K. Vivid red and pure blue reproduction heightens realism for an immersive experience and takes high-resolution content to the next level.

Original Cooling System Secures Projection Stability
Redesigned airflow path, cooling system, and finless radiator reinforce reliability. Dynamic Digital Control regulates red laser output and cooling for consistent image quality. Expect 20,000 hours*5 of maintenance-free projection with backup input*6 and laser failover circuitry offering peace of mind when projection cannot be interrupted.

World's Smallest and Lightest 30,000-lumen-class 3-Chip DLP™ 4K Projector*1
Despite its high brightness and image quality, PT-RQ35K Series is the smallest and lightest 3-Chip DLP™ 4K projector in its class and can be transported and installed with two people. Save on labor and enjoy greater convenience when storage space is limited. PT-RQ35K Series is 40 %*2 smaller than the current PT-RQ32K, and its footprint is almost equivalent to the PT-RQ22K. With its manageable size and weight, PT-RQ35K Series creates exciting opportunities for high-brightness projection in venues where installation space is limited.

Smart Projector Control App

Smart Projector Control is a remote app for iOS and Android™ devices*1 that can adjust and control up to 64 projectors individually or simultaneously from anywhere within range of the wireless network. Use the app to connect the projector to the wireless network*2 without manually entering SSID and password simply by scanning a QR Code displayed on the projector’s Information Monitor. Once connected, you can switch the unit on or off, select an input signal, and adjust the projector’s OSD menu settings via your device’s touchscreen with the unit in standby. Installers avoid delays when it’s not possible to project the OSD menu and can set up a fleet of projectors while other event infrastructure is assembled. As well as OSD menu operations, the app can adjust lens settings and select test patterns and lets you focus the projection using your phone camera*3 from distances of up to 30 m*4 (98 ft) away. For more information, visit the Smart Projector Control website.

Remote App with NFC Function
* Projectors sold in some countries or regions require an ET-NUK10 Upgrade Kit available from PASS to activate NFC function. See NFC Regional Compatibility List for details.

Remote Preview for a Smooth Start to Your Event
Remote Preview lets projectionists confirm video-signal integrity by viewing thumbnails of the input signal on a laptop prior to projection. Accessed via software or web browser, Remote Preview works with the projector in Standby or with the shutter on. It’s useful at events such as concerts where opportunities to check content on screen are limited due to stage traffic and other logistical factors.

Preactivated Upgrade Kits for Geo Pro Software
Optional upgrade kits for free Geometry Manager Pro software*1 usually require activation with license keys. With PT-RQ35K Series projectors, however, these kits are preactivated. As well as bitmap masking, the kits save installers time by automatically and simultaneously calibrating edge-blends using an external camera*2. This task otherwise requires manual brightness, colour, and black-level calibration of each projector. Register PT-RQ35K Series projectors and download Geometry Manager Pro software at PASS.

Information Monitor
To simplify setup, PT-RQ35K Series features an Information Monitor near the control panel. The high-visibility screen visualizes menu navigation and provides a convenient way to configure network settings such as Projector ID without projecting the OSD menu. During operation, it shows projector status including temperature, runtime, error codes, and input signal information.

New Information Monitor
PT-RQ35K Series supports AC 200–240 V for full-brightness projection and AC 100–120 V* for setup and calibration at reduced brightness. Connect to the consumer grid and start setup and image calibration without delay as high-voltage power is rolled out on site. Keep your team on schedule as event infrastructure comes together under tight deadlines.

Compatible with Our 3-Chip DLP™ Projector Lens Line up*
Share optional lenses between Panasonic 3-Chip DLP™ projectors in your inventory and the new PT-RQ35K Series. Our line up of 18 lenses comprises fixed and zoom lenses that adapt to venues of any scale; a ground breaking ET-D3LEF70 Fisheye Lens for dome projection in planetariums; and the new ET-D3LEU100 Ultra-Short-Throw Lens (0.370:1, WUXGA) and ET-D3LEW200 Short-Throw Zoom Lens (0.645–0.850:1, WUXGA). These glass lenses produce spectacular images from short throw-distances with zero offset (eliminating the gap between the edge of the image and projector’s mounting surface) and are ideal for theme-parks, museums, performance venues, and other experiential applications. Both equip wide-range powered Vertical and Horizontal Lens Shift, while the ET-D3LEW200 increases location flexibility with powered optical zoom.

Quiet Mode Reduces Projection Noise
For applications in venues such as museums and theaters where full brightness isn’t necessary and background noise must be kept to a minimum, PT-RQ35K Series includes a Quiet Mode. Operating noise is reduced by 3 dB* in comparison to projection in Normal Mode. The perceived difference in operating noise between the two modes is significant and limits distraction in immersive projection environments. In this mode, time until light output declines to 50 % can be extended to up to 26,000 hours.

Red and Blue Lasers for Deep, Accurate Color
A combination of two blue and one red laser module expands color-gamut reproduction to 114 %* of the PT-RQ32K with 91 % DCI coverage, saturating the screen in lavish color and drawing the audience deeper into the artist’s world. Optimized blue-laser wavelengths achieve truer blue while the red laser intensifies red expression for a greater sense of realism.

Gradation Smoother Reduces Banding [PT-RQ35K Only]
Panasonic’s original Gradation Smoother function reduces banding noise in gradients of shaded color evident in content that lacks the optimal colour bit-depth. Operators can select three levels* of image correction appropriate to the severity of the problem or disable the function when it’s not needed. Gradation Smoother is your go-to solution when banding is evident in the projection, but there’s no time to re-edit the content.

Flexible Black-Level Adjustment
Edge-blend uniformity on curved screens is difficult to achieve with line-based black-level border adjustment. Warped image-edges result in unequal blend-widths, and a lack of uniformity in overlapping areas is exposed when dark scenes are projected. PT-RQ35K Series gains new black-level calibration that allows black borders to be reshaped to suit screen curvature using up to 17 control points in much the same way as our Free Grid function. Adjacent images can be matched within a 0.5-dot margin—ideal for 4K video projection—while a wider range of adjustment in finer increments is also enabled.

Quad Pixel Drive [PT-RQ35K Only]
Quad Pixel Drive is an original Panasonic technology based on 1920 x 1200-pixel (WUXGA) DMD chips. It rapidly shifts each pixel vertically and horizontally to produce an image with a maximum physical resolution of 3840 x 2400 pixels (4K/16:10). Working in concert with 240 Hz* high-speed frame-processing, Quad Pixel Drive smoothly reproduces 4K content losing none of its filmlike detail to motion blur even when tracking fast-moving action or during slow-panning shots.

Additional Features

･ Quick Start and Quick Off

･ Laser Safety Guaranteed

･ Multi-screen Support System

･ Multi-Unit Brightness and Color Control

･ Data-cloning Function

･ Art-Net DMX, Crestron Connected™, and PJLink™

･ DICOM Simulation Mode

･ Waveform Monitor Function

･ Power Management Reduces Downtime
