Power Supply

The Power Supply

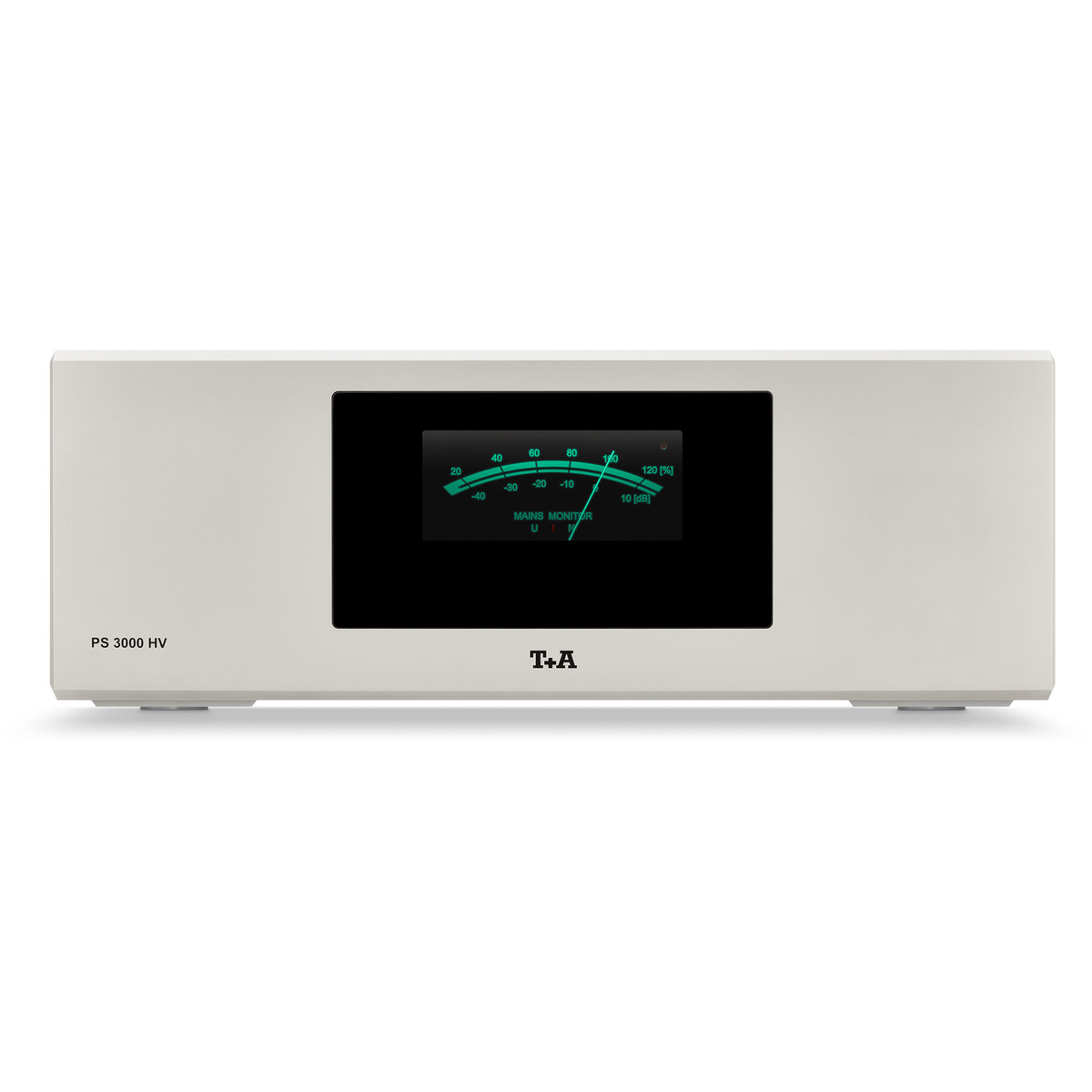

The PS 3000 HV is a supplementary mains unit which was developed specifically for the A 3000 HV power amplifier and the PA 3100 HV integrated amplifier. Both deliver more than 500 Watts of power into 4 Ohms, and at such a high level of sound quality and performance that simply increasing the output power – and with it the voltage – produces no significant improvement in sound. Our research and development work in high-performance amplifiers – including the M10 and S10 – and the development of the HV design philosophy which flowed from this work, have shown clearly and unambiguously that the stability of the voltage and current supplied by a mains unit is of major and even crucial importance to the sound quality of an power amplifiers. From this we have drawn the only rational conclusion and developed a supplementary external power supply. The principle is ingenious, and functions in the following way: if the PS 3000 HV is connected to the A 3000 HV or PA 3100 HV using the special Powerlink with M 23 high-current connectors, the A 3000 HV’s or PA 3100 HV internal power supply is used to supply energy to the input stages and the high-voltage amplifier; much lower power is required for this part of the system, and as a direct result the interference generated in the A 3000 HV or PA 3100 HV itself is much lower.

Technology
The great advantage of this arrangement in terms of sound quality is that the A 3000 HV is effectively isolated from the load currents and mains-induced interference which can have an adverse effect upon sound quality. The PS 3000 HV is controlled completely by the A 3000 HV/PA 3100 HV amplifier via the HLink bus and the Powerlink connection. For each A 3000 HV one PS 3000 HV is required if you want to improve the power supply. The heart of the PS 3000 HV is a 1200 VA transformer which is painstakingly encapsulated and potted in an aluminium ring. The insulating compound material completely saturates the windings and bonds them together, thereby eliminating any risk of mechanical movement in the winding wires! The encapsulated transformer is effectively shielded and is screwed to the 10 mm thick base plate with bi-directional resonance absorbers as mechanical de-coupling measure. This tremendously sophisticated arrangement is used in all HV-series machines, and effectively prevents any hint of unpleasant transformer hum despite the enormous power levels. The transformer’s huge power requires a corresponding level of reservoir capacity: 24 high-performance 100 V capacitors with low inductivity provide 240,000 µF of reservoir capacity. Internal resistance and inductivity are further reduced by parallel wiring, with the result that the mains unit can deliver vast quantities of energy up to 1200 Joule almost without time delay, even when required to cope with extremely fast peak signals.

Specifications.
Power Supply
Reservoir capacity-240000 μF
Mains / Accessories / Dimensions
Mains    110-120 V/60 Hz or 220-240 V/50 Hz / 1800 W
Standby-< 0,5 W
Optional Accessories-Power Three HD (Carbon) | Power Bar | HV-Individual finish (Individual colours on request)| IP control
Dimensions (H x W x D) 17 x 46 x 46 cm
Weight 38 kg
Finishes Case: silver laquer 47 or titanium laquer 64
Heat sink: black 42 gs
