Integrated Amplifier

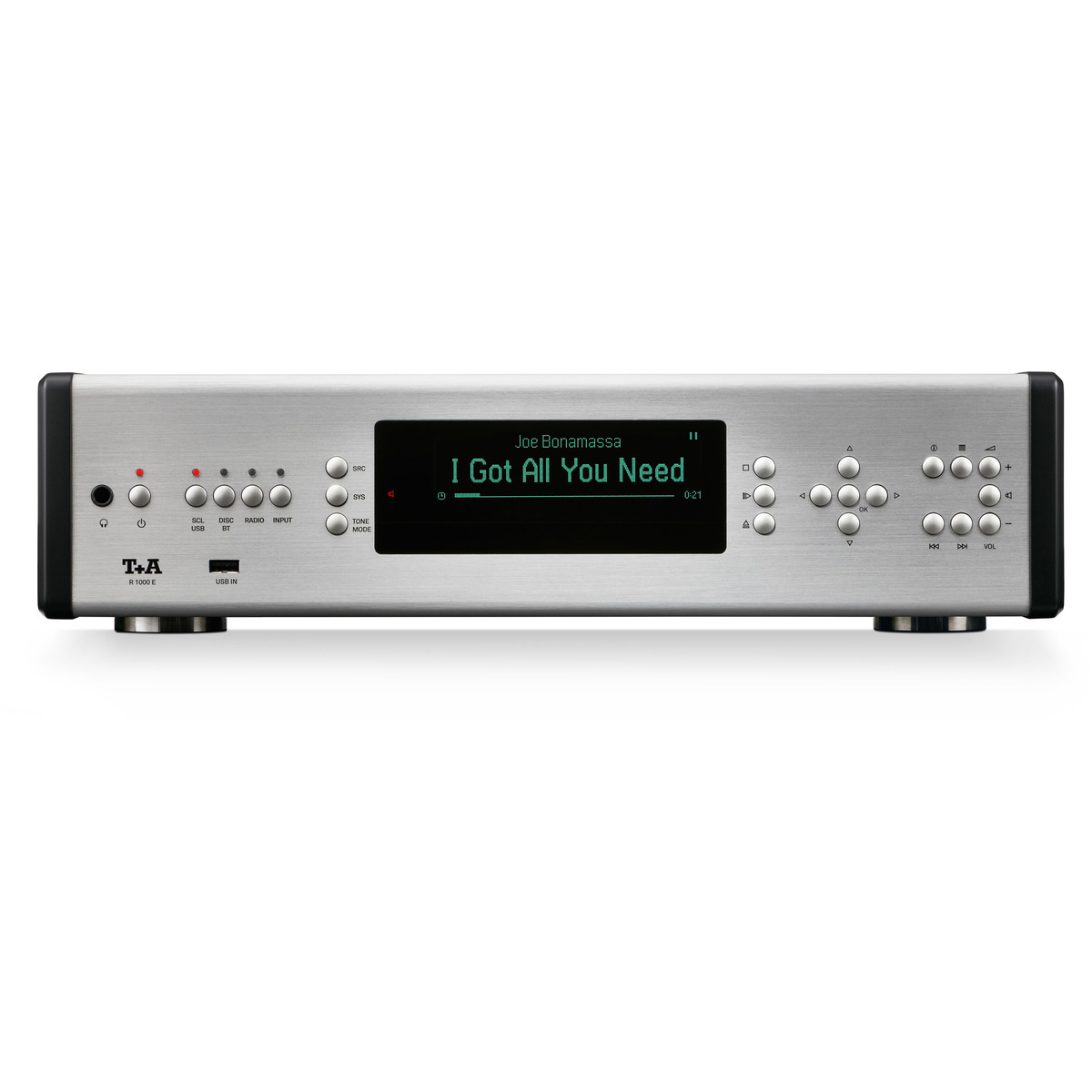

R 1000 E Multi Source Receiver
The T+A R 1000 E is a complete all in one system based around the T+A PA 1000 E integrated amplifier and the multi-function T+A MP 1000 E multi player. The T+A R 1000 E really is one of the best all in one system available. It is equipped with the very latest technologies and components, and certainly ranks as one of the most modern and innovative receivers available anywhere in the world. It combines classic analogue technology for the amplifier section with the latest digital circuit design for the internal sources. It also features many extremely high-quality inputs for external analogue and digital sources making it the perfect nerve centre of a modern high quality stereo system. It can cope with almost anything: you can connect a turntable (optional MM or MC phono modules are available) or improve the sound of items such as a Blu-ray player, TV, set top box and more by connecting to the onboard DAC. The T+A R 1000 E caters for all formats since its high-quality DAC can decode audiophile DSD formats as well as PCM files to very high standard. The outstanding feature of this superb device is that T+A have equipped it with every available modern source: a high-quality CD mechanism, an aptX® Bluetooth module, a high-performance digital tuner, the Digital Connecting Board module for external sources and their new High-Res Streaming Client board module. This simply means that the T+A R 1000 E can access everything which delivers music: CD, FM, FM-HD, and DAB+ radio; internet radio with Airable Internet Radio Service; UPnP network music servers; USB memory media; laptops and PCs, music services and mobile devices with Bluetooth!

Technology
The T+A R 1000 E was developed as a combination of the essential elements of two separate units: The T+A PA 1000 E and the T+A MP 1000 E. Since the case is no larger, it inevitably has a slightly reduced array of sockets than the two separate units, and its output power is also a little lower. At present the T+A R 1000 E is certainly the most powerful, best equipped and most modern receiver in its price class available anywhere in the world! The T+A development team designed an entirely superb new sounding preamplifier section for the T+A R 1000 E. It has many smart functions including balance, tone controls, variable loudness, Flat function (tone/defeat) and sub sonic filter for use with satellite speakers and subwoofers

Specifications:

-THD (Total Harmonic Distortion)< 0,004 % - Power Amp, < 0,0022 % - Pre-Amp

-Frequency Response1 Hz – 60 kHz - Power Amp, 1 Hz – 250 kHz - Pre-Amp

-Output Power (8 Ohms)2 x 115 Watt

-Output Power (4 Ohms)2 x 180 Watt

-Inputs 3 x RCA (Single Ended)

-Outputs-Pre-amplifier otuput, Line Out (Stereo 2,5 Veff / 22 Ohm), Headphone > 32 Ohm

-Digital Inputs    SP/DIF (16 - 24 Bit): 3 x coax (192 kSps), 2 x TOS-Link (96 kSps), 2 x USB 2.0 (for USB storage/HDD. Formats: NTFS, FAT 16/32, Ext2 + 3 + 4), 1x USB-B Class 2 Device Mode, asynchron, PCM 32...96 kHz, DSD64 (depending on Player-Software and operating system)

-Digital Outputs 1 x RCA

-Digital

-Frequency Response2 Hz - 20 kHz/100 dB

-Sampling FrequencyMP3, WMA, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, PCM 32...192 kHz,16/24 Bit; MP3 up to 320 kBit, constant and variable bitrate. DAC - 32-bit, 384 kHz

-Optional UpgradesPhono preamplifier modul (MC or MC)

-Power Consumptionmax. 300 Watt, Standby< 0,3 Watt

-Weight - Unit11 KG

-Dimensions (H x W x D) 115mm x 440mm x 370mm

-Tuners/Radios
Frequency Response      FM, FM-HD 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA. DAB, DAB+ 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA. Internet Radio Airable Internet Radio Service (> 11000 Stations world wide)GS
