800 WATTS RMS @ 1 OHM MONO BLOCK AMPLIFIER

Overview

Massive Audio Trident Series Amplifiers come dressed in black anodized aluminum heat-sinks with stainless steel end plates and blue backlit logos.

Trident Series circuit boards are treated with Dura-Coated 320°F Epoxy for water resistance. Powerful at only 4.25” W x 1.6” H x 7.99 L. All models feature Full Range Hi Efficient Digital Platforms, Built-In OEM Line Converters with up to 9V In, (ATO) Auto Turn On (no turn 12V on wire needed when used) and 12V output (when ATO is used). Each model supports a "Docking Port" to plug in an optional Railcap Booster (RCLX) or RCT.

Features

• Extreme Power in a Mini Compact Footprint
• Conformal Dura-Coated 320°F Epoxy PC Boards to resist Moisture, Dust and Extreme Heat
• Full Range Digital Design
• 4 Layers PCB design with SMD parts
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-in Auto Sensing Turn On Function (Hi-Inputs)
• 12V Remote Output for External Devices (Hi-Inputs)
• -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz
• Advanced 5 Way Protection Circuitry
• RCLX ~ Railcap Booster (Optional)
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)

Specifications

• Peak Output Power @ 14.4V 1600W Max Mono
• 1 Ohm RMS 800w X 1
• 2 Ohm RMS 400W x 1
• 4 Ohm RMS 200W x 1
• 4 Ohm Bridged  N/A
• Input Level 0.2~9.0v
• Freq. Response 10Hz~150KHz
• THD at 4 Ohm Load 30% Rated Power <0.03%
• S/N Ratio >85dB
• BassBoost 40Hz~100Hz
• Minimum Load 1 Ohm Mono
• Gain Remote UR1 Gain Remote (Optional)

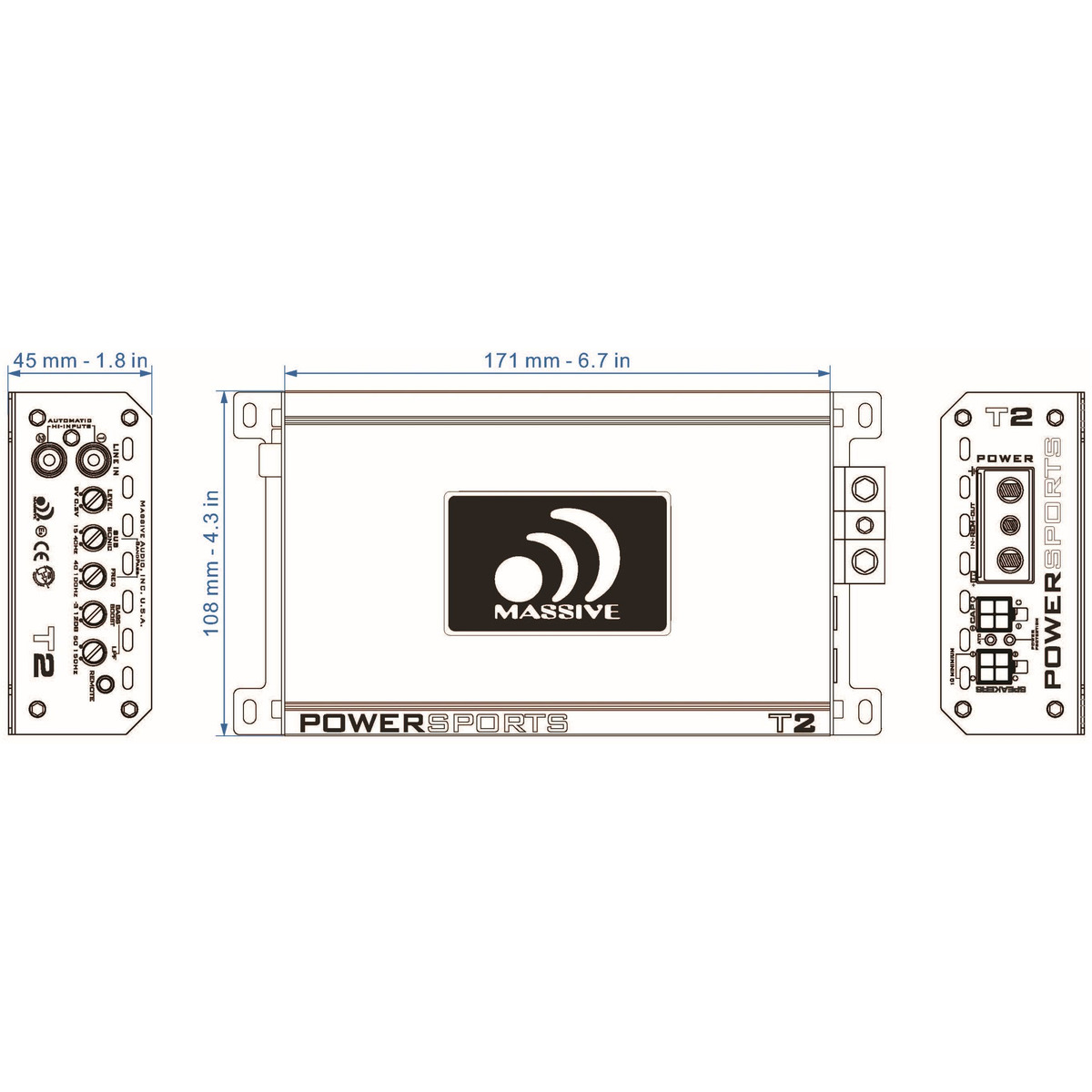

• Dimension 1.6"H x 4.25"W x 7.99"L
