SERIE T/X

Overview

Modulating scale, while never compromising quality, T/7i provides the speed and punch of the T/9i, scaled to integrate seamlessly with more modest yet still highly sophisticated systems.

T/7i is, without reservation, one of the most-balanced RELs of all time. In order to achieve perfect balance, a sub must weigh speed against heft, while ensuring true extension-depth-and do so in a physically harmonious package. T/7i manages to make it all seem easy. Quick and delicate for a perfect blend, it can pound out exceptionally deep, tuneful bass that belies its size and plays louder than most will ever require.

When we upgraded our drivers, we were forced to redesign outward. The lovely cabinets grew over its predecessor due to thicker cabinet walls and improved bracing. Why? Because the additional speed and impact of the new drivers requires greater control or the benefits can be lost before they get to the listener.

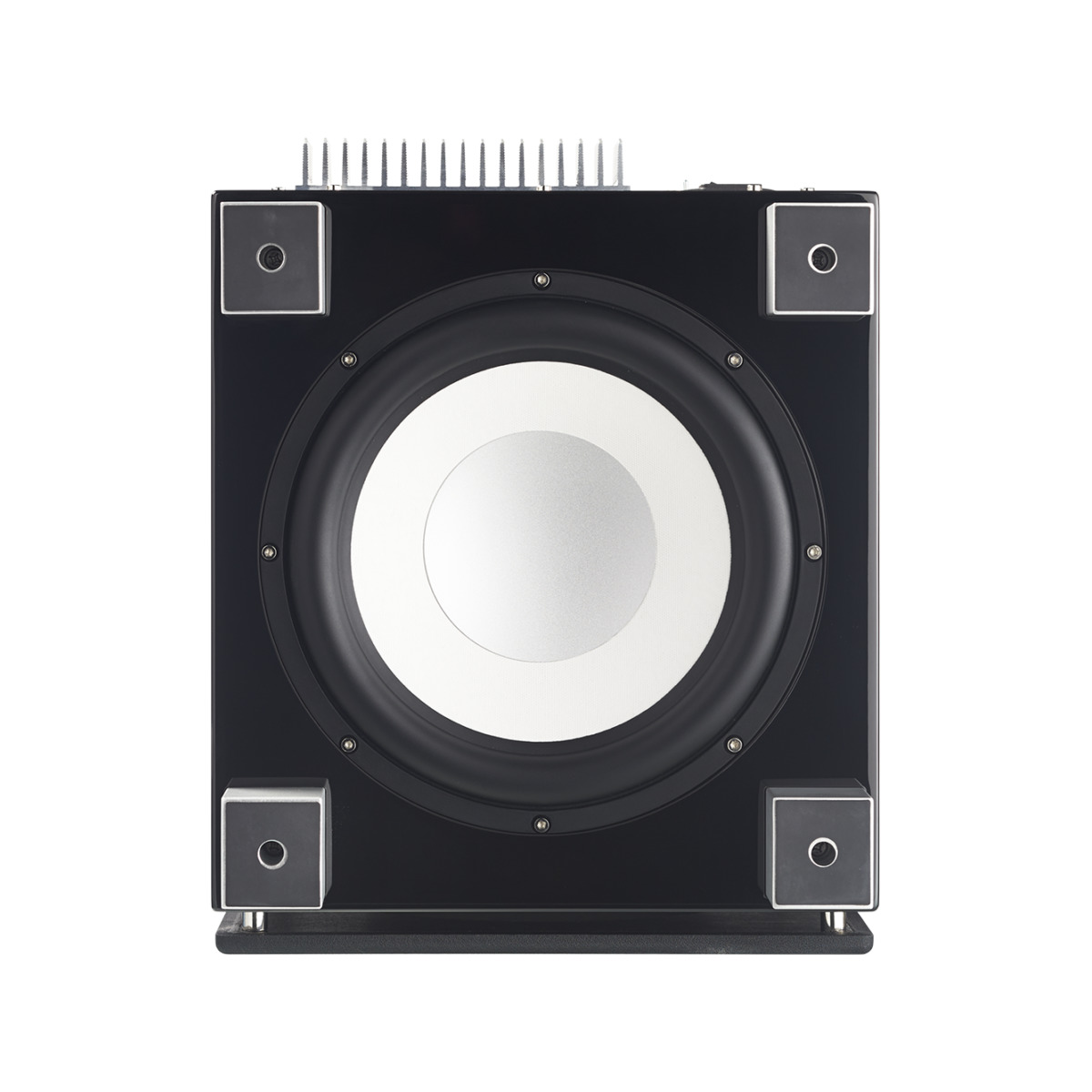

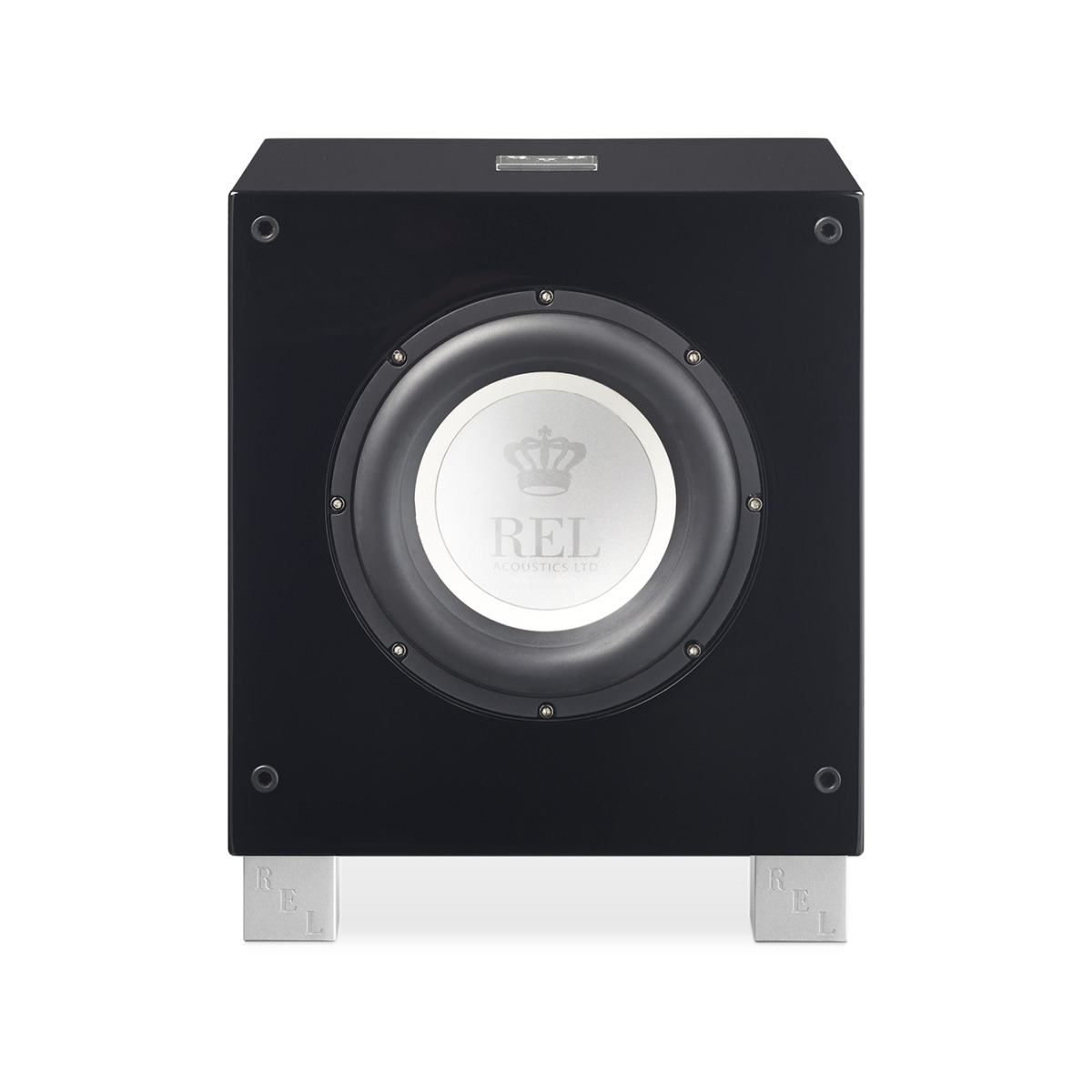

The new composite alloy/fibre engine in T/7i blends precisely the correct dimension of stiffening alloy with a fibre material chosen for its sonic neutrality and light weight. The combination is brilliant; exceeding the performance of competitors’ drivers that are many times more expensive. The forward-firing 8” active couples with a larger 10” down-firing passive, again with carefully chosen balances of alloy to fibre and the result is seamless, effortlessly deep bass that blends perfectly with the main speakers.

If our driver designers deliver the structure of REL’s sound, the electronics are the brains and the power behind our success. Serie T/i uses the same Class A/B power amplifier sections with large, high current power supplies, precision-wound toroidal transformers and an amazing reliability record that has powered almost 100,000 RELs. Our proprietary filter designs are responsible for rave reviews for REL’s unique ability to blend seamlessly while layering on all the harmonic structure missing from conventional systems. Standby Mode switch not included on 110V units.

Arrow™ is REL’s latest generation of zero compression wireless. Super-fast delivery of both High Level Bass and .1/ LFE ensures the rich, natural warmth that only RELs can deliver. With a throw distance of some 45’(13.7M) Arrow permits flexible placement without sacrificing sound quality.

Specifications

-TYPE Front-firing active driver, down-firing passive

-ACTIVE DRIVER SIZE & MATERIAL 8 in., 200mm long-throw, FibreAlloy™ inverted aluminium dust cap, steel chassis, white cone

-PASSIVE RADIATOR SIZE & MATERIAL 10 in., 250mm long-throw, inverted aluminium dust cap, steel chassis, black cone

-LOW FREQUENCY EXTENTION -6dB at 30 Hz

-INPUT CONNECTORS High Level Neutrik Speakon, Low Level single RCA, LFE RCA

-OUTPUT CONNECTORS N/A

-POWER OUTPUT 200 Watts (RMS)

-AMPLIFIER TYPE Class A/B

-WIRELESS CAPABILITY Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip

-FULLY ELECTRONIC SET SAFE Yes

-D.C. FAULT Yes

-OUTPUT SHORT Yes

-MAINS INPUT VOLTAGE 220-240 volts, 110-120 volts for certain markets

-FUSES 2 Amp semi delay 230 volts operation, 4 Amp semi delay 115 volts operation

-W X H X D 12 x 14.3 x 15 in. (305 x 362 x 382 mm)

-NET WEIGHT 36 lbs. (16.3 kg)

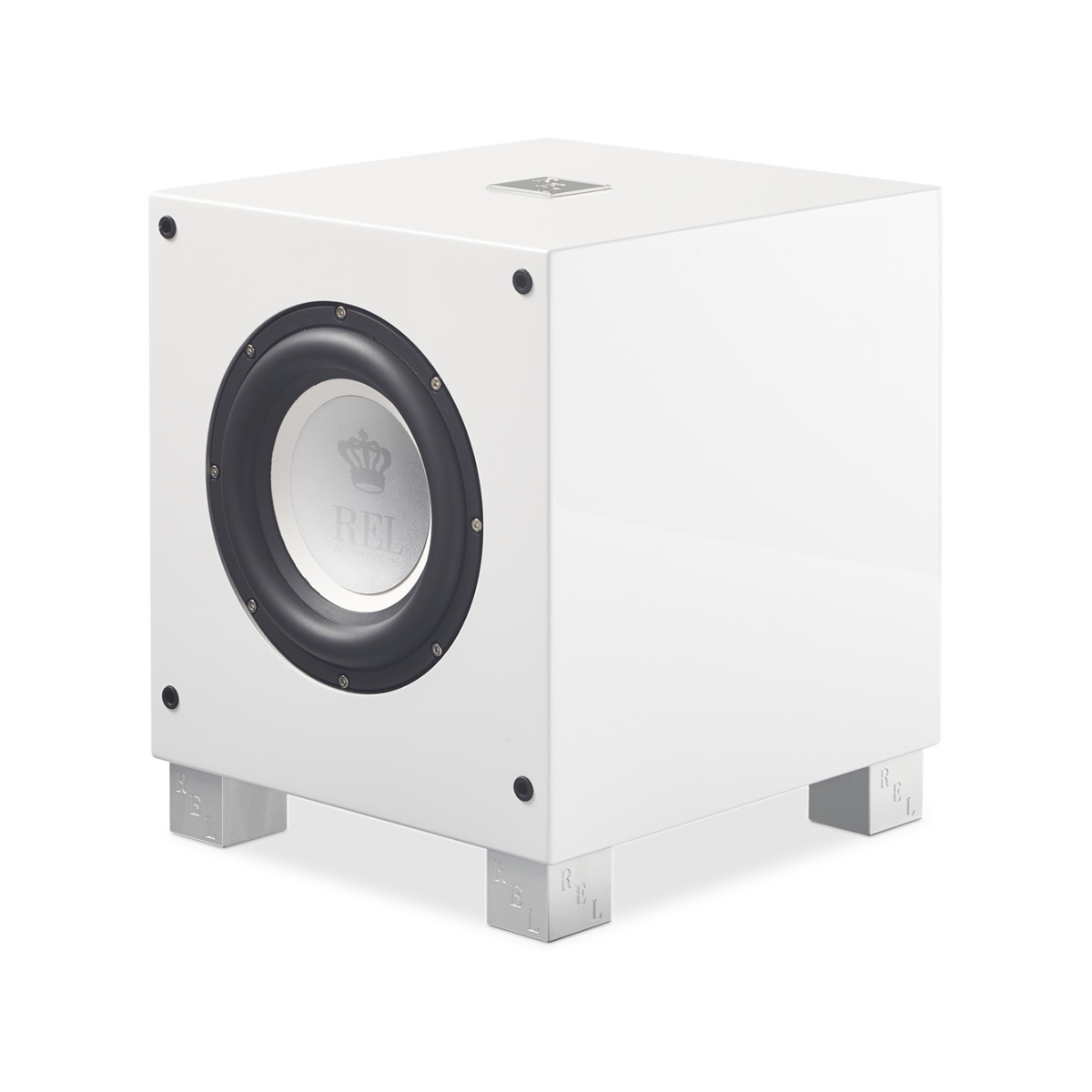

-FINISH High Gloss Black, High Gloss White, 5 coats

-MAINS LEAD Yes

-NEUTRIK SPEAKON Yes (10 Meters Nominal)

-INTERCONNECT

-USERS MANUAL Yes
