7 channel power amplifier

Built from a legacy of respected premium power amplifiers, Audio Control’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels. Incorporating Audio Control’s unique, highly efficient, and cool-running Class H design, the Savoy G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Savoy G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. Audio Control’s Light Drive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions. Designed as a perfect match to Audio Control’s preamp processors or as standalone critical listening power amplifier, the Savoy G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theatre.

Features
-Award winning theatre amplifier technologies
-Seven channel home theatre amplifier
-Multi-mode operation: 7 channel, 5.1 channel, 5 channels
-230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
-600 watts at 8 ohms bridged on select channels
-Stable into low impedances}
-Stereo/mono operation
-Unparalleled Energy Efficiency
-High Definition BiMOS Outputs
-Cool Running Class H Operation
-Light Drive Anti-Clipping Protection Circuitry

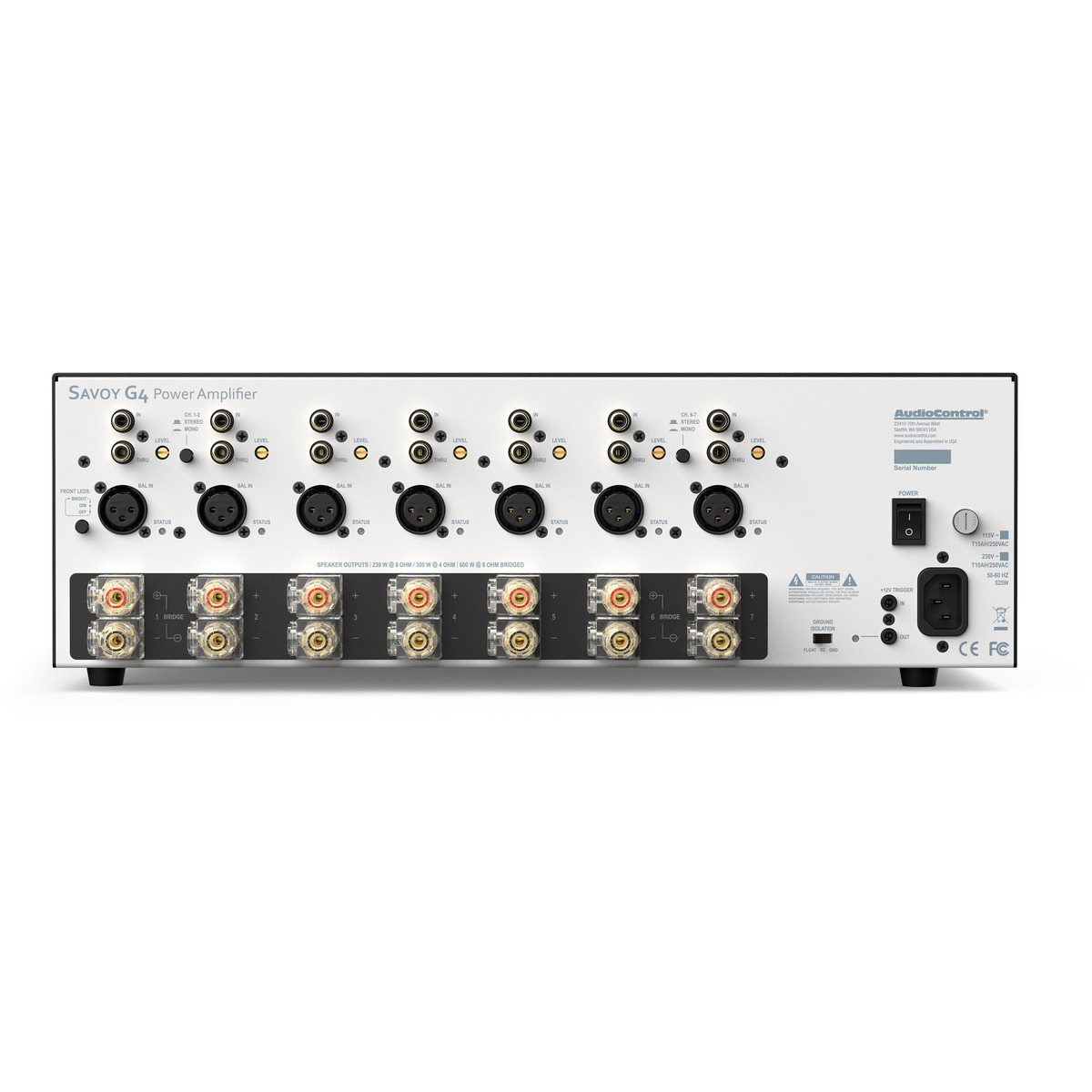

-5-way Binding Posts
-Unbalanced RCA inputs with pass through
-Balanced XLR Inputs
-Bullet-Proof Reliability
-Remote 12-volt Trigger
-Perfect paired with Audio Control’s home theatre preamplifiers

Specifications

Inputs
-Inputs: 7 RCA Unbalanced, 7 XLR Balanced
-Input Sensitivity: 1.42 Vrms for full output
-Maximum Input Voltage: 2.7 Vrms
-Input Impedance: 100 Kω

Outputs
-Amplifier Channels: 7
-Power Output (8Ω): 230 watts per channel
-Power Output (4Ω): 300 watts per channel
-Power Output (8Ω Bridged Mono): 600 watts
-Minimum Speaker Load: 4Ω

General
-Power Consumption (Standby): < 2W
-Power Consumption (Idle): 38W
-Power Consumption (loud listening level): 367W
-Power Consumption (maximum): 2100W
-BTU/Hour Output (Standby): 5.6 BTU/hr
-BTU/Hour Output (Idle): 129 BTU/hr
-BTU/Hour Output (1/8th power, loud listening level): 477 BTU/hr
-BTU/Hour Output (maximum): 2507 BTU/hr
-Protection: clipping, short circuit, thermal, DC offset

Performance
-Damping Factor: >450
-Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
-Signal to Noise: >102dB, A-wtd ref Full Output
-Frequency Response: 10 Hz -20 kHz, ±1 Db

Weights & Dimensions
-Dimensions: 17”W x 16.5”D x 5.25”H (3U)
-Weight: 43.0 lbs (19.5 kg)
-in the box: Savoy G4, Power Cord, Manual, Warranty gs
