THE PERFECT MATCH FOR HOME CINEMA APPLICATION

Overview

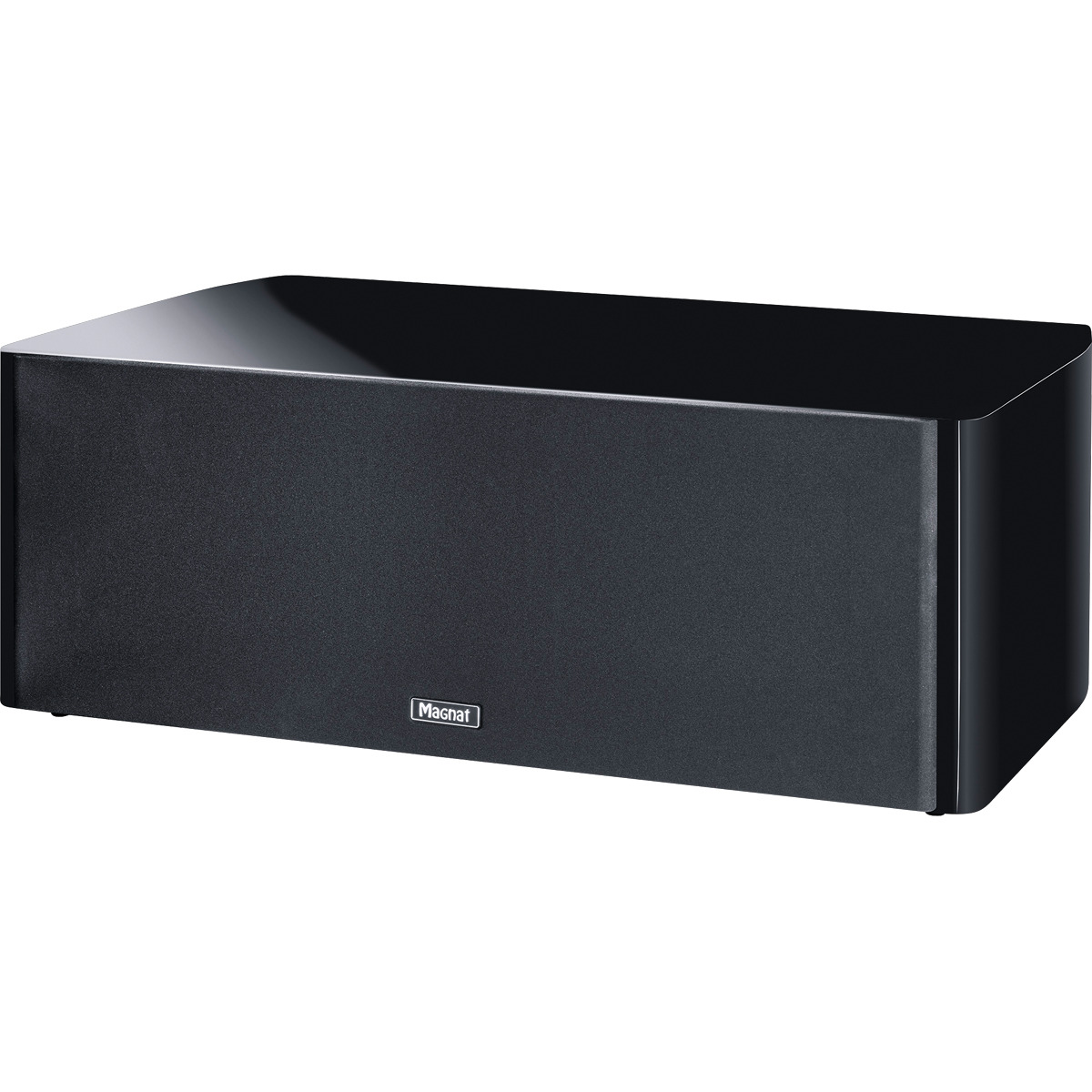

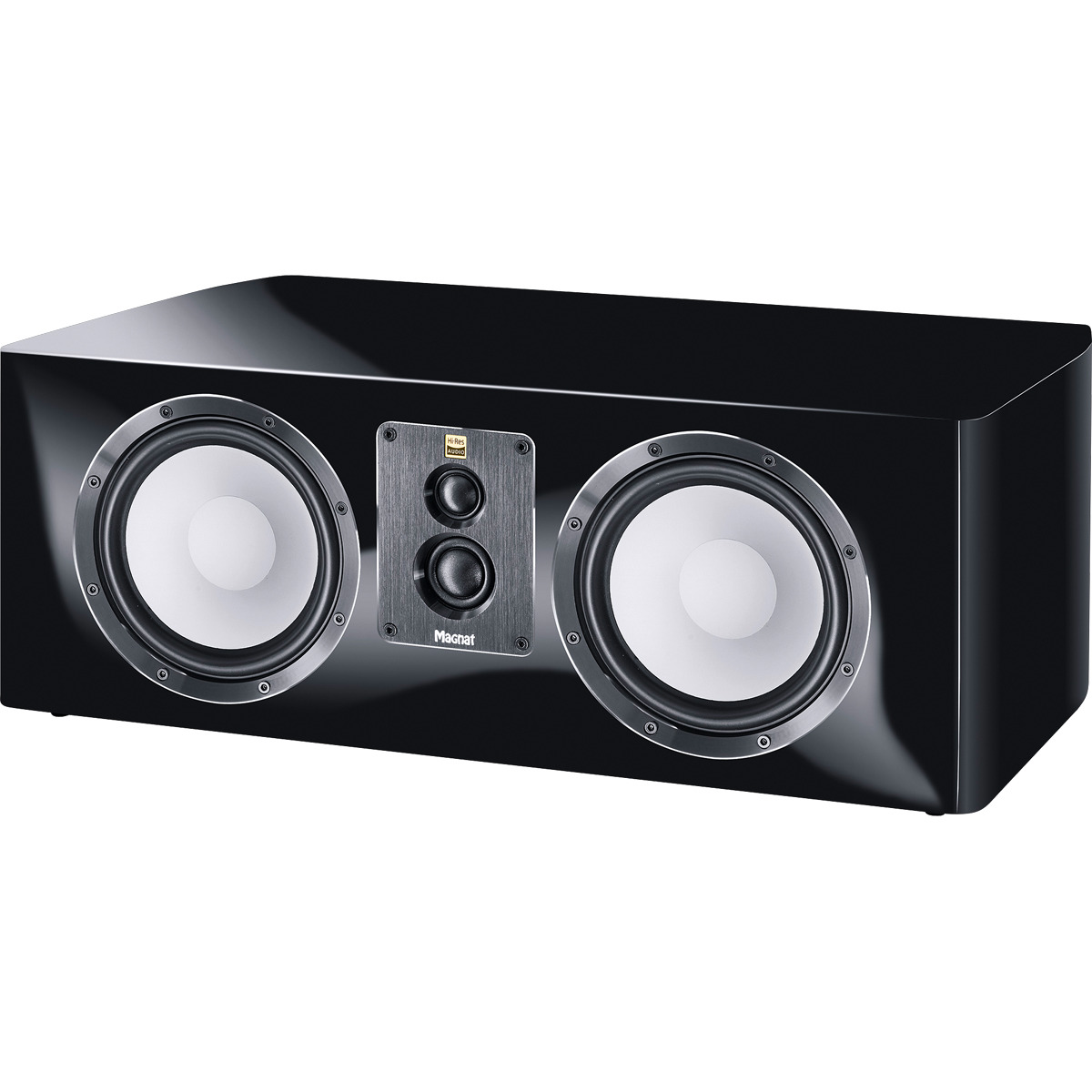

Experienced home cinema enthusiasts know: The centre speaker is the heart of the audio playback, because that is where up to 70% of the action takes place. The Signature Center 93 takes this fact into account because, in addition to the standard double-tweeter module for the 900 series, it is also equipped with 2 x 170 mm bass-midrange drivers. This means that the Center 93 also copes supremely with the dynamic attacks that often occur in movies, and is perfectly matched to the other systems in the series in terms of sound. Nor do you have to make any compromises when it comes to looks, because the centre unit is also available in a black piano lacquer or classy Macassar veneer finish.

Features

• Powerful neodymium ring magnet systems for best dynamics
• Newly developed high-res tweeter module with two fmax Signature dome tweeters
• 30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
• Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz
• Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
• Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
• Sophisticated voice coil ventilation for a particularly high degree of resilience
• Solid ABS/aluminium grille rings with 8 screw fixings
• Distortion-optimised magnet systems with double induction rings and stray field optimisation
• Klippel® optimised construction
• Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables
• High-quality interior cabling
• Elaborate phase and amplitude-optimised APOC crossover
• Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring
• Decoupling silicone feet included
• Removable fabric protection grille with optimum sound transmission and invisible magnet attachment
• Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design
• Noble high-gloss lacquered body (black version) or high-gloss lacquered real wood veneer (macassar version)
• Magnat Airflex port with large openings ensure an optimum bass response without ambient noise

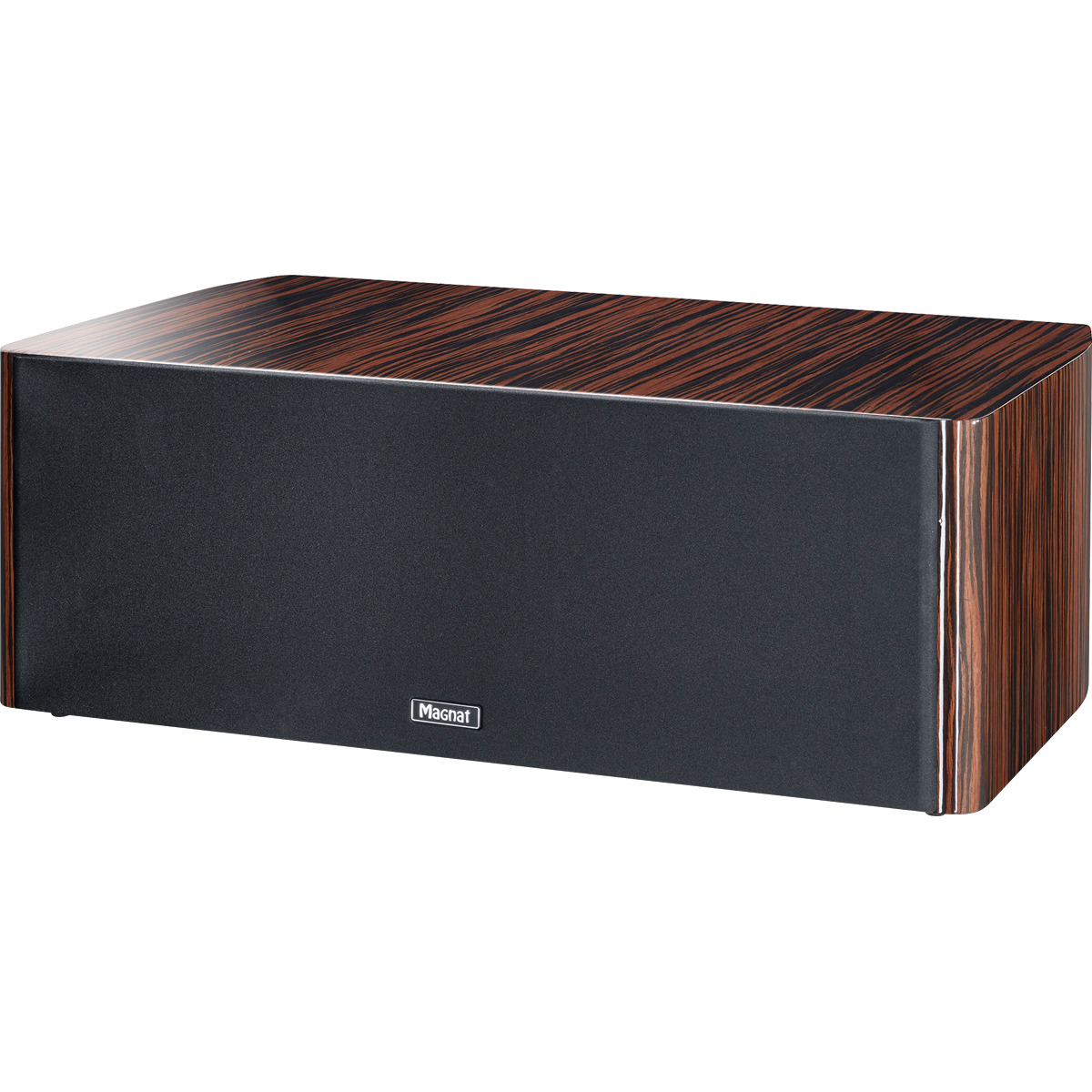

• Piano macassar
• Piano Black

Specifications

• FREQUENCY RESPONSE 32 – 55000 Hz
• PRINCIPLE 3 way, double bass, bass reflex
• DRIVERS 1.2" dome-tweeter 0.75" super-tweeter 2 x 6.5“ Midrange-woofer
• POWER HANDLING (RMS/MAX.) 140 / 200 Watts
• IMPEDANCE 4 – 8 Ohms
• CROSSOVER FREQUENCIES 2400 Hz / 17500 Hz
• RECOMMENDED AMPLIFIER OUTPUT > 20 Watts
• SENSITIVITY (2.8V/1M) 91 dB
• DIMENSIONS (WXHXD) 570 x 215 x 350 mm
• CABINET SURFACE Piano macassar Piano Black
