HIGH-END 3-WAY SHELF SPEAKER

Overview

The 703 is a compact entry level speaker for the Signature 700 series. It shares the slender 21 cm wide front panel with its larger sibling, otherwise it offers everything that could delight a high-end fan on a base that covers an A4 sheet. The Hi-Res dual tweeter module with its fmax domes guarantees an authentic music reproduction up to the highest frequencies. At the other end of the frequency scale, a 170 mm bass-midrange driver ensures music is reproduced down to 31 Hz. Available in a black or white finish, the Signature 703 is perfectly suited to any interior.

Features

• Newly developed high-res tweeter module with two fmax dome tweeters 1.2″ dome tweeter with extra-thick surround for low frequency coupling to the midrange Additional 0.75″ super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
• Front panel secured by six screws, special sound guides for optimum dispersion properties
• Powerful neodymium ring magnet systems for best dynamics
• Klippel optimised construction
• Sophisticated voice coil ventilation for a particularly high degree of resilience
• Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
• Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
• Amplitude and phase-optimised crossover with acoustical 24dB filters
• and high-quality components
• Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts
• High-gloss lacquered baffle combined with noble satin matte lacquer (body)
• Two-Airflex ports with rounded reflex opening for reducing wind noises
• Decoupling silicone feet included
• Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing
• Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design

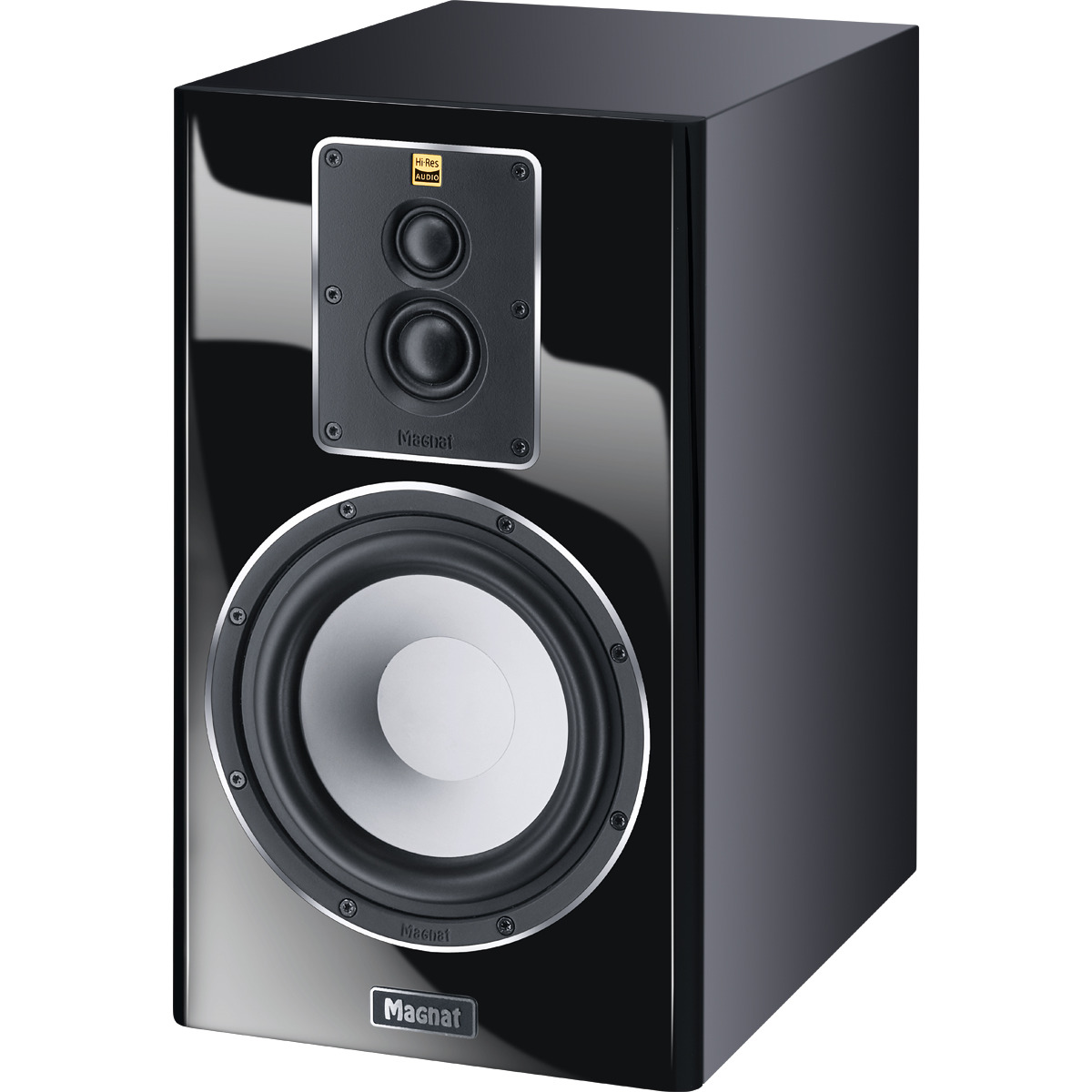

• Front: Piano black / Cabinet: black satin

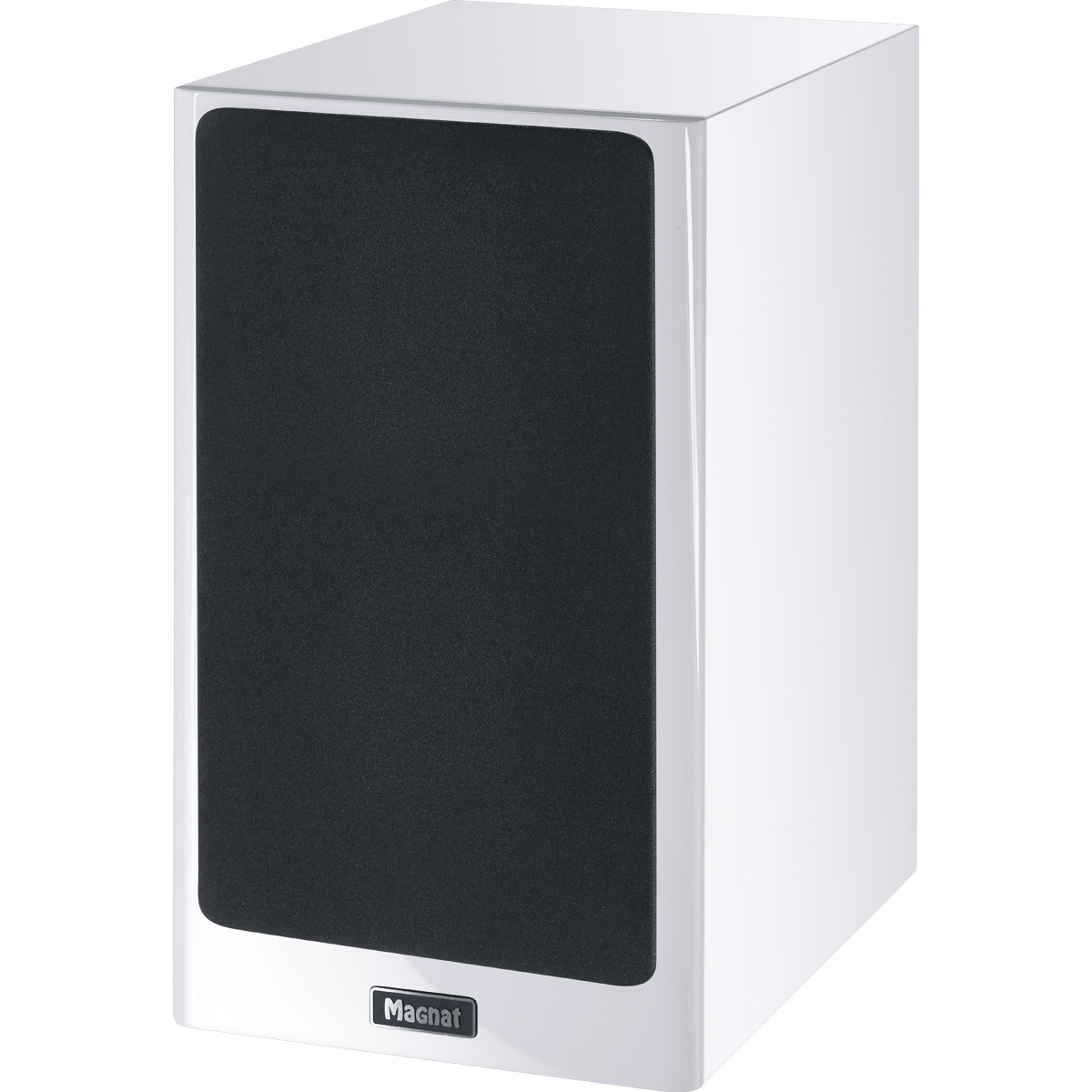

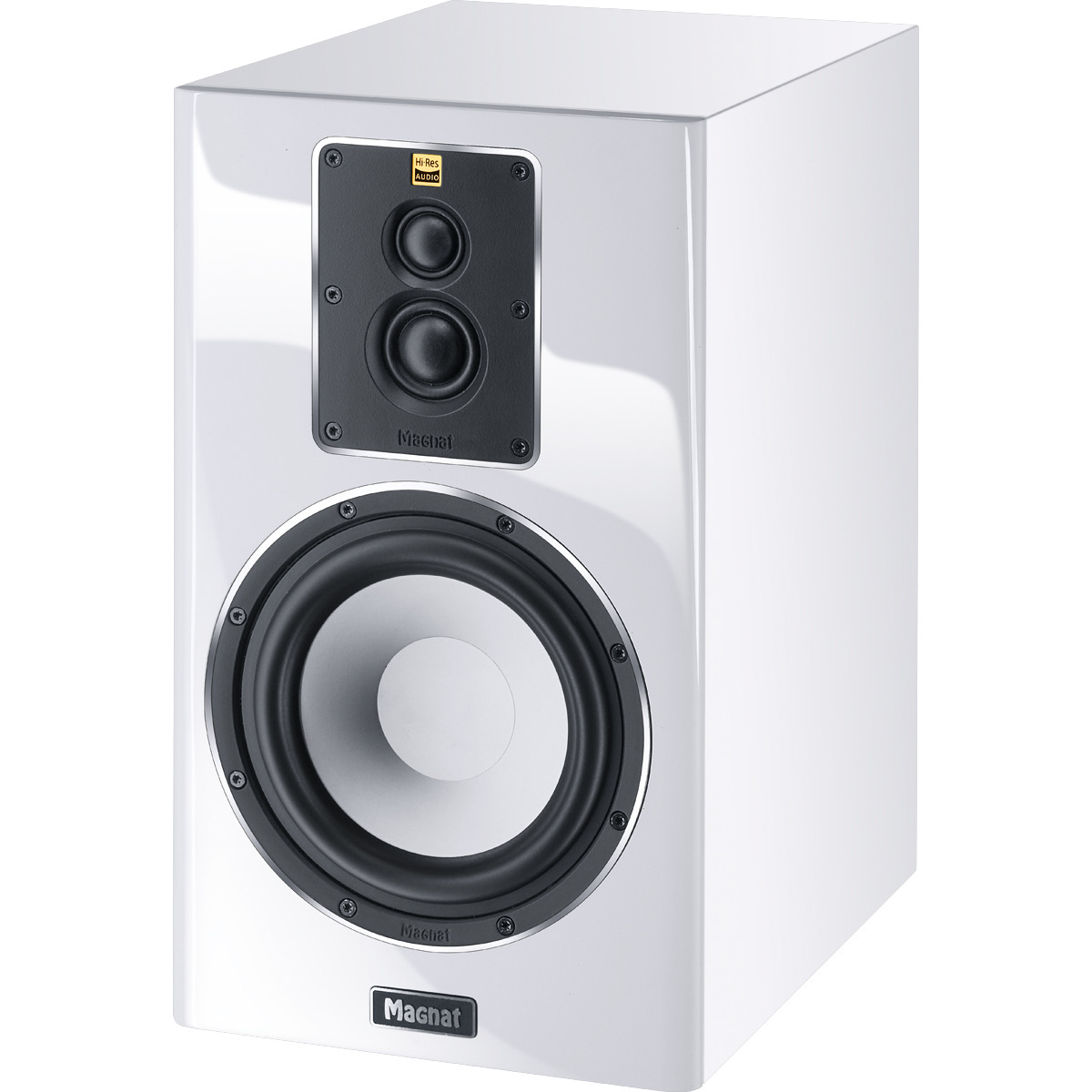

• Front: Piano White / Cabinet: white satin

Specifications

• FREQUENCY RESPONSE 31 - 54000 Hz
• PRINCIPLE 3 way bass reflex
• DRIVERS 6.5“ woofer-midrange 0.75" super-tweeter 1.2" dome-tweeter
• POWER HANDLING (RMS/MAX.) 110 / 180 watts
• IMPEDANCE 4 – 8 Ohms
• CROSSOVER FREQUENCIES 2700 Hz/17000 Hz
• RECOMMENDED AMPLIFIER OUTPUT > 20 Watts
• SENSITIVITY (2.8V/1M) 91 dB
• WEIGHT 7.7 kg
