DLS Reference

Overview

Reference series RC6.2 is a 16,5 cm (6,5") 2-way component.

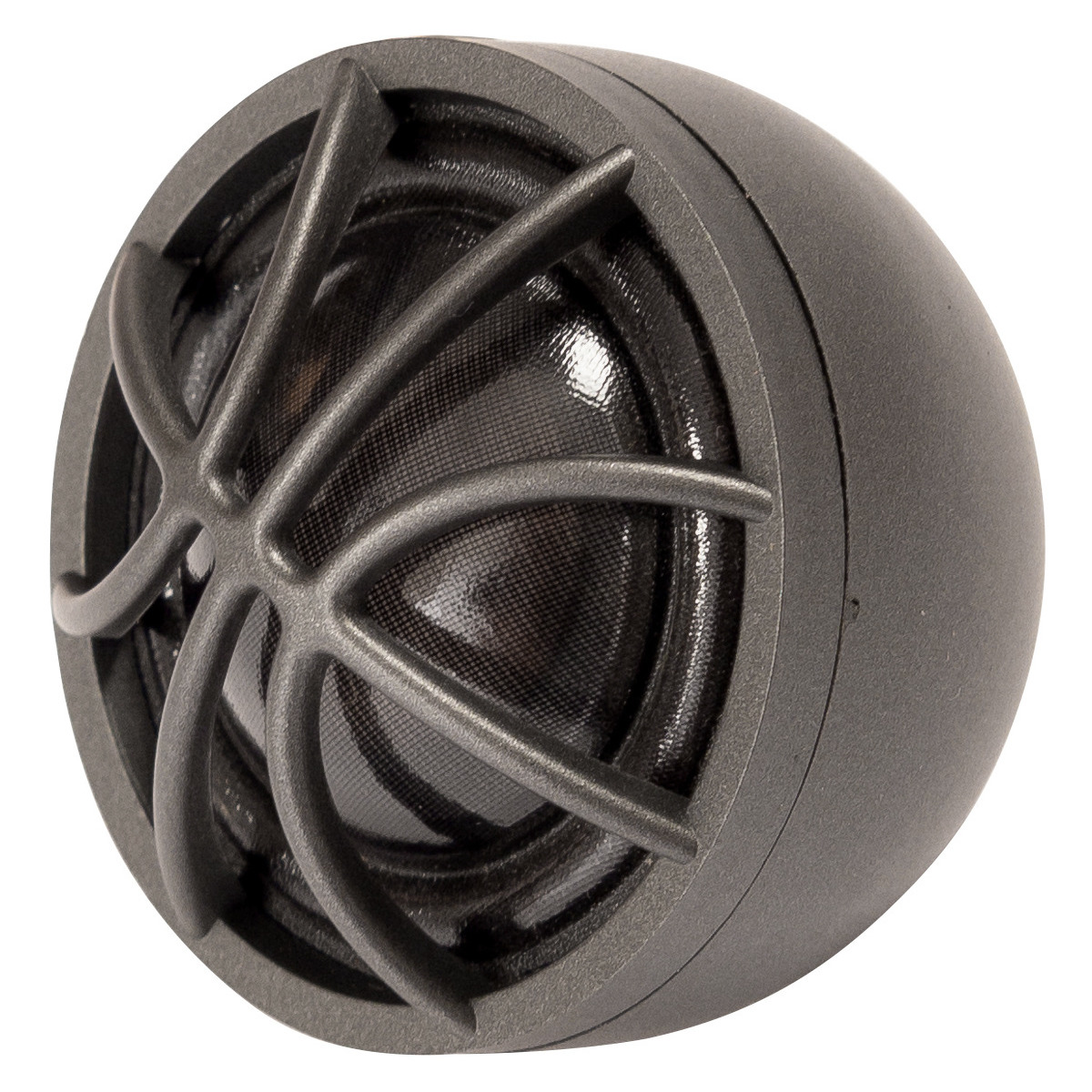

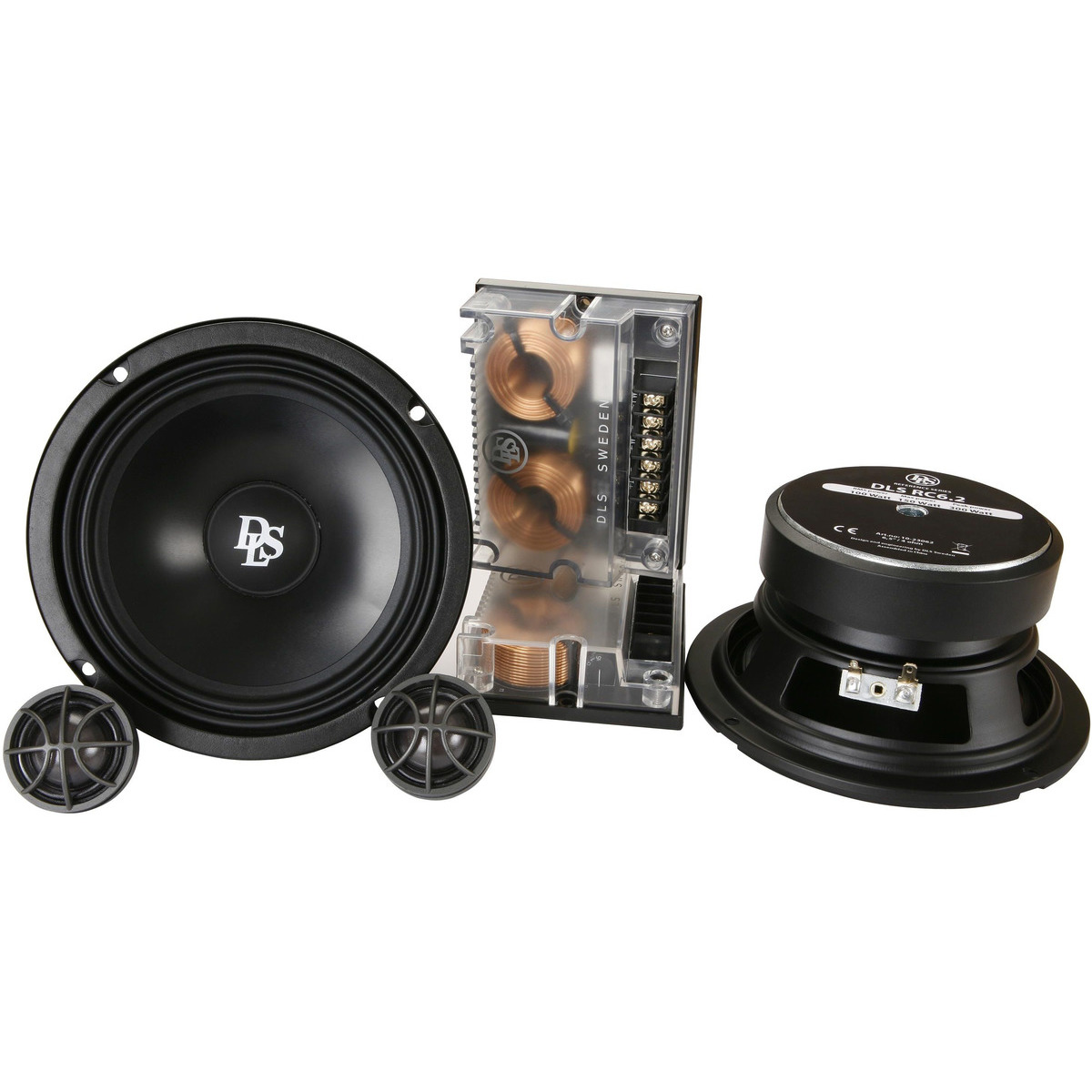

Reference series RC6.2 is a 16,5cm (6,5”) 2-way component kit with a separate 28 mm tweeter with copper rings for improved treble sound.

Install the tweeter on the dashboard or recessed in the door, all mounting parts are included.

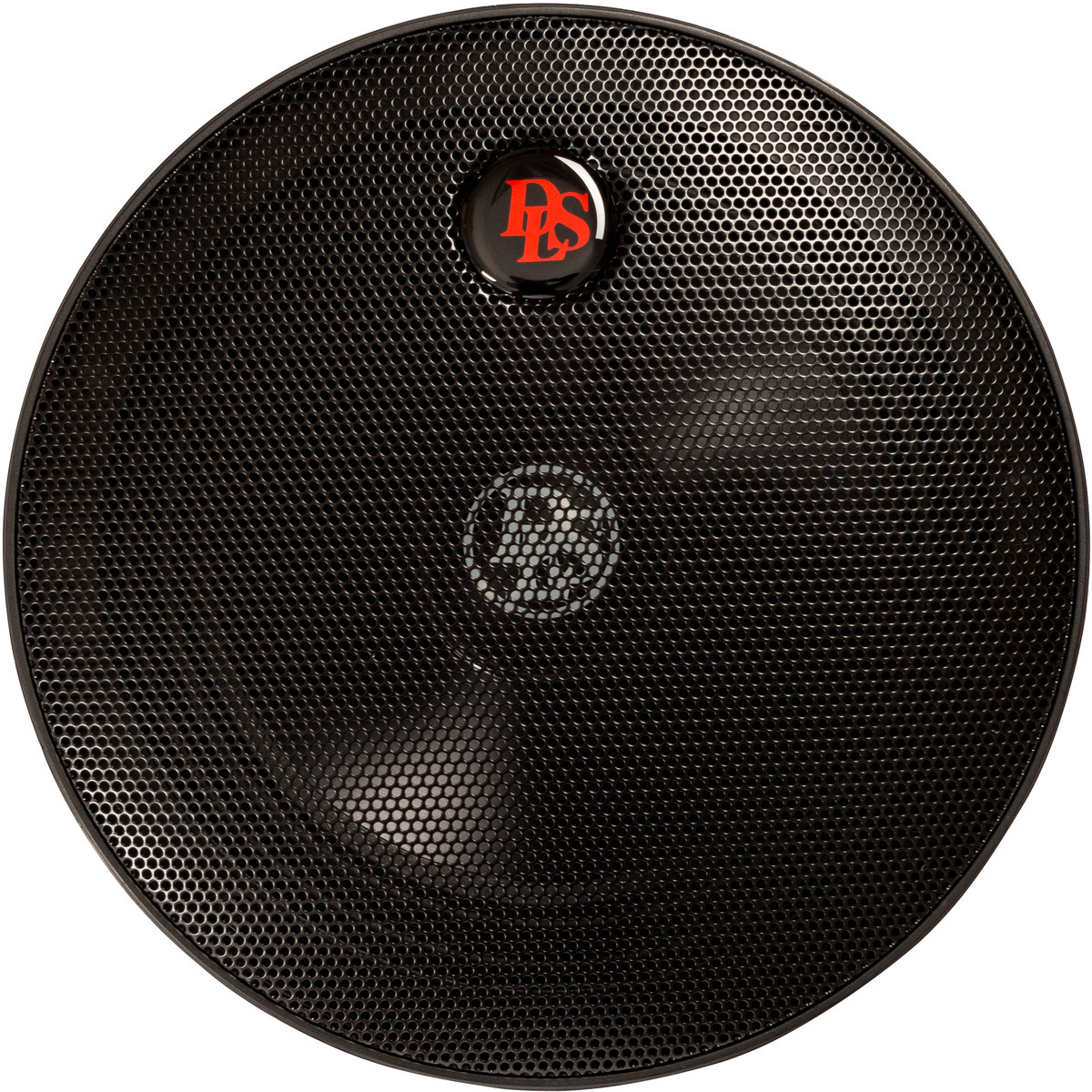

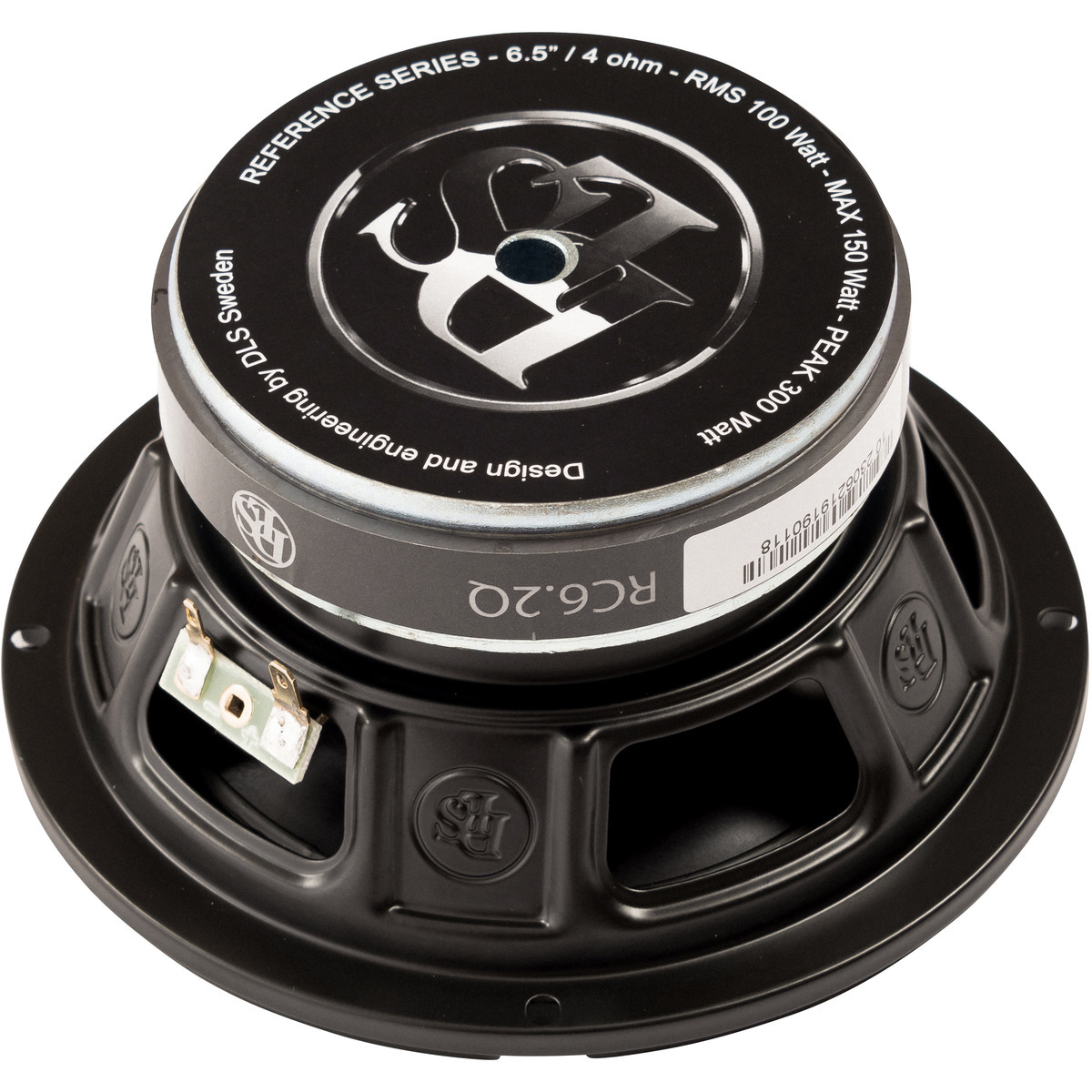

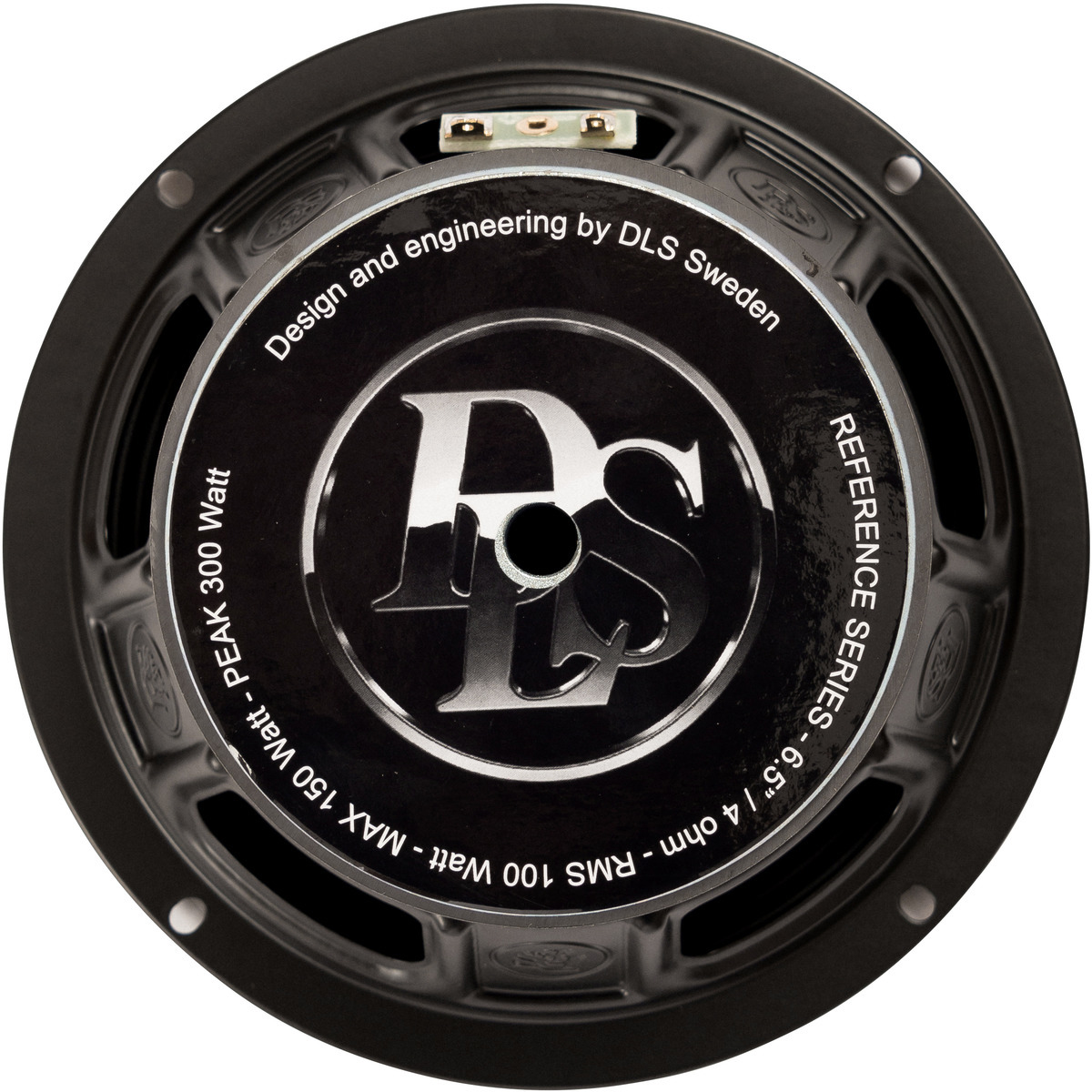

The bass driver has a cone of black anodized aluminium with dual rubber edge and a 110 mm powerful magnet that guarantees a good bass control. Grilles are included.

Filter boxes with only the best components!

Specifications

• Reference Series 6.5" (16.5cm) 2-Way Component Kit
• Woofer 6.5" (16.5cm) with aluminum cone
• 28mm silk dome tweeter with accessories
• Separate crossover boxes
• 100 Watt RMS Nominal Power
• 150 Watt Max (300 Watt Peak Power)
• Installation Depth: 75mm (2.95")
• Impedance: 4 ohm
• Size: 28mm (1.1")
• Nom. Power Handling (RMS): 50 Watt (80 Watt max)
• Frequency Response: 1.5 kHz-25kHz
• Sensitivity: 93 dB
• Magnet Diameter: 35mm (1.38" neodymium magnet)
• Mounting Depth: 20mm (0.8" recessed install)
• Mounting Hole: 48mm (1.9" recessed install)
• Cone Material: Textile fibre
• Impedance: 4 ohm
• Nom. Power RMS: 100 W
• Max/Peak Power: 150 W (300 W)
• Cone Material: Black Anodized Aluminum
• Woofer Size: 6.5" (16.5cm)
• Magnet Size: 110mm (4")
• Sensitivity: 86 dB
• Mounting Depth: 75mm (2.95")
• Mounting Hole: 145mm (5.7")
