High value kit

Overview

High value kit – with a compact tweeter! The paper cone with textile fibers and foam surround provide fast midbass and open midrange and the compact 16mm mylar tweeter is easy to install. External inline crossover HP12dB with woofer bypass for easy install of the tweeter in door on or the dash.

Specifications

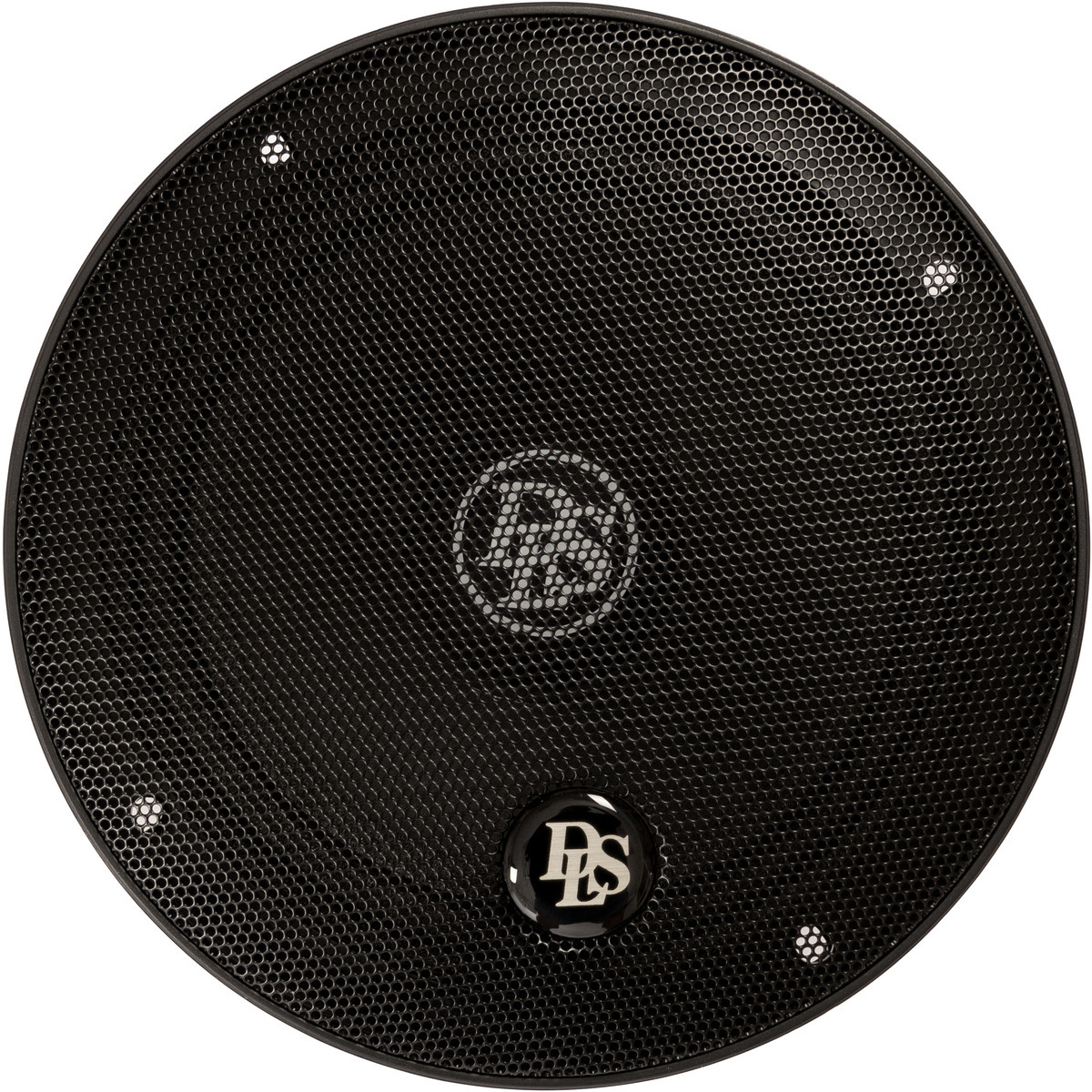

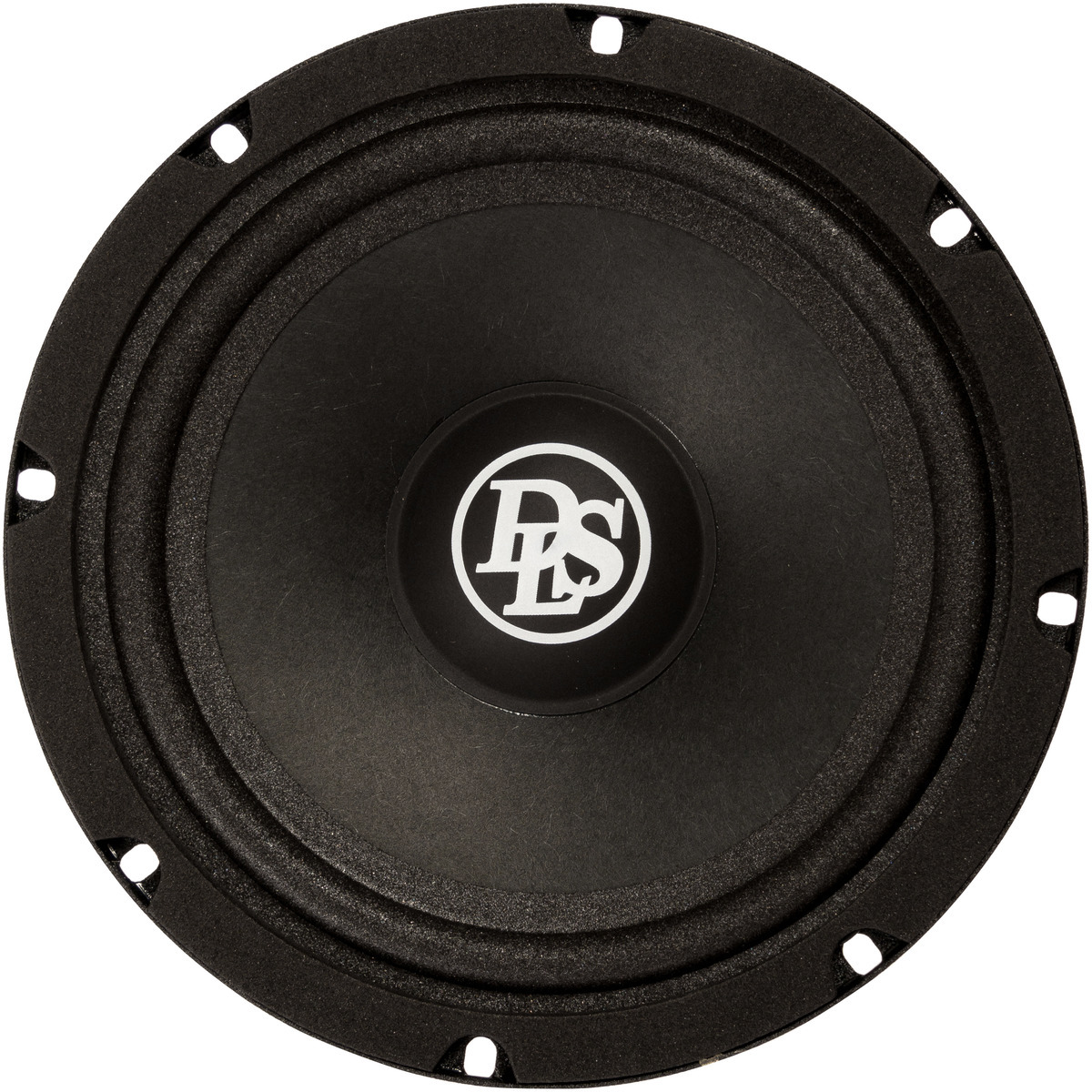

• Woofer size 16,5 cm (6,5″)

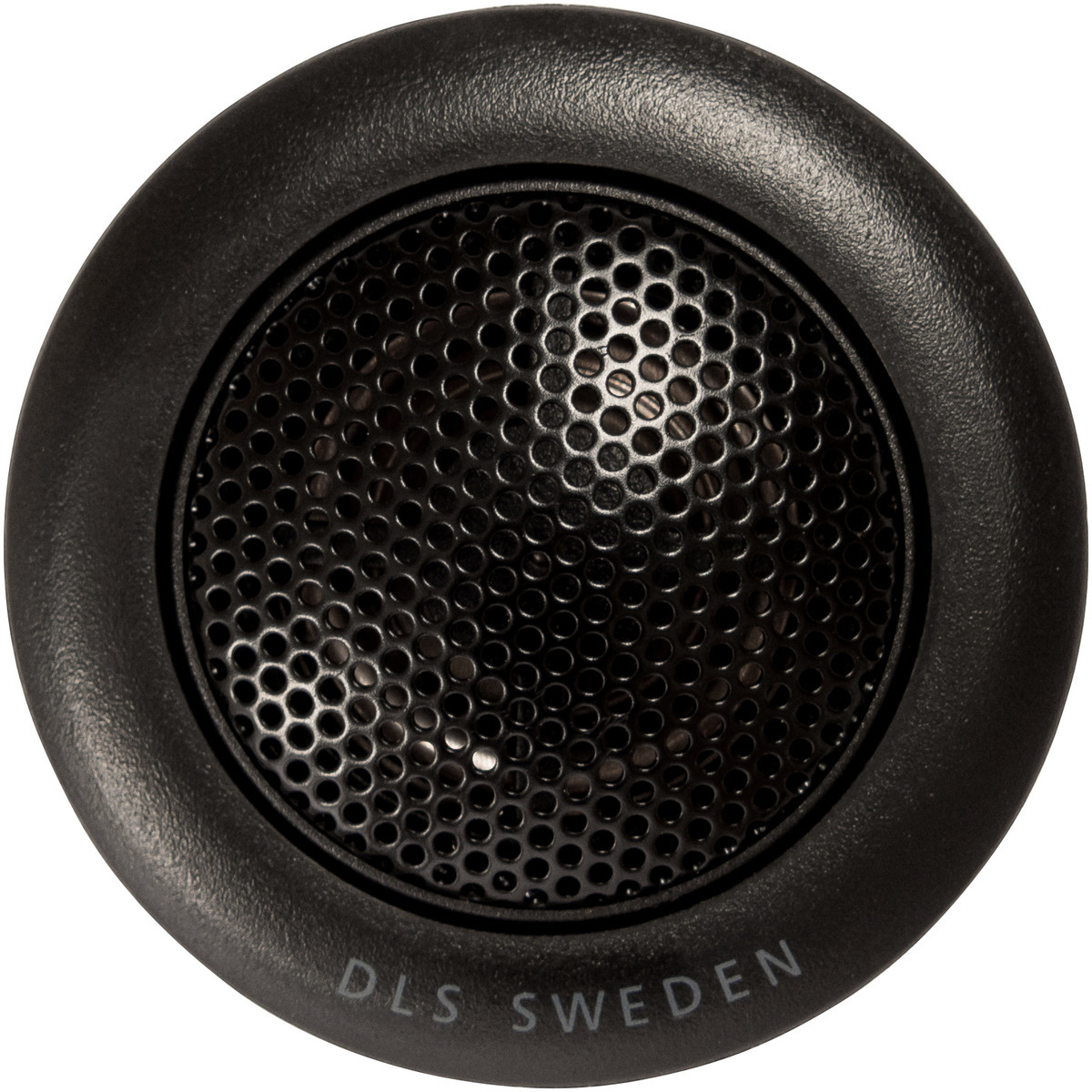

• Tweeter 16 mm mylar
• Power handling capacity 55 W RMS / 70 W max, 140 Watt peak power
• Impedance 4 ohm
• Frequency range 55 – 20.000 Hz
• Crossover point (Hz) 6000 Hz
• Sensitivity 89 dB (1W/1m)
• Outer diameter of woofer 165 mm (6,5″)
• Cone material Paper cone with textile fibres
• Magnet size 90 mm (3,54″)
• Mounting depth 65mm ( 2,56″)

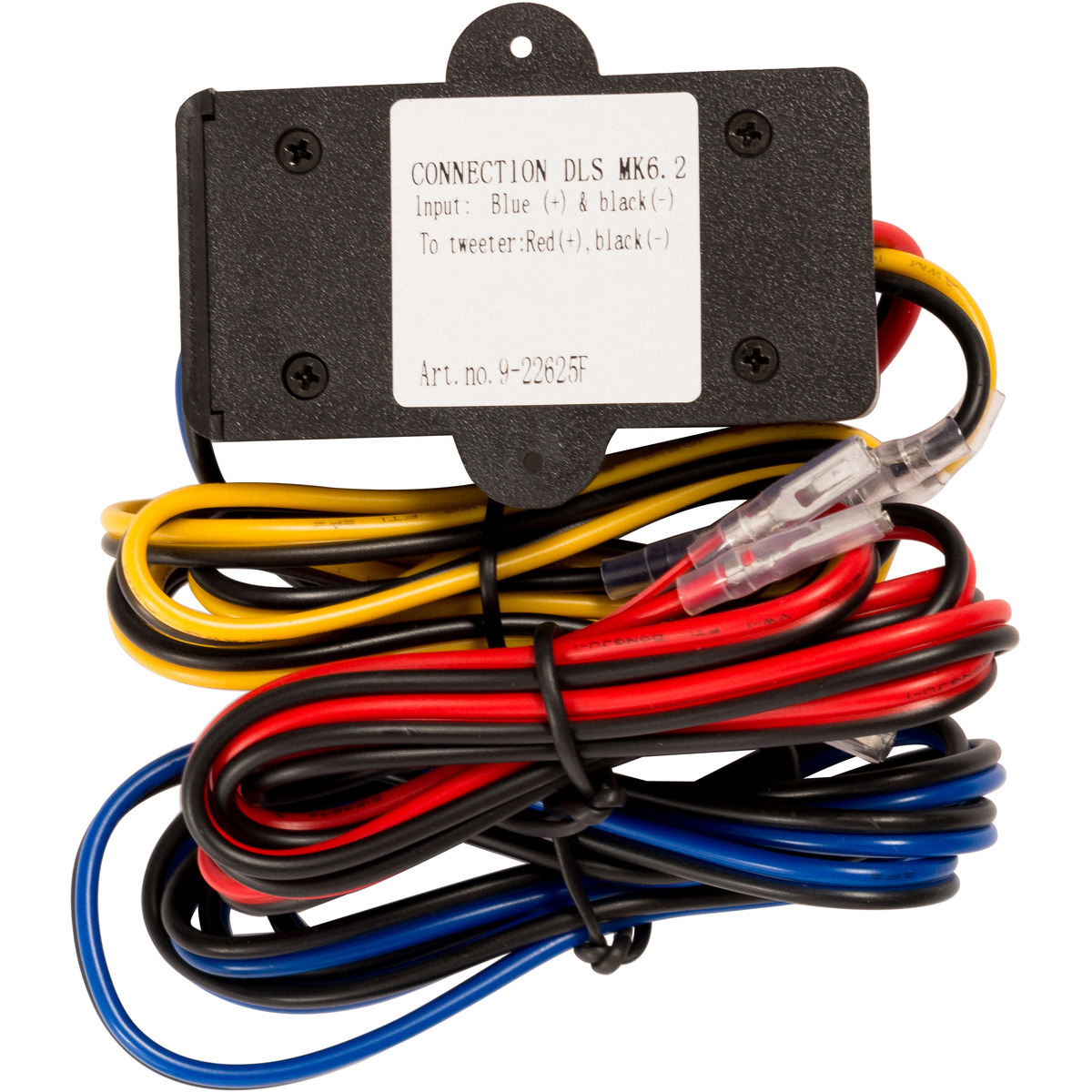

• Crossover A small 12 dB filter box to the tweeter
• Mounting hole 145 mm (5,75″)
• Size of filter box 73 x 36 x 35 mm
