DLS Flatsub 8.2 - New active subwoofer 8"

Overview

The Flatsub 8.2 is a new unique active sub replacing Flatsub 8. It is designed to hang on a wall, but can also be placed on the floor, for example under a sofa.

A small giant, a big bass sound in a small box.

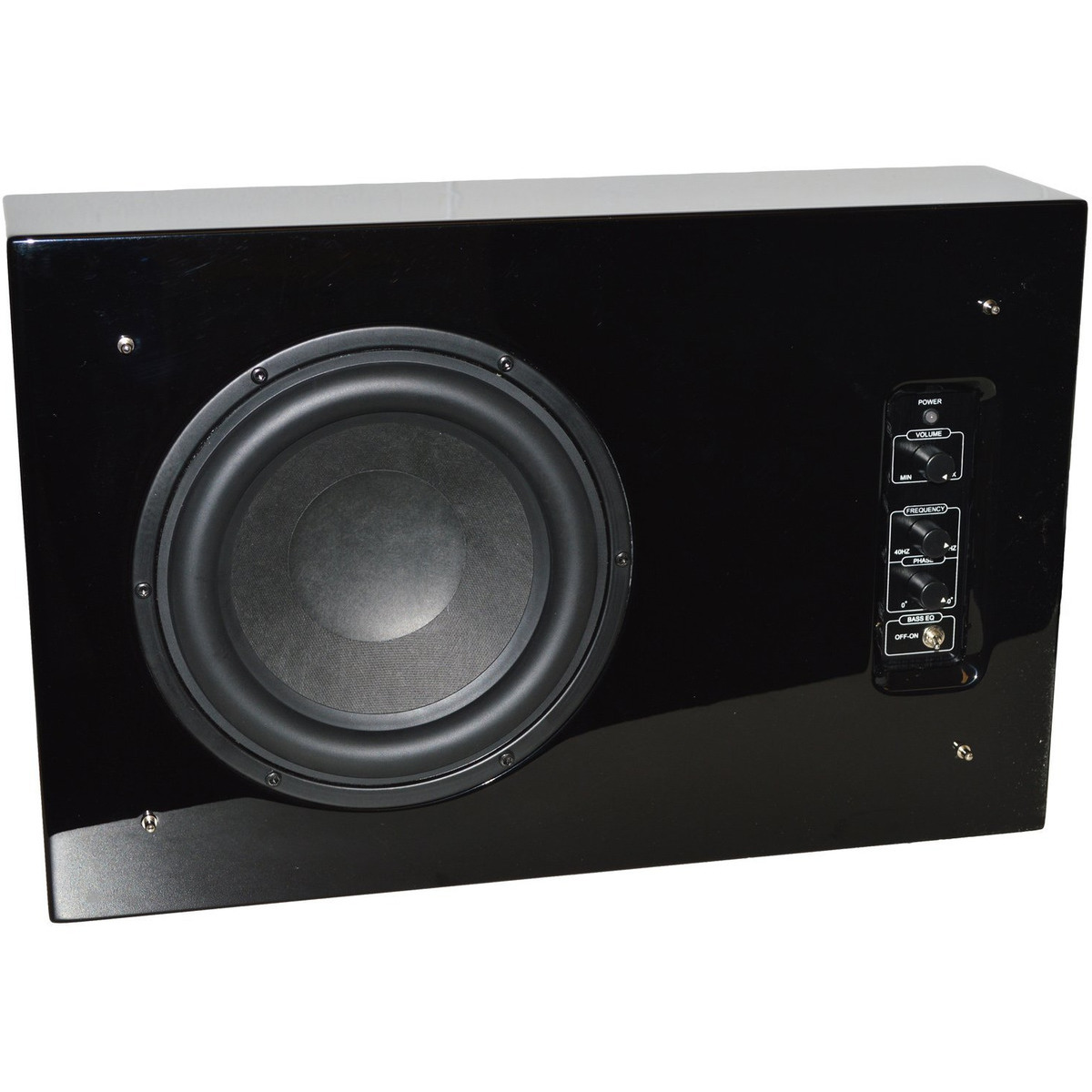

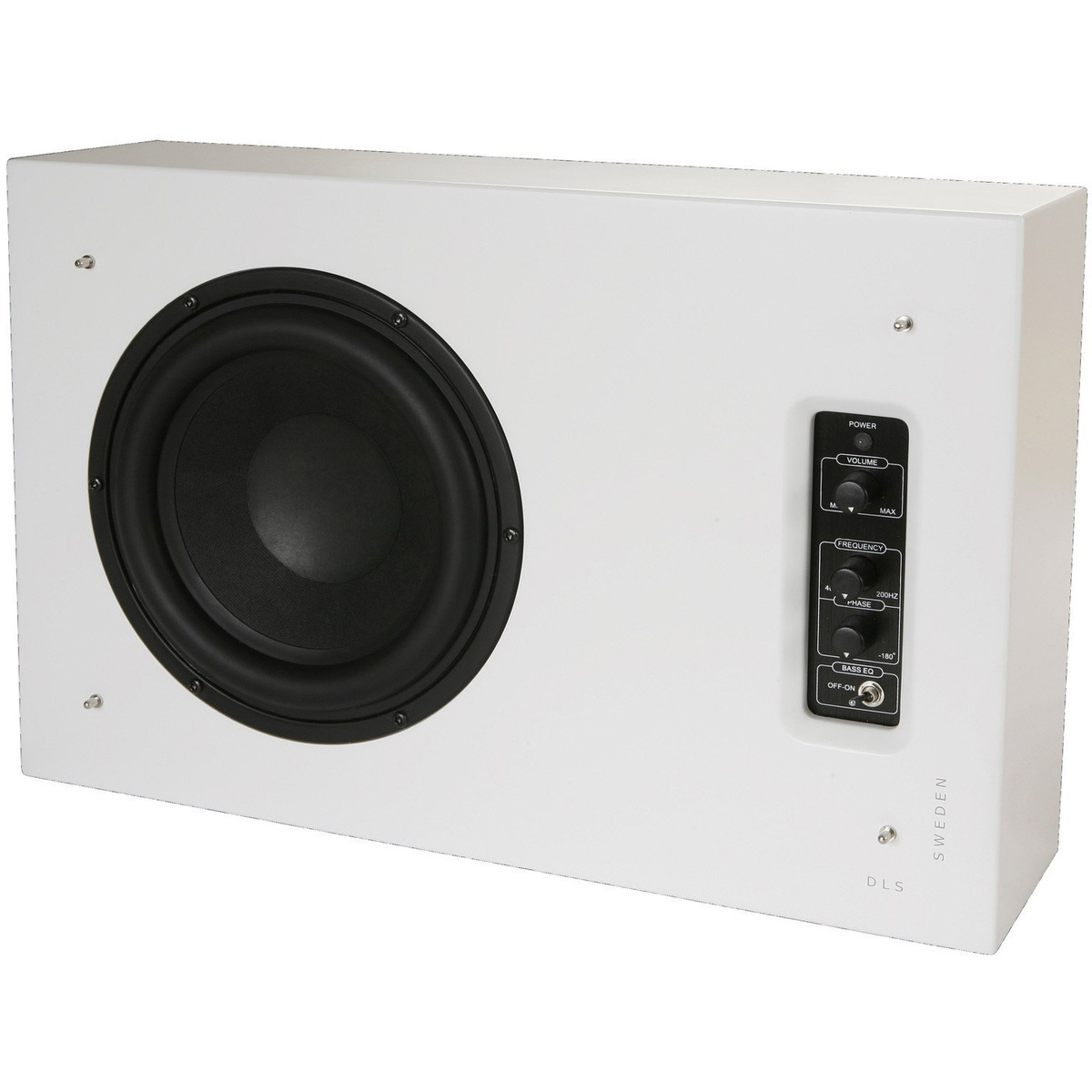

The Flatsub 8.2 matches all DLS speakers superbly. Thanks to the variable volume level, the the low-pass filter along with the phase shift control, you can adapt it to any listening environment and any speaker setup.

Built-in digital 250 Watt amplifier.

BASS EQ filter giving +4 dB  @ 40 Hz.

RCA line out for easy connection to more subwoofers

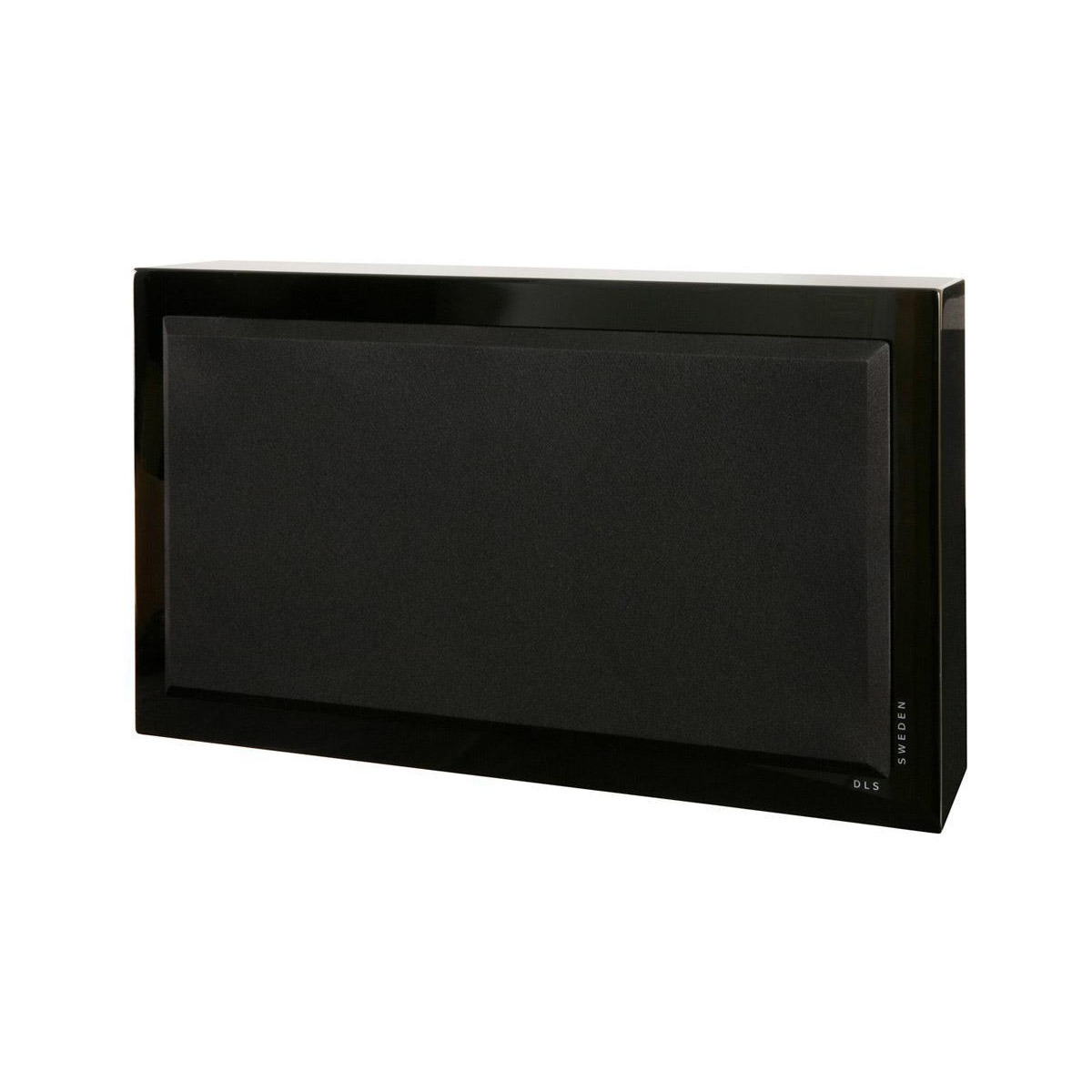

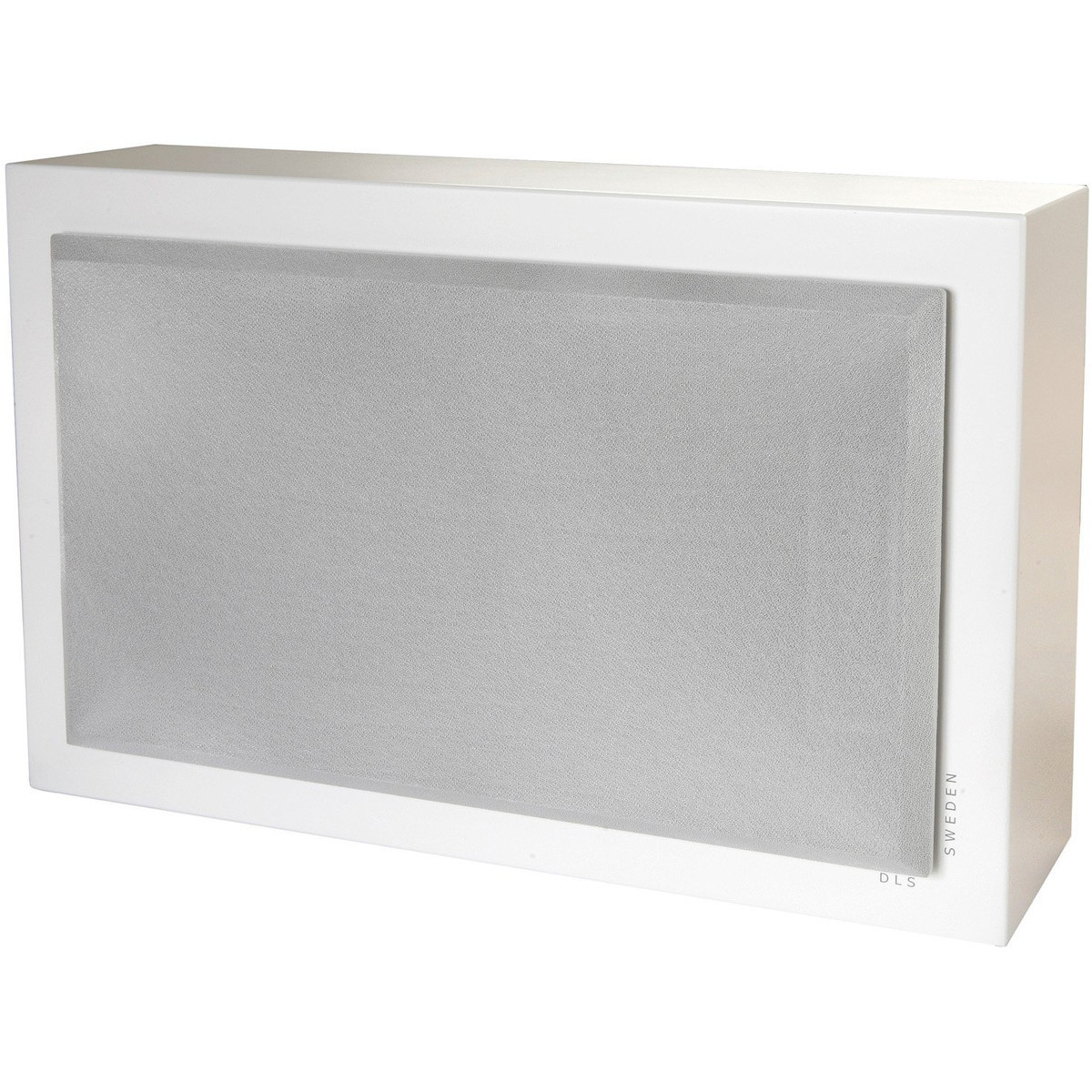

Both a white and a black front grille is included.

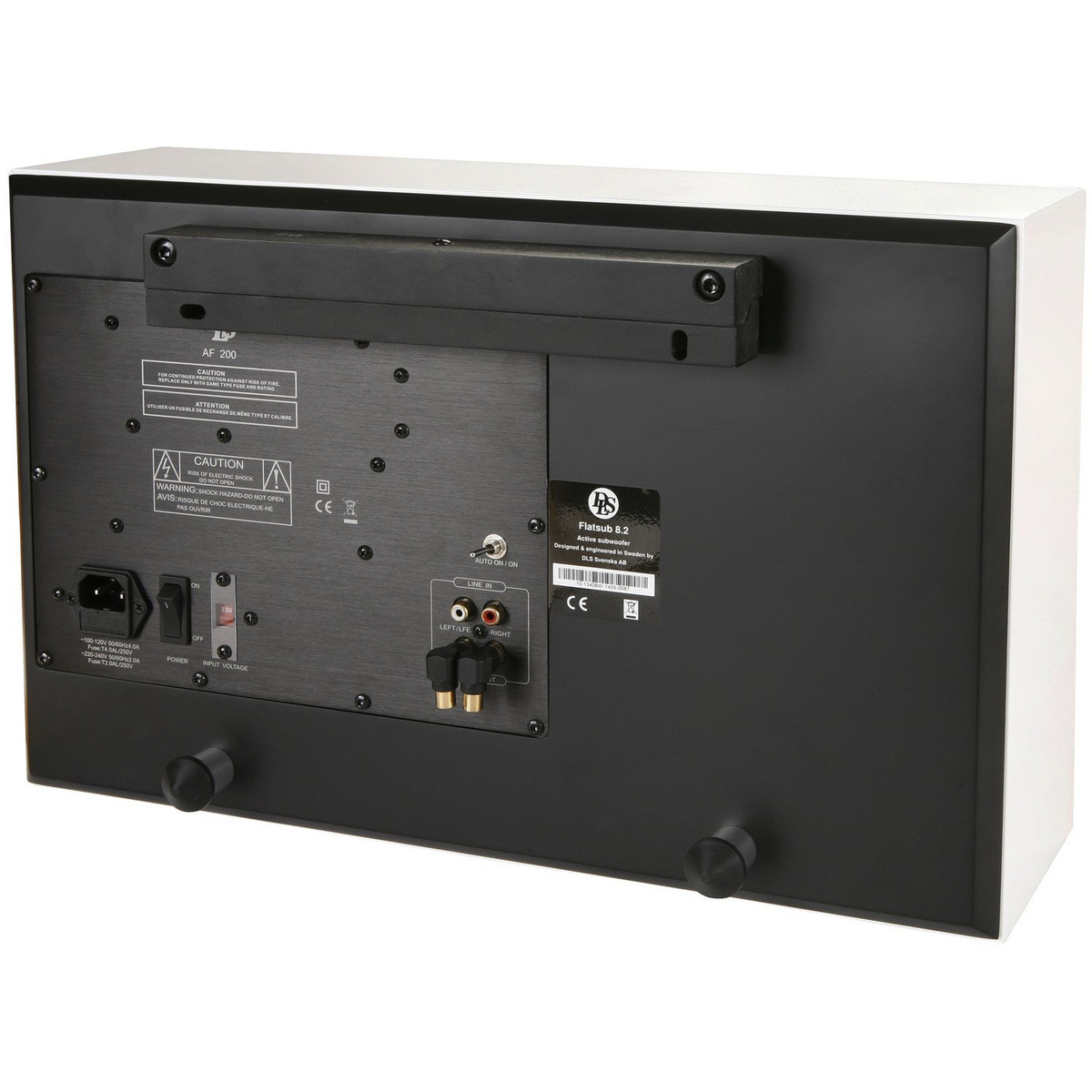

Adjustable wall bracket!

By moving the bracket on the back of the subwoofer, it can be hung horizontally or vertically.

Specifications

• Description / type Active subwoofer for wall mount
• Amplifier Digital 250 Watts
• Woofer size 8"
• Frequency range 25 - 200 Hz
• Phase control for subwoofers 0-180 degrees cont. variable
• Finish / colour White silk finish or black high gloss
• Amplifier class D
• Low pass filter 40 - 200 Hz
• High pass filter  25 Hz
• Grand bass filter Bass EQ +4 dB@40 Hz
• Low level input Yes
• High level input with auto start No
• Dimension (W x D x H) 465 x 171 x 300 mm / 18,3" x 6,73" x 11,8"
• Weight 6,5kg / 14,3 lbs
