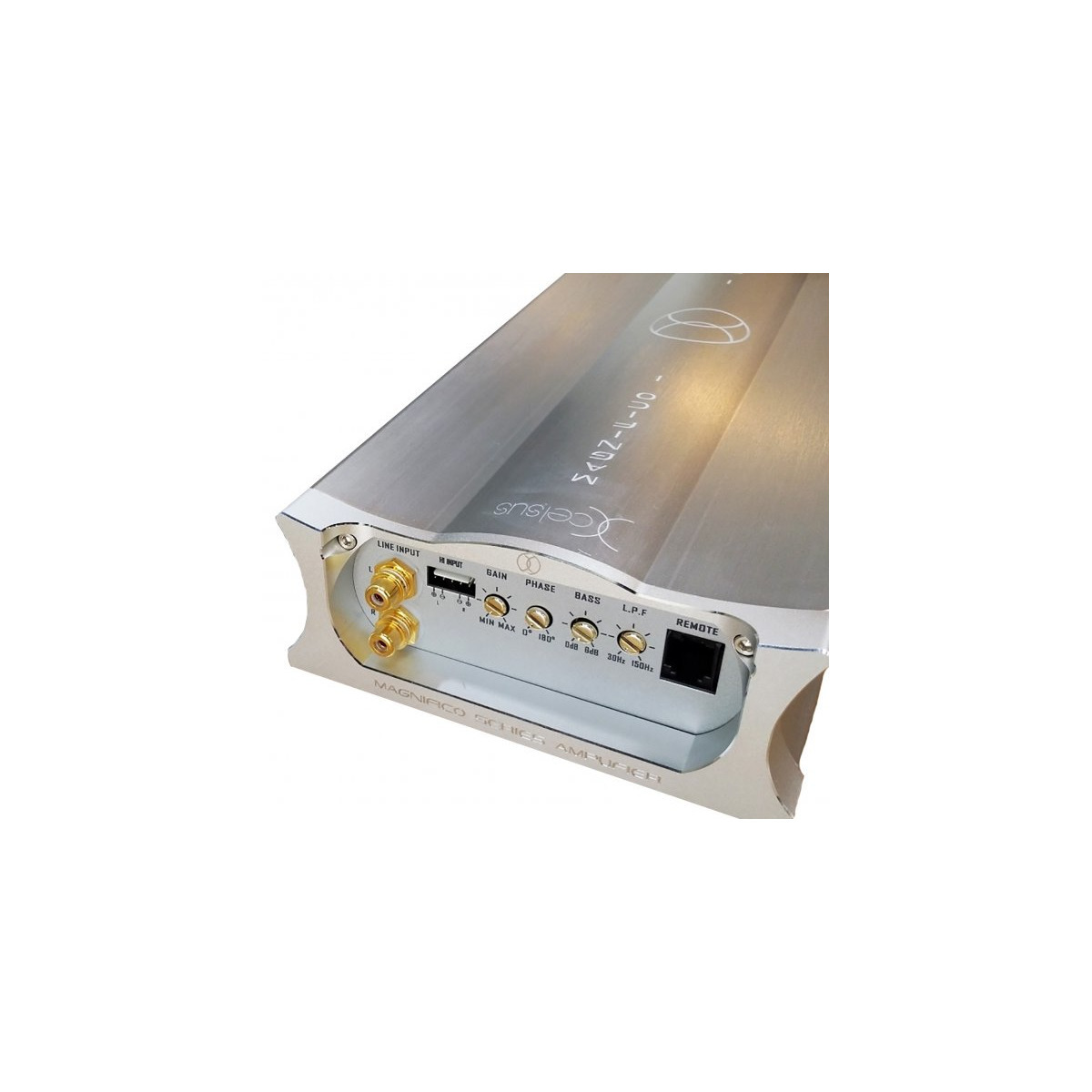

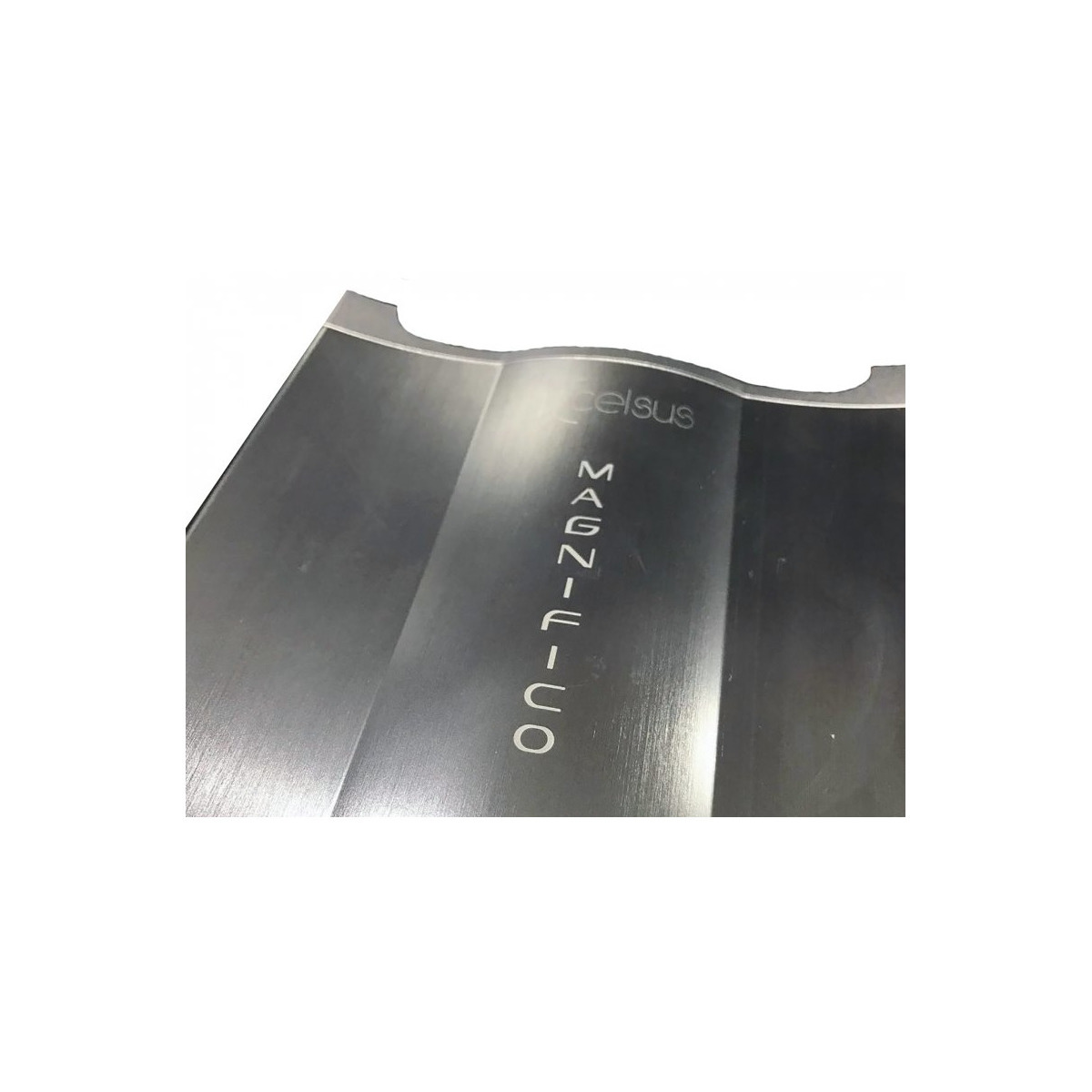

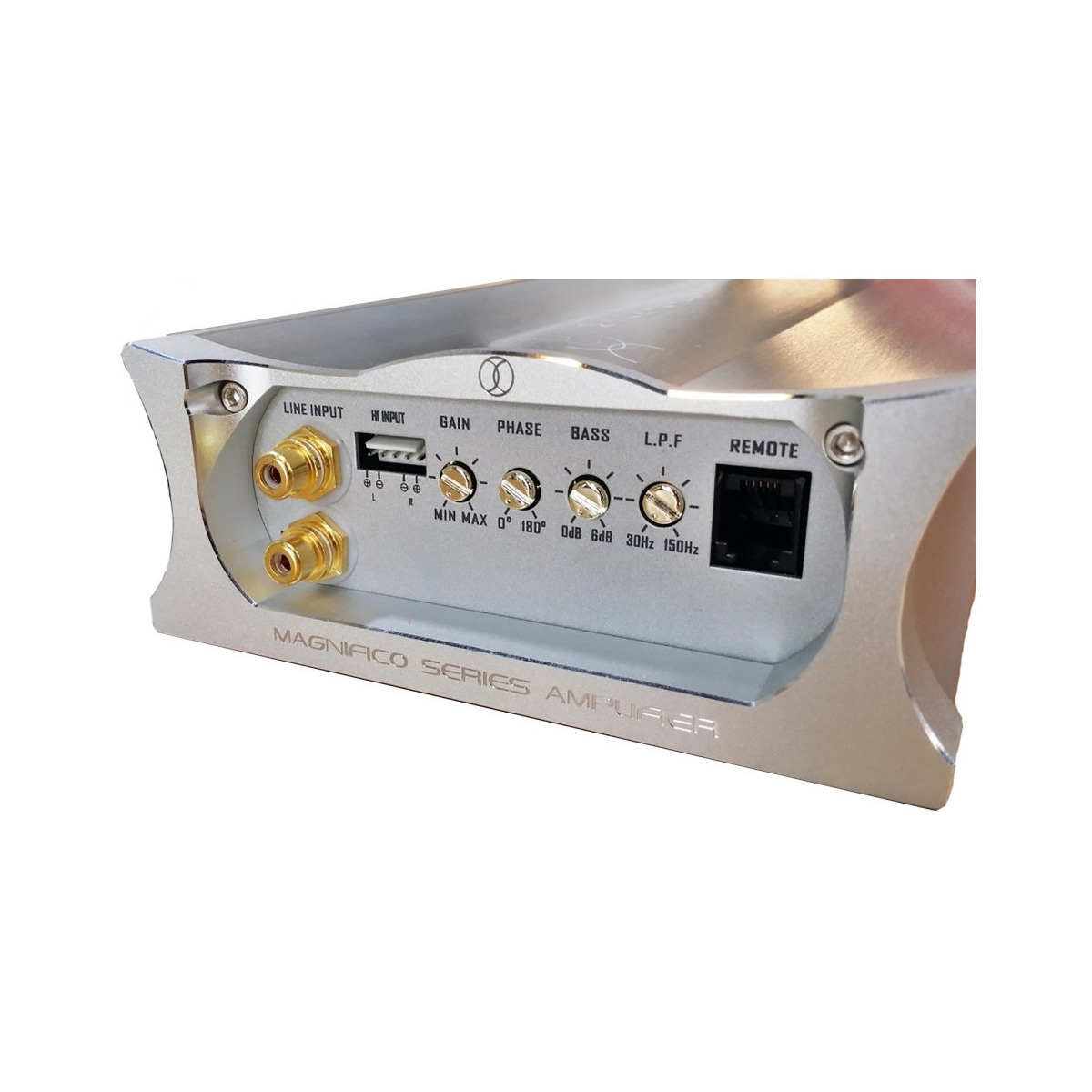

Xcelsus Magnifico 1 Car Amplifier

Overview

Magnifico 1 is a mono amplifier that can satisfy the most discerning music lover. The selected components and sound settings are designed by famous ULTIMATE; REFEENCE and TA-2 amplifiers. It guarantees optimum sound quality.

Specifications

• Number of channels 1
• Amplifier class D
• Power at 4 Ohm (RMS) 450 watts
• Power at 2 Ohm (RMS) 750 watts
• Power at 1 ohm load (RMS) 1000 watts (1250 watts  in Peak)
• Signal to noise ratio, weighted average 92 dB
• Attenuation coefficient 154
• Operating frequency range 10-500 Hz
• Input impedance, low 22000 ohm
• Input impedance, high level 45 ohm
• Input sensitivity 1-4 V
• High level entrance With automatic start
• Low pass filter with a slope of 24 dB 30-250 Hz
• Bass boost @ 60 Hz 0 ... + 6 dB
• Phase inverter  0-180 degrees
• Remote Subwoofer Gain Control Yes, with a 5 meter cable
• Recommended power cable thickness not less than 33 mm2
• Recommended sound cable thickness not less than 10 mm2
• Standby Current Consumption 0.6 (0.3) A
• Maximum current 102 A
• Built-in cooling fan Yes
• External fuse 100 A
• Internal fuse Not
• Supply voltage 12 v
• Dimensions 54 x 135 x 348 mm
• Weight 2.9 kg
